ALLNET point-to-multipoint 2-wire G.now CPE, 2x GbE ports with PoE IEEE802.3bt 90W per port ALL-G.now-109SP

ALLNET

Prices excl. VAT plus shipping costs

Product number: 253100

EAN: 4038816159137

Manufacturer Number: ALL-G.now-109SP

Weight: 1,000 KG

Product information "ALLNET point-to-multipoint 2-wire G.now CPE, 2x GbE ports with PoE IEEE802.3bt 90W per port ALL-G.now-109SP"

ALL-G.now-109SP

G.now Wave-2 Subscriber Adapter with 1.7 Gbps & 90W PoE++ üover existing telephone line

The ALL-G.now-109SP is a high-performance G.now Wave-2 subscriber adapter for the transmission of up to 1.7 Gbps over existing analogue telephone lines (2-wire). The ideal solution for fast network upgrades in existing buildings - without any new cabling.

Important: The matching G.now DSLAM/Master ALL-G.now109M-2wire-16 is required for operation.

The ALL-G.now-109SP is the client/subscriber counterpart to the ALL-G.now109M-2wire-16.

Use existing telephone line twice – data & analogue telephony simultaneously

A particular advantage of this solution is the parallel use of the existing analogue extension line right into the room.

Thanks to the integrated POTS splitter,

Analogue telephony (extension)
G.now high-speed data transmission

can be operated simultaneously via the same 2-wire cable

This makes the ALL-G.now-109SP ideal for:

Hotels
Hospitals
Residential homes
Buildings
MDU/MTU environments

Existing telephone cabling remains fully usable – without interfering with the analogue infrastructure.

High-speed over 2-wire copper

Thanks to modern MIMO technology and OFDM modulation, the adapter achieves:

Up to 1.7 Gbps data rate
Ranges of up to 600 metres
Stable transmission over existing telephone cabling

The solution works coexistently with ADSL, VDSL and G.fast, so that existing services are not disrupted.

Integrated 90W PoE++ (IEEE 802.3bt)

The ALL-G.now-109SP has two Gigabit LAN ports with IEEE 802.3bt (Type 3 & 4) and delivers up to 90 watts per port for powerful end devices.

Ideal for:

PTZ IP cameras
WiFi 6 / WiFi 7 access points
Thin clients
Digital signage
High-power IoT devices

Supports both end-span and mid-span configurations.

Optimised for professional network installations

In combination with the ALL-G.now109M-2wire-16 DSLAM/Master, a powerful IP access platform for MDU/MTU structures is created.

Other features:

IGMP (IPv4) & MLD (IPv6) snooping for IPTV optimisation
Integrated overvoltage protection for long-term reliability
LED indicators for link status and line quality
CE, FCC and RoHS certified

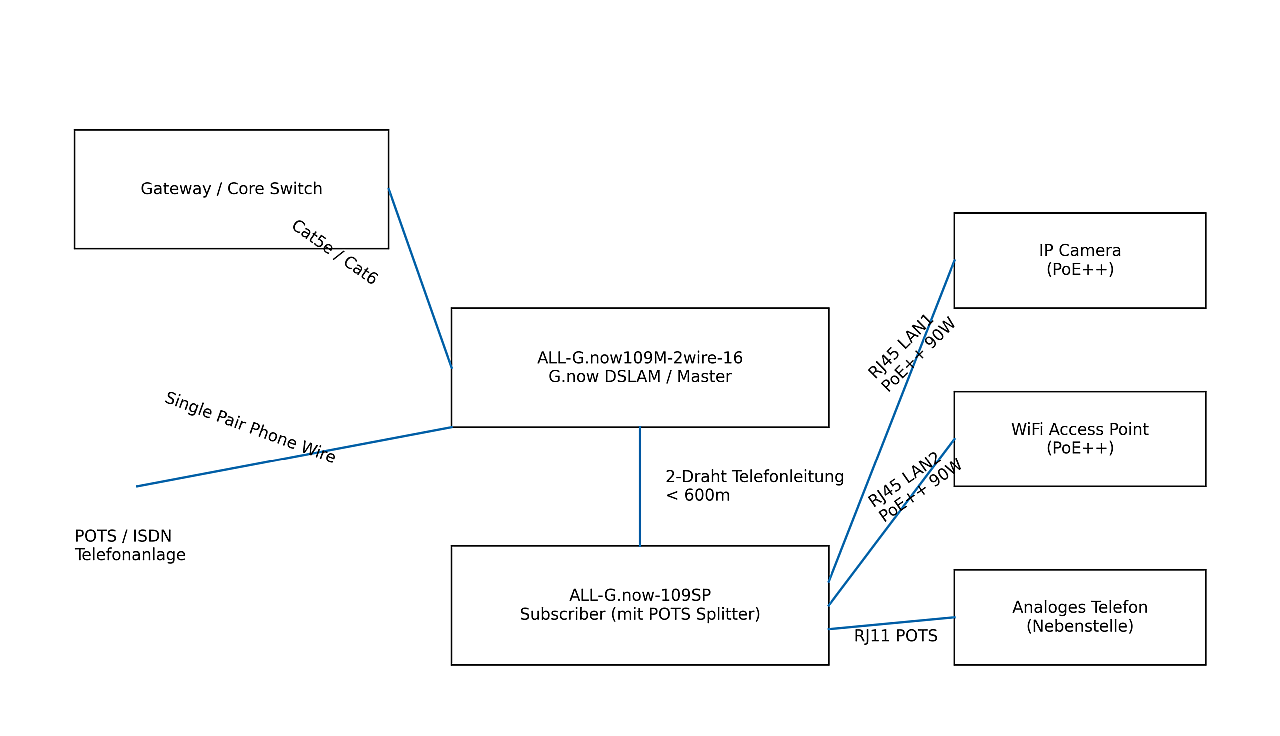

System design

Central technology room:
ALL-G.now109M-2wire-16 (DSLAM/Master)

Room / floor:
ALL-G.now-109SP (Subscriber/Client)

&p>The existing 2-wire extension line is used to simultaneously:

Analogue telephony
Gigabit network
PoE supply for end devices

provided – without laying new cables.

Your advantages at a glance

Utilisation of existing telephone cabling
Simultaneous analogue telephony & broadband thanks to integrated POTS splitter
Up to 1.7 Gbps data rate
90W PoE++ per port
Ideal for hotels, residential complexes & office buildings
Only works in combination with ALL-G.now109M-2wire-16

Technical data:

Feature	Specification
Max. Data rate	1.7 Gbps
Max. Range	600 m via 1x telephone line
LAN ports	2 x RJ-45 Gigabit
PoE	IEEE 802.3bt (Type 3 & 4), up to 90W per port
Line port	1 x RJ-11 (G.hn)
Splitter Port	1 x RJ-11 (POTS)
Frequency range	5 MHz – 200 MHz
Power consumption	6 W (without PoE load)
Operating temperature	0°C to +50°C
Dimensions	130 x 94.5 x 27 mm
Scope of delivery	1x ALL-G.now-109SP 1x 230W standard power supply 1x QIG quick start guide

ALLNET Point-to-multipoint 2-wire G.now 16-port DSLAM/main telephony line unit ALL-G.now109M-2wire-16
