MEANWELL Netzteil - 24V 40W Hutschiene
Product number:
246452
EAN:
4711287422022
Manufacturer Number:
MDR-40-24
Weight:
0,300 KG
Product information "MEANWELL Netzteil - 24V 40W Hutschiene"
Universal power supply unit MDR-40-24
Input: 85-264VAC, 120~370VDC
Output: 1.7, 24VDC, 40W
Vo adj range: 24~30V

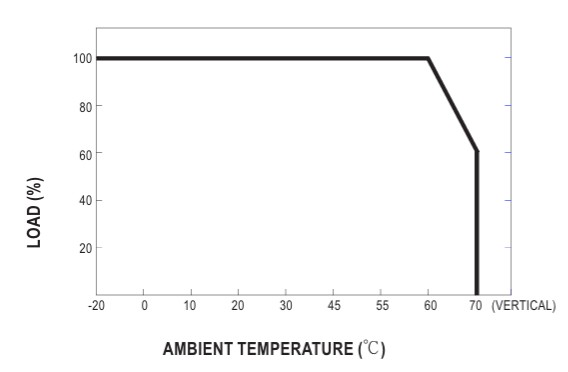

Operating temperature: -20°C to +70°C

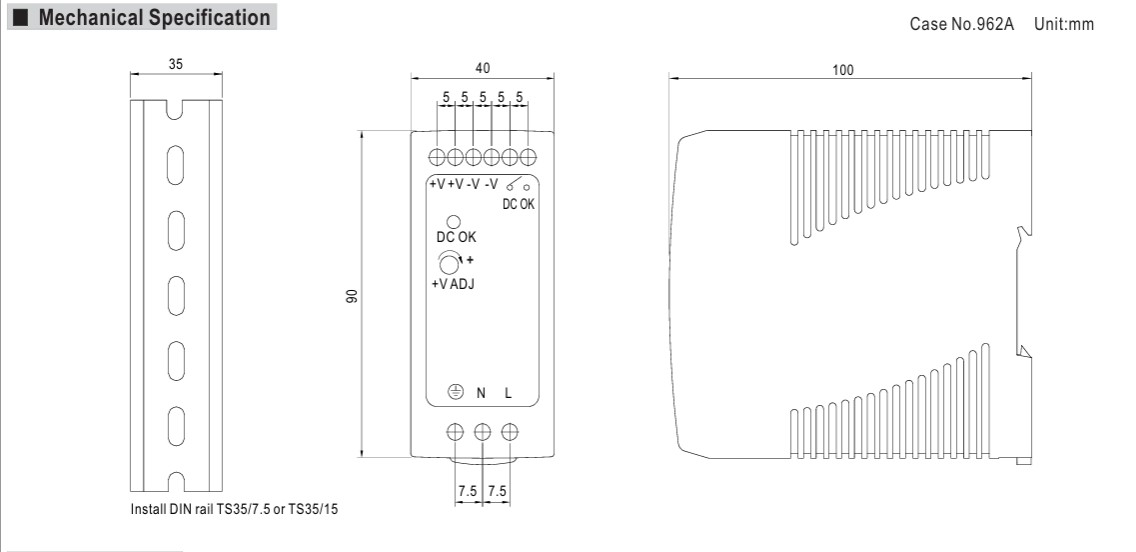

LxWxH: 40*90*100mm
Connection via screw terminals
For further details please refer to the data sheet
The connection of electrical components and systems may only be carried out by
qualified specialists! qualified specialists!
Article properties
| Ampere (CC): | 1,7 A |
|---|---|
| Betriebstemperatur: | -20 bis +70 Grad |
| Dimmbar: | nein |
| Gehäusefarbe: | blau/beige |
| Grösse: | 40*90*100 mm |
| Konstantstrom oder Konstantvolt: | CV |
| LED - Gehäuseform: | Hutschiene |
| Produktname: | Netzteil 24V |
| Schutzklasse: | IP20 |
| Volt: | 24 Volt |
| Watt: | 40 W |
Synergy 21 top-hat rail / DIN rail
Length: 1m
Material: steel
perforated
35mm x 7,5mm
Product number:
110942
Manufacturer Number:
S21-LED-000645
Stock:
0x
Not in stock
