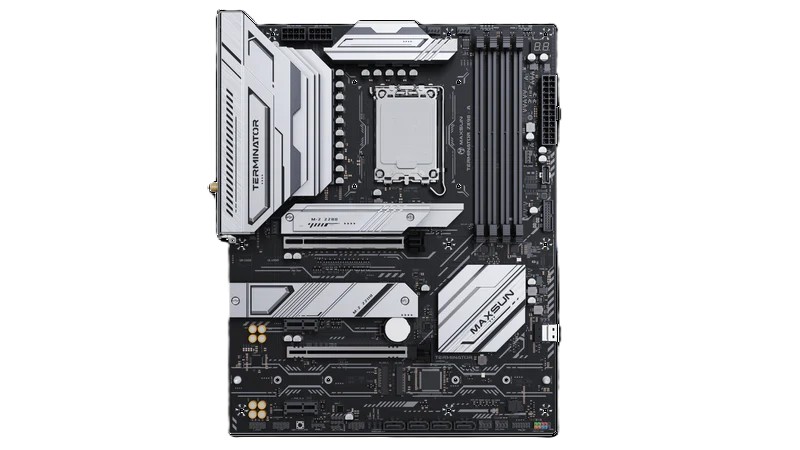

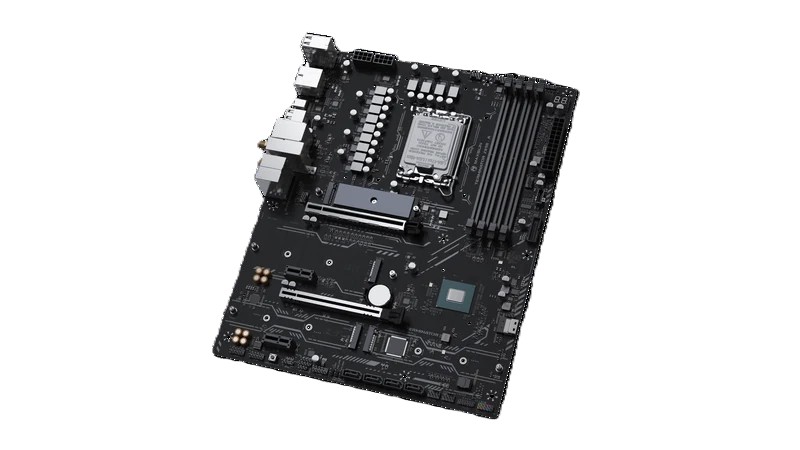

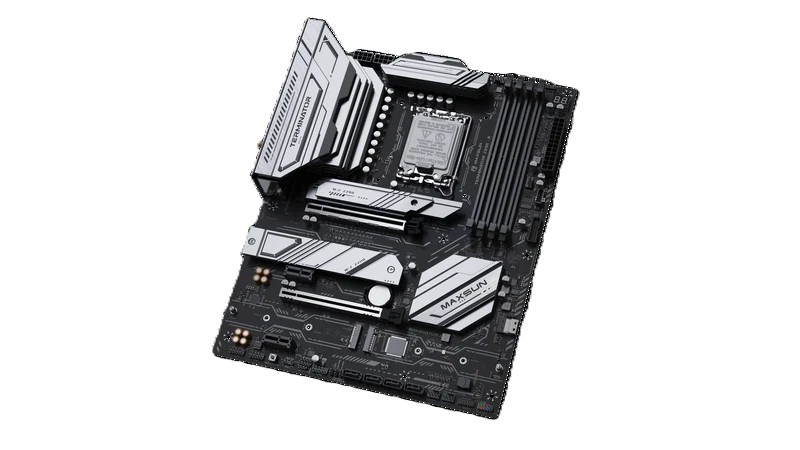

Powerful, versatile, future-proof – MS-Terminator Z890-A WLAN

With the MS-Terminator Z890-A WLAN, you get a high-end ATX motherboard that has been specially developed to meet the demanding requirements of gaming and workstations. Thanks to the Intel® Z890 chipset, DDR5 memory support and state-of-the-art connectivity, this board provides the ideal foundation for high-performance, next-generation systems.

Key features at a glance:

• Latest platform: Intel® LGA1851 socket for Intel® Core™ Ultra processors
• Maximum memory capacity: 4x DDR5 slots with up to 256 GB and 8800 MHz (OC)
• High-speed connectivity: PCIe 5.0 x16 and four M.2 slots for high-speed storage
• State-of-the-art connectivity: Integrated 2.5 Gb Ethernet, Wi-Fi 6 and Bluetooth 5.2

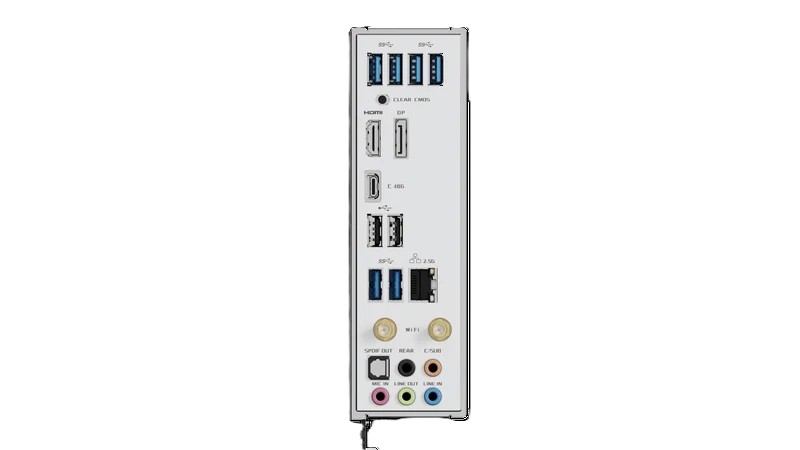

• Versatile ports: 14 USB ports, including USB-C at 40 Gbit/s
• Customisable aesthetics: RGB lighting and customisable front panel

Features that impress

The MS-Terminator Z890-A WLAN is based on the Intel® Z890 chipset and thus offers full support for the latest Intel® Core™ Ultra processors in the LGA1851 form factor. With four DDR5 DIMM slots and dual-channel support, the board can accommodate up to 256 GB of RAM at clock speeds of up to 8800 MHz in overclocked mode – ideal for gaming, content creation and professional applications alike.

Expansion and storage – no compromises

With one PCIe 5.0 x16 slot, plus an additional PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots, the system can be flexibly expanded with graphics cards and expansion cards. When it comes to storage, the board boasts four M.2 slots (up to PCIe 5.0 x4), four SATA 6 Gb/s ports and an additional SFF-8654-4i interface for maximum flexibility in data storage.

Connectivity that impresses

The MS-Terminator Z890-A WLAN is equipped with 2.5 Gb Ethernet and an integrated Intel® AX201 module for Wi-Fi 6 and Bluetooth® 5.2. This ensures high-speed wired and wireless connections at all times. The 14 USB ports – including a rear USB-C port with speeds of up to 40 Gbit/s – allow numerous peripherals to be connected simultaneously.

Display and Audio

HDMI 2.0 (4K@60Hz) and DisplayPort 1.4 (4K@120Hz) are available for video output. The integrated Realtek ALC897 audio chip, with six audio jacks, delivers rich, clear sound.

Customisable down to the last detail

RGB lighting, a customisable front panel and a handy CLR_CMOS button round off the features. Multiple fan connectors, along with a 24-pin ATX and two 8-pin +12V power connectors, ensure a stable power supply and efficient cooling even under full load.

Technical specifications:
