Synergy 21 LED Controller 2in1 Single colour/dual white (CCT) dim DC12/24V Matter Over WiFi+2.4GHz *Milight/Miboxer*
Product number:
250078
EAN:
4038816153517
Manufacturer Number:
SM2
Weight:
0,041 KG
Product information "Synergy 21 LED Controller 2in1 Single colour/dual white (CCT) dim DC12/24V Matter Over WiFi+2.4GHz *Milight/Miboxer*"

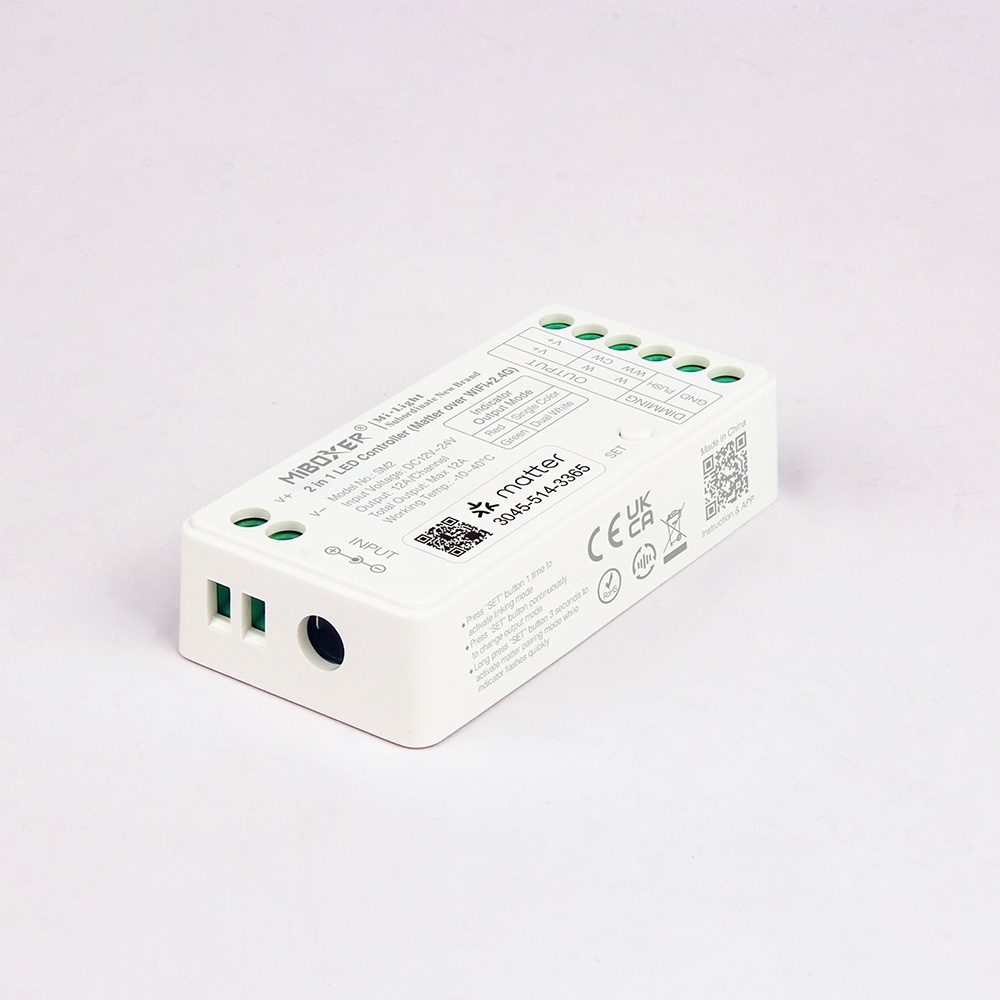

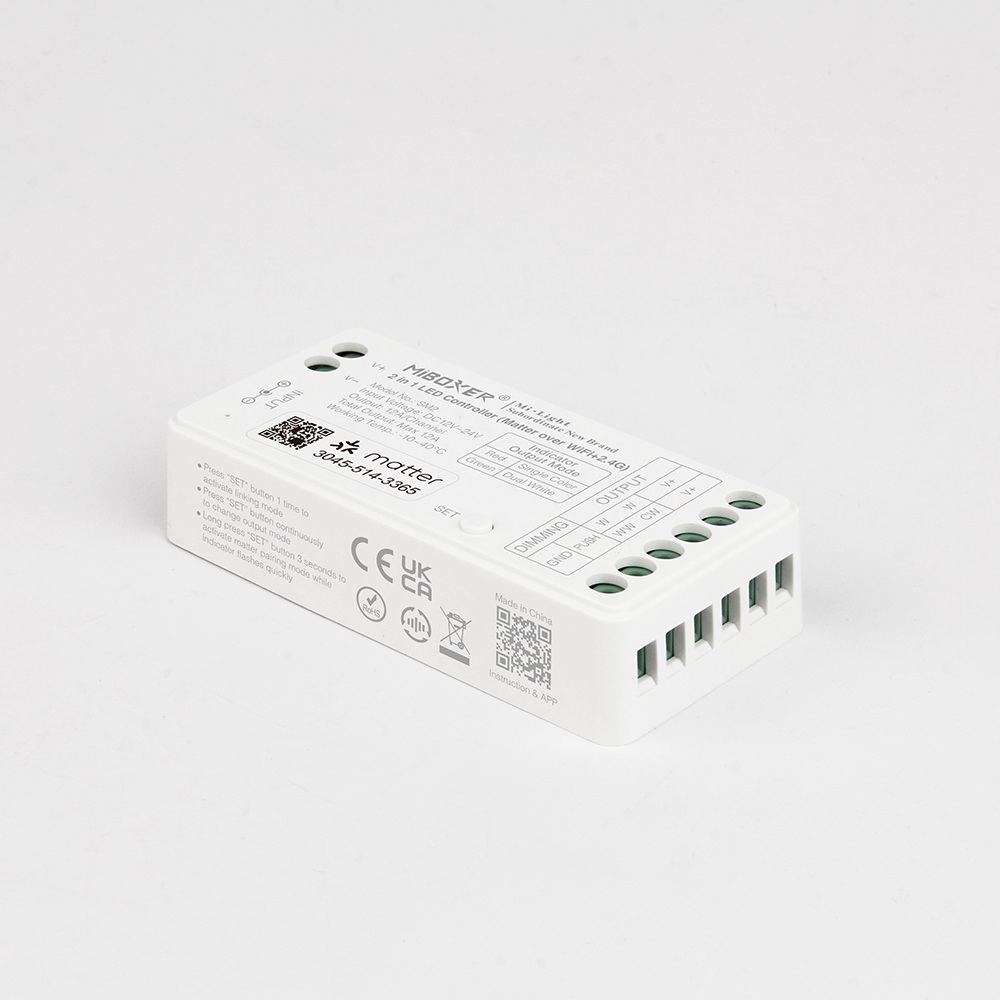

Synergy 21 SM2 – 2 in 1 LED Controller (Matter Over WiFi + 2.4GHz)
The SM2 LED controller from Synergy 21 combines state-of-the-art control technology with maximum compatibility. Thanks to the Matter standard protocol and dual wireless technology (WiFi + 2.4GHz RF), the controller can be seamlessly integrated into a wide range of smart home systems for future-proof and flexible lighting control.
Highlights:
- Certified Matter protocol: Supports the new Matter standard for cross-platform smart home compatibility.
- Broad compatibility: Works with products from a wide range of brands within the Matter ecosystem.

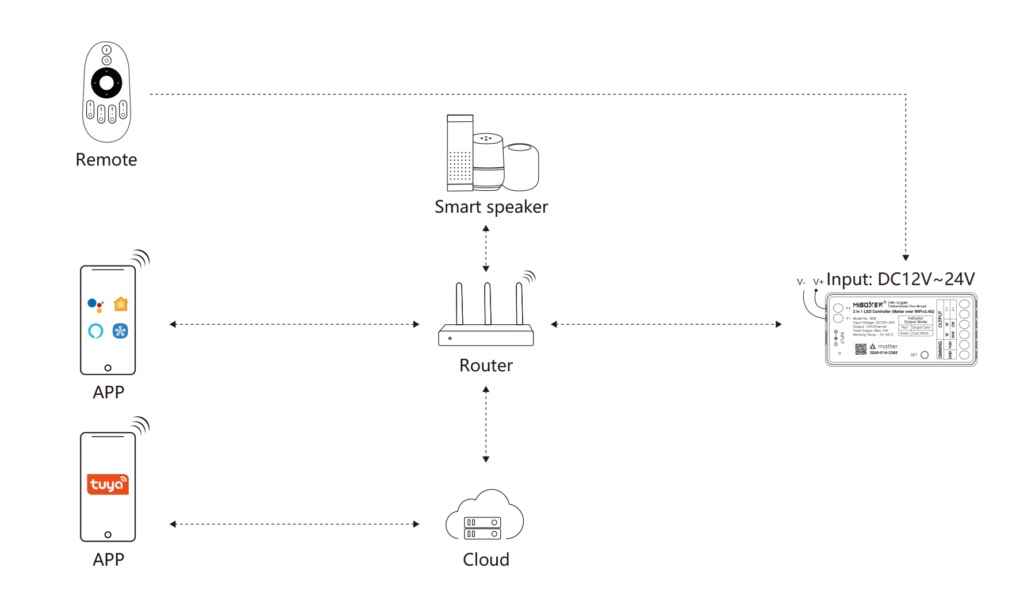

- Dual technology: Controlled via WiFi and 2.4GHz RF – ideal for local and cloud-based applications.
- Easy setup: Quick pairing via QR code – intuitive and user-friendly.
- Voice control: Compatible with Siri, Google Assistant and Amazon Alexa.

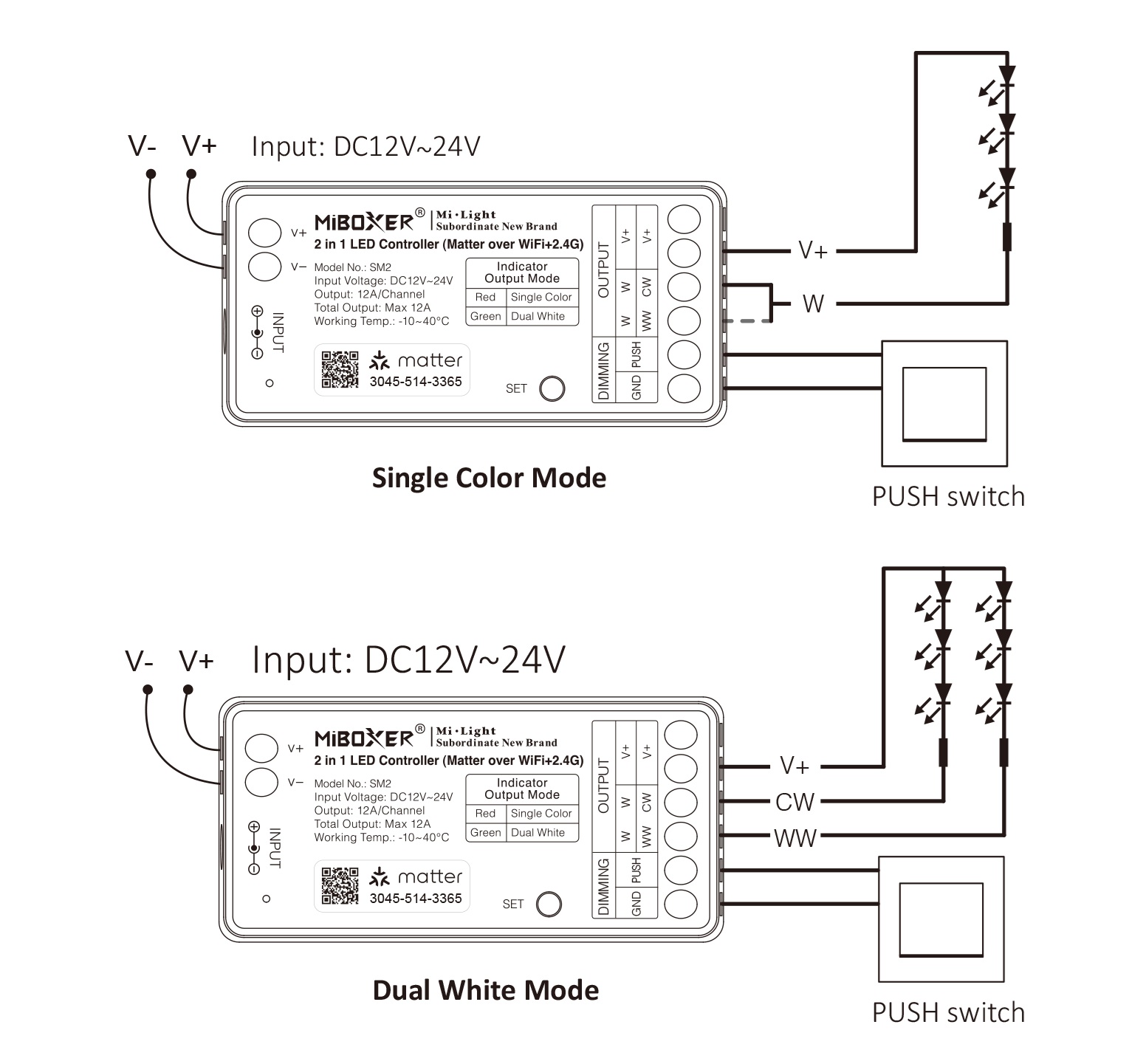

- Flexible lighting control: Supports single channel (single colour) and CCT (colour temperature) LEDs.
- Scene control: Presets for different lighting scenes can be saved and recalled.
- Multi-mode control: Control of up to 12 remote controls simultaneously (range: 30 metres).
- Auto-Transmitting: Automatic signal forwarding between controllers – for unlimited range.
- DND mode: Energy-saving function for areas at risk of power failure.
- Magnetic attachment: For easy and flexible installation.
Technical data:
- Product name: 2 in 1 Controller (Matter Over WiFi + 2.4GHz)
- Model number: SM2
- Input voltage: DC 12–24 V
- Output current: 12 A / single channel
- Total output: max. 12 A
- Protocol: WiFi + 2.4G RF
- WiFi standard: IEEE 802.11b/g/n (2.4 GHz)
- Control distance (RF): up to 30?m
- IP protection class: IP20
- Operating temperature: -10°C to +40°C
- EMC standard (EMC):
- ETSI EN 301 489-1 V2.2.3 (2019-11)
- ETSI EN 301 489-3 V2.3.2 (2023-01)
- Safety standard (LVD):
- EN 61347-1:2015 + A1:2021
- EN 61347-2-11:2001 + A1:2019
- Radio standard (RED): ETSI EN 300 440 V2.2.1
- Certifications: CE, EMC, RED
The SM2 controller is the perfect choice for anyone looking for a modern, flexible and future-proof LED control solution
Compatible with the leading smart home platforms
Article properties
| Betriebstemperatur: | -10~40°C Grad |
|---|---|

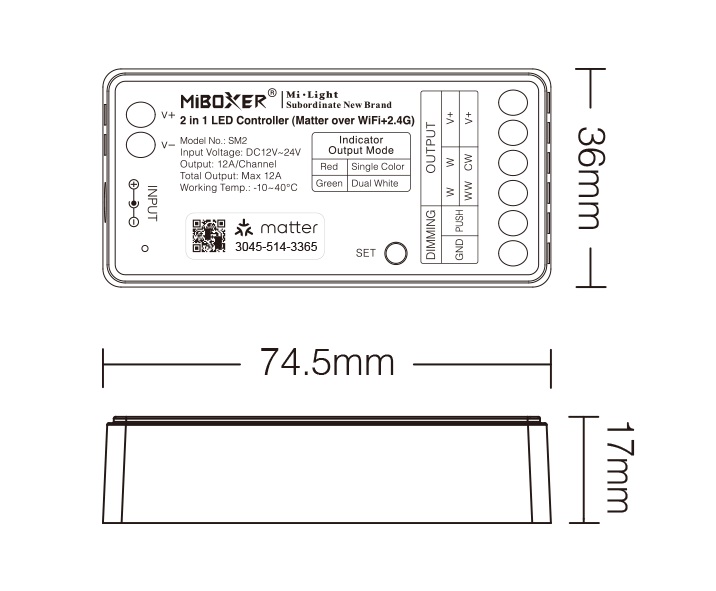

| Grösse: | 75,5x36x17 mm |
| Konstantstrom oder Konstantvolt: | CV |
| Produktname: | Matter-Serie |
| Volt: | 12/24 Volt |
