Synergy 21 LED Controller 4-Channel Amplifier *Milight/Miboxer*
Product number:
250073
EAN:
4038816153487
Manufacturer Number:
PA4
Weight:
0,080 KG
Product information "Synergy 21 LED Controller 4-Channel Amplifier *Milight/Miboxer*"

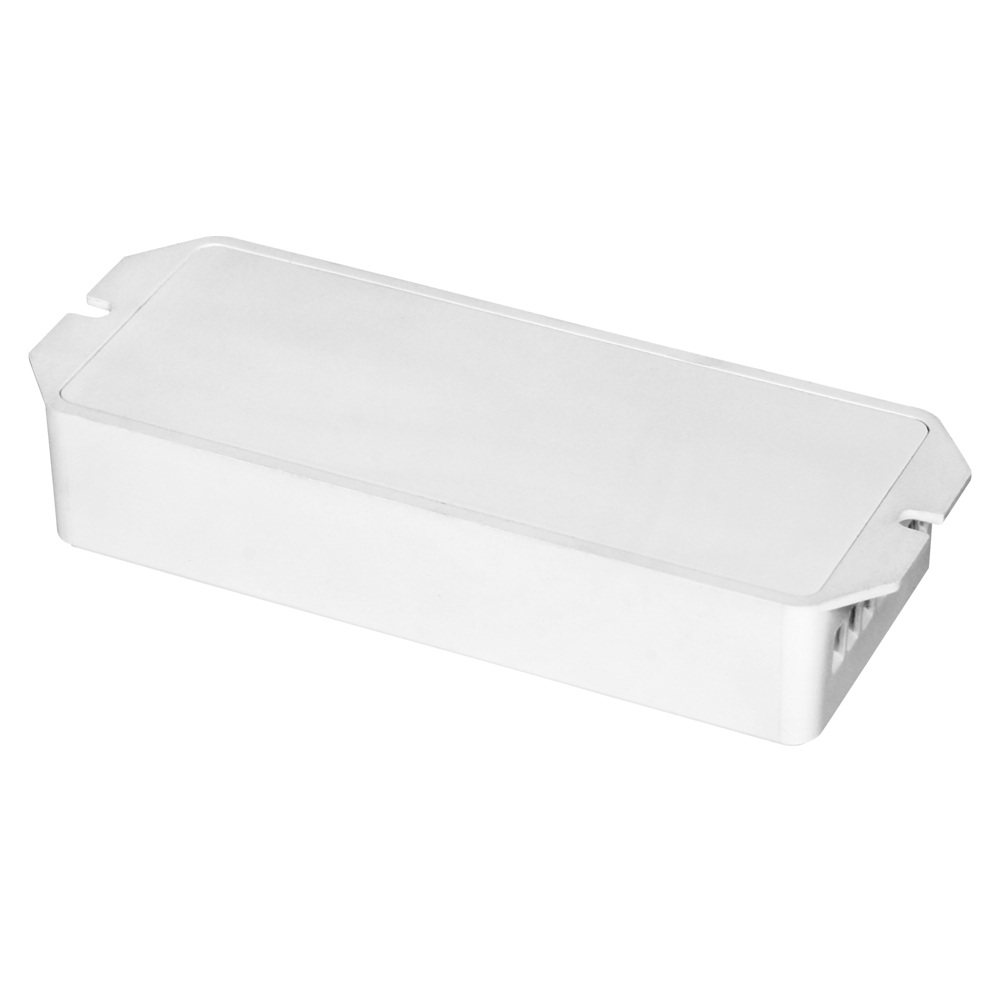

PA4 – 4-channel high-performance amplifier for LED systems
The PA4 is a powerful 4-channel amplifier for professional LED installations. It reliably expands existing control systems and ensures synchronised signal transmission with high output power. Ideal for large lighting projects with PWM-based LED controllers.
Highlights:

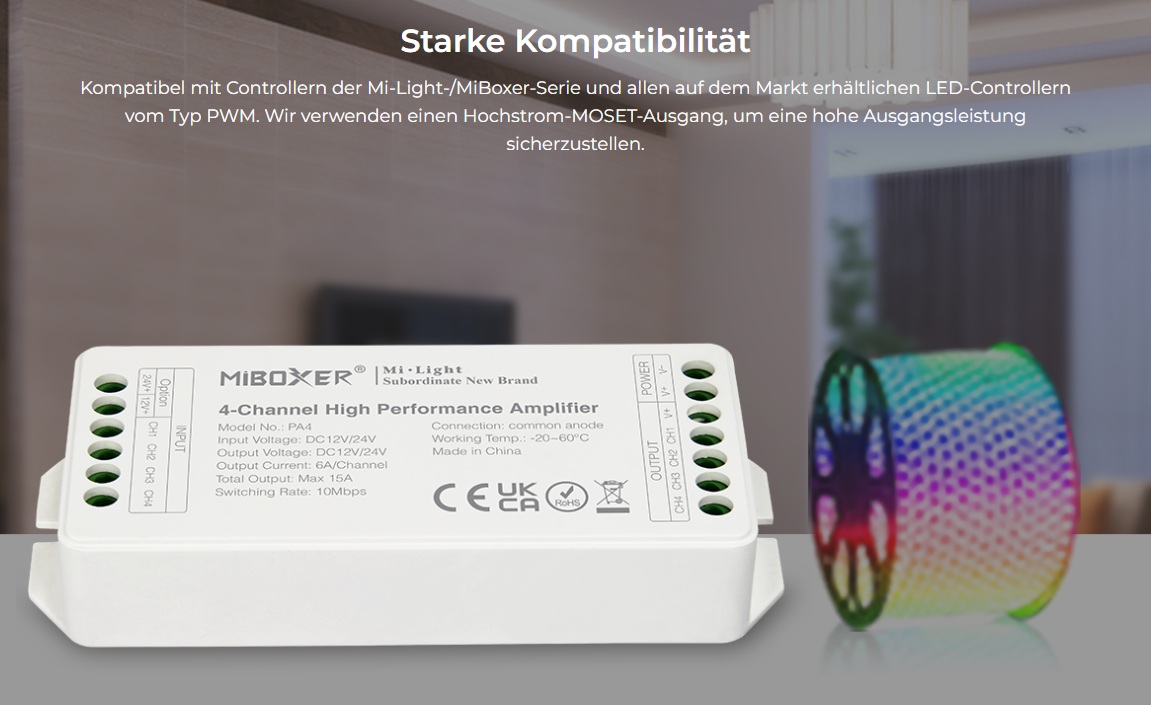

- Universal compatibility: Works with all PWM LED controllers and MiBoxer/Mi-Light products.
- Synchronous signal amplification: Passes on the signal from the main controller completely and synchronously.

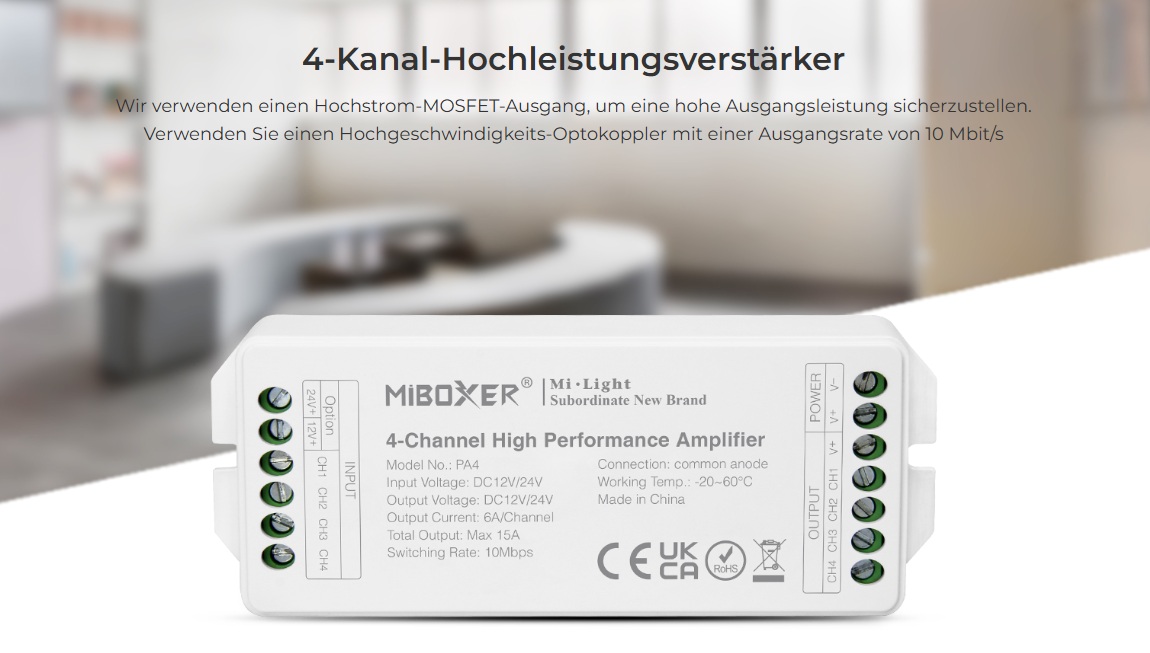

- High output power: High current MOSFET output for stable and powerful LED control.
- Fast response: High-speed optical coupler with 10 Mbps output rate.
- Compact design: Small, lightweight and easy to integrate – ideal for tight installation situations.
Technical data:
- Product name: 4-channel high-performance amplifier
- Model number: PA4
- Input voltage: DC 12/24 V
- Output voltage: DC 12/24 V
- Max. Total current: 15 A
- Switching speed: 10 Mbps
- Type of connection: Common anode
- Operating temperature: -20°C to +60°C

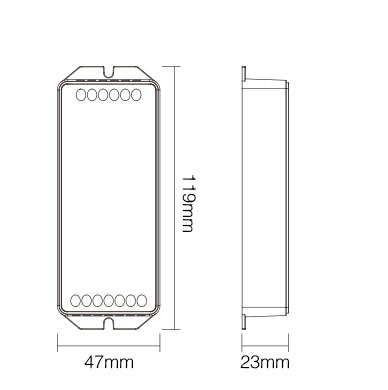

- Product size: 119 × 47 × 23 mm
- Weight: 69 g
Article properties
| Ampere (CC): | max 15 A |
|---|---|
| Gehäusefarbe: | weiß |
| Produktname: | AMP-Serie |
| Volt: | 12/24 Volt |
