Synergy 21 LED Controller 5in1 (Single Colour/CCT/RGB/RGB-W/RGB+CCT) Matter Over WiFi+2.4GHz IP20 *Milight/Miboxer*
Product number:
250080
EAN:
4038816250087
Manufacturer Number:
SM5
Weight:
0,041 KG
Product information "Synergy 21 LED Controller 5in1 (Single Colour/CCT/RGB/RGB-W/RGB+CCT) Matter Over WiFi+2.4GHz IP20 *Milight/Miboxer*"

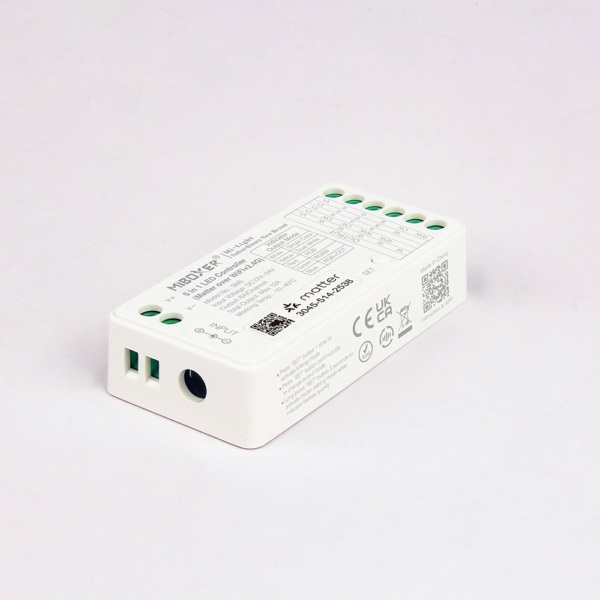

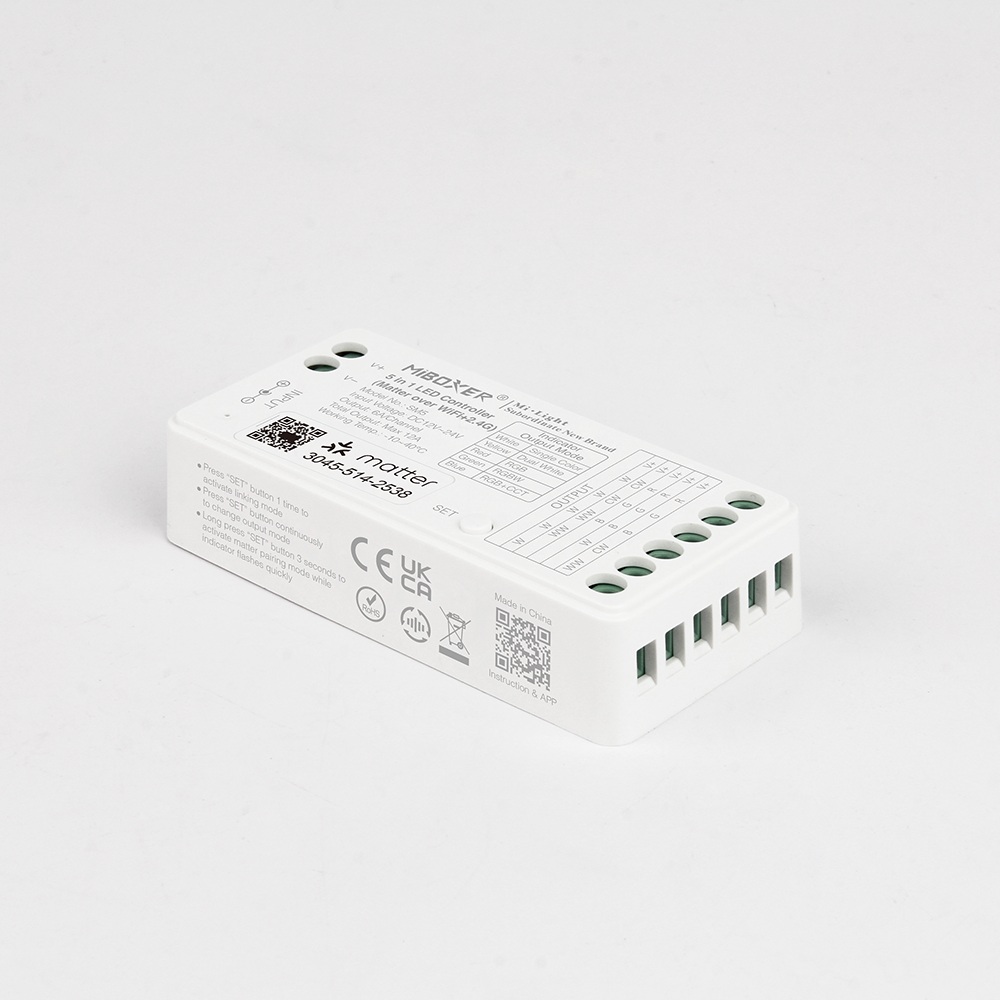

Synergy 21 SM5 – 5 in 1 LED Controller (Matter Over WiFi + 2.4GHz)
The SM5 LED controller from Synergy 21 is the versatile solution for modern lighting control. With support for the Matter standard and five LED types, it offers maximum flexibility and compatibility with leading smart home platforms. Whether single colour, CCT, RGB, RGBW or RGBCCT – the SM5 controls everything reliably and intelligently.
Highlights:
- Certified Matter protocol: Future-proof thanks to the Matter standard – compatible with Apple HomeKit, Google Home, Amazon Alexa, SmartThings, Tuya Smart and many more

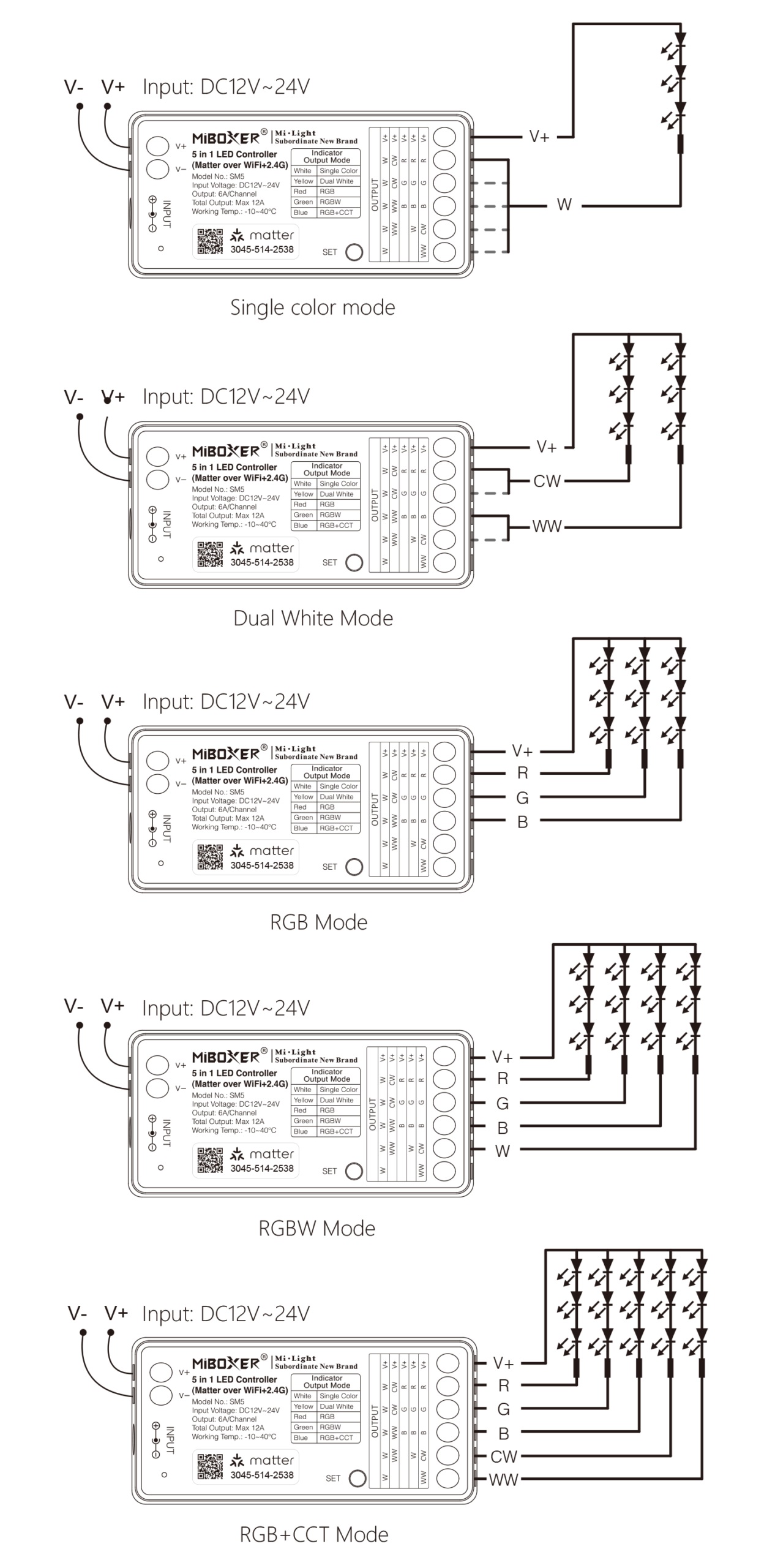

- 5 in 1 control: Supports single colour, CCT, RGB, RGBW and RGBCCT – ideal for a wide range of LED applications.

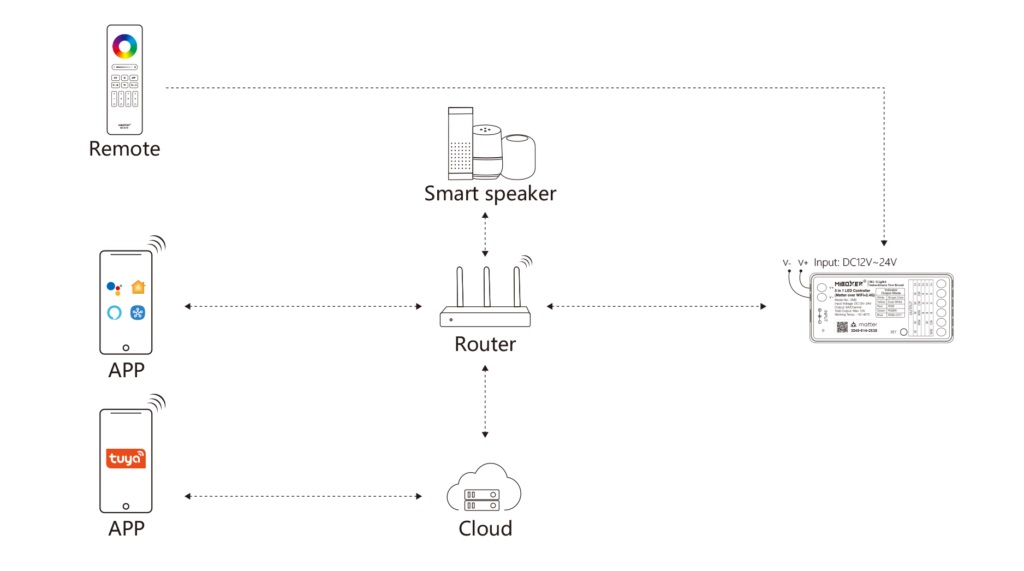

- Dual technology: control via WiFi and 2.4GHz RF – flexible for local and cloud-based systems.
- Easy setup: Quick pairing via QR code – intuitive and user-friendly.
- Voice control: Compatible with Siri, Google Assistant and Amazon Alexa.
- Scene control: Presets for different lighting scenes can be saved and recalled.
- Dynamic modes: 18 integrated effects such as jumping and fading (controllable via remote control).
- Auto-Transmitting: Automatic signal forwarding between controllers – for unlimited range.
- Auto-Synchronisation: Dynamic modes can be executed synchronously on multiple devices.
- Multi-mode control: Control of up to 12 remote controls simultaneously (range: 30 metres).
- DND mode: Energy-saving function for areas at risk of power failure.
Technical data:
- Product name: 5 in 1 Controller (Matter Over WiFi + 2.4GHz)
- Model number: SM5
- Input voltage: DC 12–24 V
- Output current: 6 A / single channel
- Total output: max. 12 A
- Protocol: WiFi + 2.4G RF
- WiFi standard: IEEE 802.11b/g/n (2.4 GHz)
- Control distance (RF): up to 30?m
- IP protection class: IP20
- Operating temperature: -10°C to +40°C
- EMC standard (EMC):
- ETSI EN 301 489-1 V2.2.3 (2019-11)
- ETSI EN 301 489-3 V2.3.2 (2023-01)
- Safety standard (LVD):
- EN 61347-1:2015 + A1:2021
- EN 61347-2-11:2001 + A1:2019
- Radio standard (RED): ETSI EN 300 440 V2.2.1
- Certifications: CE, EMC, RED
The SM5 is the perfect choice for demanding lighting projects that require maximum flexibility, simple operation and full smart home compatibility.
Article properties
| Betriebstemperatur: | -10~40°C Grad |
|---|---|

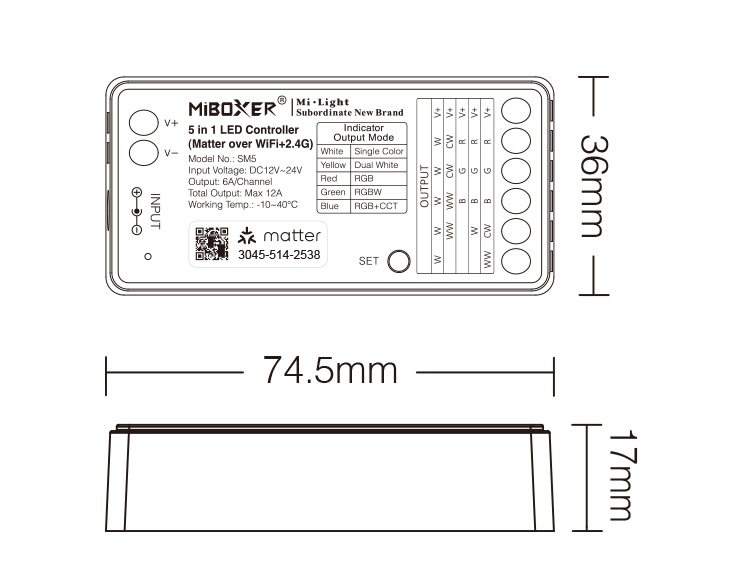

| Grösse: | 74,5x36x17 mm |
| Produktname: | Matter-Serie |
| Volt: | 12/24 Volt |
