Synergy 21 LED Controller EOS 10 ZigBee PIR Sensor 4in1
Product information "Synergy 21 LED Controller EOS 10 ZigBee PIR Sensor 4in1"
Product description
This Zigbee sensor is a battery-operated, low-power 4-in-1 device that combines a PIR motion detector, temperature sensor, humidity sensor and brightness sensor in one. The output and sensitivity of the PIR motion detector can be configured as required. If the battery capacity falls below 5 %, motion detection is deactivated and a warning is issued every hour until the battery is back above 5 %.
Functions
-
PIR motion detector according to Zigbee 3.0 standard – large detection range for reliable motion detection
-
Temperature sensor – ideal for automatically controlling heating or cooling systems
-
Humidity sensor – automates the control of humidification or dehumidification
-
Brightness sensor – enables daylight harvesting ("daylight harvesting") and saves energy through optimum light utilisation
-
Autonomous, sensor-based control – reacts independently, without constant manual intervention
-
OTA firmware upgrade – always up to date thanks to over-the-air updates
-
Wall-mounted – easy installation in the intended location
-
Suitable for indoor use – IP20 protection class ensures reliable operation in protected environments
Technical specifications
| Feature | Details |
|---|---|
| Supply voltage | 3 V DC (2 × AAA batteries) |
| Standby consumption | 10 µA |
| Radio frequency | 2.4 GHz |
| Radio protocol | Zigbee 3.0 |
| Radio range | approx. 30 m (line of sight) |
| Motion detector type | PIR (passive infrared) |

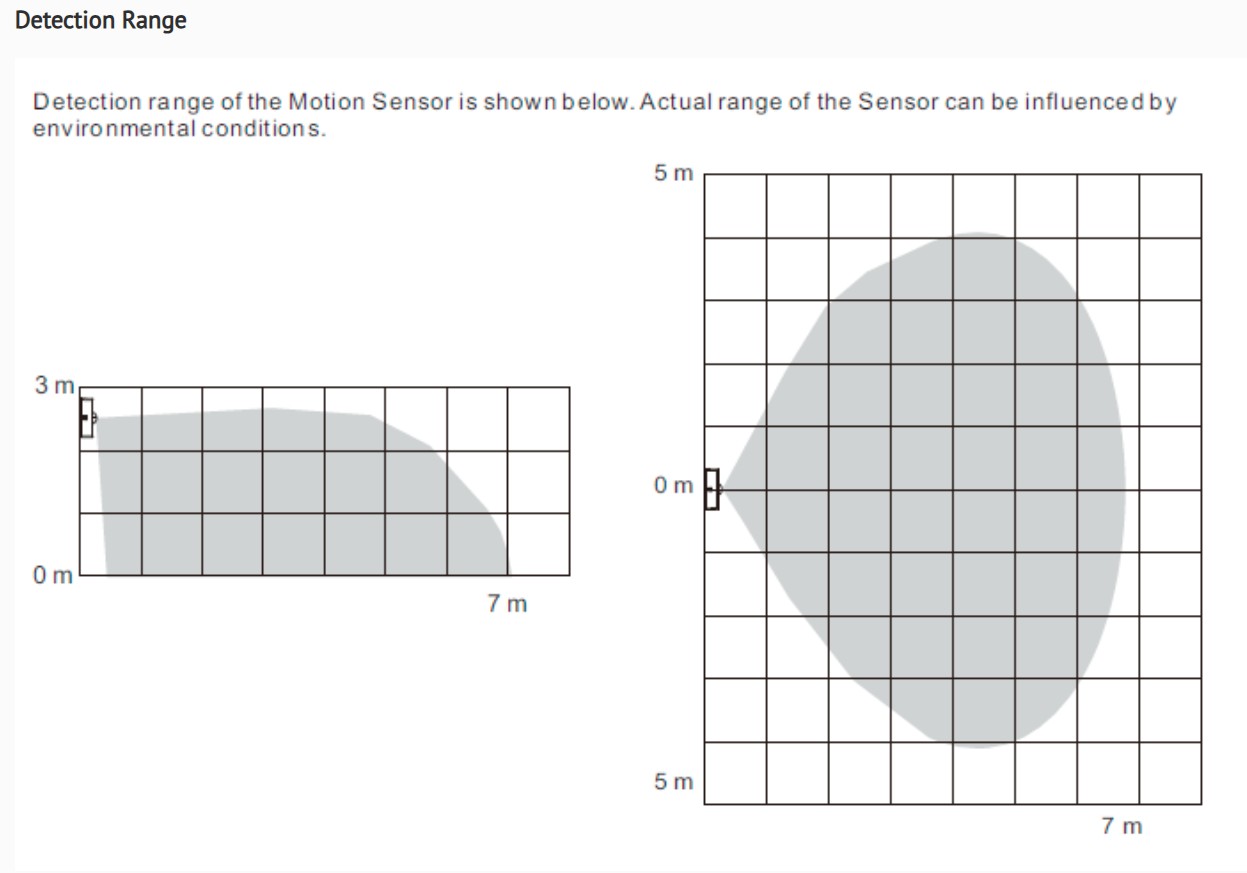

| Sensing range (PIR) | Maximum 7 m |
| Recommended mounting height | Wall mounting at approx. 2.4 m |
| Temperature range & accuracy | – 40 °C to + 125 °C, ± 0.1 °C |
| Humidity range & accuracy | 0 – 100 % rH (non-condensing), ± 3 % |
| Brightness measuring range | 0 – 10 000 lux |
| Operating temperature (indoor range) | 0 °C to 40 °C |
| Operating humidity | 0 % to 40 % rH |
| Protection class | IP20 |

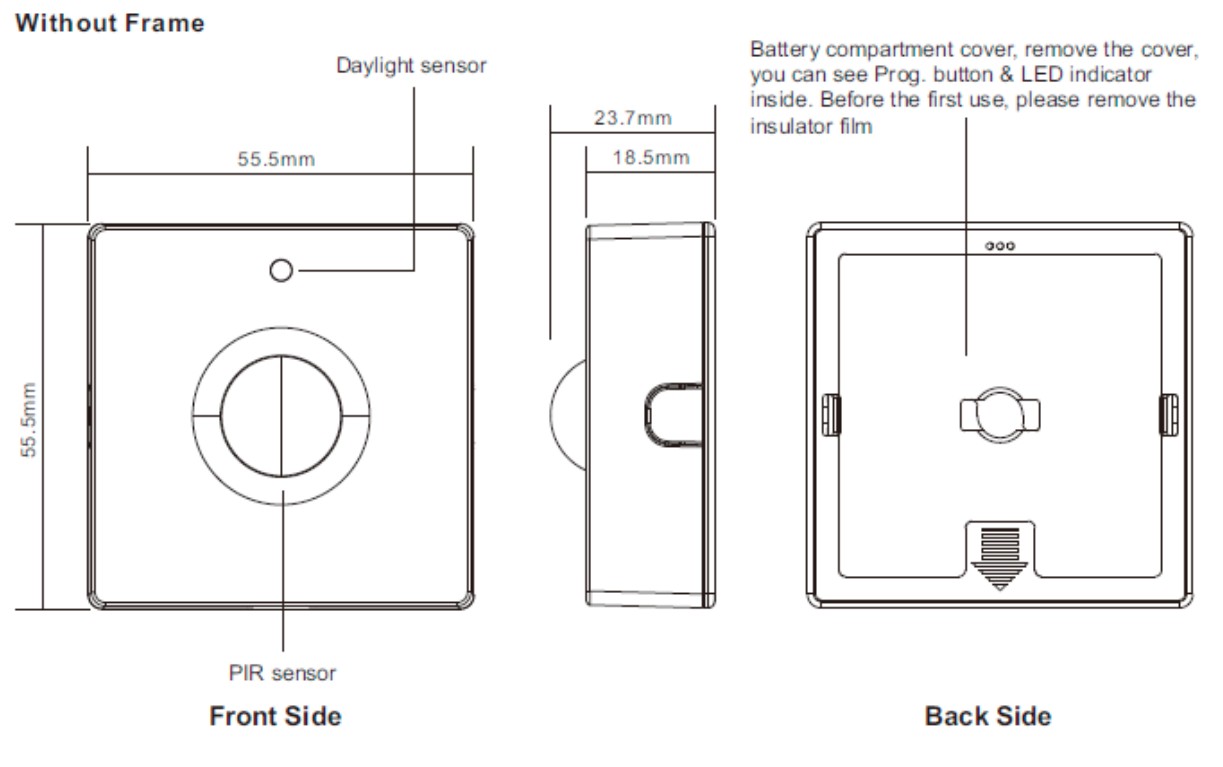

| Dimensions | 55.5 × 55.5 × 23.7 mm |
| Gehäuse & colour | ABS – white |
With this tried-and-tested 4-in-1 sensor, you have a traditionally reliable way of combining all important environmental parameters - motion, temperature, humidity and illuminance - in a single compact device. This allows you to organise your home or building automation proactively and efficiently: You can recognise temperature and humidity fluctuations at an early stage, adjust the lighting and air conditioning optimally and thus save energy. Don't miss out on the convenience of modern technology, access proven quality – the Sensor-4IN1 reliably accompanies you through every step of your smart automation projects.
