Synergy 21 LED light panel 300*1200 KW / W 45W V4

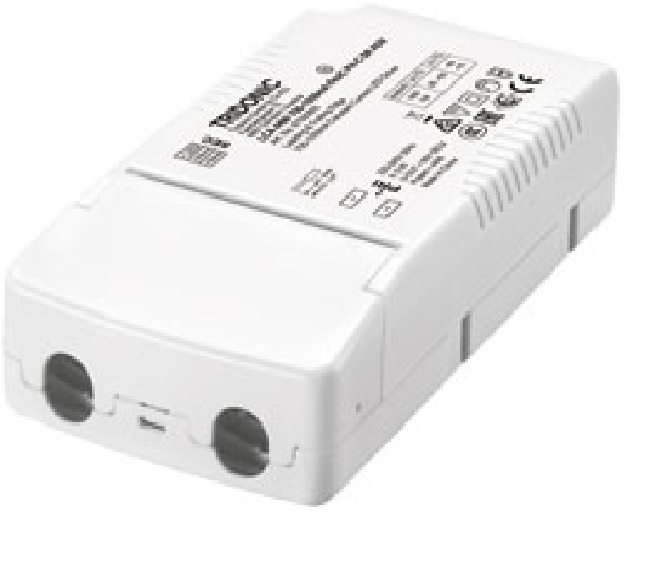

For LED panel 620*620 V2 and V3 or 300*1200 with 1050mA Manufacturer: Tridonic, LCA 45W 700 or 1050mA flexC PH-C SR ADV TRIAC DIM see data sheet Input: 220-240VAC Output: 1050mA, 28-42V DC , 45 Watt constant current Operating temperature: -20°C to +50°C, see data sheet Aluminium housing IP20 LxWxH 130x68x31mm Protection labelling: see data sheet

consisting of: 4x ceiling mounting bracket 4x 1500 mm wire mesh cable with silicone coating 4x fixing clamp 4x screws and concrete plugs

consisting of: 1x ceiling mounting bracket round 11cm*2cm 4x 1500 mm wire mesh cable with silicone coating 4 screws, eyelets, clamps each

Suitable for 298*1198mm panels Frame colour: RAL9016 height 5,3cm

Ceiling mounting set for Synergy21 LED panels Suitable for ceiling or wall mounting or similar. consisting of: 4x ceiling mounting bracket 30*39mm 4x mounting bolts Screws and wall plugs Colour silver

PCD-60-1050B, triac dimm IP42 Input: 180~295VAC Output: 1050mA, 34~57V DC, 59.85Watt, constant current Operating temperature: -20°C to +40°C, see data sheet LxWxH 128x60x31.5mm see also data sheet Protection markings: see data sheet Open cable ends

IP42 Input: 180~295VAC Output: 1050mA, 34~57V DC, 59.85Watt, constant current Operating temperature: -20°C to +40°C, see data sheet LxWxH 128x60x31.5mm see also data sheet Protection markings: see data sheet Open cable ends

IP67 RATING Input: 180~295VAC Output: 1050mA, 9~48V DC, 50.4Watt, constant current Operating temperature: -30°C to +70°C, see data sheet LxWxH 162.5x42.5x32mm see also data sheet Protection markings: see data sheet Open cable ends

Adapter cable with jack plug and 2 open ends Length approx. 20cm Hollow plug 5.5*2.1mm

OSRAM Einschaltstrombegrenzer Produktvorteile Erhöht die maximale Anzahl an EVG je Sicherungsautomat um Faktor 2,5 In Abhängigkeit von der Anlagengröße flexibel einsetzbar Einfache Montage Produkteigenschaften Nachrüstung von Hutschienen nach DIN EN 50022 Betriebsfrequenz: 50…60 Hz Maximale Dauerlast: 16 A Begrenzungsdauer: 70 ms Anzahl der Schaltzyklen: 10.000 weitere technische Details bitte dem Datenblatt entnehmen. Der Anschluss Elektrischer Bauteile und Anlagen darf grundsätzlich nur von  qualifizierten Fachpersonal vorgenommen werden!

HLG-185H-C1050B Attention: Constant current with 1050mA dimmable (1-10 Volt, PWM dimmer) , IP65 Input: 90~305VAC, 127~431VDC Output: 1050mA, 95~190V , 199,5 Watt Operating temperature: -40°C to +80°C LxWxH 220*68*38.8mm Protection mark: See meanwell.com Open cable ends please refer to data sheet.   Example calculation for 1050mA LED panels (1050mA, ~42V and 45W) Number of panels mA Volt Watt 1 1050 42 45 2 1050 84 90 3 1050 126 135 4 1050 168 180 5 1050 210 225

HLG-240H-C1050B Attention: Constant current with 1050mA dimmable (1-10 Volt, PWM dimmer) , IP65 Input: 90~305VAC, 127~431VDC Output: 1050mA, 119~238V , 249,9 Watt Operating temperature: -40°C to +80°C LxWxH 244.2*68*38.8mm Protection mark: See meanwell.com Open cable ends Please refer to data sheet.   Example calculation for 1050mA LED panels (1050mA, ~42V and 45W) Number of panels mA Volt Watt 1 1050 42 45 2 1050 84 90 3 1050 126 135 4 1050 168 180 5 1050 210 225

HLG-120H-C1050B Attention: Constant current with 700mA dimmable (1-10 Volt, PWM dimmer) , IP65 Input: 90~305VAC, 127~431VDC Output: 1050mA, 74~148V , 155,4 Watt Operating temperature: -40°C to +80°C LxWxH 220*68*38.8mm Protection mark: See meanwell.com Open cable ends please refer to data sheet.

PCD-40-1050B, triac dimm IP42 Input: 180~295VAC Output: 1050mA, 22~38V DC, 39.9Watt, constant current Operating temperature: -20°C to +40°C, see data sheet LxWxH 128x60x31.5mm see also data sheet Protection markings: see data sheet Open cable ends
