Synergy 21 LED light panel 620*620 zub Standardnetzteil 35W PRO V3 DALI DIM (BOKE)
MSRP: €11.63
Stock:
100+
Available, delivery time: 1-2 Tage
Product number:
250217
EAN:
4038816153715
Manufacturer Number:
BK-DKL040-A1050ADP
Intrastat ID:
85044095
Country of origin:
Volksrepublik China
Guarantee:
60 Months
Weight:
0,098 KG
Product information "Synergy 21 LED light panel 620*620 zub Standardnetzteil 35W PRO V3 DALI DIM (BOKE)"
DALI-2 power supply unit for LED panel 620*620 PRO V3 and
LED backlite panel 620*620 WW/NW V4 PRO

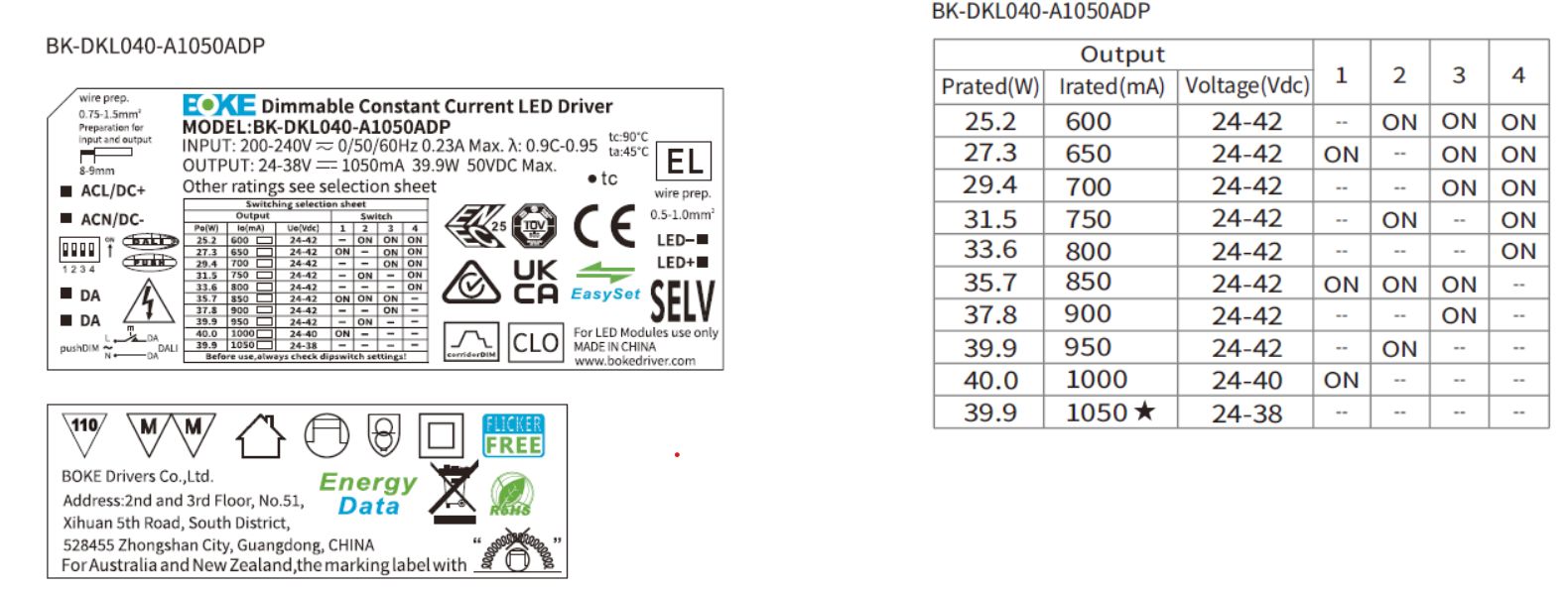

700 or 750mA, adjustable via DIP switch
Input V: 200-240VAC/DC
Output: 24-42VDC
DALI-2 (DALI-2 DT6) dimmable
PHUSH (pushDIM, corridorDIM)
Flicker free
MM
For further details, please refer to the data sheet
Article properties
| Ampere (CC): | 0,6-1,05 A |
|---|---|
| Betriebstemperatur: | -20 bis +45 Grad |
| Dimmbar: | Ja, DALI-2 |
| Gehäusefarbe: | Weiß |

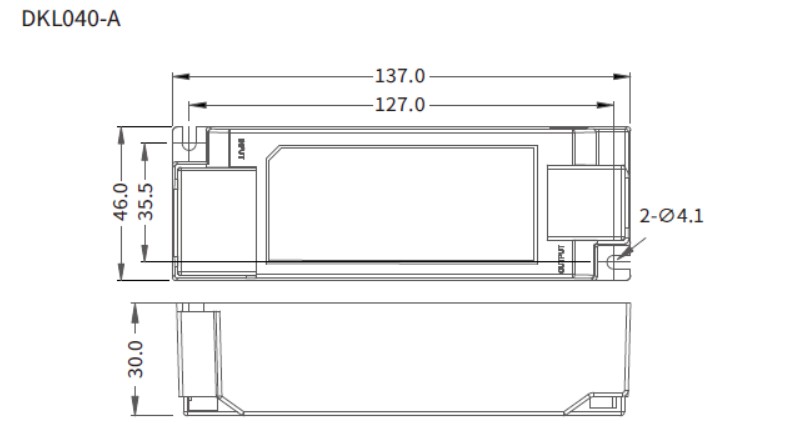

| Grösse: | 137*46*30 mm |
| Konstantstrom oder Konstantvolt: | CC |
| LED - Gehäusematerial: | Kunststoff |
| Produktname: | BOKE |
| Schutzklasse: | IP20 |
| Volt: | 24-42 Volt |
| Watt: | max 40 W |
