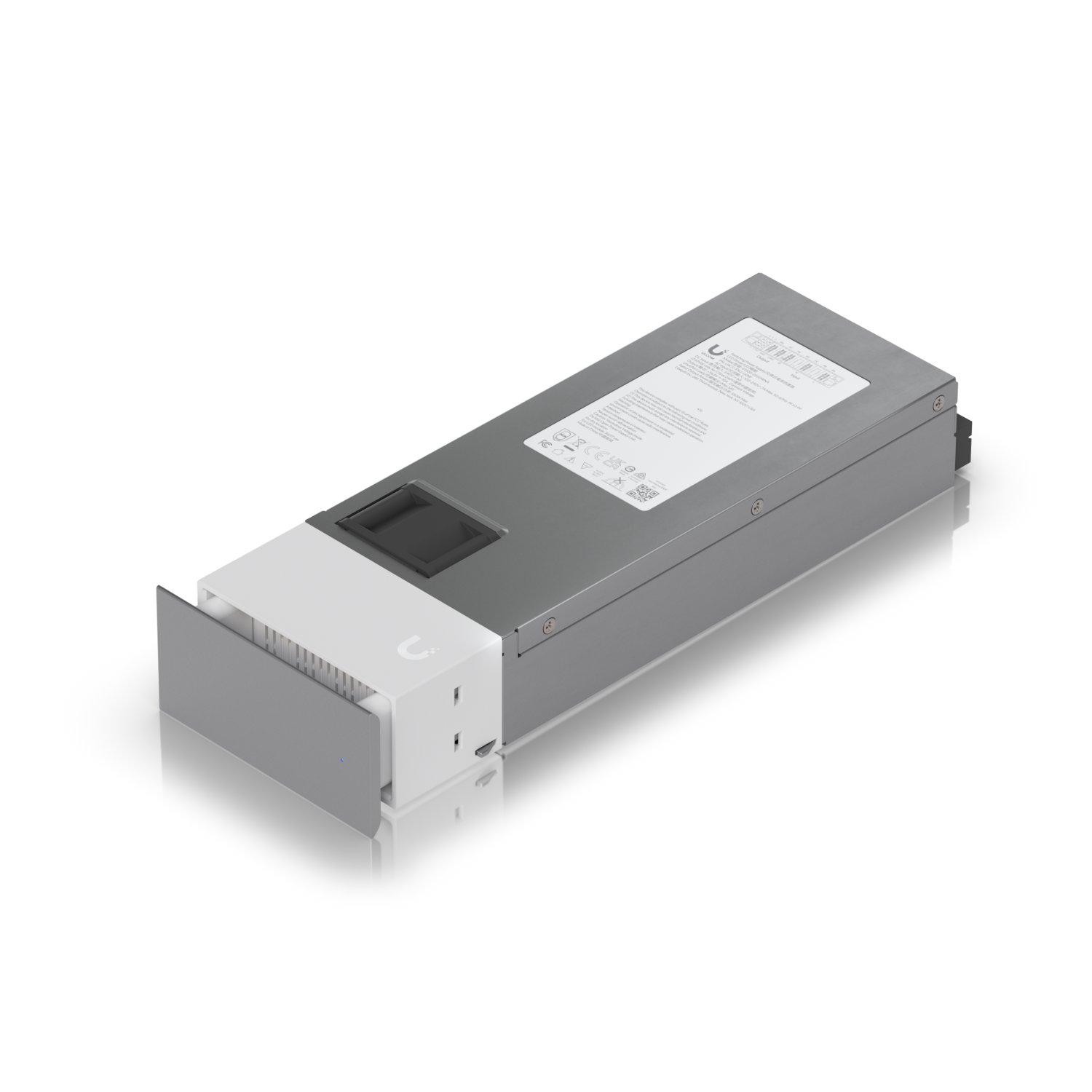

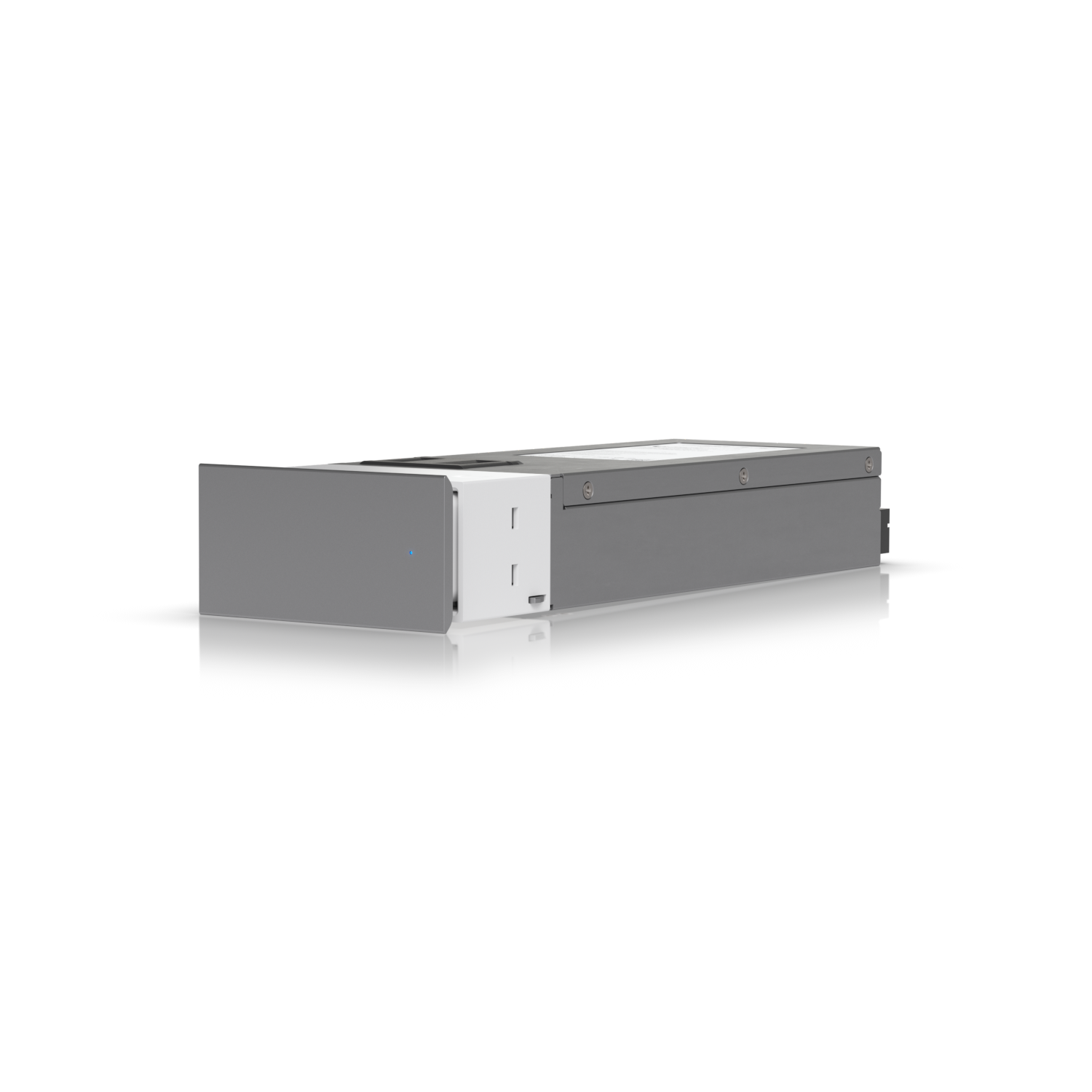

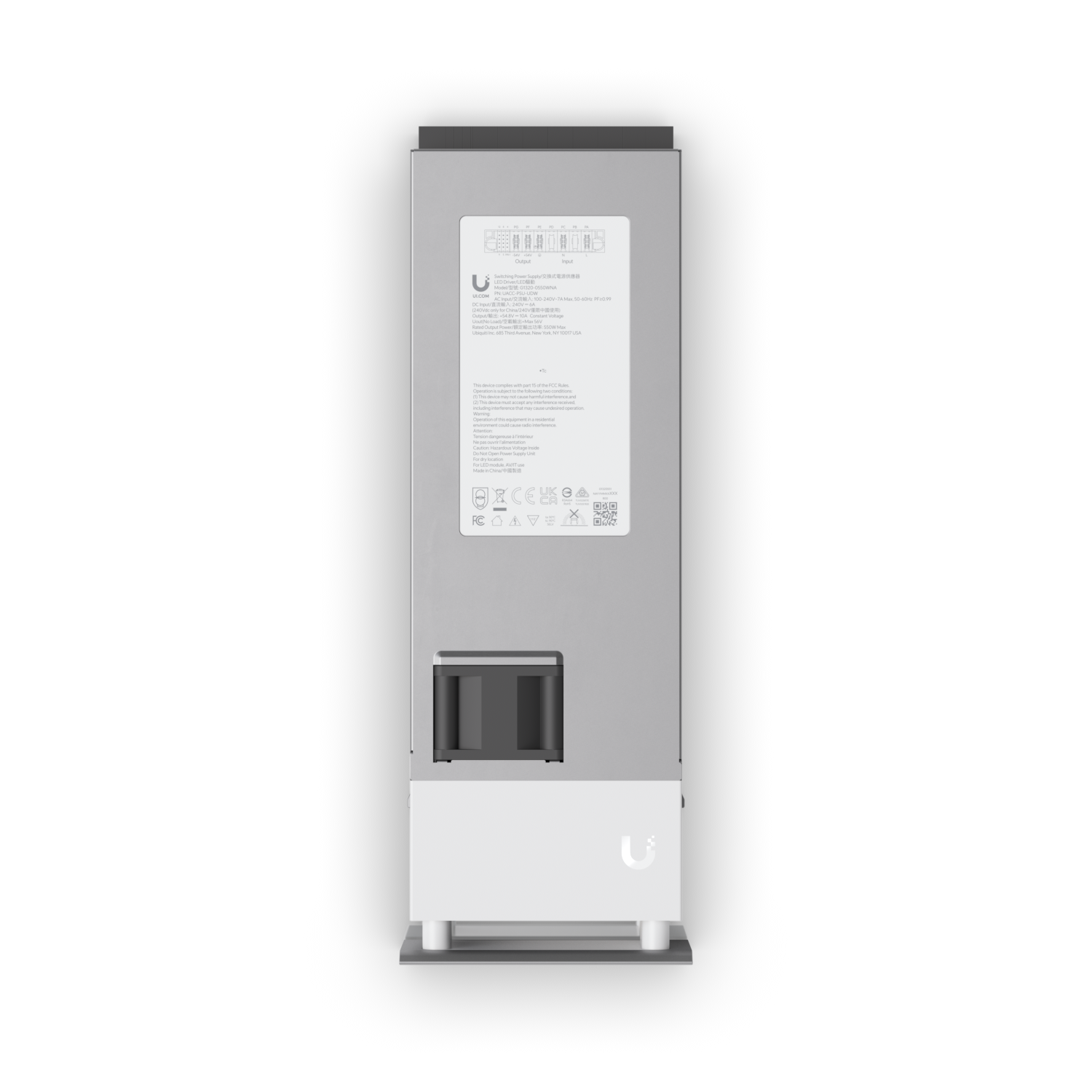

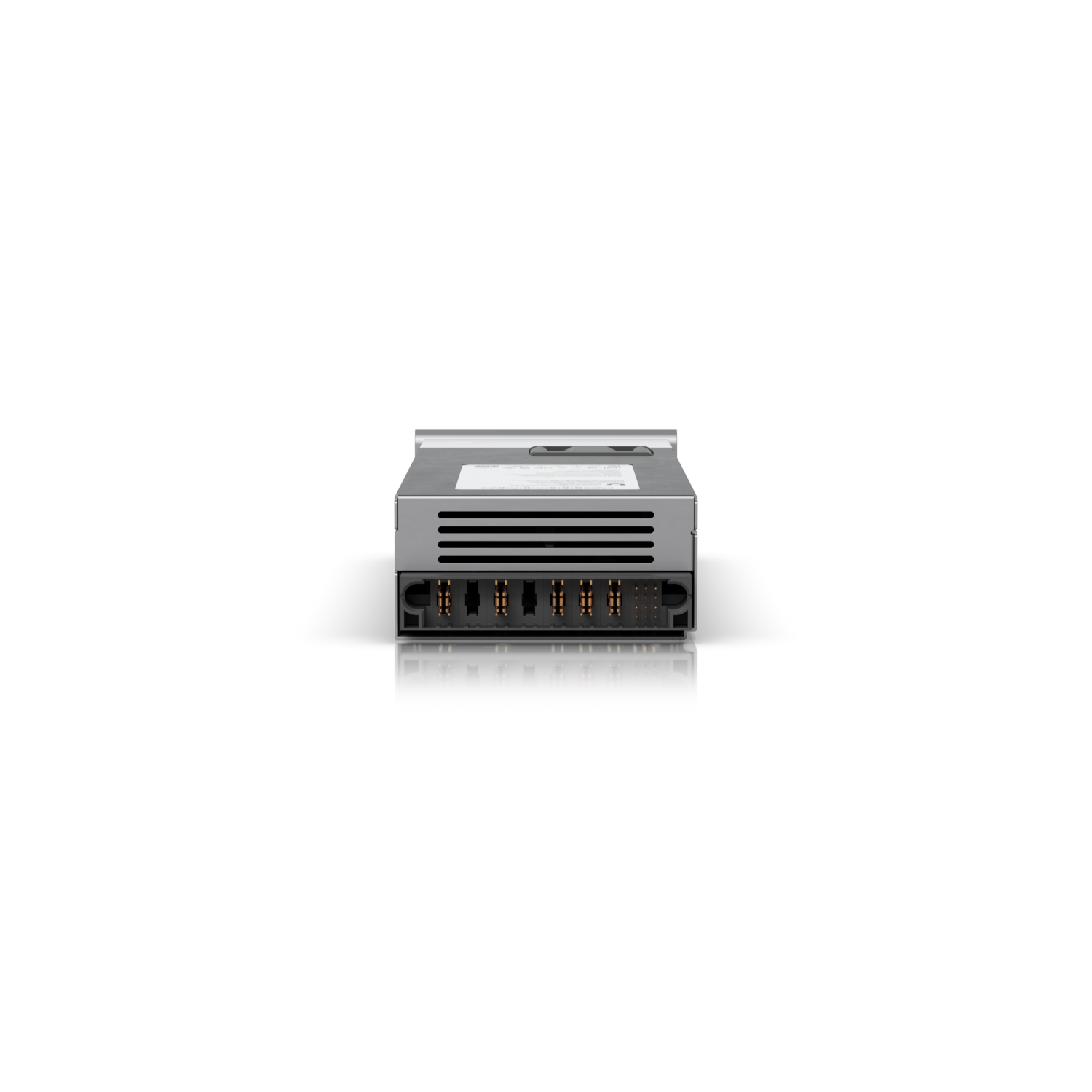

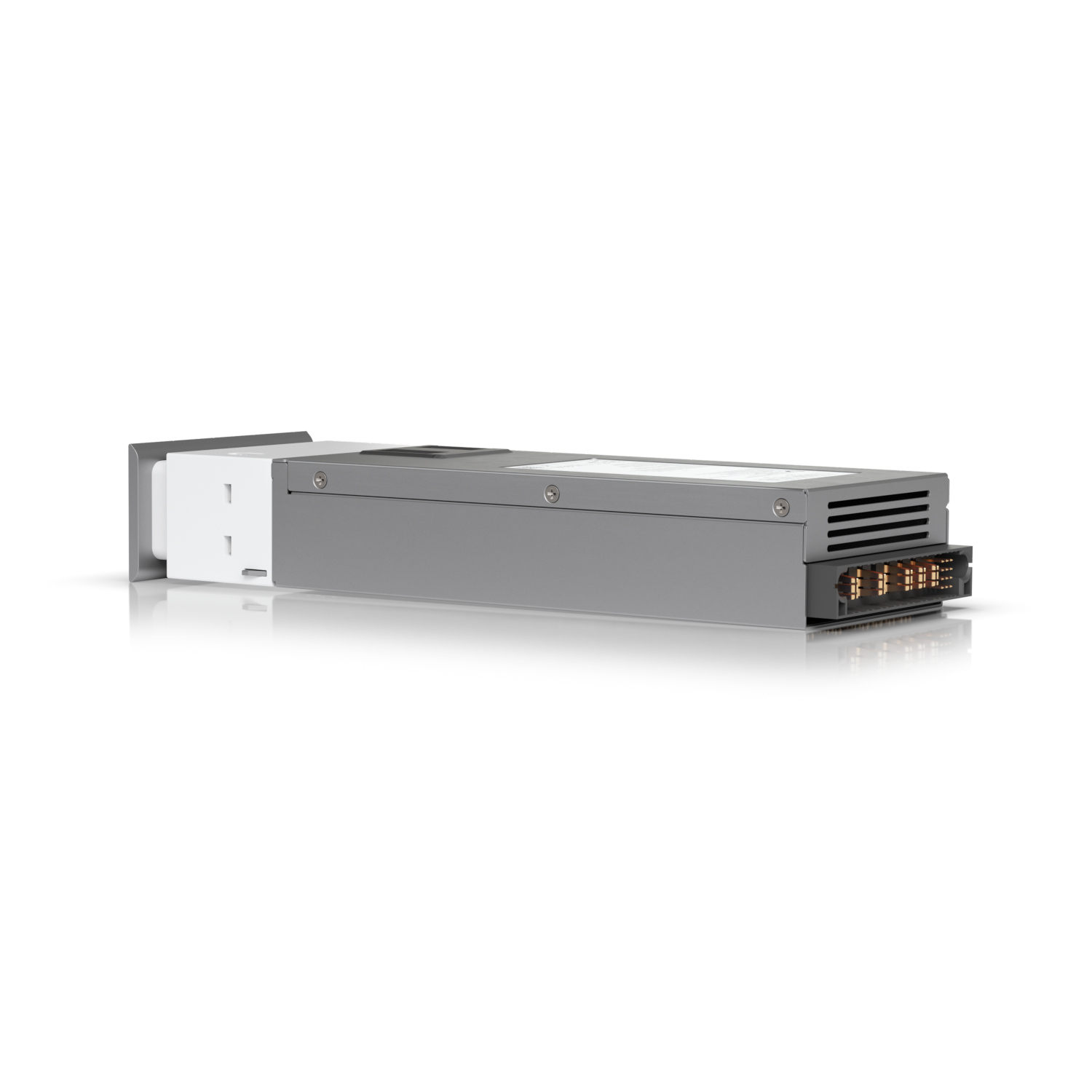

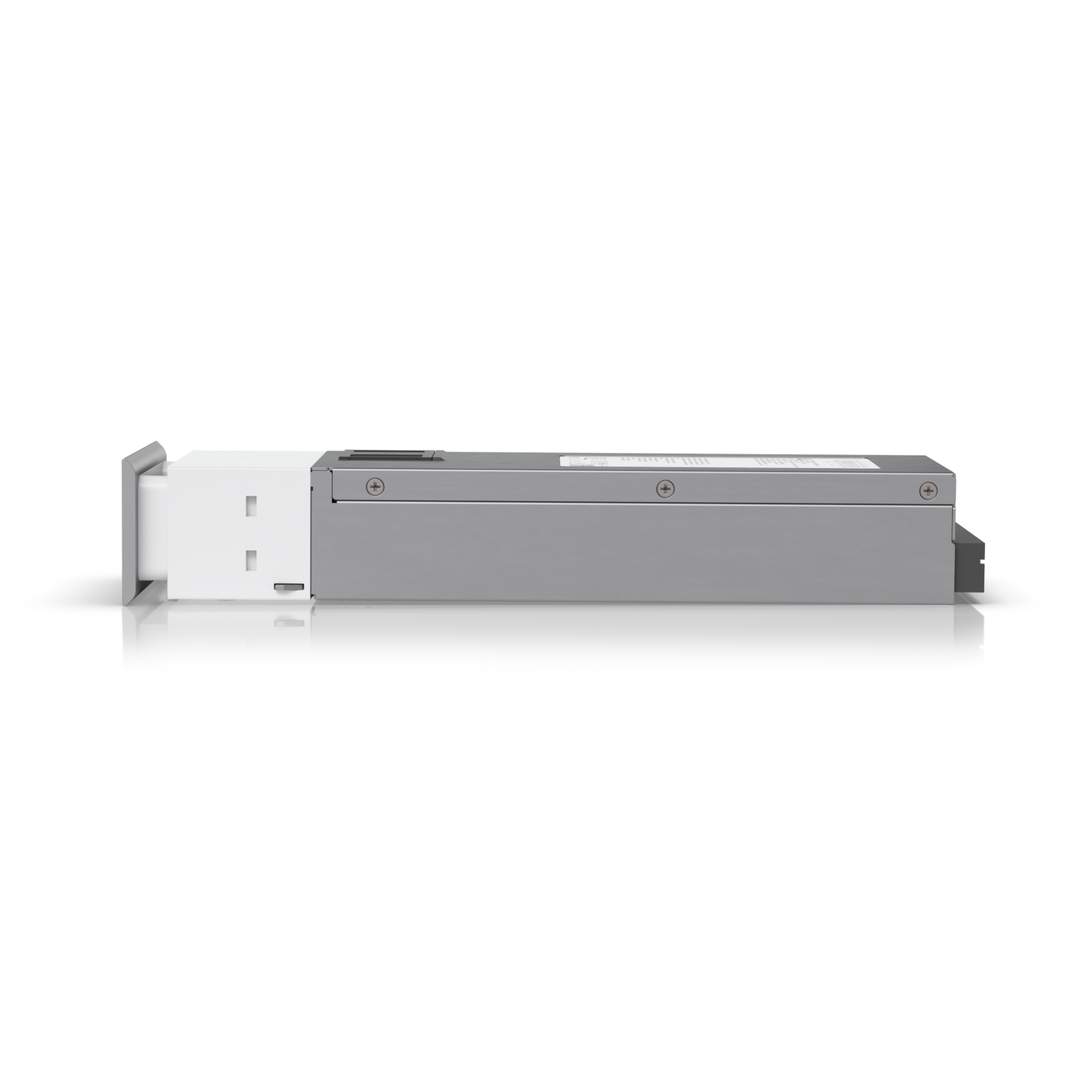

Ubiquiti Unifi Power Module / Dream Wall / 550W / AC-to-DC / UACC-PSU-UDW
Product number:
228600
EAN:
8100846922404
Manufacturer Number:
UACC-PSU-UDW
Weight:
0,970 KG
Product information "Ubiquiti Unifi Power Module / Dream Wall / 550W / AC-to-DC / UACC-PSU-UDW"
Provides optional power redundancy for Dream Wall.
550W (54.8V) AC-to-DC auxiliary power module
Compatibility:
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 252.8 x 87.4 x 43.3 mm (9.9 x 3.4 x 1.7") |
| Weight | 970 g (2.1 lb) |
| Enclosure materials | Aluminium alloy, SGCC steel, polycarbonate (PC) |
| Hardware | |
| Input connector | JYP-M1207D-RT03R |
| Input voltage | 100–240V AC |
| Input frequency | 50/60 Hz |
| Output voltage | 54.8V DC |
| Input current | 7A max. |
| Output current | 10A |
| Total output power | 550W |
| Certifications | CE, FCC, IC |
