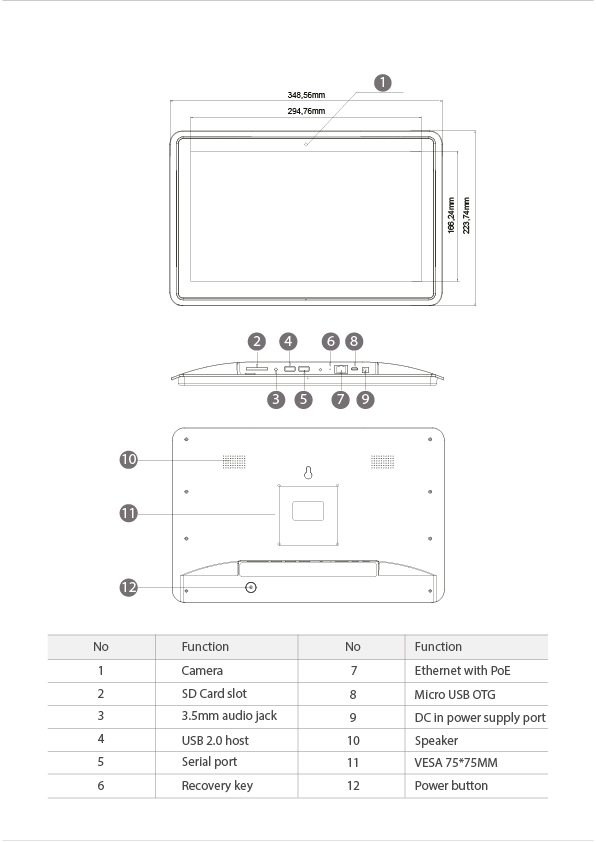

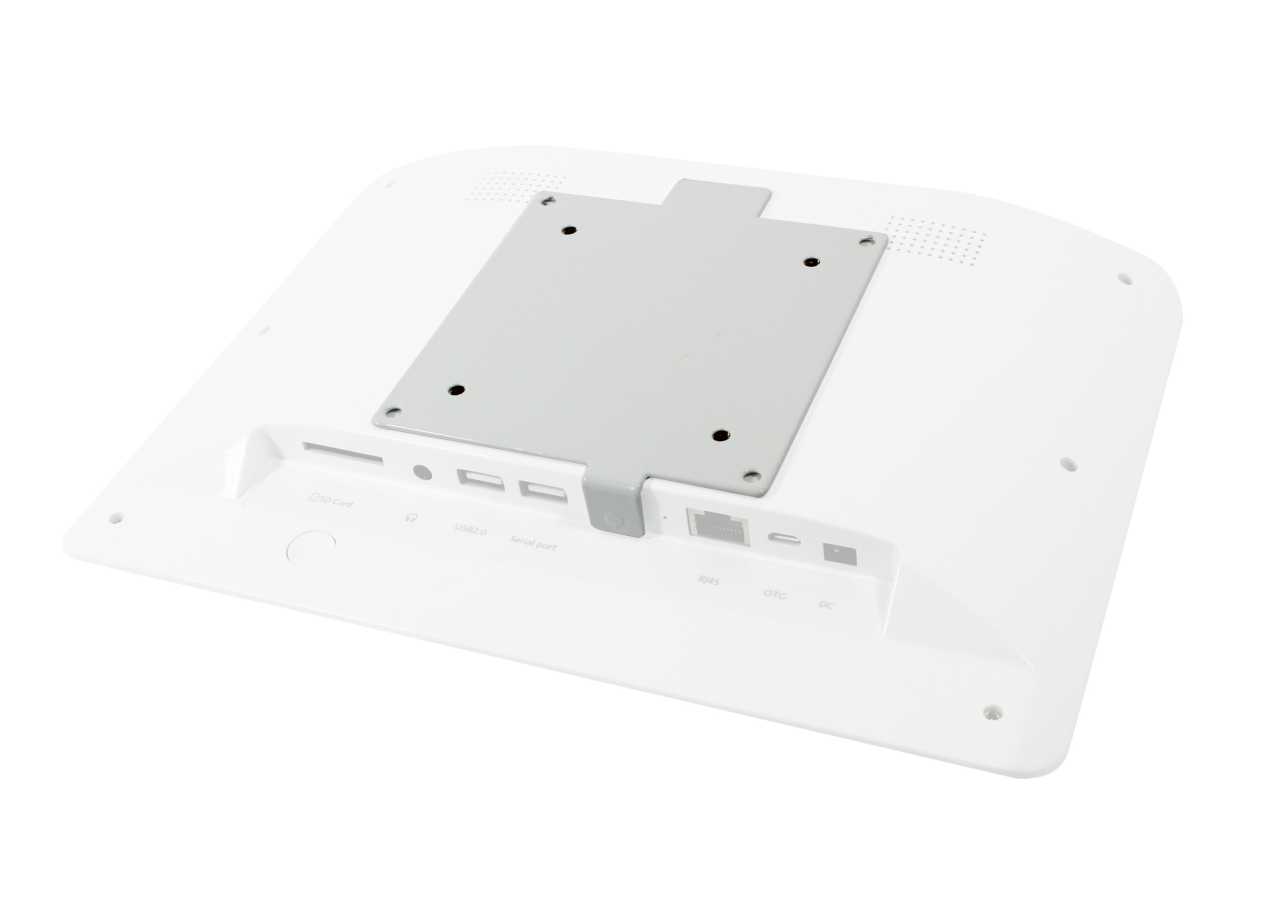

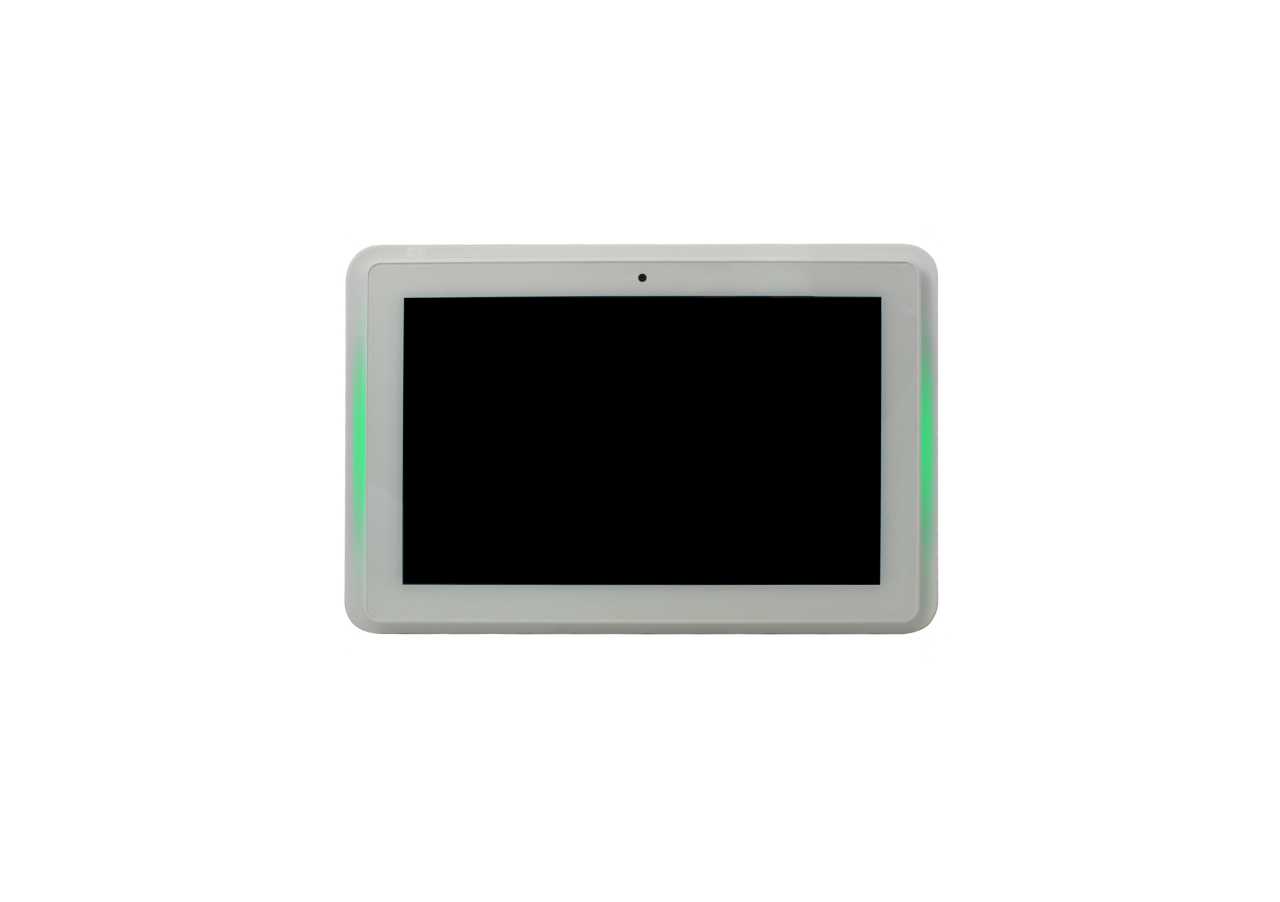

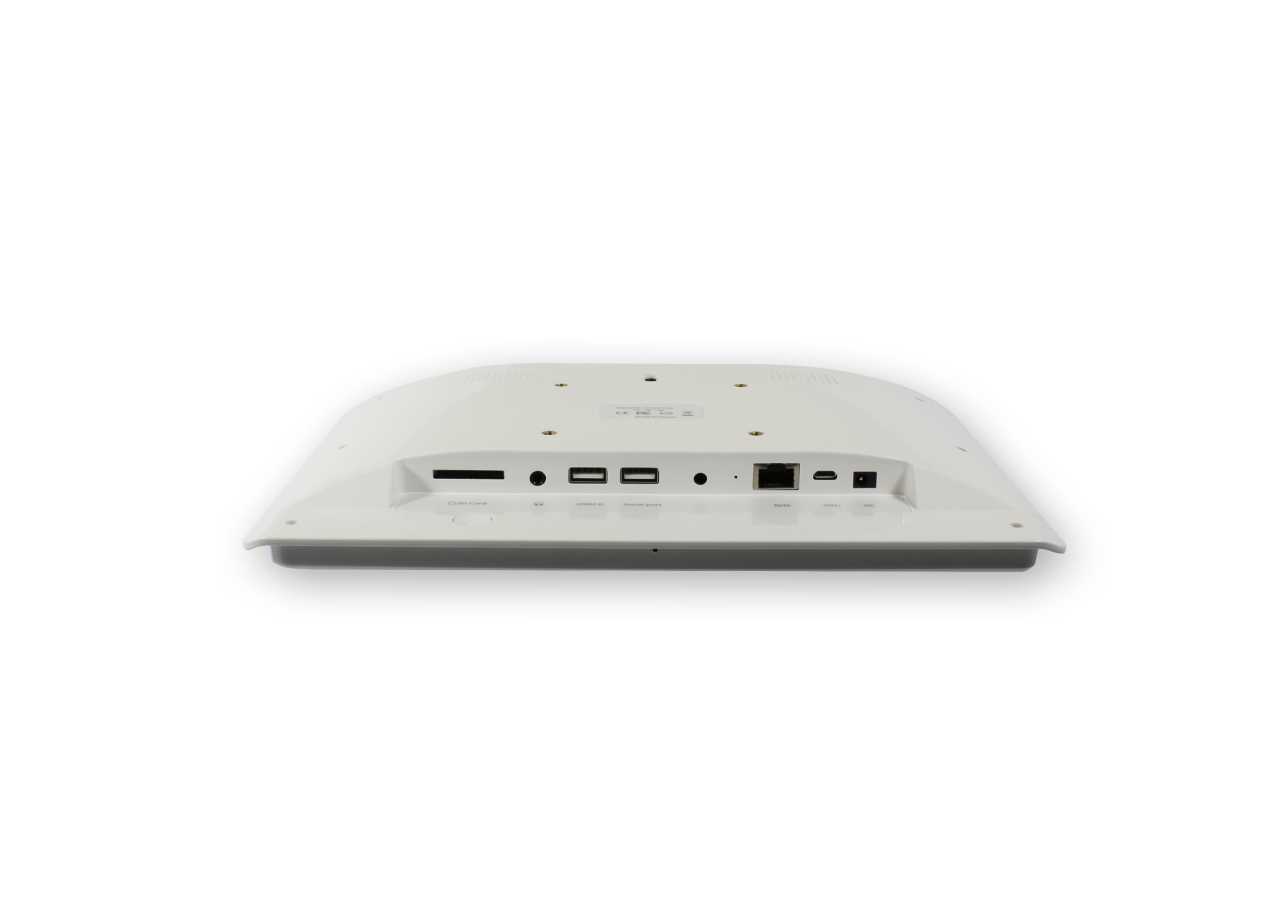

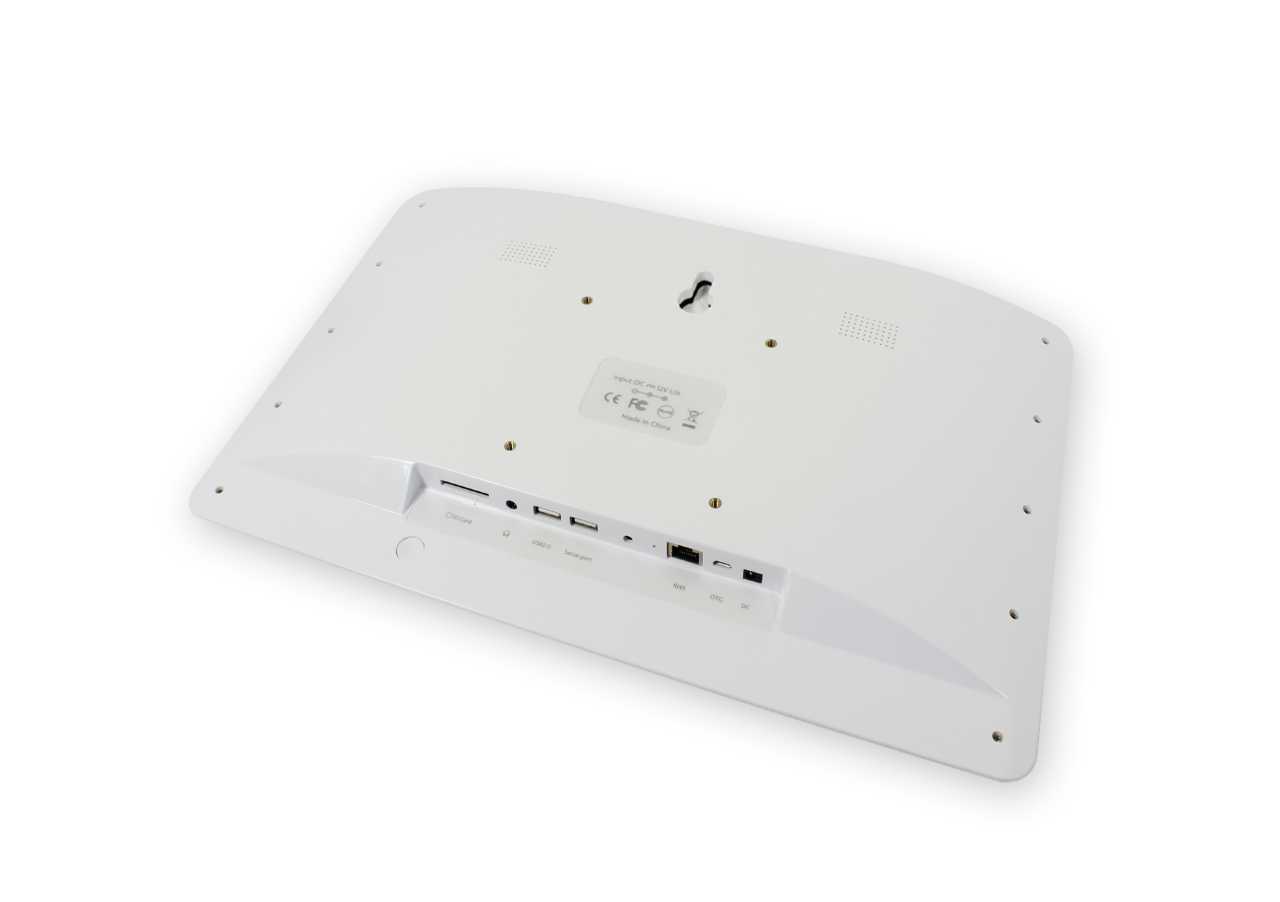

ALLNET Design LED Tablet 10 Zoll RK3288 Android 8.1 und NFC,

Vesa auf Vesa Halterung. Mit dieser Halterung ist es möglich einen Mini-PC an einer belegten Vesa Halterung anzubauen. z.B. (div. Ilyama Monitore) 50mm x 50mm, 75mm x 75mm, 100mm x 100mm

Desktop stand, POS holder for tablet PC with Vesa mount Universal desktop holder for two sizes 75x75 and 100x100 Fits displays with Vesa mounting option. Can also be used as a wall mount. To prevent larger tablets from wobbling during active touch input, the edge of the device should be placed on the table. Without screws or mounting accessories for monitors. Screw set art. no.: 157678  Suitable for ALLNET displays: M3x4mm for 10 inch PoE displays M4x4mm for 14/15/21 inch displays

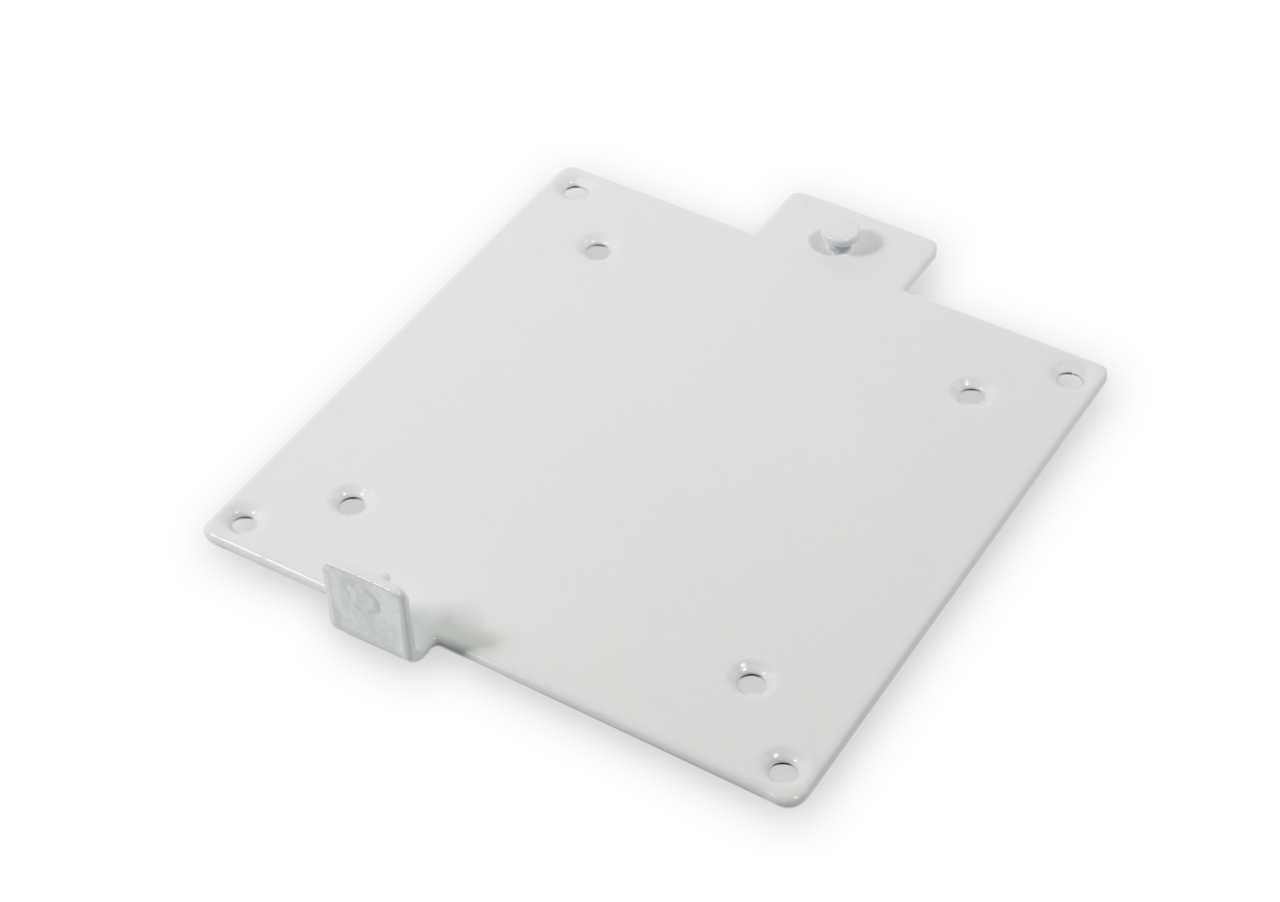

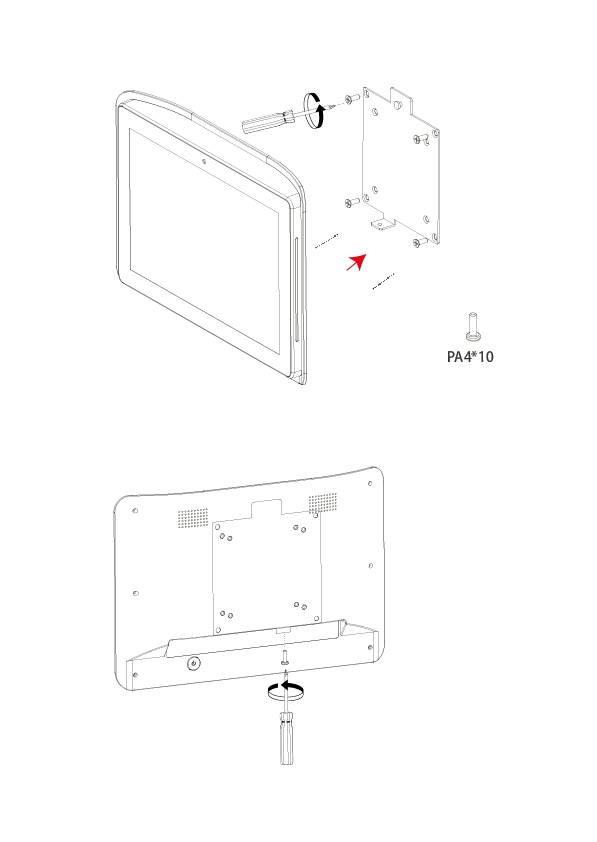

Vesa wall mount for sizes 7.5x7.5 and 10x10.  Snap-In with locking screw consists of two parts. The part for wall mounting with guide rail and the Vesa mount for tablets, PC's, monitors. Screws for the ALLNET Android tablets distance to the wall 12mm. Package content includes the bracket and 4xM3 screws. These fit only for the 10 inch tablet. Screw sizes in mm for the ALLNET tablets: 21" m4x8 not included 14/15" m4x5 not included 10" m3x5 included in delivery

LED power supply unit for flush-mounted boxes Output: DC 12V, 1.A, max. 12 Watt Input: AC 100-240Vac Weight: 100g Size: 55*22mm

Height-adjustable stand with cable feed-through and rotatable Vesa plate (90-180degrees), floor mounting possible 75mm x 75mm 100mm x 100mm For monitors from 8 to 24 inches. COLOR: black max. height 1200mm min. height 690mm Beschreibung Universal-Tablet-Ständer   Innenkarton 1pc/ctn Tragfähigkeit 20lbs 81x42x12cm,9.6kg Material SPCC Äußerer Karton 2pc/ctn Höhe 70-120cm 81x43x26cm,20.9kg Standard VESA 75 x75, 100 x100mm Brown box Merkmale Kippbereich: 180 Grad Schwenkbereich: 360 Grad Farbe Black/White     Verpackung Karton/braun

Height-adjustable stand with cable feed-through and rotatable Vesa plate (90-180degrees), floor mounting possible 75mm x 75mm 100mm x 100mm For monitors from 8 to 24 inches. COLOR: black max. height 1200mm min. height 690mm Beschreibung Universal-Tablet-Ständer   Innenkarton 1pc/ctn Tragfähigkeit 20lbs 81x42x12cm,9.6kg Material SPCC Äußerer Karton 2pc/ctn Höhe 70-120cm 81x43x26cm,20.9kg Standard VESA 75 x75, 100 x100mm Brown box Merkmale Kippbereich: 180 Grad Schwenkbereich: 360 Grad Farbe Black/White     Verpackung Karton/braun

For installation in a flush-mounted box deep flush-mounted boxes are recommended, it should be placed behind a switch, etc.. The innovative power supply with wide range input of 90-264 V/AC and stabilized output voltage in the power class 30 W. The devices are suitable for installation in DIN flush-mounted boxes and furniture or for mounting on flat surfaces with unknown flammability. With an overall height of only 33.5 mm, there is even room for installation of the consumer in the flush-mounted box. Power: 30W / max. 3A Input: 90-264V AC Input: stranded wire / double insulated wire / solder pins / spring terminals Output:12V DC, 24V DC (intermediate voltage on request) Output cable: stranded wire / solder pins / spring terminals Operating temperature: -20 to 70°C Efficiency: Efficiency mark Level VI MTBF: 560.000 h at 25° Environmental: IP68 Applications: Audio/Video + IT/KT (EN 62368-1) IT/Commercial (EN 60950-1) household / smart home (EN 60335-1) LED (EN 61347-2-13) medical (EN 60601-1 2xMOPP)

Hohlbuchse auf Stecker Buchse: 1,7 x 4,0mm Stecker: 1,7 x 4,0mm Kabellänge: 1500mm

Set besteht aus 2 Kabelpeitschen mit Buchse auf Lan/Ethernet Kabel mit jeweils einmal DC/Hohlstecker Buchse und einmal Stecker 5.5mm / 2,1mm. Passives PoE, kein echtes PoE - Stromquelle muss auf Gerät ausgelegt sein und das Gerät muss einen Hohlstecker als Strom-Eingang haben.

Highlights: support IEEE802.3, IEEE802.3u, IEEE802.ab,IEEE802.3af, IEEE802.3at and LT PoE 90W 1 Port 10/100/1000 Base-T (Data) for connection to a switch, and 1 Port 10/100/1000 Base-T (Power/Data) for connection to a PoE Device (PD) Automatic detection of whether the connected device is PoE capable   With the ALLNET ALL048900V2 High Power PoE Injector you install your PoE-enabled IP devices such as wireless access points, VoIP phones and much more totally independent of existing electrical outlets.   So you can choose the best locations for example WLAN access points installations in a building regarding the wireless technology, without having to worry about power cabling.   Non-PoE switches can be efficiently „upgraded“ with Power over Ethernet, especially when you only need a few ports with PoE power supply. Here the ALL048900V2 saves the expensive purchase of a PoE switch.   The ALLNET ALL048900V2 supports the IEEE802.3af standard with a power of 15,4 Watt, the IEEE802.3at high power standard with 30 Watt and the LT PoE with 90 Watt power.   The ALL048900V2 must not be configured. It has an RJ45 jack and an RJ-45 output connector, which are connected to this switch and the end device to the PoE injector. The cable length can here, as usual in Ethernet, up to 100 meters between the switch and terminal in total.   The compact design and the metal case of the ALLNET ALL048900V2 can be very inconspicuous installed and is extremely robust.    Technical Details:   Element Spezification Standards: IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet enhancements LT PoE 90W IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.ab 1000BaseT Ethernet ports: 1x RJ45 10/100/1000Mbps for connection to passive switch or hub 1x RJ45 10/100/1000Mbps for connection to PoE device LED indikators: Power / PoE Act / Status Power input: 44~57V Power consumption:   System: 5W (Max.) LT PoE++: up to 90W   Attached power adapter: Input: 100~240VAC Output: 56VDC/2A, 112W (Max.) Case: Metal case, wall-mountable Dimension: Length/Width/Height: 102 x 75 x 23 mm Weight: 280g (o. Netzteil und Verpackung) Environment: Temperature operating: 0 ~ 40 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -25 ~ 90 °C  Marks: FCC Class A, CE

ALLNET PoE Injector Gigabit PoE & PoE+ (15,4W/30W) / plastic housing / "ALL0488v6   Highlights: PoE injector according to IEEE802.3af/at with max. power of 30W 2x RJ45 Gigabit Ports PoE Output 55VDC@30W Midspan PoE PIN's 4/5 (+) and 7/8(-) internal power supply unit compact design incl. 1.5m power cable with IEC-C5 to IEC-CEE7 protective contact cable NEW: Wall mounting capable Intelligent power supply via network without switch With the ALLNET ALL0488V6 Power over Ethernet Injector you can install your PoE-enabled IP devices such as WLAN access points, VoIP phones and much more absolutely independent of existing power sockets. For example, WLAN access points can be installed in the most ideal locations in a building without having to worry about power cabling. Switches that are not PoE-capable can be "retrofitted" with Power over Ethernet at a reasonable price, especially if only a few ports with PoE supply are required. Here, the ALL0488V6 saves the purchase of a PoE switch. The ALLNET ALL0488V6 supports the IEEE802.3af & IEEE802.3at standard with a maximum power of 30W Watt. The ALL0488V6 does not need to be configured. It has an RJ45 input socket and an RJ-45 output socket, which is used to connect the switch and terminal device to the PoE injector. The cable length here can be up to 100 meters between switch and terminal device in total, as is usual in Ethernet. Due to its compact design, the ALLNET ALL0488V6 can be installed very easy. It has an internal power supply and supplies the PoE voltage on pins 4/5 (+) and 7/8 (-). Technical Details: Element Specifikation Standards: IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at, PoE++ RoHS Compliance WEEE Compliance Ethernet Ports: 1x RJ45 10/100/1000 Mbps for connection to switch or hub 1x RJ45 10/100/1000 for connection to PoE end device PoE Output: PoE IEEE802.11af/at, Power pins: 4/5(+) 7/8(-) Power supply: 100 - 240VAC, internal power supply / Output: 55V/550mA incl. connection cable earth contact on IEC320-C5 "Kleeblat/Micky-Mouse" approx. 80cm length Power consumption: 30 Watt maximum with connected PoE end device AC Surge Protection: 1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE Housing: Plastic housing Mounting: Wall-mounted Dimensions: length/width/height: 140 x 63 x 33 mm Environment: Operating Temperature: 0 ~ 40 °C Operating Humidity 10% ~ 90% (non-condensing) Storage Temperature: -20 ~ 90 °C Storage Humidity: 10% ~ 90% (non-condensing) EMI: FCC CFR47 Part 15 EN55024 EN55032 EMS: IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) Immunity: IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) Marks: CE; FCC

ALLNET PoE Inject PoE Gigabit (15,4W/30W/45/60/95W) "ALL0495BT" Highlights: Complies with IEEE802.3af/at/bt standard. Uses 4 pairs of power supplies and more output power Automatic power supply detection Supports PoE power up to 95W Power and data up to 100m Gigabit Internet connection Plug-and-play, requires no configuration Six levels of energy efficiency Intelligent power supply provides additional protection Temperature working range: 0° to 40 Elegant plastic housing PoE reaches a new power class with up to 95 Watts The ALL0495BT PoE injector is fully compliant with IEEE 802.3af/at/bt standard and can work with any IEEE 802.3af/at/bt PoE compliant PD (Powered Devices) or PoE receiver adapters or other equivalent products to extend your network to where there is no power line or outlet, where you want to mount devices such as AP, IP camera or IP phone, etc. Technical Details: Model ALL0495BT Port Data in: 1x10/100/1000Mbps RJ45 Port PoE Out: 1x10/100/1000Mbps RJ45 Port PoE Standard IEEE802.3af/at/bt PSE Power on RJ-45 4Pairs power lines: 1/2(-),3/6(+) 4/5(+),7/8(-) PoE Power Output 54V DC, 95W Max Power supply 100W Input Power Supply AC 100-240V  50/60Hz Operation Temperature 0°C ~ 40°C Storage Temperature -40°C ~ 70°C Operation Humidity 10%~90% RH  non-condensing Storage Humidity 5%~90% RH  non-condensing Energy Efficiency Grade 6 Dimensions(L*W*H) 160 *94*40 mm LED Indicator PWR(Green) , PoE(Green),PoE Usage(90%,60%,30%)(Green) Network Media(Cable) 10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m) Surge Protection Difference Mode:±4KV, Common mode:±6KV MTBF >50000 hours Electrostatic standard Contact 6KV,air 8KV

Gerader DC-Stecker am Anschlusskabel. Zm Anschluss an viele 12V-Geräte geeignet, die bis zu 1,5A Stromstärke benötigen. Standard Stecker 4,0mm / 1,7mm Hohlstecker. Adapter für EU,US,UK
