MEANWELL Netzteil - 48V 60W 0-10V dimm IP65

Meanwell

Prices excl. VAT plus shipping costs

Product number: 246990

EAN: 4711287448763

Manufacturer Number: HLG-60H-48B

Weight: 0,730 KG

Product information "MEANWELL Netzteil - 48V 60W 0-10V dimm IP65"

HLG-60H-48
dimmable (1-10 Volt, PWM dimmer) , IP65
Input: 90-305VAC, 127~431VDC
Output: 1.3A, 48V DC , 62.4 Watt
Operating temperature: -40°C to +80°C

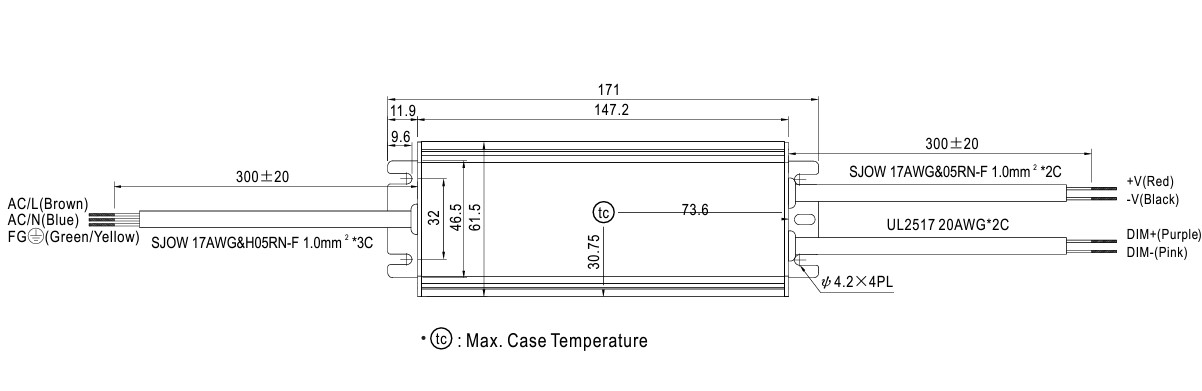

LxWxH 178*61.5*36.8
Protection markings: See meanwell.com
Open cable ends

Please refer to the data sheet for further details

Datasheet German
