Synergy 21 Solder Heat Shrink Connector Set – Waterproof IP67
Product number:
250190
EAN:
4038816250193
Manufacturer Number:
S21-COMP-250244
Weight:
0,100 KG
Product information "Synergy 21 Solder Heat Shrink Connector Set – Waterproof IP67"
Löt shrink connector – Waterproof IP67
Löt heat shrink connector – Waterproof IP67

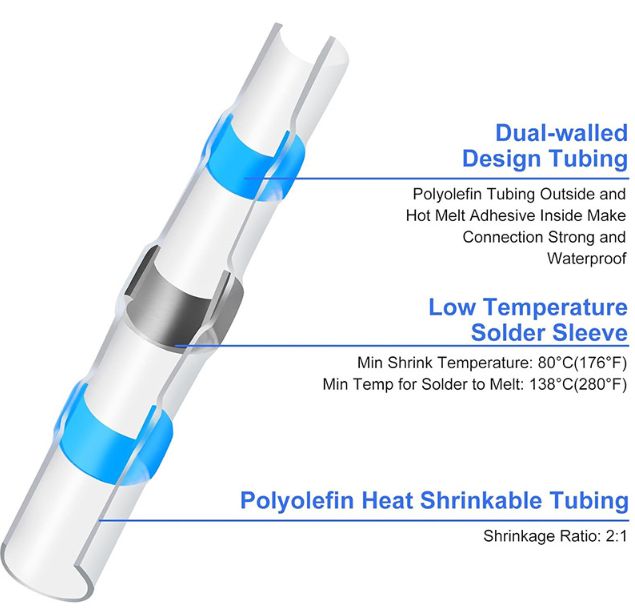

Waterproof solder sleeves (Solder Sleeves) for fast, secure and tight cable connections. Integrated tin ring for the electrical connection, outer heat-shrinkable sleeve with hot-melt adhesive seal for reliable sealing (IP67).
Advantages
- Soldering, shrinking and sealing in a single work step
- Weather, vibration and corrosion resistance (IP67)
- No crimping pliers required
- ; hot air is sufficient
- Ideal for cars, motorbikes, boats, outdoor electrics and electronics

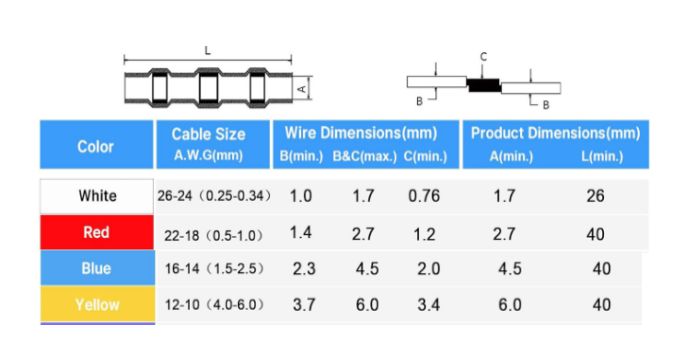

Technical details

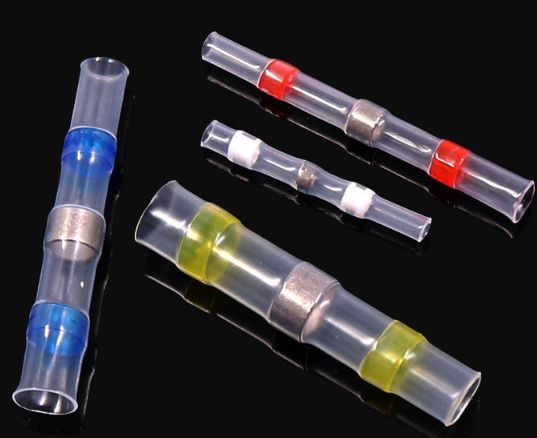

| Colour | Conductor cross-section (mm²) | AWG | Length (mm) | Typical application |
|---|---|---|---|---|
| White | 0,25–0,34 | 26–24 | 26 | Dünne signal lines |
| Red | 0.5–1.0 | 22–18 | 40 | Electronics/automotive cables |
| Blue | 1.5–2.5 | 16–14 | 40 | Standard power cable |
| Yellow | 4.0–6.0 | 12–10 | 40 | Stronger supply lines |
Key points
- Soldering, shrinking & sealing in one step
- Waterproof (IP67) and corrosion-resistant
- Integrated tin ring for secure electrical connection
- Heat-shrinkable outer jacket with hot-melt adhesive seal
- No crimping tool required – only hot air or lighter
- Ideal for automotive, boat, motorbike, electronics & outdoor wiring
Note on the application
- Stripping the conductor, twisting it and pushing it into the connector (overlap the wires in the tin ring).
- Heat with hot air from the centre (tin ring) towards the ends until tin flows and adhesive emerges.
- Let cool, carry out a tensile test. Only for copper conductors.
