MEANWELL Netzteil - 48V 80W 0-10V dimm IP65

Meanwell

Prices excl. VAT plus shipping costs

Product number: 246991

EAN: 4711287449036

Manufacturer Number: HLG-80H-48B

Weight: 0,840 KG

Product information "MEANWELL Netzteil - 48V 80W 0-10V dimm IP65"

HLG-80H-48B
dimmable (1-10 Volt, PWM dimmer) , IP65
Input: 90-305VAC
Output: 1.7A, 48V DC , 81.6 Watt
Operating temperature: -40°C to +70°C

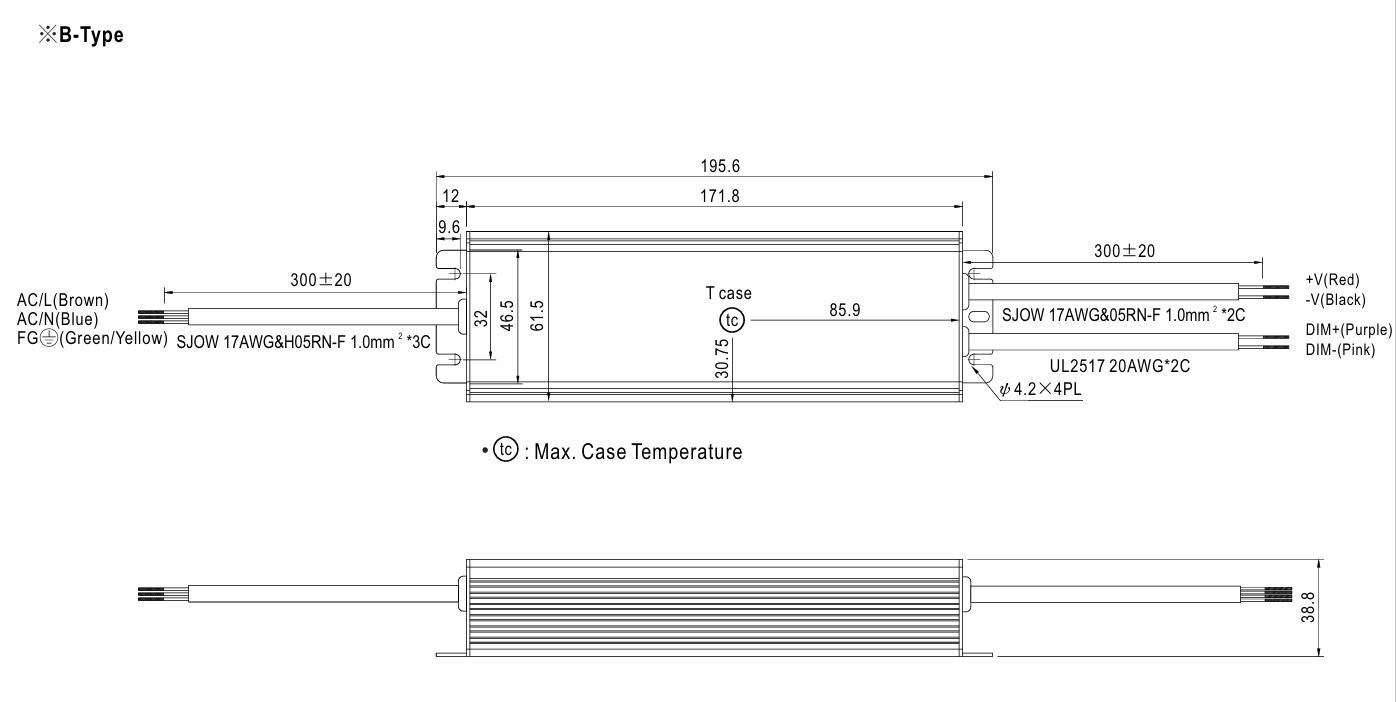

LxWxH 195.6x61.5x38.8mm
Protection markings: See meanwell.com
Open cable ends

Please refer to the data sheet for further details
