Sensoren

4duino DS18B20 Waterproof Digital Thermal Probe DS18B20 Sensor in Edelstahlhülse, wasserdicht verschweißt Abmessung Sensor: 6mm Durchmesser, ca. 50mm lang (davon 30mm blank) Temperaturbereich: -55C bis +125C Auflösung: 9-12Bit einstellbar. A-27 (C1) Stromversorgung: VCC 3,0 ~ 5,5V Kabelbelegung: rot=VCC blau=Daten, schwarz=GND alternativ: rot=VCC gelb=Daten, schwarz=GND oder: rot=VCC grün=Daten, gelb=GND externer Pullup Widerstand notwendig (empfohlen 4,7K) Kabellänge: ca. 100cm (mit Sensor) (C1)

4duino Sound sensor module, microphones module A-49 (B109)

Infrared sensor of obstacle avoidance module (reflection distance up to 30 m) Reflexlichtschranke mit Schaltausgang, Empfindlichkeit/Schaltschwelle mit Poti einstellbar. B-30 (C54)

4duino HC-SR04 Ultraschall Sensor 4Pin (C23)

4duino HC-SR501 PIR Motion Sensor Module A-28 (C3)

4duino Raindrops module/sensor / rain sensor A-33 (C28)

4duino HC-SRF05 Ultraschall Sensor 5pin A-31 (C25)

4duino MMA7361 Angle acceleration sensor module (replace MMA7260 acceleration module) B-14 (C67)

4duino Sensor-Kit für Arduino™ included are in total different Sensor or Actors You can find the instructions here: http://www.allnet.de/40in1-sensorkit/ and as PDF with descriptions here: Instructions as PDF for download -    Joystick -    Relay -    Microphone -    8 LED PCB -    Voltage regulator linear -    Flame -    Hall TTL -    Touch -    Temp I2C -    Buzzer -    Piezo Speaker 16R -    RGB-LED -    IR-optical detection -    Two color LED 5/3mm  "RED/GREEN -    Gas MQ-2 -    Vibration -    Reed contact -    Heartbeat -    Flash LED -    Light barrier -    Button -    Shock -    Rotary encoder -    5V STep-engine with driver PCB -    Tilt -    Photoresistor -    Temperature and humidity -    Potentiometer / analog hall -    1W LED module WW -    Temperature 1Wire -    NTC treshold TTL / NTC 10k -    IR receiver 38KHz -    IR LED -    Motion detection PIR

4duino DHT11 Temperature and humidity sensor (with LED power supply indicators and pull-up resistor. Connect IO directly) A-55 (C39)

4duino Normally open vibration sensor module B-28 (B134)

4duino Hall sensor module. (speed measuring, counting, position sensing, etc.) B-31 (C55)

4duino Sensitive for Methane, Butane, LPG, smoke. MQ-2 B-1 (C7)

4duino Water level detection sensor module B-81 (B75)

4duino Sensitive for Carbon Monoxide and flammable gas. Sensor: MQ-9 Analog (0~5V, high concentration=higher voltage) and TTL digital output (low-active, alarm-level can be adjusted) Operating Voltage: 5V B-8 (C14)

4duino 5A range ACS712 Module linearer Hallsensor ACS712 Messbereich +/- 5A liefert eine Spannung von 185mV/A ohne Stromfluss ist die Ausgangsspannung Vcc/2. B-10 (C64)

4duino Soil moisture meter detection module A-32 (C27)

4duino Humidity sensitive switch relay module humidity switch module humidity controller humidity sensor B-48

4duino "PCF8591 (AD/DA conversion module,DAC(Digital-to-Analogue Conversion), detectable light temperature, produce a variety of waveform)" I2C-Modul für Experimente. Eingebaute Sensoren für Licht (LDR), Temperatur sowie ein Potentiometer. Diese Sensoren können über Jumper aktiviert/deaktiviert werden. 1 LED zur Ausgangskontrolle. B-20   Werden die integrierten Sensoren nicht verwendet, stehen 4 analoge Eingänge (8 Bit Auflösung) und ein analoger Ausgang (8 Bit Aufl.) zur Verfügung. (B136)

4duino 1 road Tracing module TCRT5000 B-25 (C52)

4duino ADXL345 Digital Angle acceleration sensor module A-57 (B111)

1. IntroductionMLX90614 is a thermometer with IR non-contact. TO-39 uses metal packaging and integrate chip of IR sensing thermopile detector and special integrated chip of signal processing. It features small size, low-power consumption, high integration, high sensitivity, high reliability and compatible with SMBus interface. It can be utilized to measure environment temperature with high precision and non-contact, and detect dead zone, and industrial-temperature detecting and control, livestock detecting, motion detecting , terminal alarm and ect. 2. Performance parametersWorking voltage 3—5V Working temperature -40 — +125 Measuring temperature -70 — +380 Measuring resolution radio 0.02 Output I2C communication protocol

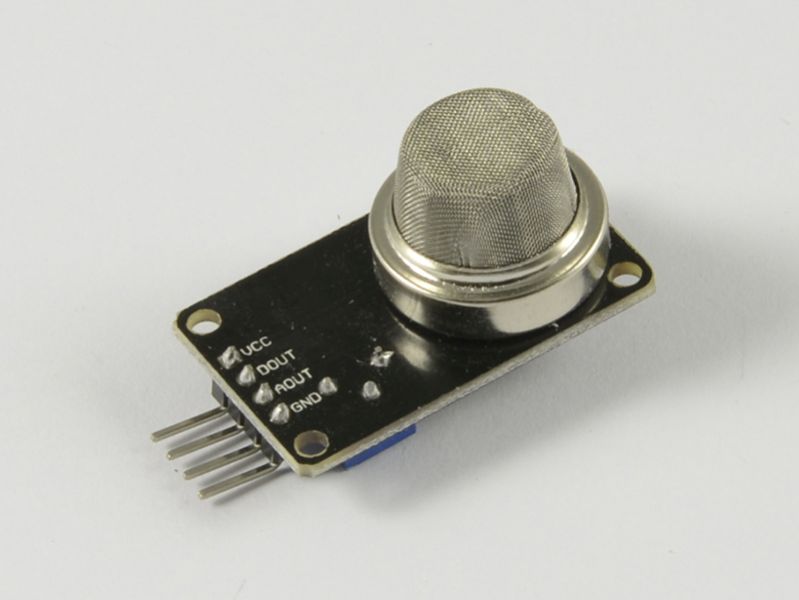

4duino Sensitive for Benzene, Alcohol, smoke. MQ-135 B-9 (C5)

4duino Sensitive for Carbon Monoxide. MQ-7 B-6 (C12)
