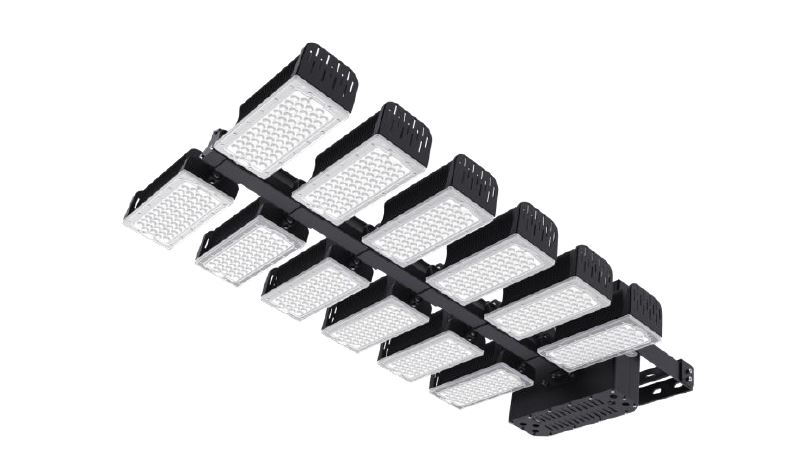

LED Objekt/Stadium Strahler

Operating voltage: AC 90-305V, 50/60Hz Watt: 300W LED: 144pcs Lumileds Power supply unit: MeanWell Beam angle: Lens 60°, light heads variably adjustable (swivelling) Beam angles with 30°, 90° or asymmetric also available on request. Lenses can also be exchanged. Interchangeable lenses with 30°, 90° and asymmetric available Lumen: 48.00lm Efficiency: 160Lm/Watt Light colour: 4000K CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP65 Dimensions: 344*184*238mm Energy efficiency class: A++ kWh/1000h: 300 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 85-265V, 50/60Hz LED: 4 modules of 168 LEDs, CREE 3030 140lm/Watt Power supply unit: 2*MeanWell Beam angle: 30°, module can be swivelled Lumen: 4*14000lm = 56000lm Efficiency: 140Lm/Watt Light colour: 5700K ±150 CRI: Ra>70 Dimmable: no Housing: Aluminium Operating temperature: -40°C to +65°C Protection class: IP67 / IK08 Dimensions: 396*92*458mm Other beam angles on request: 10°/30°/60°/90°/120° Other light colours on request: 4000K/5000K/5700K/6500/ Energy efficiency class: A++ kWh/1000h: 400 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz LED: 496 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting) Beam angles with 10°, 30° or 60° also available on request. Lumen: 158,400lm Efficiency: 165Lm/Watt Light colour: 5000K ±150 CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 846*202*579mm Energy efficiency class: A++ kWh/1000h: 960 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz LED: 372 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting) Beam angles with 10°, 30° or 60° also available on request. Lumen: 118,800lm Efficiency: 165Lm/Watt Light colour: 5000K ±150 CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 691*202*579mm Energy efficiency class: A++ kWh/1000h: 720 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz LED: 248 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting) Beam angles of 10°, 30° or 60° also available on request. Lumen: 79200lm Efficiency: 165Lm/Watt Light colour: 5000K ±150 CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 536*165*579mm Energy efficiency class: A++ kWh/1000h: 480 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz Watt: 300W (Also available with 180W on request.) LED: 144pcs Lumileds Power supply unit: MeanWell Beam angle: Lens 60°, light heads variably adjustable (swivelling and tilting) Beam angles of 10°, 30°, 90° or 120° also available on request. Lenses can also be exchanged. Interchangeable lenses with 30°, 60°, 90° and 120° available Lumen: 48,000lm Efficiency: 160Lm/Watt Light colour: 5600K CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP65 Dimensions: 410*340*230mm Energy efficiency class: A++ kWh/1000h: 300 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Betriebsspannung: AC 90-305V, 50/60Hz LED: 620 LED Philips Lumileds 165lm/Watt Netzteil: MeanWell Abstrahlwinkel: Linse 90°, Lichtköpfe variabel einstellbar (schwenk und neigbar) Auf Anfrage auch Abstrahlwinkel mit 10°, 30° oder 60° verfügbar. Lumen: 198.000lm Effizienz: 165Lm/Watt Lichtfarbe: 5000K ±150 CRI: Ra>70 dimmbar: nein (Dimmbare Modelle wie DALI oder 0-10V auf Anfrage) Gehäuse: Aluminium Arbeitstemperatur: -40°C bis +60°C Schutzklasse: IP66 Abmessungen: 1001*277*579mm Energieeffizienzklasse: A++ kWh/1000h: 480 Der Anschluss Elektrischer Bauteile und Anlagen darf grundsätzlich nur von  qualifizierten Fachpersonal vorgenommen werden!

Operating voltage: AC 90-305V, 50/60Hz LED: 372 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 30°, light heads variably adjustable (swivelling and tilting) Beam angles with 10°, 60° or 90° also available on request. Lumen: 118,800lm Efficiency: 165Lm/Watt Light colour: 5700K CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 691*202*579mm Energy efficiency class: A++ kWh/1000h: 720 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz LED: 744 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting) Beam angles with 10°, 30° or 60° also available on request. Lumen: 237,600lm Efficiency: 165Lm/Watt Light colour: 5000K ±150 CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 1156*277*579mm Energy efficiency class: A++ kWh/1000h: 1440 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

CAUTION: UV-C light can cause damage to the retina of the eye as well as skin damage after prolonged exposure. Only use in the absence of people. Operating voltage: 180~240VAC&277VAC Input Watt: 200W LED: 275NM-UVC Power supply: MeanWell Beam angle: Lens 120° Light colour: 275NM-UVC Housing: Aluminium Operating temperature: -40°C to +40°C Dimensions: 429*429*159mm The connection of electrical components and systems may only be carried out by by qualified personnel only!

Operating voltage: AC 85-265V, 50/60Hz LED: 8 modules of 168 LEDs, CREE 3030 140lm/Watt Power supply unit: 4*MeanWell Beam angle: 30°, module can be swivelled Lumen: 8*14000lm = 112000lm Efficiency: 140Lm/Watt Light colour: 5700K ±150 CRI: Ra>70 Dimmable: no Housing: Aluminium Operating temperature: -40°C to +65°C Protection class: IP67 / IK08 Dimensions: 757*92*458mm Other beam angles on request: 10°/30°/60°/90°/120° Other light colours on request: 4000K/5000K/5700K/6500/ Energy efficiency class: A++ kWh/1000h: 800 The connection of electrical components and systems may only be carried out by by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz LED: 248 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting) Beam angles with 10°, 30° or 60° also available on request. Lumen: 79200lm Efficiency: 165Lm/Watt Light colour: 3000K ±150 warm white CRI: Ra>70 dimmable: 0-10V Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 536*165*579mm Energy efficiency class: A++ kWh/1000h: 480 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz LED: 248 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting) Beam angles of 10°, 30° or 60° also available on request. Lumen: 79200lm Efficiency: 165Lm/Watt Light colour: 5000K ±150 CRI: Ra>70 dimmable: dali Housing: aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 536*165*579mm Energy efficiency class: A++ kWh/1000h: 480 The connection of electrical components and systems may only be carried out by only be carried out by qualified specialists!

Operating voltage: AC 90-305V, 50/60Hz LED: 620 LED Philips Lumileds 165lm/Watt Power supply unit: MeanWell Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting) Beam angles with 10°, 30° or 60° also available on request. Lumen: 198,000lm Efficiency: 165Lm/Watt Light colour: 4000K CRI: Ra>70 Dimmable: no (Dimmable models such as DALI or 0-10V on request) Housing: Aluminium Operating temperature: -40°C to +60°C Protection class: IP66 Dimensions: 1001*277*579mm Energy efficiency class: A++ kWh/1000h: 1200 The connection of electrical components and systems may only be carried out by by qualified specialists!

Betriebsspannung: AC 90-305V, 50/60Hz LED: 744 LED Philips Lumileds 165lm/Watt Netzteil: MeanWell Abstrahlwinkel: Linse 90°, Lichtköpfe variabel einstellbar (schwenk und neigbar) Auf Anfrage auch Abstrahlwinkel mit 10°, 30° oder 60° verfügbar. Lumen: 237.600lm Effizienz: 165Lm/Watt Lichtfarbe: 5000K ±150 CRI: Ra>70 dimmbar: nein (Dimmbare Modelle wie DALI oder 0-10V auf Anfrage) Gehäuse: Aluminium Arbeitstemperatur: -40°C bis +60°C Schutzklasse: IP66 Abmessungen: 1156*277*579mm Energieeffizienzklasse: A++ kWh/1000h: 1440 Der Anschluss Elektrischer Bauteile und Anlagen darf grundsätzlich nur von  qualifizierten Fachpersonal vorgenommen werden!

Betriebsspannung: AC 90-305V, 50/60Hz LED: 620 LED Philips Lumileds 165lm/Watt Netzteil: MeanWell Abstrahlwinkel: Linse 90°, Lichtköpfe variabel einstellbar (schwenk und neigbar) Auf Anfrage auch Abstrahlwinkel mit 10°, 30° oder 60° verfügbar. Lumen: 198.000lm Effizienz: 165Lm/Watt Lichtfarbe: 5000K ±150 CRI: Ra>70 dimmbar: nein (Dimmbare Modelle wie DALI oder 0-10V auf Anfrage) Gehäuse: Aluminium Arbeitstemperatur: -40°C bis +60°C Schutzklasse: IP66 Abmessungen: 1001*277*579mm Energieeffizienzklasse: A++ kWh/1000h: 480 Der Anschluss Elektrischer Bauteile und Anlagen darf grundsätzlich nur von  qualifizierten Fachpersonal vorgenommen werden!

Betriebsspannung: AC 90-305V, 50/60Hz LED: 496 LED Philips Lumileds 165lm/Watt Netzteil: MeanWell Abstrahlwinkel: Linse 90°, Lichtköpfe variabel einstellbar (schwenk und neigbar) Auf Anfrage auch Abstrahlwinkel mit 10°, 30° oder 60° verfügbar. Lumen: 158.400lm Effizienz: 165Lm/Watt Lichtfarbe: 5000K ±150 CRI: Ra>70 dimmbar: nein (Dimmbare Modelle wie DALI oder 0-10V auf Anfrage) Gehäuse: Aluminium Arbeitstemperatur: -40°C bis +60°C Schutzklasse: IP66 Abmessungen: 846*202*579mm Energieeffizienzklasse: A++ kWh/1000h: 960 Der Anschluss Elektrischer Bauteile und Anlagen darf grundsätzlich nur von  qualifizierten Fachpersonal vorgenommen werden!
