LED Stehleuchten

LED panel office line Free-standing luminaire for workplace lighting Frame colour: grey/silver RAL9006 Power consumption: 80Watt, 40W up, 40W down Lumen output: 7040lm Neutral white: 4100k ±150 Colour rendering: CRI >80 UGR: <19 with light downwards, no UGR upwards Beam angle: 120° (total) Operating temperature: -20° to +45° Power supply: 100-240V Power supply unit: built-in power supply unit, dimming via built-in touch dimmer Built-in motion detector Size: Height: 1950mm, base: 300*460mm Lamp head size: 310*610*30mm Weight: 17.1kg Material: Aluminium Energy efficiency class: A+ kWh/1000h: 80

Standleuchte zur Arbeitsplatzbeleuchtung Rahmenfarbe: weiß RAL9003 Leistungsaufnahme : 80Watt, 40W up, 40W down Lumenzahl:               10200lm Neutralweiß:             4000k ±150 Farbwiedergabe:       CRI >80 UGR:                        <18 bei Licht nach unten, kein UGR nach oben Abstrahlwinkel:          80° (unten) 115° (oben)) Arbeitstemperatur:     -20° bis +45° Stromzufuhr:             100-240V Netzteil:                    eingebautes Netzteil, dimmen über eingebauten Touchdimmer Eingebauter Bewegungsmelder + Tageslichtsensor Größe: Höhe: 1950mm, Standfuss: 300*460mm Größe Lampenkopf: 310*610*30mm Gewicht 17,1Kg Material: Aluminium kWh/1000h: 80

The Synergy 21 LED Office Line floor lamp Themis is the perfect solution for modern office and workplace lighting. With its elegant white design (RAL9003), innovative sensor technology and high energy efficiency, it combines functionality with a stylish appearance. Properties & advantages Optimal workplace lighting: Powerful 100W LED with 13,000 lumens – of which 11,500 lm upwards (indirect) and 1,500 lm downwards (direct). Variable light colour: Adjustable colour temperature from 3000K to 5700K (neutral white to daylight white). Convenient operation: Integrated touch dimmer for stepless brightness control. Automatic control: Built-in motion detector and daylight sensor for energy-efficient operation. High visual comfort: CRI >80 for natural colour rendering and UGR <14 with direct light downwards – glare-free lighting for concentrated work. Durable & robust: Made of high-quality aluminium, suitable for ambient temperatures from -20 °C to +40 °C. Technical data Power output: 100 watts (88W up / 12W down) Luminous flux: 13,000 lumens (Up 11,500 lm / Down 1,500 lm) Beam angle: 40° (down) / 100° (up) Dimensions: Height 2000 mm | base 320 × 420 mm | lamp head 160 × 670 × 23 mm Weight: 11.4 kg Power supply: 100–240V | Built-in power supply unit Colour: White (RAL9003), also available in black or silver on request Energy consumption: 100 kWh/1000h Application areas Ideal for: Büroräume & large rooms Home office workstations Conference and meeting rooms Educational and administrative areas The Synergy 21 Themis floor lamp combines modern design, convenient operation and maximum efficiency - for optimum lighting in any workplace.

Replacement circuit board with motion detector and light sensor for floor lamps 172135 and 172136

Replacement screw set for floor lamp

LED Panel office line Standleuchte zur Arbeitsplatzbeleuchtung Rahmenfarbe: weiß RAL9003 Leistungsaufnahme : 80Watt, 40W up, 40W down Lumenzahl:               10200lm Neutralweiß:             4000k ±150 Farbwiedergabe:       CRI >80 UGR:                        <18 bei Licht nach unten, kein UGR nach oben Abstrahlwinkel:          80° (unten) 115° (oben)) Arbeitstemperatur:     -20° bis +45° Stromzufuhr:             100-240V Netzteil:                    eingebautes Netzteil, dimmen über eingebauten Touchdimmer Eingebauter Bewegungsmelder  Größe: Höhe: 1950mm, Standfuss: 300*460mm Größe Lampenkopf: 310*610*30mm Gewicht 17,1Kg Material: Aluminium kWh/1000h: 80

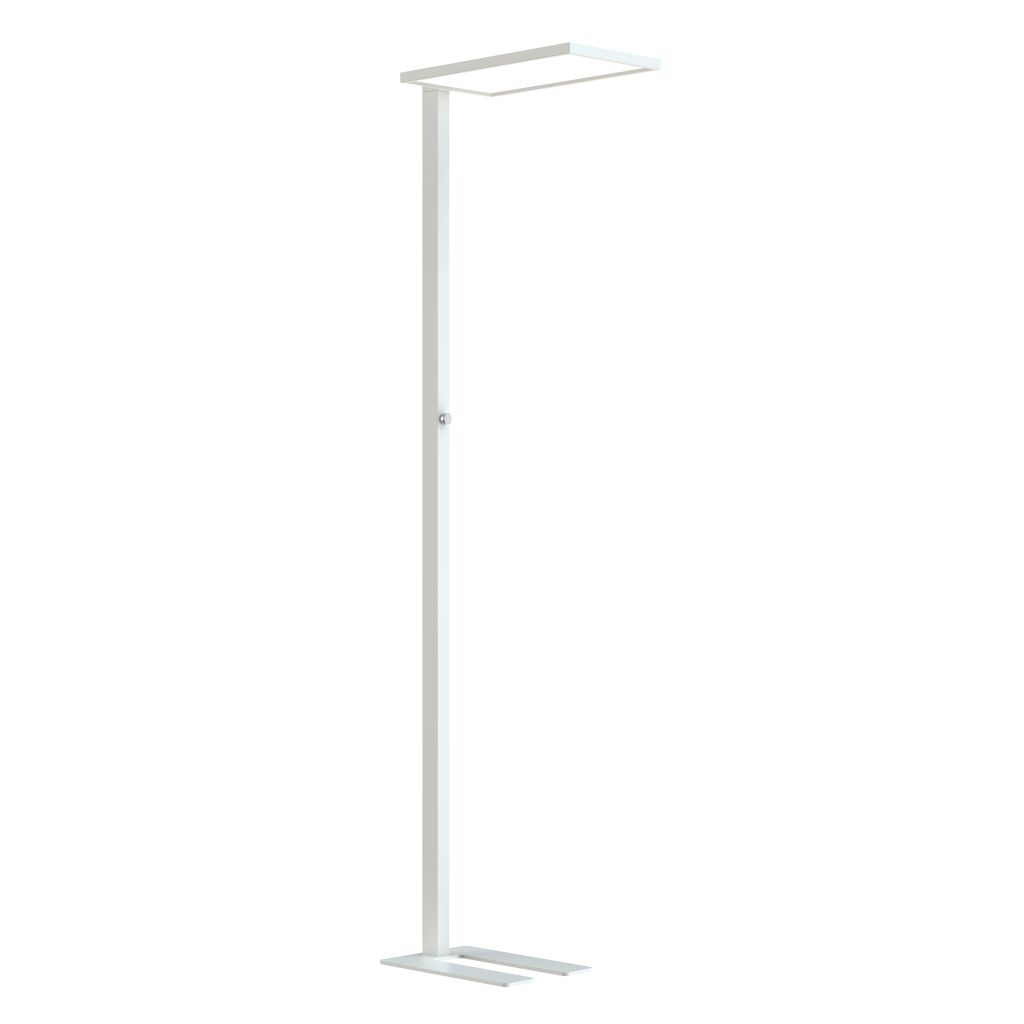

The Synergy 21 LED Office Line floor lamp Dike offers optimum workplace lighting in a modern design. With direct and indirect light distribution, high luminosity and a convenient dimming function, it is ideal for offices, home offices and professional working environments. Properties & advantages Perfect workplace lighting: 60W total output – 30W downlight + 30W uplight High light output: A total of 7500 lumens (4200 lm top / 3300 lm bottom) A pleasant neutral white: 4000K for concentrated work without fatigue Natural colour rendering: CRI >80 Glare-free: UGR <19 for downward-directed light – ideal for computer workstations Optimal light distribution: 80° beam angle below, 115° above Easy operation: Infinitely variable dimming via integrated rotary knob Modern design: Slim design, elegant white colour (RAL9003) Technical data Power consumption: 60 W (30 W uplight / 30 W downlight) Lumen: 7500 lm (Up 4200 lm / Down 3300 lm) Colour temperature: 4000K (neutral white) CRI: >80 UGR: <19 at the bottom, no UGR at the top Beam angle: 80° (bottom) / 115° (top) Working temperature: -20 °C to +40 °C Power supply: 100–240 V Power supply unit: Integrated, dimming via rotary control Maße: Height: 1950 mm Standing foot: 270 × 400 mm Lamp head: 570 × 280 × 22 mm Weight: 10.2 kg Colour: White (RAL9003) Application areas Ideal for: Büros & large roomüros Home office Conference and meeting rooms Call centre & administration areas The Synergy 21 Dike floor lamp combines modern LED technology, high-quality workmanship and ergonomic lighting - perfect for productive and pleasant working.
