250V/450V PTI250, T85 IP68 at 5 bar, 24A Contains an internal screw connector insert for up to 5 cables, which can be which can be connected at both ends. Rubber inserts for different cable diameters for sealing are included in the included in the scope of delivery. Min. Ø5mm to max. Ø14mm cable diameter

Box material: PA66 IP Class: IP66 Sunscreen Rating:Sun Protection(UV) Terminal Blocks: Housing Polypropylene 94-V2grade(PA) Metal Part:Plated Brass/Steel Spring Screws: SS Dimension: W=6,5cm, L=10cm

Box material: PA66 IP Class: IP66 Sunscreen Rating:Sun Protection(UV) Terminal Blocks: Housing Polypropylene 94-V2grade(PA) Metal Part:Plated Brass/Steel Spring Screws: SS

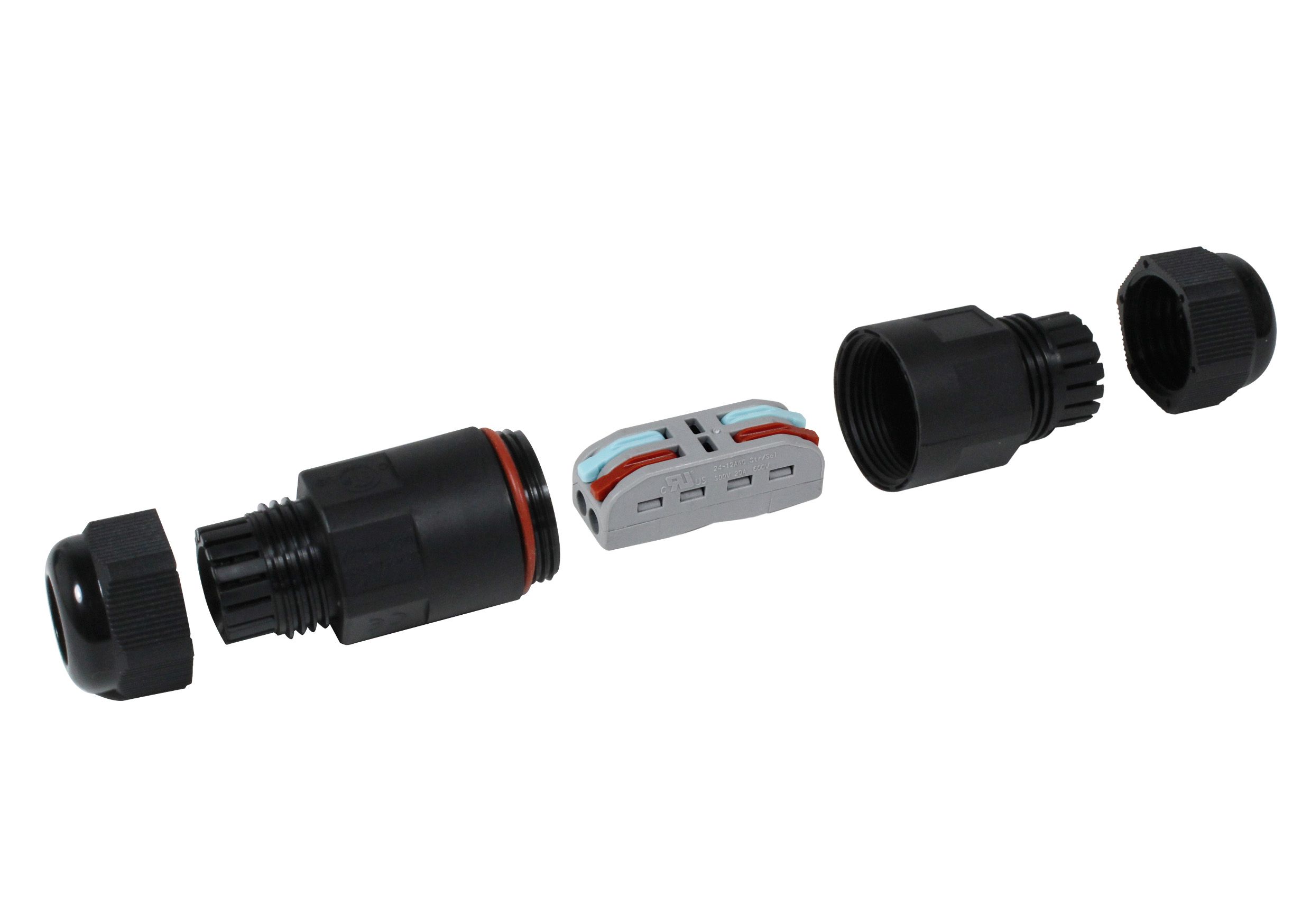

Waterproof junction boxes with terminal blocks, cable to cable 250V/450V PTI 250, T50 IP68 16A Min. Ø5mm, Max. Ø14mm

Hosing: PA66 O-ring: silicone Conductor material: cooper Cable range: 13.5mm~17mm Cable size: 4mm2 Temperature: 85°C Voltage: 250V Ingress protection: IP68 Fire classification: 94V0

5 pack of quick connectors 3 inputs and 3 outputs for electrical cables Rigid: from 0.08 - 4 mm² Flexible: from 0.08 - 2.5mm² Volt: up to 250V Ampere: up to 32A Temp: -40°C ~ 105°C

5 pack of quick connectors  2 inlets and 4 outlets for electrical cables  Rigid: from 0.08 - 4 mm² Flexible: from 0.08 - 2.5mm² Volt: up to 250V Ampere: up to 32A Temp: -40°C ~ 105°C

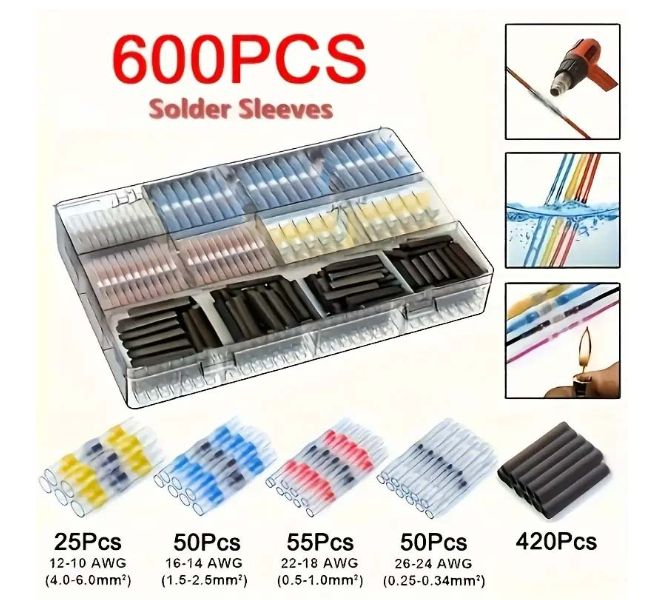

Löt shrink connector – Waterproof IP67 Löt heat shrink connector – Waterproof IP67 Waterproof solder sleeves (Solder Sleeves) for fast, secure and tight cable connections. Integrated tin ring for the electrical connection, outer heat-shrinkable sleeve with hot-melt adhesive seal for reliable sealing (IP67). Advantages Soldering, shrinking and sealing in a single work step Weather, vibration and corrosion resistance (IP67) No crimping pliers required ; hot air is sufficient Ideal for cars, motorbikes, boats, outdoor electrics and electronics Technical details   Colour Conductor cross-section (mm²) AWG Length (mm) Typical application White 0,25–0,34 26–24 26 Dünne signal lines Red 0.5–1.0 22–18 40 Electronics/automotive cables Blue 1.5–2.5 16–14 40 Standard power cable Yellow 4.0–6.0 12–10 40 Stronger supply lines Key points Soldering, shrinking & sealing in one step Waterproof (IP67) and corrosion-resistant Integrated tin ring for secure electrical connection Heat-shrinkable outer jacket with hot-melt adhesive seal No crimping tool required – only hot air or lighter Ideal for automotive, boat, motorbike, electronics & outdoor wiring Note on the application Stripping the conductor, twisting it and pushing it into the connector (overlap the wires in the tin ring). Heat with hot air from the centre (tin ring) towards the ends until tin flows and adhesive emerges. Let cool, carry out a tensile test. Only for copper conductors.
