Synergy 21 LED Flächenstrahler 30W RGB-WW (RGB-CCT) Zigbee + 2.4G IP65 230V *Milight/Miboxer*

Product information "Synergy 21 LED Flächenstrahler 30W RGB-WW (RGB-CCT) Zigbee + 2.4G IP65 230V *Milight/Miboxer*"

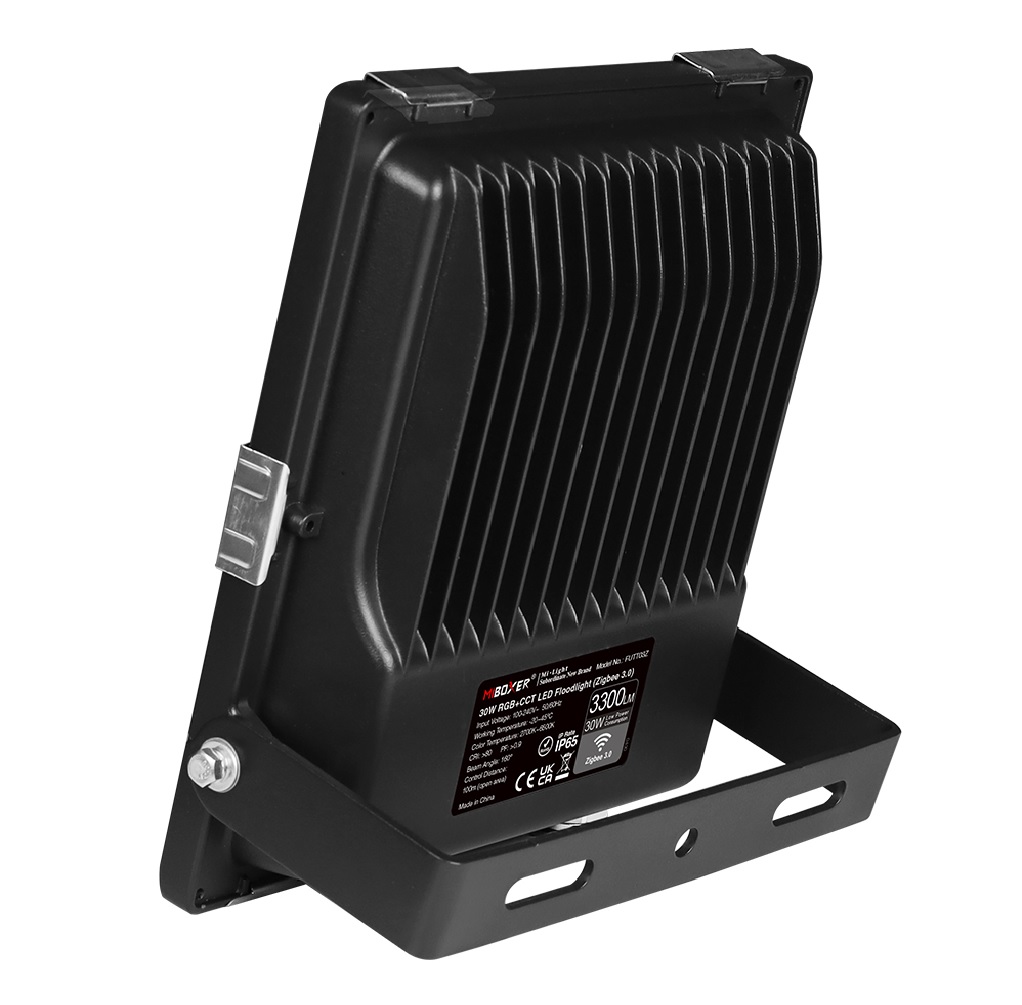

Experience the innovative lighting solution with the Miboxer Floodlight 30W RGB-CCT. This powerful floodlight offers impressive light output and versatility, ideal for illuminating gardens, facades, car parks and event venues.

The Miboxer Floodlight 30W RGB-CCT can be controlled with a radio remote control and a WLAN controller for iOS and Android, both of which are available separately. Thanks to the open cable end, installation is particularly flexible (see accessories).

With a total output of 30W and an additional output of 30W for the white LEDs and 30W for the RGB LEDs, this floodlight offers exceptional brightness. The variable colour temperature from 2700K to 6500K and the RGB+CCT function allow you to choose both warm and cool whites as well as a wide range of colours. With a light efficiency of 85LM/W and a luminous flux of 2500-2800 lumens, this floodlight provides impressive lighting.

The Miboxer Floodlight 30W RGB-CCT has a wide beam angle of 160°, which ensures uniform light distribution. It operates at a voltage of AC86-265V / 50-60Hz and has a power factor of 0.9, making it particularly energy efficient. The robust aluminium construction and IP65 protection rating guarantee a long service life and make it resistant to water and dust.

With a compact size of 167x40x226.5mm, this floodlight is easy to install and fits seamlessly into any environment. The control range of up to 30 metres allows you to conveniently adjust the lighting from a distance.

The Miboxer Floodlight 30W RGB-CCT is the perfect choice for anyone looking for a powerful and versatile lighting solution

Miboxer floodlight 30W RGB-CCT with 160° beam angle

Controllable with wireless remote control and/or WLAN controller for iOS and Android, both available separately, see accessories

Power: 30W
White LED Power: 30W
RGB LED Power: 30W
Voltage: AC86-265V / 50-60Hz
Kelvin: 2700-6500K
Luminous Flux: 2500-2800LM
Luminous Efficiency: 85LM/W
CRI: >80
Beam Angle: 160°
PF: =0.9
Material: Aluminium Material
IP Rate:IP65
Size: 167*40*226.5mm

Energy efficiency class: F
kWh/1000h: 30

Article properties

Abstrahlwinkel: 160 Grad
CRI: >80 CRI
Dimmbar: Ja
Gehäusefarbe: schwarz
Grösse: 167*40*226,5 mm
LED - Gehäusematerial: Aluminium
Lichtfarbe Name: RGB-WW
Lichtfarbe in Kelvin: 2700~6500 K
Lumen: 3300 LM
Schutzklasse: IP65
Volt: 230 Volt
Watt: 30 W
