Synergy 21 LED PLC Serie PAR56 Pool Light 30W RGB+CCT *Milight/Miboxer*
Product number:
247912
Manufacturer Number:
PLC-PA1
Weight:
0,720 KG
Product information "Synergy 21 LED PLC Serie PAR56 Pool Light 30W RGB+CCT *Milight/Miboxer*"

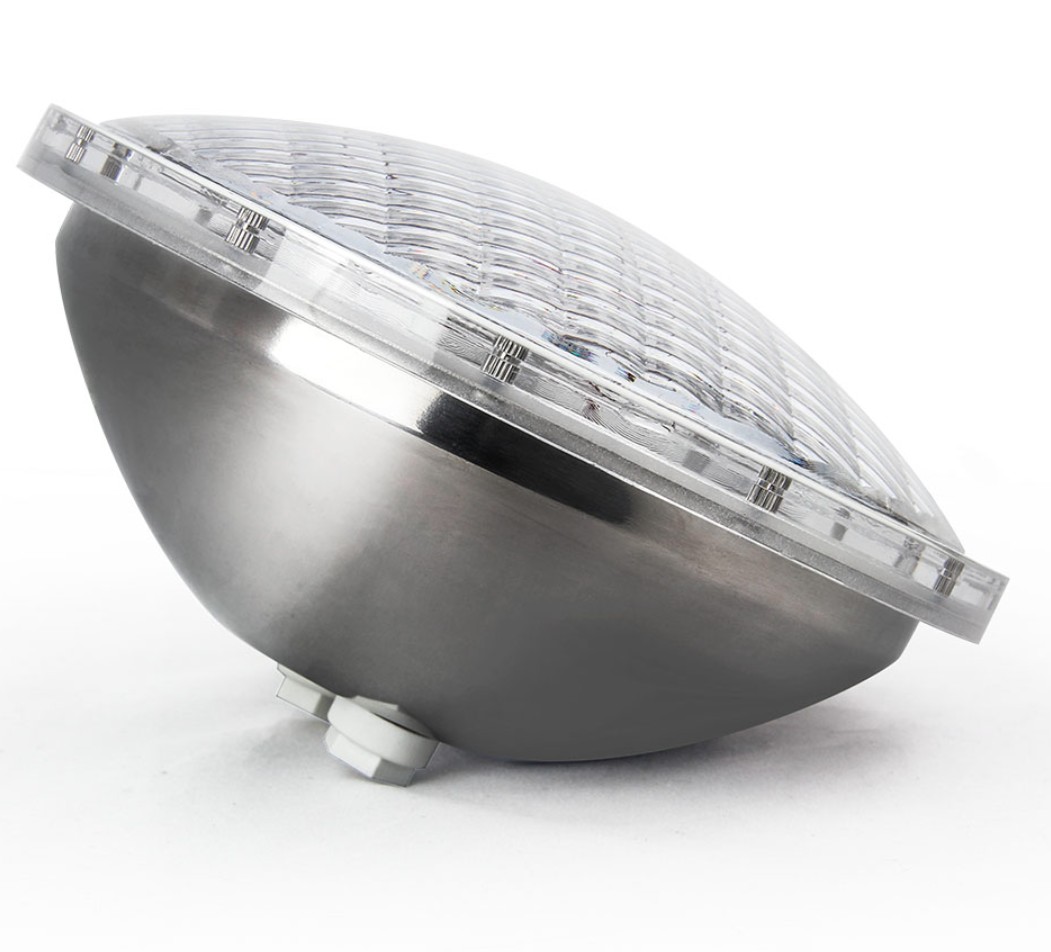

30W RGB+CCT PAR56 LED Pool Light (PLC)
• 16 million colours for selection, dimmable for rgb& cct& brightness
• Brightness and colour temperature adjustable
• Working with master controller to adjust rgb& cct& brightness& saturation
• IP68 waterproof(Need the cover)
Features

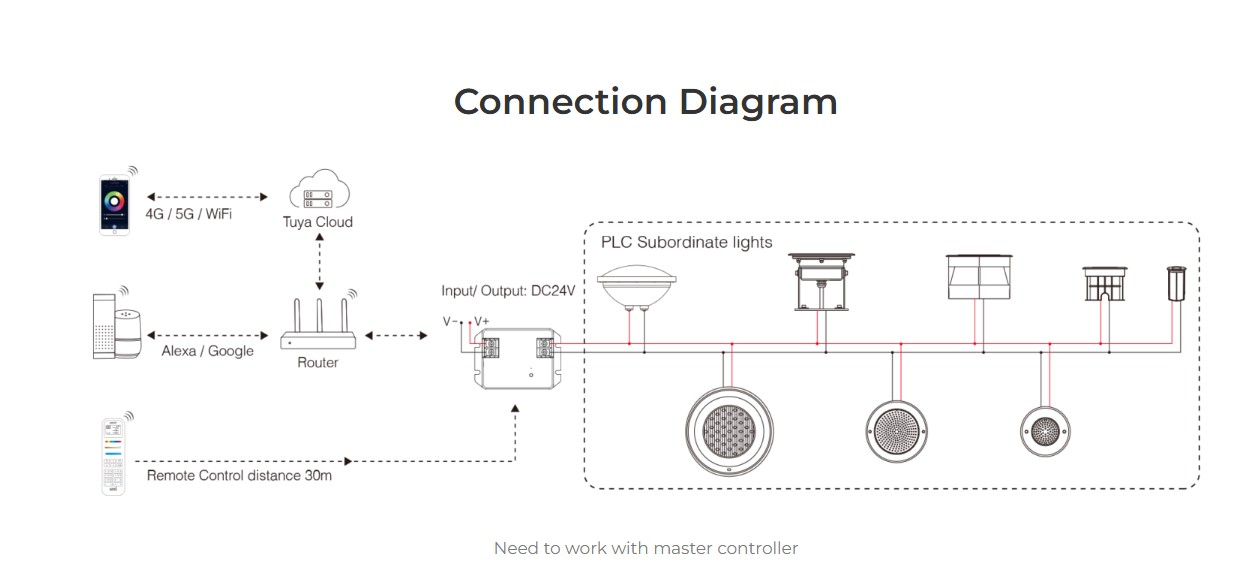

Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colours for selection, dimmable for rgb& cct& brightness
- Working with master controller to adjust rgb& cct& brightness& saturation
- 304 stainless steel
- IP68 waterproof(Need the cover)
| Product Name: | RGB+CCT PAR56 LED Pool Light |
|---|---|
| Model No.: | PLC-PA1 |
| Input Voltage: | DC24V |
| Power: | 30W(R: 10W, G. B: 14W, C: 14W, W: 14W) |
| CRI: | >80 |
| Colour temperature: | 2700K~6500K |
| Luminous Flux: | 1900LM |
| Luminous efficiency: | 140LM/W |
| Beam Angle: | 160° |
| IP Rate: | IP68(Need the cover) |
| Working Temperature: | -10~40°C |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Article properties
| Abstrahlwinkel: | 160 Grad |
|---|---|
| Ampere (CC): | 1.25 A |
| Betriebstemperatur: | -10~+40°C Grad |
| CRI: | >80 CRI |
| Dimmbar: | ja, PLC |
| Gehäusefarbe: | silber/glas |

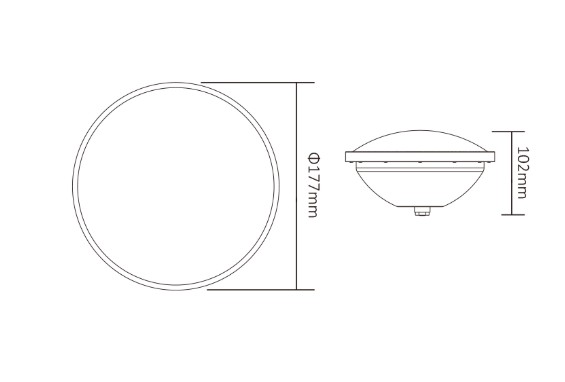

| Grösse: | 177*120 mm |
| Konstantstrom oder Konstantvolt: | CV |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe Name: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K K |
| Lumen: | 1900 LM |
| Lumen-Effizienz: | 140 LM/W |
| Schutzklasse: | IP68 |
| Volt: | 24 Volt |
| Watt: | 30 W |
| schwenkbar: | nein |
