Synergy 21 LED PLC Serie Wall mounted Pool Light 9W RGB+CCT *Milight/Miboxer*
Product number:
247910
Manufacturer Number:
PLC-WP2
Weight:
0,570 KG
Product information "Synergy 21 LED PLC Serie Wall mounted Pool Light 9W RGB+CCT *Milight/Miboxer*"
PLC-WP2
9W RGB Wall-mounted LED Pool Light (PLC)
• 16 million colours for selection, dimmable for rgb& cct& brightness
• Brightness and colour temperature adjustable
• Working with master controller to adjust rgb& cct& brightness& saturation
• IP68 waterproof
Features

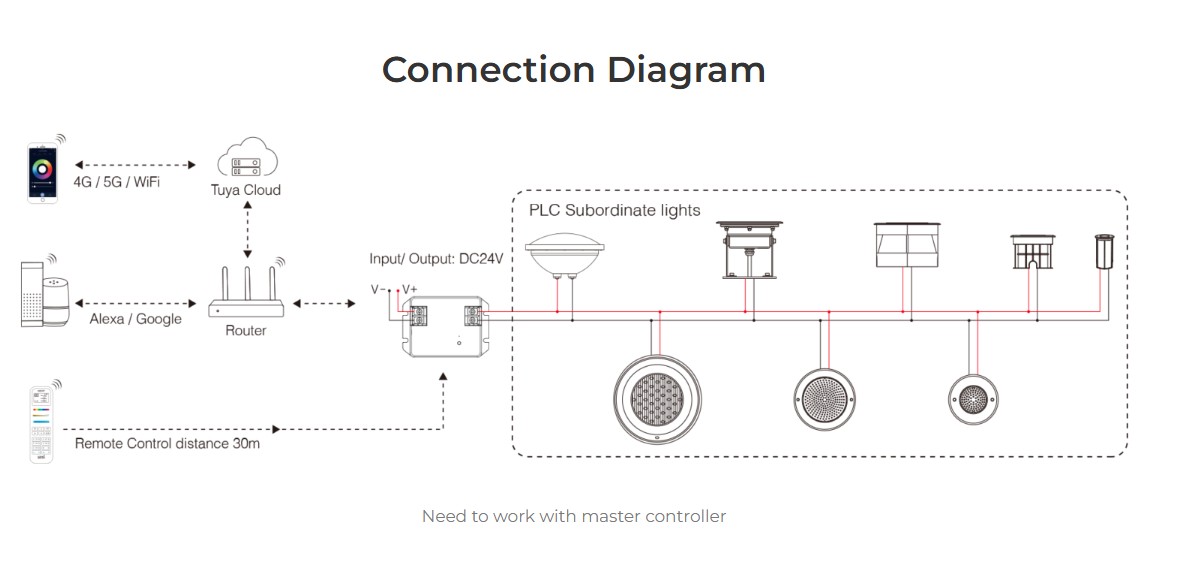

Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colours for selection, dimmable for rgb& cct& brightness
- Working with master controller to adjust rgb& cct& brightness& saturation
- 304 stainless steel
- IP68 waterproof
| Product Name: | RGB Wall-mounted LED Pool Light |
|---|---|
| Model No.: | PLC-WP2 |
| Input Voltage: | DC24V |
| Power: | 9W(R, G, B: 3W, CW: 5W, WW: 4W) |
| CRI: | >80 |
| Colour temperature: | RGB mixed CCT |
| Luminous Flux: | 270LM |
| Luminous efficiency: | 50LM/W |
| Beam Angle: | 120° |
| IP Rate: | IP68 |
| Working Temperature: | -10~40°C |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Article properties
| Abstrahlwinkel: | 120 Grad |
|---|---|
| Ampere (CC): | 0.375000 A |
| Betriebstemperatur: | -10~+40°C Grad |
| CRI: | >80 CRI |
| Dimmbar: | ja, PLC |
| Gehäusefarbe: | silber |

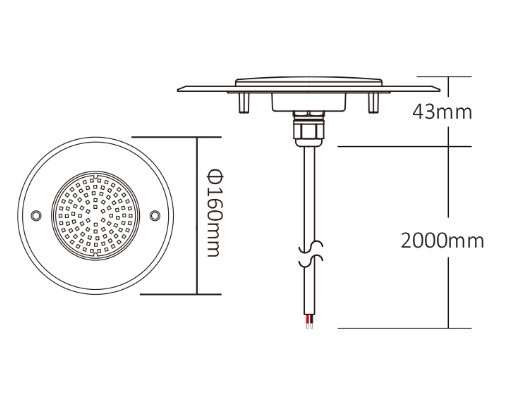

| Grösse: | 160*43 mm |
| Konstantstrom oder Konstantvolt: | CV |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe Name: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K K |
| Lumen: | 270 LM |
| Lumen-Effizienz: | 50 LM/W |
| Schutzklasse: | IP68 |
| Volt: | 24 Volt |
| Watt: | 9 W |
| schwenkbar: | nein |
