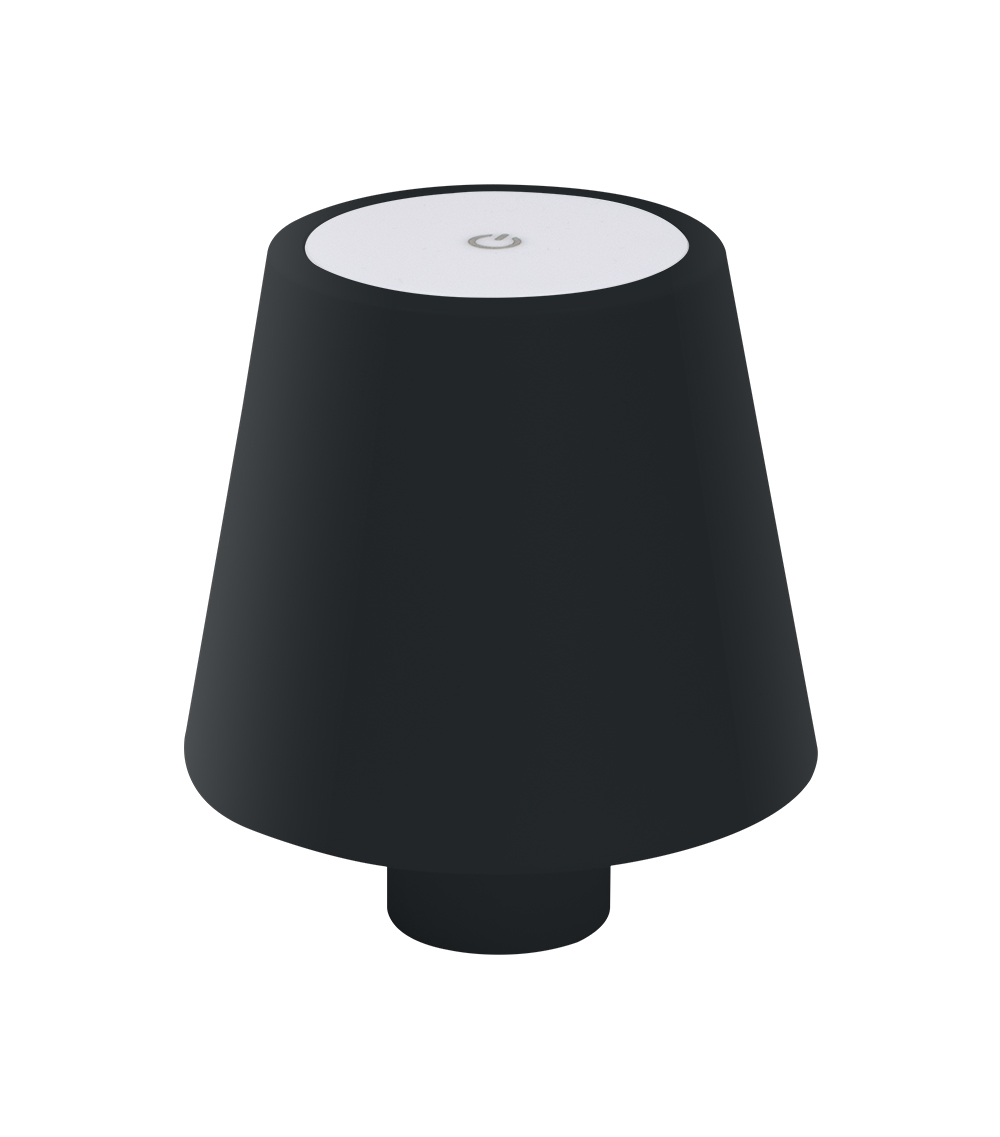

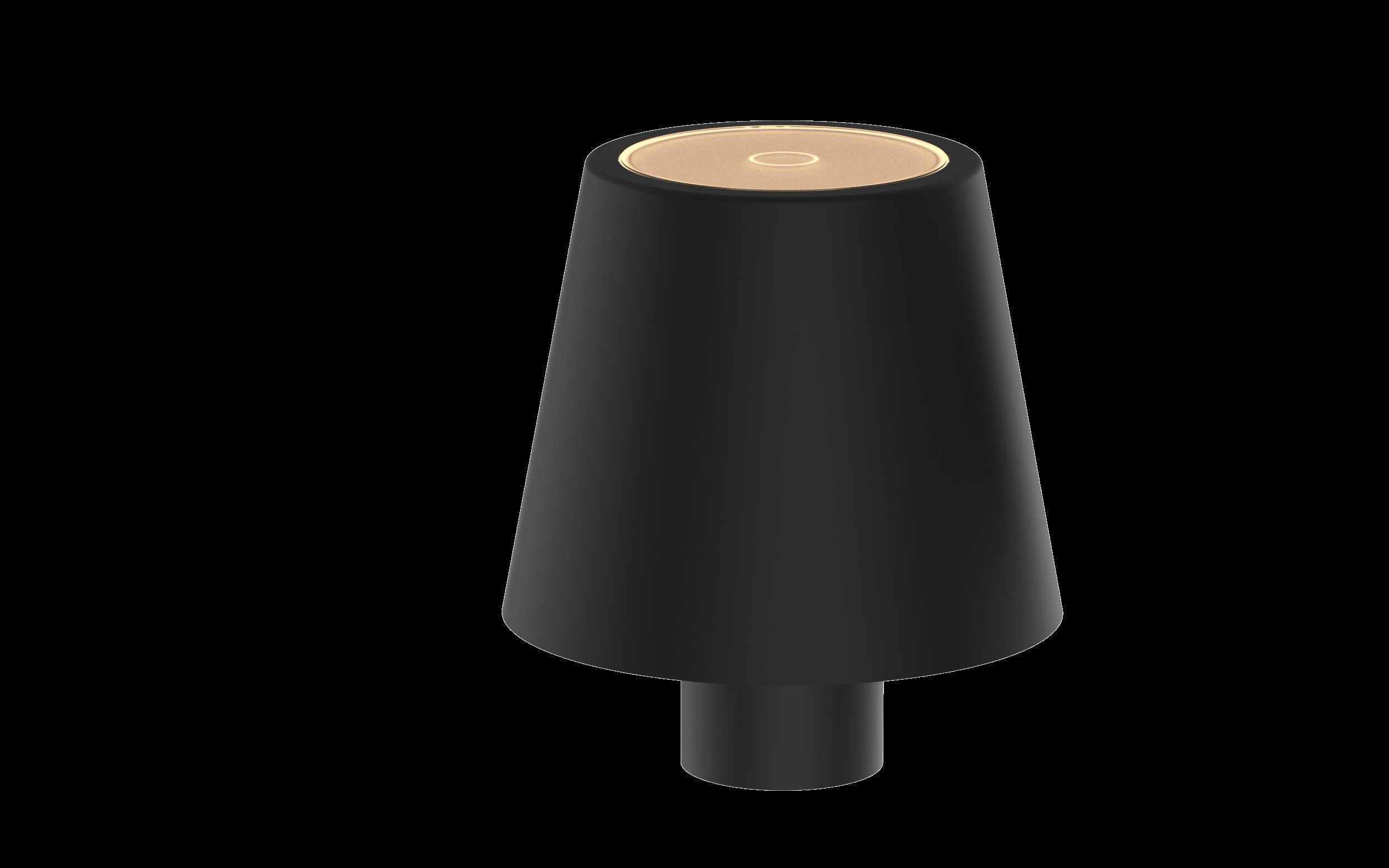

Synergy 21 LED Tischleuchte Akku für Flaschen, outdoor IP54, Touch Switch dimmbar, schwarz

Synergy 21 LED

Prices excl. VAT plus shipping costs

Product number: 224255

EAN: 4038816131188

Manufacturer Number: S21-LED-JT240001

Weight: 0,350 KG

CE - Declaration of conformity

Product information "Synergy 21 LED Tischleuchte Akku für Flaschen, outdoor IP54, Touch Switch dimmbar, schwarz"

This stylish LED table lamp in black offers a flexible lighting solution for indoor and outdoor use. Made of robust aluminium, PC and ABC, it not only impresses with its modern design, but also with its durability and versatility.

With a wattage of 3.3W and a colour temperature of 3000K warm white, this lamp provides a pleasant, warm light that is perfect for relaxing. The stepless dimming function allows you to adjust the brightness to your liking – simply by touching the top of the lampshade.

This lamp is IP54-certified, which means that it is also suitable for outdoor use. The integrated rechargeable battery with 2*1800mAh offers an operating time of approx. 6-7 hours on a full charge, ideal for long evenings outdoors. The charging takes place via a USB-C charging cable in around 6-7 hours. A red charging indicator light on the underside of the umbrella indicates when the battery is charging and changes to green as soon as the charging process is complete.

This lamp combines modern design with practical functionality and provides you with the perfect lighting wherever you need it.

Product parameters:

Colour: Black
Material: Aluminium+PC+ABC
Switch: Touch control
Dimmable: Stepless dimmable
Battery: 2*1800mAh
Wattage: 3.3W
Colour temperature: 3000K warm white
Suitable for outdoor use IP54
Charging time: approx. 6-7 hours via USB-C charging cable, red charging indicator light on the underside of the shade, turns green when battery is fully charged.
Operating time: approx. 6-7 hours with fully charged battery.
On/off/dimming by touching the top of the lampshade

Datasheet German

Manual German

Synergy 21 - Waterproof connector 1:1

250V/450V PTI250, T85 IP68 at 5 bar, 24A Contains an internal screw connector insert for up to 5 cables, which can be which can be connected at both ends. Rubber inserts for different cable diameters for sealing are included in the included in the scope of delivery. Min. Ø5mm to max. Ø14mm cable diameter

Product number: 148726

Manufacturer Number: S21-COMP-00751

Synergy 21 - Waterproof connector 1:2

Hosing: PA66 O-ring: silicone Conductor material: cooper Cable range: 13.5mm~17mm Cable size: 4mm2 Temperature: 85°C Voltage: 250V Ingress protection: IP68 Fire classification: 94V0

Product number: 148727

Manufacturer Number: S21-COMP-00752

Synergy 21 - Waterproof connector box 4 ports

Box material: PA66 IP Class: IP66 Sunscreen Rating:Sun Protection(UV) Terminal Blocks: Housing Polypropylene 94-V2grade(PA) Metal Part:Plated Brass/Steel Spring Screws: SS

Product number: 148728

Manufacturer Number: S21-COMP-00753

Synergy 21 - Waterproof connector box 3 ports transparent

Waterproof junction boxes with terminal blocks, cable to cable 250V/450V PTI 250, T50 IP68 16A Min. Ø5mm, Max. Ø14mm

Product number: 148729

Manufacturer Number: S21-COMP-00754

Synergy 21 - Waterproof connector box 3 ports

Box material: PA66 IP Class: IP66 Sunscreen Rating:Sun Protection(UV) Terminal Blocks: Housing Polypropylene 94-V2grade(PA) Metal Part:Plated Brass/Steel Spring Screws: SS Dimension: W=6,5cm, L=10cm

Product number: 148730

Manufacturer Number: S21-COMP-00755

Synergy 21 Outdoor Kabelverbinder IP68 1:1 mit 2fach Klemme

IP68 cable connector with 2 compartment terminal Voltage: 450V Current: 32A IP68 The following 3 cable seals are included in the set: Seal for cables with the following outer diameter: OD 6mm-8mm, OD 7mm-9mm and OD 9mm-12mm. Size: 29*85mm

Product number: 247722

Manufacturer Number: S21-COMP-2500138

Synergy 21 Outdoor Kabelverbinder IP68 1:1 mit 3fach Klemme

IP68 cable connector with 3 compartment terminal Voltage: 450V Current: 32A IP68 The following 3 cable seals are included in the set: Seal for cables with the following outer diameter: OD 6mm-8mm, OD 7mm-9mm and OD 9mm-12mm. Size: 29*85mm

Product number: 247724

Manufacturer Number: S21-COMP-2500140

Synergy 21 indoor Kabelverbinder 3in - 6out

5 pack of quick connectors 3 inputs and 3 outputs for electrical cables Rigid: from 0.08 - 4 mm² Flexible: from 0.08 - 2.5mm² Volt: up to 250V Ampere: up to 32A Temp: -40°C ~ 105°C

Product number: 250038

Manufacturer Number: S21-COMP-250224

Synergy 21 indoor Kabelverbinder 2in - 4out

5 pack of quick connectors 2 inlets and 4 outlets for electrical cables Rigid: from 0.08 - 4 mm² Flexible: from 0.08 - 2.5mm² Volt: up to 250V Ampere: up to 32A Temp: -40°C ~ 105°C

Product number: 250039

Manufacturer Number: S21-COMP-250225

Synergy 21 Solder Heat Shrink Connector Set – Waterproof IP67

Löt shrink connector – Waterproof IP67 Löt heat shrink connector – Waterproof IP67 Waterproof solder sleeves (Solder Sleeves) for fast, secure and tight cable connections. Integrated tin ring for the electrical connection, outer heat-shrinkable sleeve with hot-melt adhesive seal for reliable sealing (IP67). Advantages Soldering, shrinking and sealing in a single work step Weather, vibration and corrosion resistance (IP67) No crimping pliers required ; hot air is sufficient Ideal for cars, motorbikes, boats, outdoor electrics and electronics Technical details Colour Conductor cross-section (mm²) AWG Length (mm) Typical application White 0,25–0,34 26–24 26 Dünne signal lines Red 0.5–1.0 22–18 40 Electronics/automotive cables Blue 1.5–2.5 16–14 40 Standard power cable Yellow 4.0–6.0 12–10 40 Stronger supply lines Key points Soldering, shrinking & sealing in one step Waterproof (IP67) and corrosion-resistant Integrated tin ring for secure electrical connection Heat-shrinkable outer jacket with hot-melt adhesive seal No crimping tool required – only hot air or lighter Ideal for automotive, boat, motorbike, electronics & outdoor wiring Note on the application Stripping the conductor, twisting it and pushing it into the connector (overlap the wires in the tin ring). Heat with hot air from the centre (tin ring) towards the ends until tin flows and adhesive emerges. Let cool, carry out a tensile test. Only for copper conductors.

Product number: 250190

Manufacturer Number: S21-COMP-250244
