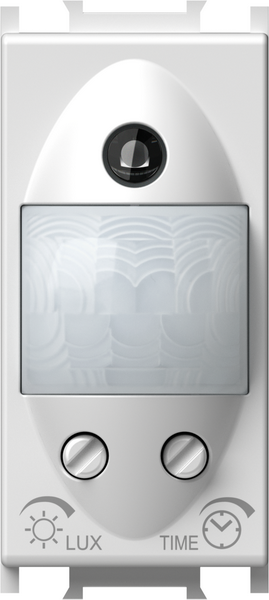

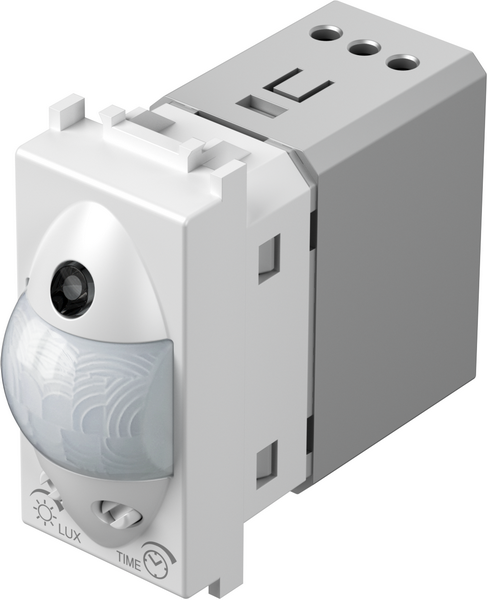

TEM series module electronic motion detector 5A 230V~ 1M PW
Product number:
146127
EAN:
3831006966918
Manufacturer Number:
EM31PW-U
Weight:
0,100 KG
Product information "TEM series module electronic motion detector 5A 230V~ 1M PW"
IR SWITCH 5A 230V~ 1M EM31PW-U
- IR switch
- Supply: 230V~ ±10 % 50Hz
- Relay: 5A / 250V~ output with high impedance
current limitation for zero crossing
- Protection class: IP40
- Screw terminals: 0.75-2.5 mm2

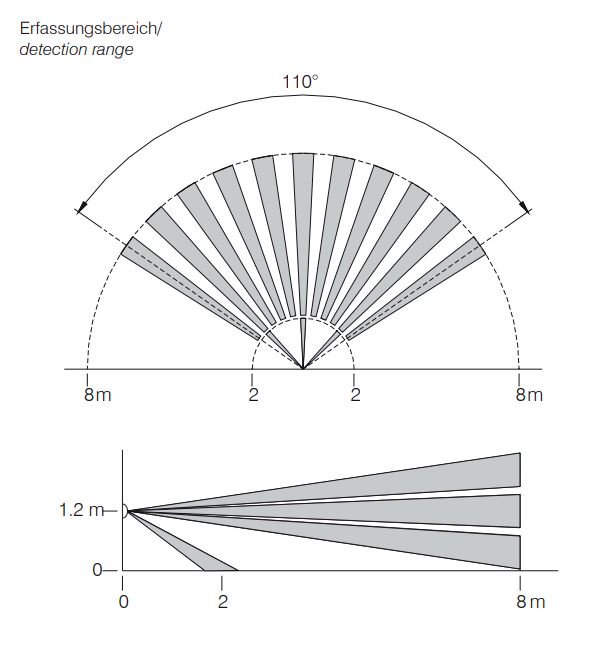

- Detection angle: up to 110° at 20°C
- Detection range: approx. 8 m at 20°C

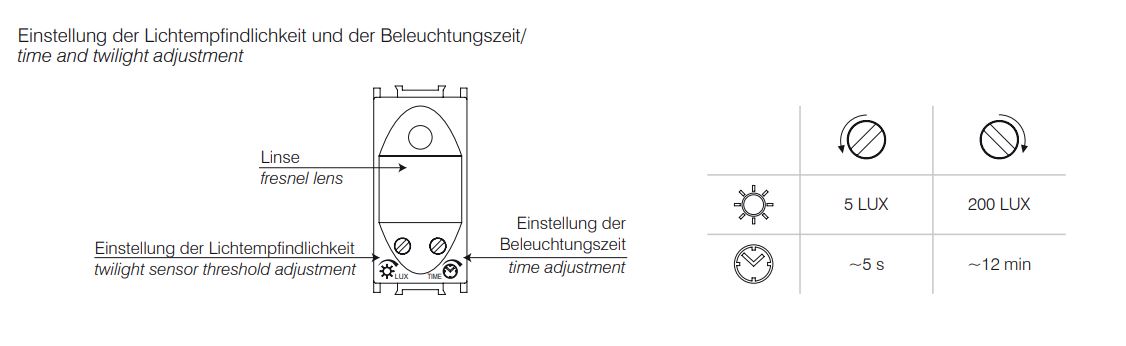

- Setting the lighting time: from
approx. 5 s to 12 min
- Illumination setting: from approx. 5 to 200 Lx
- Operating temperature: from 0°C to + 40°C
- Not suitable for installation in boxes with a depth of
45 mm and CUBO IP20 housing
- For indoor use only
