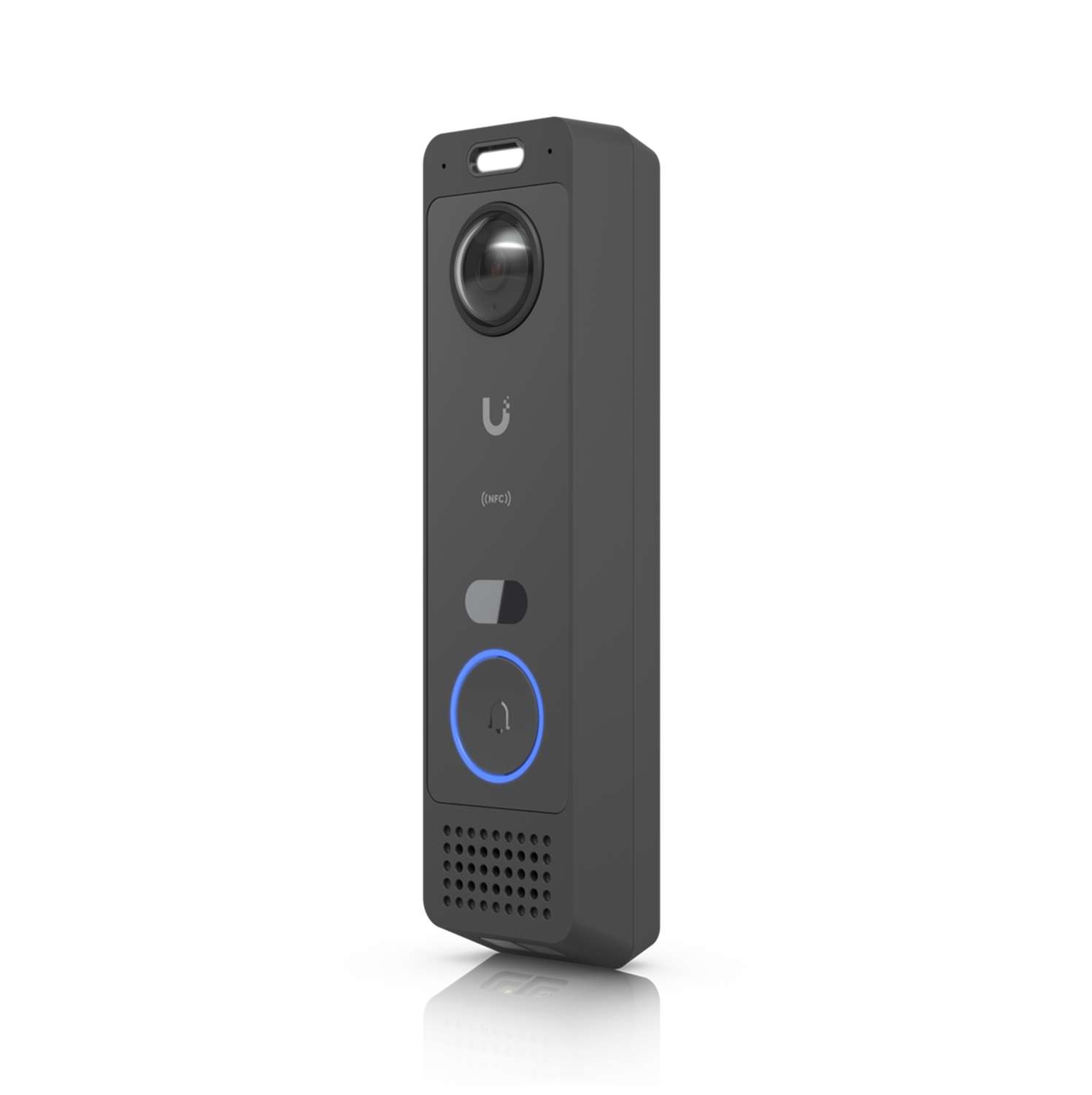

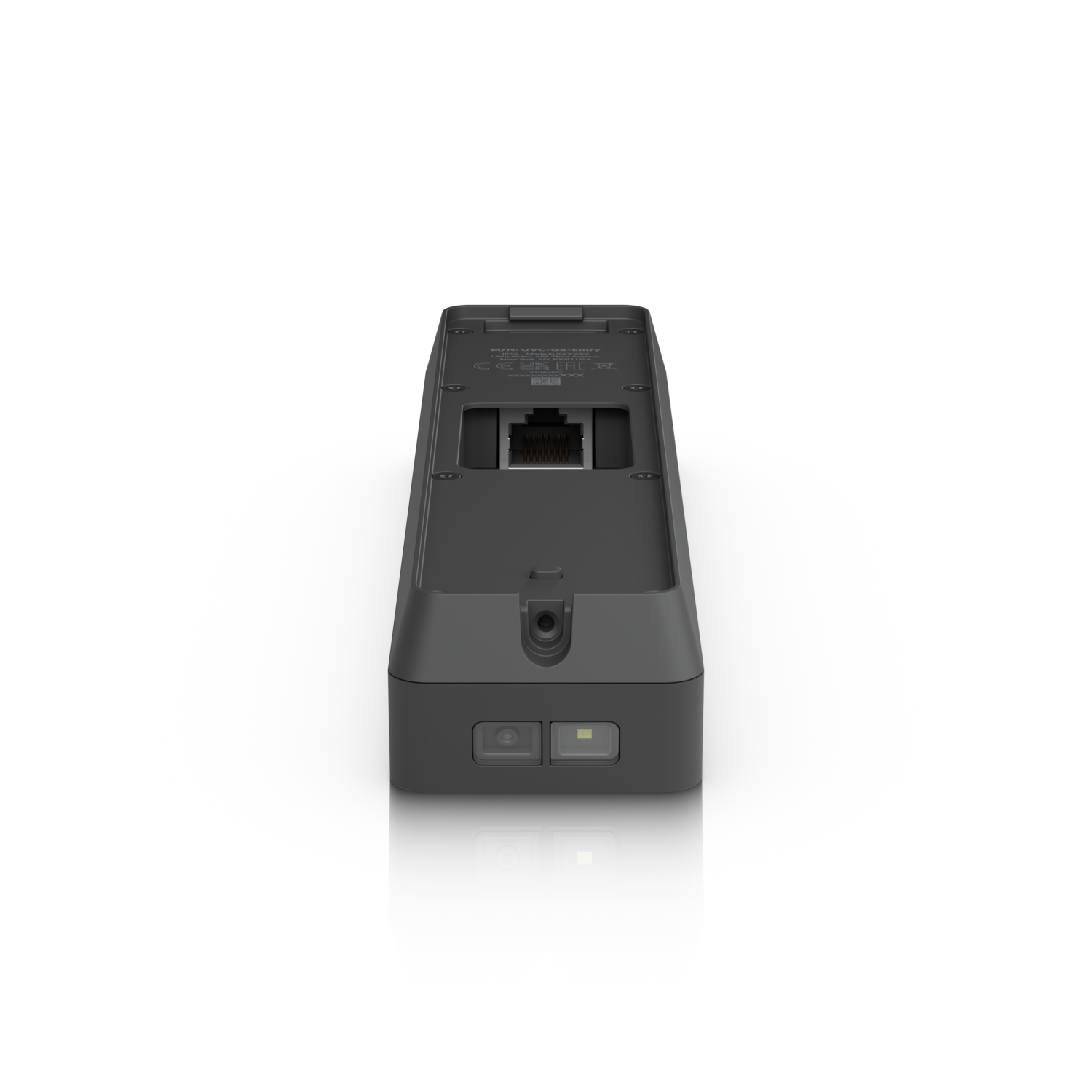

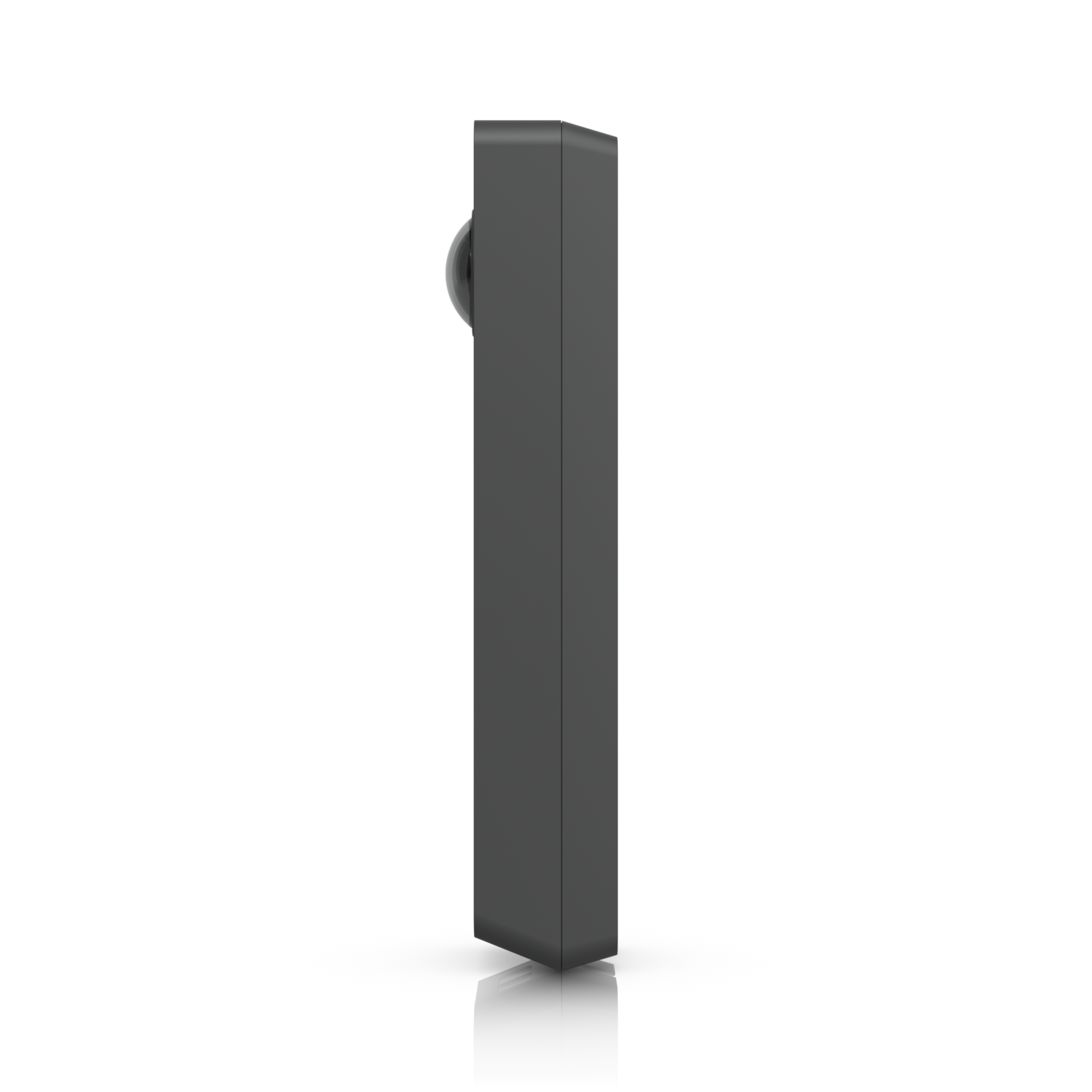

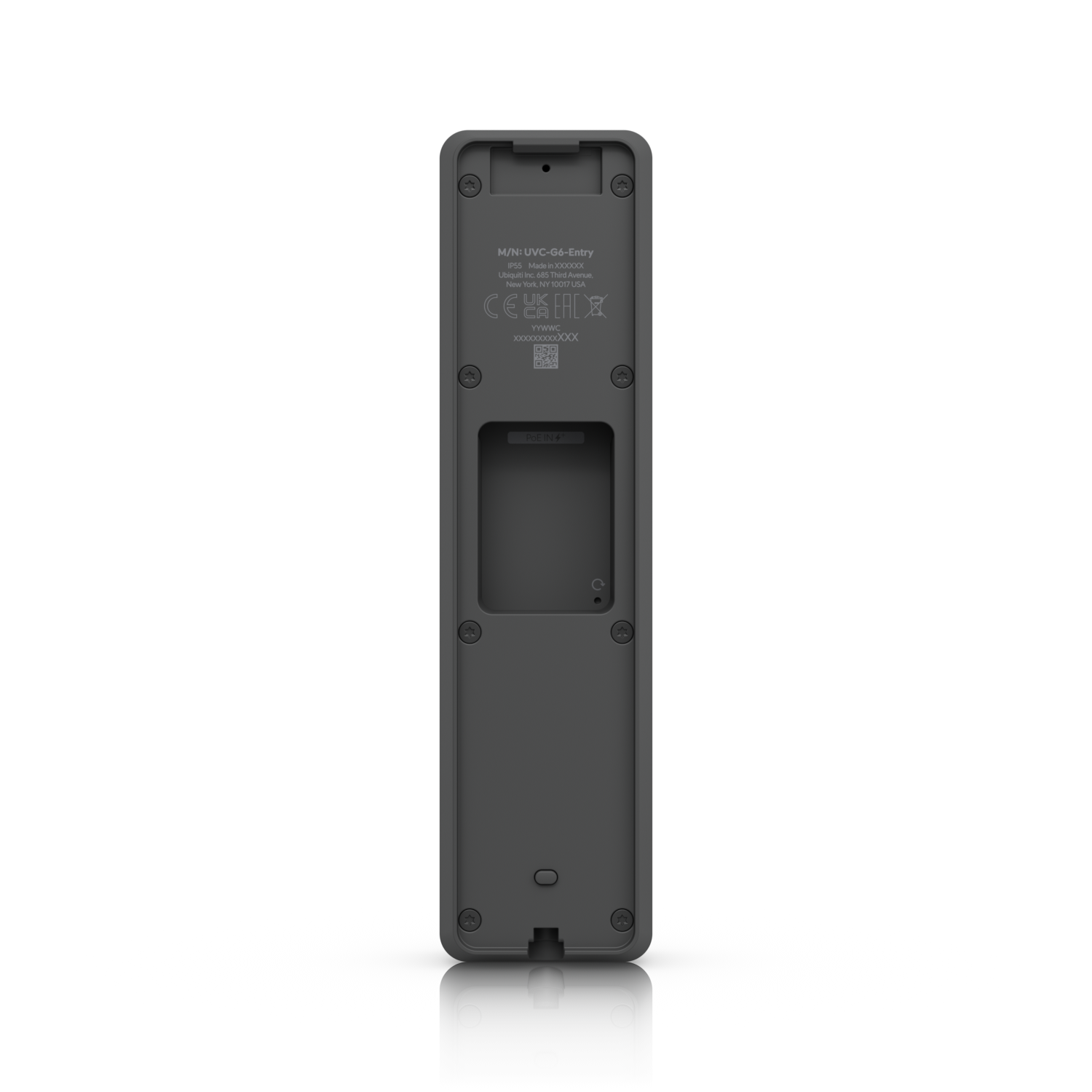

Ubiquiti UniFi G6 Entry • Video Doorbell • IP55 • PoE+ • black • UVC-G6-Entry

Connection box for UniFi Professional Access Readers and doorbells, which supports flat surface mounting and connection to 3/4-inch pipes. Note : For the installation of the G4 Doorbell Pro PoE, the additional accessory „Gang Box Mount“ is required. Compatibility t : UA-G2-Pro , UVC-G4 Doorbell Pro PoE Kit Mechanical Dimensions 205.4 x 77.8 x 48.6 mm (8.1 x 3.1 x 1.9 inches) Weight 180 g Mounting material Polycarbonate, sponge, rubber Mounting Wall, VESA mount

An extender pair that extends PoE via twisted pair or coaxial cable, ideal for retrofit scenarios. Highlights: Transmitter ? (1) PoE++ input ? (1) 2-wire output ? (1) 2-wire to coaxial adapter Recipient ? (1) PoE/PoE+ output ? (1) 2-wire input ? (1) 2-wire to coaxial adapter Technical data: Mechanical Maße PoE input/output: 40 x 105 x 25 mm (1.6 x 4.1 x 1 inch) Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2 inches) Weight PoE input: 77 g (2.7 oz) PoE output: 79 g (2.8 oz) Adapter: 140 g (4.9 oz) Handle material Polycarbonate Mounting material Polycarbonate Hardware Network interface (1) 10/100 MbE (1) Homeplug AV Power method PoE++ PoE input (1) PoE++, 50 V direct current, 1.2 A PoE output (1) PoE+, 48 V direct current, 0.6 A Max. Power consumption 3 W (without PoE output) ESD/EMP protection Air: ±8kV, contact: ±4kV Recommended max. cable length     UTP 24AWG 0.18 Ohm/metre RG-6, 0.14 Ohm/metre Cable length   Bandwidth (Mbps)   Max Power (W) Bandwidth (Mbps)   Max Power (W) 50 m 85 25 85 25 100 m 85 13 85 20 150 m 85 9 85 13 200 m 85 6 85 9 250 m 80 4 85 7 300 m 75 3 85 6 350 m 70 0 85 4 400 m 65 0 82 3 450 m 60 0 80 0 500 m 55 0 75 0 550 m 50 0 70 0 600 m — — 65 0 650 m — — 60 0 700 m — — 55 0 750 m — — 50 0 LED White Operating ambient temperature -10 to 40 °C (14 to 104 °F) Humidity during operation 5 to 90 % non-condensing Certifications CE, FCC, IC

Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub). Holds up to 1,200 kg (2,645 lb) Can be installed on an aluminum, steel, or wooden door frame ANSI-compliant design     Technical Specifications Mechanical Dimensions Lock body: 80 x 40 x 35 mm (3.15 x 1.57 x 1.38") Short front plate: 124 x 32 x 3 mm (4.88 x 1.26 x 0.12") Long front plate: 202 x 36 x 3 mm (7.95 x 1.42 x 0.12") Weight Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) Enclosure materials Lock body: zinc alloy Front plate/latches: stainless steel Hardware Voltage 12VDC Current power 400mA ±10% Wiring connection Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM Lock type Fail secure lock Single door Lock holding force 1,200 kg (2,645 lb) Suitability Wooden Steel Aluminum Screw terminal + and - Operating temperature -10 to 45° C (14 to 113° F) Operating humidity 5 - 90% noncondensing Certifications FCC, IC, CE

Fail-safe magnetic lock for doors that open inwards and outwards, which is connected to a UniFi Access Hub. Hält up to 270 kg or 540 kg (600-1,200 lb) Can be installed on a wide range of door types* *— Access lock magnetic 270 kg: All types, including full glass — Access lock magnetic 540 kg: All types, excluding full glass Compatibilityät : UA-G2-SK-Pro , UA-G2-SK , EAH-8 , UA-Hub     Technical specifications   Mechanical Maße UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm (9.8 x 1.7 x 1 inch) Mounting plate: 250 x 25 x 5 mm (9.8 x 1 x 0.2 inches) Anchor: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4 inches) UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6 inches) Mounting plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2 inches) Anchor: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6 inches) Weight UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Mounting plate: 70 g (0.15 lb) Anchor: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Mounting plate: 145 g (0.3 lb) Anchor: 1.4 kg (3.1 lb) Features Gerät/Mountings: Aluminium Fitting: steel Hardware Voltage 12 V DC Current energy UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10% Cable connection Connect the following terminals to the UA hub: Lock 12 V/NC (connect to Power Lock Relay NC on the UA hub) Lock 12 V/COM (connect with Powered Lock Relay COM on the UA hub) DPS/+ (DPS+ on the UA hub) DPS/- (DPS on the UA hub) Lock type Fail-safe lock Single door Holding power UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) LED Greün: unlocked Red: locked Suitability UA-Lock-Magnetic-270kg: wood/metal/glass UA-Lock-Magnetic-540kg: wood/metal Mounting accessories UA-Lock-Magnetic-270kg L-bracket: door thickness < 42 mm (< 1.7 inches), outward opening door Z-angle: is used with L-angle for doors opening inwards U-angle: is used with glass door UA-Lock-Magnetic-540kg L-bracket: door thickness < 42 mm (< 1.7 inch), door opening outwards Z-angle: is used with L-angle for doors opening inwards Operating ambient temperature -10 to 50 °C (14 to 122 °F) Humidity during operation 5 to 90 % non-condensing Certifications FCC, IC, CE

Fail-safe magnetic lock for doors that open inwards and outwards, which is connected to a UniFi Access Hub. Hält up to 270 kg or 540 kg (600-1,200 lb) Can be installed on a wide range of door types* *— Access lock magnetic 270 kg: All types, including full glass — Access lock magnetic 540 kg: All types, excluding full glass Compatibilityät : UA-G2-SK-Pro , UA-G2-SK , EAH-8 , UA-Hub     Technical specifications   Mechanical Maße UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm (9.8 x 1.7 x 1 inch) Mounting plate: 250 x 25 x 5 mm (9.8 x 1 x 0.2 inches) Anchor: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4 inches) UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6 inches) Mounting plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2 inches) Anchor: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6 inches) Weight UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Mounting plate: 70 g (0.15 lb) Anchor: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Mounting plate: 145 g (0.3 lb) Anchor: 1.4 kg (3.1 lb) Features Gerät/Mountings: Aluminium Fitting: steel Hardware Voltage 12 V DC Current energy UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10% Cable connection Connect the following terminals to the UA hub: Lock 12 V/NC (connect to Power Lock Relay NC on the UA hub) Lock 12 V/COM (connect with Powered Lock Relay COM on the UA hub) DPS/+ (DPS+ on the UA hub) DPS/- (DPS on the UA hub) Lock type Fail-safe lock Single door Holding power UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) LED Greün: unlocked Red: locked Suitability UA-Lock-Magnetic-270kg: wood/metal/glass UA-Lock-Magnetic-540kg: wood/metal Mounting accessories UA-Lock-Magnetic-270kg L-bracket: door thickness < 42 mm (< 1.7 inches), outward opening door Z-angle: is used with L-angle for doors opening inwards U-angle: is used with glass door UA-Lock-Magnetic-540kg L-bracket: door thickness < 42 mm (< 1.7 inch), door opening outwards Z-angle: is used with L-angle for doors opening inwards Operating ambient temperature -10 to 50 °C (14 to 122 °F) Humidity during operation 5 to 90 % non-condensing Certifications FCC, IC, CE

UniFi Access Hub UniFi® Access Hub ist ein intelligenter IP-Netzwerk-Single-Door-Controller, der Teil der UniFi Access-Lösung ist. Model: UA-Hub Der UniFi Access Hub verfügt über vielseitige Schnittstellen, einschließlich Unterstützung für die meisten elektrischen Bolzen / Schläge, Magnetschlösser und 12-V-Zugangszubehör wie Bewegungssensoren, Druckknöpfe und Alarme. Die drei mit Ethernet PoE betriebenen Leseschnittstellen minimieren den Verkabelungsaufwand und bieten eine bequeme Möglichkeit, eine UniFi G3-Flex-Überwachungskamera für zusätzliche Sicherheit hinzuzufügen. Die nahtlos integrierte UniFi Access-Lösung wird mit der UniFi Access Controller-Software verwaltet. Verwalten Sie Benutzer, Besucher, Zeitpläne und Zugriffsrichtlinien mit der intuitiven browserbasierten Oberfläche. Eigenschaften: Angetrieben von 802.3bt (PoE ++) Switch Drei 802.3af PoE-Ports für UniFi-Lesegeräte und G3 Flex-Überwachungskamera 12-V-Relais und Trockenrelais, die mit den meisten Schlössern kompatibel sind Vier Eingänge für Bewegungssensoren, Request-to-Exit-Geräte und Türpositionsschalter Verwaltet mit UniFi Access Controller in UDM-Pro DIN-Schienenmontage   Hinweis: Zum Ausführen von UniFi Access ist UniFi Dream Machine Pro erforderlich

Compact access control hub for a single door. Highlights: (1) Lock connection (12V and dry switchable) (2) Additional inputs (sensor and button) Connection and power supply via PoE++ Connect up to two UniFi Access Readers or Protect Cameras Technical data: . Mechanical Dimensions 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1 inches) Weight 190 g Favourite material Polycarbonate, metal Hardware Network interface (3) GbE RJ45 ports Power method PoE++ Max. Power consumption Without PoE output: 19 W With PoE output: 50 W PoE input 50 V direct current, 1 A PoE output (2) PoE ports, 31 W in total Button (1) Factory reset (1) Dry/Wet switch Digital input Prompt to leave/position sensor Output relay Dry: 30 V DC, 1 A Wet: 12 V DC, 1 A Recommended max. cable length     18 AWG UACC cable lock relay length 20 AWG length 22 AWG length 24 AWG length UA-Lock-Electrical (400mA) 100 m 66 m (217 feet) 42 m (138 feet) 25 m UA-Lock-Magnetic-270kg (800mA) 46 m (151 feet) 30 m (98 feet) 20 m 12 m (29 feet) UA-Lock-Magnetic-540kg (500mA) 80 m 51 m 32 m (105 feet) 20 m Other keys (1A) 36 m (118 feet) 24 m (79 feet) 15 m (49 feet) 9 m (30 feet) Requirements for PoE cabling The recommended minimum power category is cable 5e. The power category used should correspond to the transmission speed required at the installation site. The minimum conductor cross-section for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ) for patch cables; 24 AWG (0.21 mm2 ) for horizontal or riser cables. Operating environment Suitable for indoor use only Operating ambient temperature -10 to 40 °C (14 to 104 °F) Humidity during operation 5 to 90 % non-condensing Software information The software version of a product can be checked at https://unifi.ui.com üft. Certifications CE, FCC, IC Document number and issue date or revision status UA-Hub-Tür-Mini, V01 Software Administrative application UniFi Access: Version 2.5.2 and higher LEDs PoE input System status PoE output Cable status/activity Input/output relay Line status/activity

Ein fortschrittlicher Gate Hub, der eine nahtlose Zugangskontrolle zum Tor über angeschlossene Zugangsleser oder eine Gegensprechanlage ermöglicht. Highlights: (2) Torbedienterminals (trocken) (1) Schlossanschluss (12V) für Seitentür (1) AUX-Anschluss für eine externe Sirene (5) Zusätzliche Eingänge (Sensoren und Notfall) Nummernschild-Entsperrung (bei Kopplung mit einer KI-Kamera) Anschluss und Stromversorgung über PoE++ Schließen Sie bis zu vier UniFi Access-Lesegeräte oder UniFi Protect-Kameras an Kompatibilität:  UVC-G6-INS-W UVC-AI-Dome-W UVC-AI-Dome-B UVC-AI-DSLR UVC-AI-DSLR-LD UVC-AI-Pro UVC-AI-Pro-Weiß UVC-G6-Bullet-W UVC-AI-Theta UVC-AI-Turret-B UVC-AI-Turret-W UVC-AI-LPR-B UVC-AI-Bullet UVC-G6-Turret-W

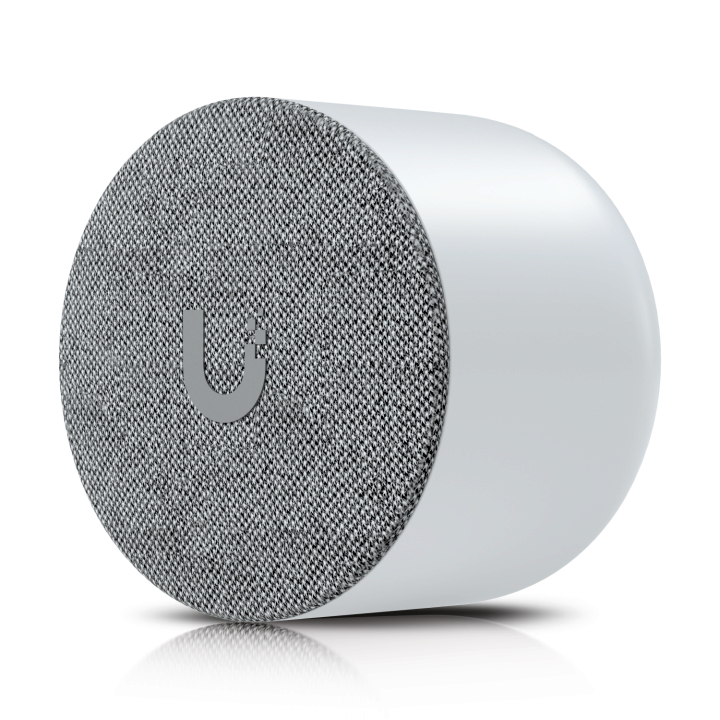

Plug-in chime paired with a doorbell camera. Pairs with a UniFi Doorbell Up to 80dB speaker sound Direct plug-in to AC outlet Built-in siren Wirelessly connected with UniFi WiFi Auto-Link* *Third-party WiFi configuration available during setup with the UniFi Protect mobile app.     Technical Specifications Mechanical Dimensions Ø62 x 50.6 mm (Ø2.44 x 1.99") (without prong) Weight 127 g (4.48 oz) Enclosure materials Polycarbonate, fabric System Processor Single/Dual-Core® Xtensa® 32 bit 400MIPS Networking interface WiFi 802.11 b/g/n Power method AC Supported voltage range 100-240V, 50-60 Hz Max. power consumption 3.7W Antenna gain 2 dBi ESD/EMP protection Air: ± 16kV, contact: ± 8kV LEDs (5) White Button Factory reset Operating temperature 0 to 40° C (32 to 104° F) Operating humidity 10 to 90% noncondensing Certifications FCC, IC, CE Audio Speaker Yes Buzzer Yes Software Web application UniFi Protect: Version 2.0 and later Mobile app UniFi Protect iOS™: Version 1.6.2 and later UniFi Protect Android™: Version 1.6.0 and later

Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building. Two-way audio Instant live view 5" touch display     Technical Specifications   Mechanical Dimensions 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3") Weight 168 g (5.9 oz) Enclosure materials Glass, polycarbonate Mount material Aluminum alloy Mounting Wall (Included) Gang box mount (Gang box not included) Hardware Networking interface (1) 10/100 Mbps RJ45 port Management interface Ethernet Power method PoE Supported voltage range 48V DC Max. power consumption 5W Display 127 mm (5") diagonal Resolution 720 x 1280 (9:16) Display luminance 300 nits (typical) Touch screen technology Capacitive multi-touch Screen orientation Portrait Microphone Yes Speaker Yes Button Factory reset Ambient operating temperature -10 to 40° C (14 to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Software Management application UniFi Access: Version 1.22.17 and later

Display, das mit der Access Intercom zur Besucherüberwachung und Fernzugangskontrolle gekoppelt werden kann und an mehreren Stellen in Ihrem Gebäude montiert werden kann. Zwei-Wege-Audio Sofortige Live-Ansicht 5" Touch-Display Anschluss und Stromversorgung über einen PoE-Switch Technische Spezifikationen Mechanisch Maße 135 x 72 x 31,8 mm (5,3 x 2,8 x 1,3") Gewicht 168 g (5,9 Unzen) Gehäusematerialien Glas, Polycarbonat Montagematerial Aluminiumlegierung Montage Wandmontage (im Lieferumfang enthalten) Verteilerkastenmontage (Verteilerkasten nicht im Lieferumfang enthalten) Hardware Netzwerkschnittstelle (1) 10/100 Mbit/s RJ45-Anschluss Verwaltungsschnittstelle Ethernet Power-Methode PoE Unterstützter Spannungsbereich 48V DC Max. Energieverbrauch 5W Anzeige 127 mm (5") Diagonale Auflösung 720 x 1280 (9:16) Leuchtdichte anzeigen 300 Nits (typisch) Touchscreen-Technologie Kapazitiver Multitouch Bildschirmausrichtung Porträt Mikrofon Ja Lautsprecher Ja Taste Werkseinstellungen zurückgesetzt Umgebungstemperatur im Betrieb -10 bis 40 °C (14 bis 104 °F) Umgebungsfeuchtigkeit im Betrieb 5 bis 95 % nicht kondensierend Zertifizierungen CE, FCC, IC Software Verwaltungsanwendung UniFi Access: Version 1.22.17 und höher
