ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD
Product information "ALLNET PoE Splitter/Extractor industrial • 1x GbE PoE BT IN • 1x GbE PoE Out • 5V/9V/12V/24V adjustable • DIN-Rail • ALL-PSI104G-BT90-PD"
Highlight:
- Comply with IEEE 802.3i/u/ab
- 1 GbE RJ45 PoE Input
- 1 GbE RJ45 PoE Output
- 4 PIN phoenix terminal, splits PoE over into DC Output
- 5V/9V/12V/24VDC power output adjustable
- Support IEEE 802.3af/at/bt
- Output Total Power Max.72W
- Three rail-mounted designs
- Operating Ambient Temperature: -40 to 75°C
Description:
The ALL-PSI104G-BT90-PD is a powerful industrial PoE splitter for Gigabit Ethernet applications that reliably converts a 48 V PoE input voltage to 5 V, 9 V, 12 V or 24 V DC. Power is supplied via an RJ45 Ethernet cable, eliminating the need for additional power supplies or separate power lines.
The device meets the performance requirements of the IEEE 802.3af, 802.3at and 802.3bt standards and supports both conversion to a DC power output via a 4-pin Phoenix terminal and a direct PoE pass-through output. With a maximum output power of up to 72 W (PoE++ / BT), the PoE splitter is ideal for power-intensive end devices such as industrial cameras, access points, displays, controllers or IoT applications.
Thanks to its robust industrial design, rail mounting options and wide operating temperature range from –40 °C to +75 °C, the ALL-PSI104G-BT90-PD is ideal for use in harsh industrial environments, control cabinets, transport systems and automation applications.
Features
-
Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt.
-
Support PoE applications in Gigabit Ethernet environments.
-
Auto-Sensing Algorithm enables taking power from IEEE802.3af/at/bt PSE.
-
Splits the 48VDC power over RJ45 Ethernet cable into different DC output.
-
Support wide input voltage range 44Vdc to 57Vdc.
-
Maximum power output up to 72W.
-
Support for the POE output of IEEE 802.3af/at/bt.
-
Adjustable output 5VDC/14A or 9VDC/7.8A or 12VDC/5.9A,24VDC/3A.?
-
Thermal cut off.
-
Short-circuit protection.
-
High efficiency DC/DC converter.
-
LED indicators for power input indication.
-
Plug-and-Play.

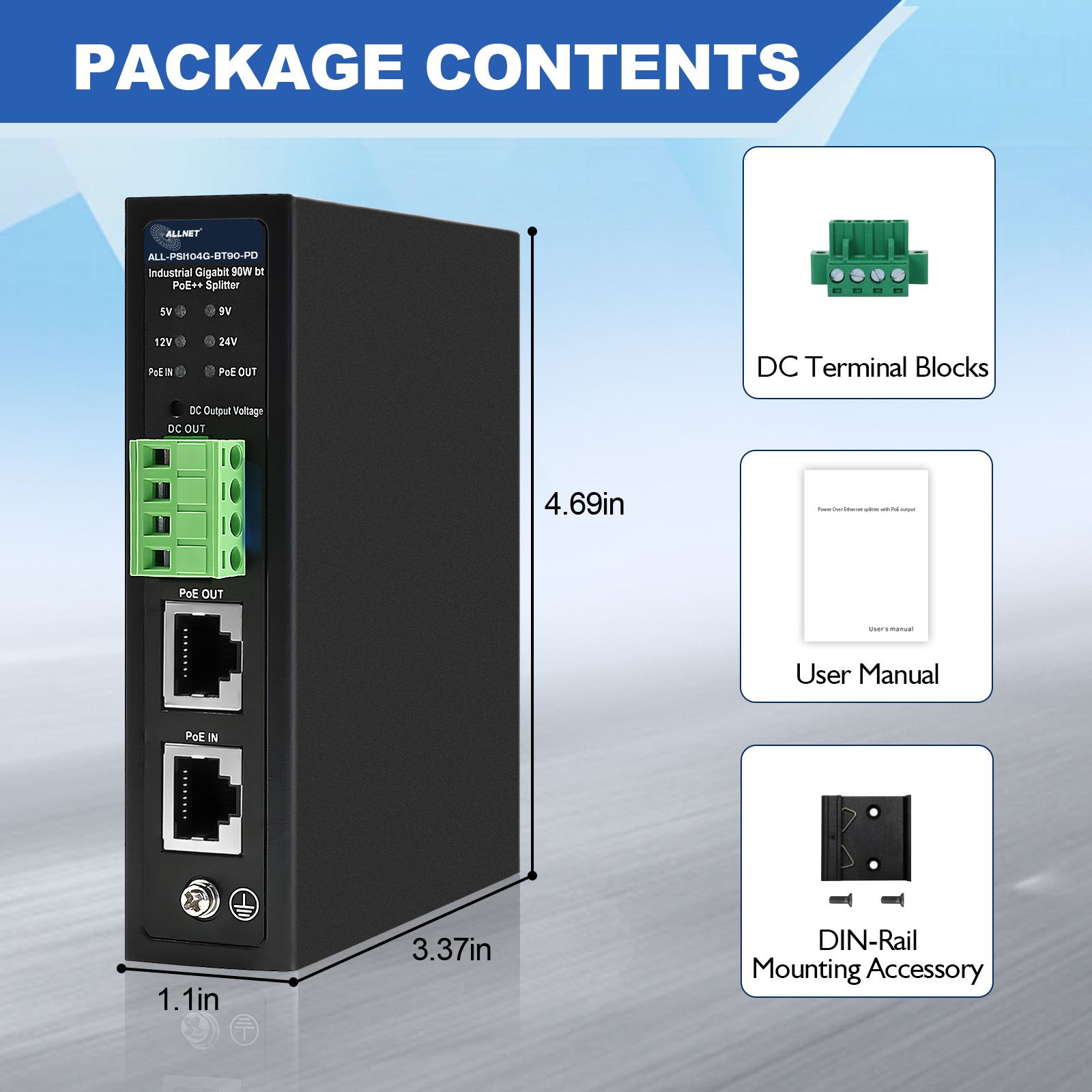

Frontpanel:
Technical Details:
| Item | Description |
|
port |
1 10/100/1000M RJ45 PoE Port (DATA + POWER IN) 1 10/100/1000M RJ45 PoE Port (DATA + POWER OUT) 1 DC interface (DC OUT) |
|
Network Media |
10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5,5E Unshielded Cable 1000Mbps: Cat 5E, 6 Unshielded Cable |
|
Pass Through Data Rates |
10/100/1000 Mbps |
| Power Output | Adjustable 5VDC/14A max, 9VDC/7.8A max, 12VDC/5.9A max, 24VDC/3A max |
| PoE Output | IEEE 802.3af/at/bt, Max.72W |
| Input Power Requirements | DC Input Voltage: 44 to 57 VDC |
| Indicators | PoE Indicators / DC out Voltage Indicators |
| Connectors | Shielded RJ-45, EIA 568A and 568B |

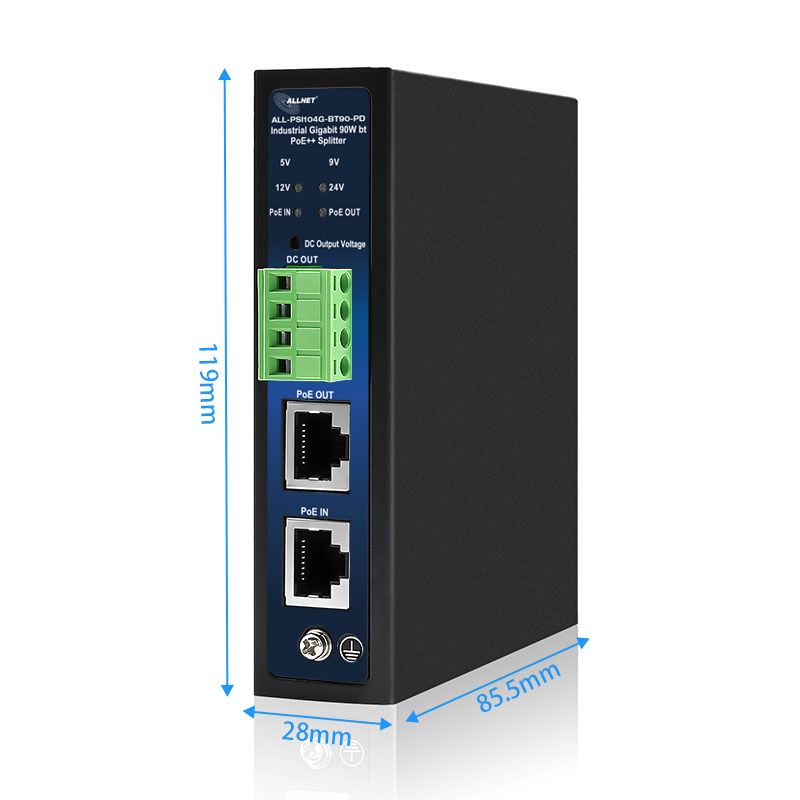

| Dimensions | 119x85.5x28mm |
| Environmental Conditions |
Operating Ambient Temperature: -40 to +75°C Operating Humidity: Maximum 90%, non-condensing Storage Temperature: -40 to +75°C Storage Humidity: Maximum 95%, non-condensing |
| Regulatory Compliance |
IEEE 802.3af (PoE) IEEE 802.3at (PoE) IEEE 802.3bt (PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) RoHS Compliant, CE, FCC |
