Utility server

Processor CPU Integrated Intel® Celeron 3855U dual core 2 thread processor Frequency 1.6GHz Power TDP 15W Chipset Based on Intel® skylake-u SOC platform BIOS 64Mb Flash ROM RAM RAM DDR4 2133MHz Max Capacity 32GB Slot 2*SODIMM Display Graphics Intel® HD Graphics 510 Graphics Engine DirectX12,OpenGL4.4 HDMI N/A CRT 1*VGA ,1920X1200@60Hz Display 1*VGA Ethernet LAN1~LAN4 4*Intel WGI211AT Gigabit Ethernet, support Wake On LAN/PXE LAN5~LAN6 2*Intel WGI211AT Gigabit Ethernet,, support network wake up, PXE/ POE function Audio Audio N/A I/O Port COM Port 1* CISCO standard RS232 serial  USB 2* USB2.0 Optical fiber N/A Phoenix Connector N/A Expansion Mini PCIE 1* Mini PCIE slot,support WIFI module Storage SATA 1*2.5”HDD Expansion or 1*3.5”HDD Expansion MSATA 1* MSATA SSD, transmission rate up to 3Gbps OS Support Microsoft Windows Windows 7/Windows10,64bit(not include OS code) Linux Ubuntu Power Supply Power Type External open power supply Voltage Input AC 110~220V Power Output AC TO DC,60W Structure Structure 1U standard case, high quality galvanized steel Installation 1U standard rack Dimension 430mm*281mm*45mm Environment Working Temp. -10°C ~ 60°C Storage Temp. -20°C ~70° C Relative Humidity 5%-95% relative humidity, non-condensing Working Vibration 0.5g rms/5-500HZ/random/operating

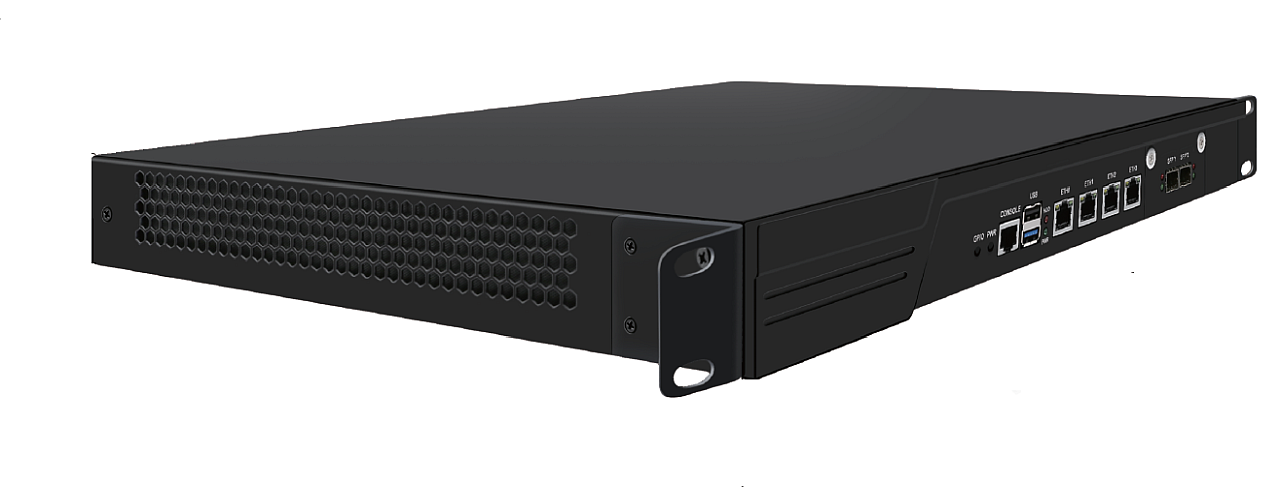

1U rack network/security appliance – Intel® N150, 16GB DDR5, 4×2.5G + 2×10G SFP+, 256GB NVMe This energy-efficient rack network appliance based on the Intel® Alder Lake-N platform is ideal as a firewall/UTM, VPN gateway, router or SD-WAN CPE. In the configuration of your choice, the system works with Intel® Processor N150, 16GB DDR5 and a high-performance network configuration of 4×2.5GbE RJ45 plus 2×10G SFP+ – perfect for environments where fast uplinks and stable 24/7 availability are required. . Configuration (as specified by you) CPU: Intel® N150 (Alder Lake-N, low-power platform) N97-N100-N200-N305-1U-2U????? RAM: 16GB DDR5 (SO-DIMM DDR5-4800; platform supports up to 48GB) Network: 4× 2.5G RJ45 (Intel i226-V Controller) + 2× 10G SFP+  Storage: 256GB NVMe SSD (configuration) Highlights & advantages Strong network focus: 2.5G ports for LAN/DMZ segmentation + 10G SFP+ for fast backbone/core uplinks. Expandable via PCIe: PCIe Gen3 x8 slot (x4 signal) for equipping with dual/quad NICs up to 10G SFP+. BYPASS option: prepared slot/option for the BYPASS function (1–4 ports, customised) – important for security appliances in fail-safe operation. Rack housing 1U or 2U: with active cooling (several fans depending on height) for stable continuous operation. Flexible power supply: 100–240V AC, optional single or redundant power supply unit (depending on model/configuration). I/O & management: RJ45 console, USB 2.0/3.0, VGA and features such as Watchdog and PXE/Wake-on-LAN. Typical areas of application Firewall/UTM, IDS/IPS, VPN gateway, site networking, SD-WAN, routing/load balancing, edge security in industrial or branch operations. Category Item Value Main Code Name Intel® Alder Lake-N Main Popular model N150 Main Memory 1 * SO-DIMM DDR5 4800MHz 16GB (MAX 48G) LAN IC Intel® i226-V LAN Speed 2500Mbps 2.5G adapting LAN Interface 4 * Intel® Ethernet Controller 2.5G RJ45 Storage M.2 N/A Storage mSATA / SATA 1 * SATA3.0 6Gbps / 1 * mSATA / 1 * CF (One out of three) Display Header/Pin 1 * VGA / 1 * JHDMI / 1 * EDP BIOS UEFI AMI UEFI BIOS USB Interface 1 * USB2.0 / 1 * USB3.0 USB Header/Pin 2 * USB2.0 (Vertical) / 6 * USB2.0 (Array pin) Power Supply Voltage 100-240V~50 / 60Hz Power Supply Mainboard ATX 4PIN 12V / DC-12V 55mm*25mm PCI-E Extension 1 * PCI-E x8 Slot Gen3 PCIe3.0 x4 Other GPIO 4 * programmable GPIO Other Watchdog 255 levels, 0-255 seconds Other Bypass N/A Other COM 1 * RJ45 Console / 2 * COM (Array pin) Other TPM N/A  Other 4G / WiFi 1 * miniPCIe Other Other Network WakeUp / PXE Dimension Spec 1U (440mm*320mm*45mm) / 2U (435mm*439mm*90mm) Work Temp Temperature 0°C~60°C, Storage: -10°C~70°C Work Temp Humidity 10%~90%, Storage: 5%~95%, non-condensing System OS Windows 10/11, Windows Server, Linux, not included!
