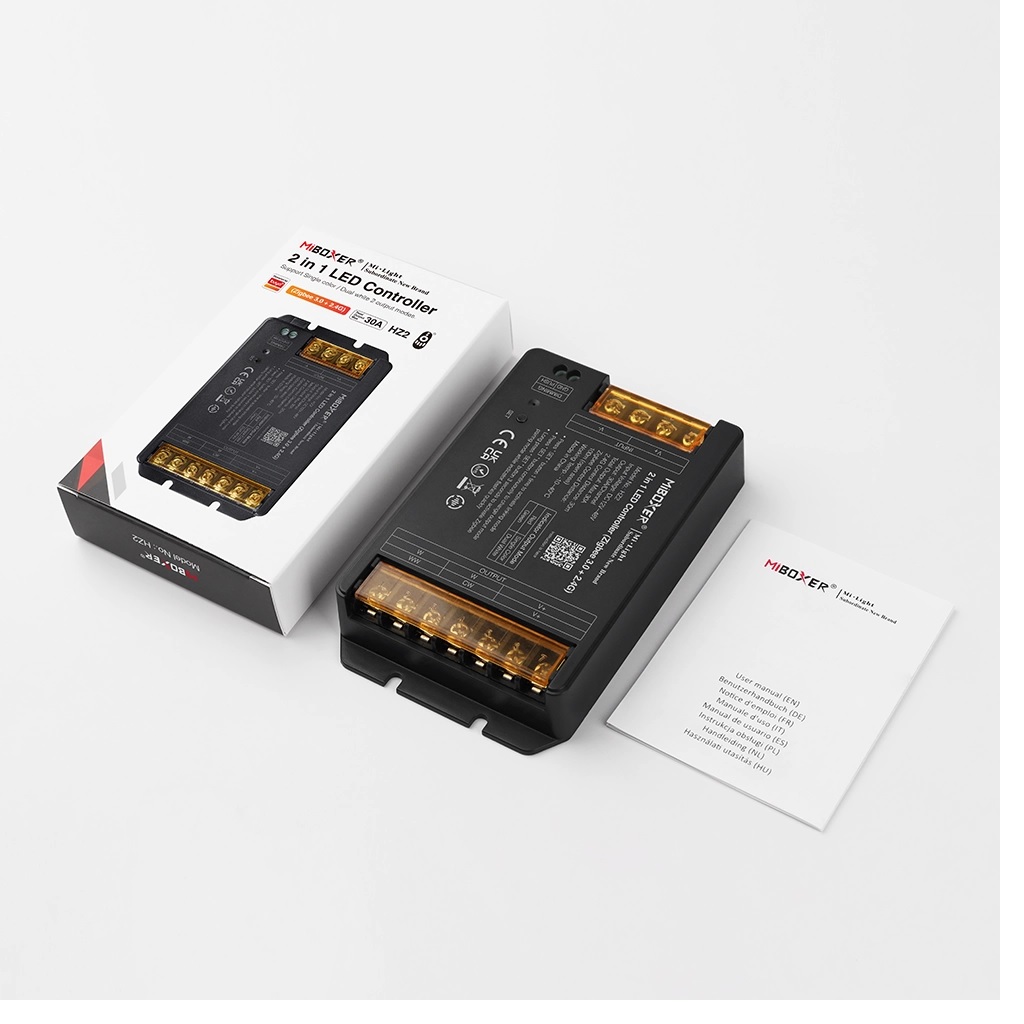

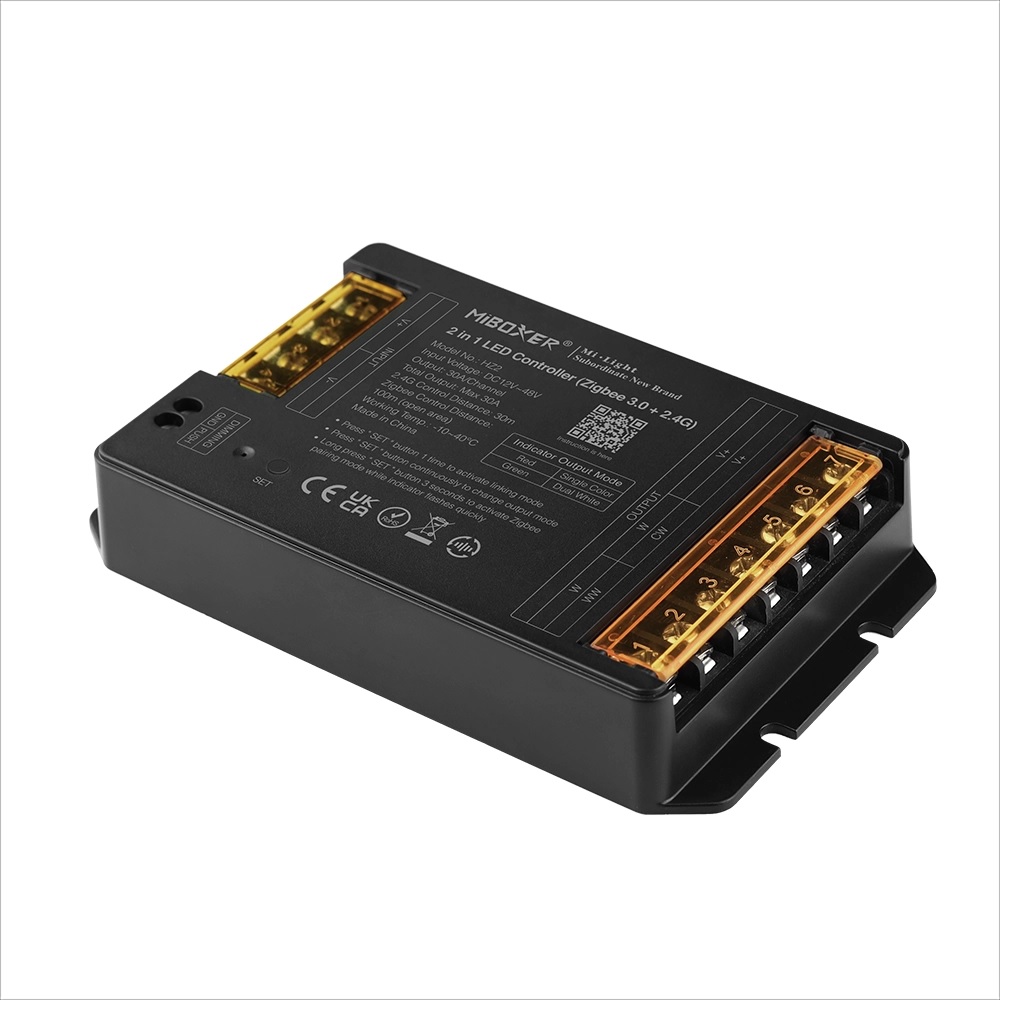

Synergy 21 LED Controller 2in1 DC12~48V Zigbee 3.0+ 2.4G HP 30A*Milight/Miboxer*
Product number:
239363
EAN:
4038816140234
Manufacturer Number:
HZ2
Weight:
0,170 KG
Product information "Synergy 21 LED Controller 2in1 DC12~48V Zigbee 3.0+ 2.4G HP 30A*Milight/Miboxer*"
HZ2 2-in-1 high-current controller, wireless transmission technology according to Zigbee 3.0 standard with lower power consumption, mesh network with strong interference suppression capability
.
It supports single or multi-zone control and offers a wide application for residential or commercial lighting.
Paired with the MiBoxer Zigbee 3.0 gateway for functions such as wireless dimming, remote control, timer, group control, music rhythm.
It can work with the 2.4G RF remote control.
- Zigbee 3.0 standard protocol
- Brightness and colour temperature adjustable
- Supports PUSH dimming
- Integrated dynamic mode with jumping and step-by-step changes (only for the 2.4G remote control)
- Automatic forwarding: Automatically forwards the remote control signal to another controller, making the remote control range infinite
- Automatic synchronisation: The same dynamic mode is automatically synchronised so that the mode is always consistent
- Provides a DND function, which is normally used in power failures and saves power
- Supports TUYA SMART app control (Zigbee 3.0 gateway required)
- Supports third-party voice control such as Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu and Xiaomi (Zigbee 3.0 gateway required)
Parameters
| Product name: | 2 in 1 high current regulator |
|---|---|
| Model no.: | HZ2 |
| Input voltage: | Direct current 12-48 V |
| Output current: | 30A |
| Control signal: | Zigbee 3.0 + 2.4GHz HF |
| Control distance: | Zigbee: 100 M (open range)/ 2.4G RF: 30 M |
| IP rate: | IP20 |
| Working temperature: | -10~40? |
|---|---|
| EMC standard (EMC): | ETSI EN301 489-1 Version 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
Article properties
| Ampere (CC): | 30 A |
|---|---|
| Betriebstemperatur: | -10-40 Grad |
| Konstantstrom oder Konstantvolt: | CV |
| Volt: | 12/24/48 Volt |
Synergy 21 LED Gateway wired Zigbee 3.0 *Milight/Miboxer*
zigbee wired gateway
Input: DC5V / 1A (Micro USB)
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-
2.480GHz
ZigBee Transmitting Power: 10dBm
Max Connected Device: 128
Product number:
235871
Manufacturer Number:
ZB-BOX2
Stock:
100x
Available, delivery time: 1-5 Tage
