single color Controller

MiBoxer WL-Box2 2.4GHz WiFi Gateway / Bridge Das MiBoxer WL-Box2 2.4GHz WiFi Gateway verbindet kompatible 2.4GHz RF LED-Controller mit Ihrem WLAN-Router und ermöglicht die Steuerung per App. Es fungiert als Schnittstelle zwischen MiBoxer 2.4GHz LED-Systemen und Ihrem Heimnetzwerk. Funktionen Bindeglied zwischen 2.4GHz RF LED-Controllern und WLAN-Router (z. B. FritzBox) App-Steuerung kompatibler MiBoxer 2.4GHz Geräte WiFi-Kommunikation: IEEE 802.11 b/g/n (2.4GHz) RF-Frequenz: 2.4GHz Reichweite: bis zu 30m Technische Daten Modell: WL-Box2 Eingang: DC 5V / 500mA (USB Type-C) Sendeleistung: 6dBm Arbeitstemperatur: -10°C bis +40°C Einsatzbereiche Geeignet zur Integration von MiBoxer 2.4GHz LED-Controllern in Smart-Home-Systeme mit App-Steuerung über das WLAN-Netzwerk.

1-channel radio controller receiver (Compatible with the switches and remote controls of the EOS 05 series) With status memory in case of power failure Reception up to 15 metres away Connected load: max. 1x8A Power supply unit: 12-36VDC Transmission power: >5dBm Radio frequency: 868.3 MHz (EU approval - licence-free) Dimensions: 95*36*20mm Operating temperature: -10°C - +60°C Protection class: IP20

MiBoxer E2-RF 2-in-1 LED Controller 2.4GHz RF The MiBoxer E2-RF 2-in-1 LED Controller enables the control of single-colour and dual-white (CCT) LED strips via 2.4GHz RF radio. It is suitable for flexible lighting installations in both domestic and commercial settings. Features 2-in-1 support: Single Colour & Dual White (CCT) Control via 2.4GHz RF Range: up to 30m Brightness and white tone control Common anode output Technical specifications Model: E2-RF Operating voltage: DC 12–24 V Output current: max. 12 A Radio frequency: 2.4 GHz Operating temperature: –10°C to +40°C Output type: Common anode Applications Suitable for single-colour and dual-white LED strips in domestic settings, commercial installations and 2.4GHz RF lighting systems.

MiBoxer FUT038M – 2.4GHz RGBW LED controller for 12/24V DC LED strips The MiBoxer FUT038M is a 2.4GHz RGBW LED controller for controlling common-anode RGBW LED strips. The controller enables wireless control of colour, brightness and the white channel, and is suitable for LED installations with 12V or 24V DC. Features RGBW LED strip controller Control of RGB colours and the white channel 2.4GHz wireless control (MiBoxer / Mi-Light compatible) 4-zone control possible Suitable for LED strips with a common anode Technical Specifications Model FUT038M Product type RGBW LED strip controller Wireless standard 2.4GHz Operating voltage DC 12–24V Max. output per channel 6A Max. total power 12A Transmission power 6dBm Range up to 30m Operating temperature -20°C to +60°C Connection Common anode Applications RGBW LED strips Residential lighting Indirect lighting Furniture and ambient lighting MiBoxer / Mi-Light wireless control systems

  The 3in1 LED Controller is the ideal solution for controlling your single-colour LED strips or panels. With this advanced technology, you can precisely customise your lighting and create the perfect lighting mood. This controller can be controlled both with a radio remote control and with a WLAN controller for iOS and Android, both of which are available separately (see accessories). This LED strip controller for RGB/RGBW/RGB+CCT works with an operating voltage of DC12V~24V. The maximum output power is 6A per channel and a total of 12A, which enables powerful control of your lighting projects. The RF technology at 2.4GHz ensures a stable and reliable connection, while the transmission power of 6dBm enables a range of up to 30 metres. With this controller, you can control different types of LED strips, including RGB, RGBW and RGB+CCT, giving you maximum flexibility when designing your lighting environment. The device is robust and designed for a long service life, making it a reliable choice for both residential and commercial applications. Experience the benefits of precise and user-friendly lighting control with the 3in1 LED Controller.         Product Name: 3in1 LED Controller (2.4GHz) LED Strip Controller for RGB/RGBW/RGB+CCT) Model No.: FUT037S+A Working Voltage: DC12V~24V Working Temperature: -10~40°C Output Max: 6A/Channel Total Output Max:12A RF: 2.4GHz Transmitting power: 6dBm Control Distance: 30m Output connection: Common anode/DC5.5*2.1

EOS 05 controller AND power supply unit in one adjustable constant current dimming controller (Compatible with EOS 05 series switches and remote controls) PRI: 100~240V, 210~460mA, 50W, 50-60Hz, Tc 75°, Ta: -20~45° SEC:1500mA/33V, 1400mA/36V, 1300mA/38V, 1200mA/41V, 1100mA/45V, 1000mA/50V, 900mA/55V, 800mA/60V, 700mA/60V, 600mA/60V, 500mA/60V, 400mA/60V, 350mA/60V, 250mmA/60V, 200mA/60V Size: 210*50*32mm Operating temperature: -20°C - +50°C Protection class: IP20

The 3-in-1 LED Controller (2.4 GHz), model no. E3-RF, is the ideal solution for controlling your RGB, RGBW and RGB+CCT LED strips. With its versatile control options, this controller allows for precise adjustment of colours and brightness to create any desired lighting ambience. It supports an operating voltage of DC 12V–24V and offers a maximum output current of 6A per channel, with a total output of 12A, making it perfect for large-scale lighting projects. Equipped with 2.4GHz RF technology, this controller offers a reliable control range of up to 30 metres. Thanks to its simple integration via common anode, the controller can be seamlessly integrated into your existing LED systems. The controller is robust and designed for use within a temperature range of -10 to 40°C, making it ideal for various applications both indoors and outdoors. With the 3-in-1 LED Controller, you have full control over your LED lighting, whether you’re creating a relaxing atmosphere, for vibrant colour accents or for functional lighting. Product Name: 3-in-1 LED Controller (2.4GHz) LED Strip Controller for RGB/RGBW/RGB+CCT) Model No.: E3-RF Operating Voltage: DC 12V–24V Operating Temperature: -10–40°C Maximum Output: 6A per channel Total Maximum Output: 12A RF: 2.4GHz Control Range: 30m

Experience the innovative control system for your LED lighting with the 2-in-1 LED Controller (Zigbee 3.0/2.4 GHz). This versatile controller is specifically designed for single-colour LED strips and dual-white (CCT) applications, offering you the flexibility to tailor your lighting precisely to your needs. With an operating voltage of DC 12V–24V, the controller ensures stable performance and efficient control of your lighting systems. The 2-in-1 LED controller delivers a maximum output current of 6A per channel and can handle up to 12A in total, making it ideal for larger installations. Communication takes place via 2.4GHz RF, with a transmission power of 6dBm to ensure a reliable connection. The controller offers a control range of up to 30 metres, allowing you to control your lighting conveniently, no matter where you are in the room. This Zigbee 3.0-compatible controller combines modern technology with ease of use to give you the best possible control over your LED lighting. Upgrade your lighting systems with the 2-in-1 LED Controller and enjoy the benefits of precise and flexible lighting control Product Name: 2-in-1 LED Controller (Zigbee 3.0/2.4GHz) LED strip controller for single colour/dual white Model No.: E2-ZR Operating Voltage: DC 12V–24V Operating Temperature: –10–40°C Maximum Output: 6A per channel Maximum Total Output: 12A RF: 2.4GHz Transmission power: 6dBm Control distance: 30m

4-channel radio controller constant current single colour, dual colour, RGB/RGB-W (Compatible with the switches and remote controls of the EOS 05 series) Input: 12-48 VDC Output: 4*700mA Max output: 4*(8,4-33,6W) Transmission power: >5dBm Radio frequency: 868.3 MHz (EU approval - licence free) Operating temperature: -10°C - +60°C Protection class: IP20 Intuitive RGB colour selection freely selectable via colour wheel. Individual colours dimmable (8 levels) 10 colour programmes (preset) 16 programme speeds selectable (4 sec. -256 sec.) With status memory in case of power failure Reception up to 15 metres away

The 2-in-1 LED Controller (Wi-Fi + 2.4G), model no. E2-WR, offers a versatile and powerful solution for controlling your single-colour and dual-white LED strips. With an operating voltage of DC 12V–24V and a maximum output current of 12A per channel (total 12A), this controller is ideal for a wide range of lighting applications. Thanks to the IEEE 802.11b/g/n 2.4GHz Wi-Fi standard and 2.4GHz RF technology, this controller enables simple and flexible control via your Wi-Fi network or by remote control. The control range is up to 30 metres, giving you maximum freedom in the placement and use of your LED strips. The controller is designed for use within a temperature range of -10 to 40°C, making it robust and reliable, even under changing conditions. With the 2-in-1 LED Controller (Wi-Fi + 2.4G), you can effortlessly adjust your lighting and create a personalised lighting ambience. Product Name: 2-in-1 LED Controller (Wi-Fi + 2.4G) LED strip controller for single colour/dual white Model No.: E2-WR Operating Voltage: DC 12V–24V Operating Temperature: –10–40°C Maximum Output: 12A per channel Maximum Total Output: 12A Communication Protocol: Wi-Fi + 2.4GHz Wi-Fi Standard: IEEE 802.11b/g/n 2.4GHz Control Distance: 30m

Der 3in1 LED Controller ist die ideale Lösung für die Steuerung Ihrer einfarbigen LED-Streifen oder Panels. Mit dieser fortschrittlichen Technologie können Sie Ihre Beleuchtung präzise anpassen und eine perfekte Lichtstimmung schaffen. Dieser Controller ist sowohl mit einer Funkfernbedienung als auch mit Zigbee 3.0 Dieser LED Strip Controller für RGB/RGBW/RGB+CCT arbeitet mit einer Betriebsspannung von DC12V~24V. Die maximale Ausgangsleistung beträgt 6A pro Kanal und insgesamt 12A, was eine leistungsstarke Steuerung Ihrer Beleuchtungsprojekte ermöglicht. Die RF-Technologie bei 2.4GHz sorgt für eine stabile und zuverlässige Verbindung, während die Übertragungsleistung von 6dBm eine Reichweite von bis zu 30 Metern ermöglicht oder bis 100m bei Zigbee. Mit diesem Controller können Sie verschiedene Arten von LED-Streifen steuern, einschließlich RGB, RGBW und RGB+CCT, was Ihnen maximale Flexibilität bei der Gestaltung Ihrer Lichtumgebung bietet. Das Gerät ist robust und für eine lange Lebensdauer ausgelegt, was es zu einer zuverlässigen Wahl für sowohl private als auch gewerbliche Anwendungen macht. Erleben Sie die Vorteile der präzisen und benutzerfreundlichen Lichtsteuerung mit dem 3in1 LED Controller. Product Name: 3in1 LED Controller (2.4GHz) + Zigbee 3.0 LED Strip Controller für RGB/RGBW/RGB+CCT) Model No.: FUT037Z+ Working Voltage: DC12V~24V Working Temperature: -10~40°C Output Max: 6A/Channel Total Output Max:12A RF: 2.4GHz und Zigbee 802.15.4 Control Distance: 30m (2,4G) / 100m opem area (Zigbee) Output connection: Common anode/ gemeinsamer Pluspol

Waterproof RGB+CCT LED Controller (2.4G) Model No.    FUT039S-P Input Voltage    DC12~24V Output    6A/Channel Total Output     Max 12A RF    2.4GHz Control Distance    30m IP Rate    IP66 Working Temperature     -20~45°C

Radio controller receiver for 0-10V control (Compatible with mono switches and remote controls of the EOS 05 series) 0-10V power supply units dim via radio and WLAN With status memory in case of power failure Reception up to 15 metres away Connected load: 60mA max Power supply unit: no power supply unit, direct 230V Transmission power: >5dBm Radio frequency: 868.3 MHz (EU approval - licence-free) Dimensions: 170x58x29mm Operating temperature: -10°C - +60°C Protection class: IP20

Waterproof 5 in 1 LED Strip Controller (2.4GHz) Model No.    LS2-WP Input Voltage    DC12~48V Output       10A/Channel Total Output     Max 20A RF    2.4GHz Control Distance    30m IP Rate    IP67 Working Temperature     -20~45°C

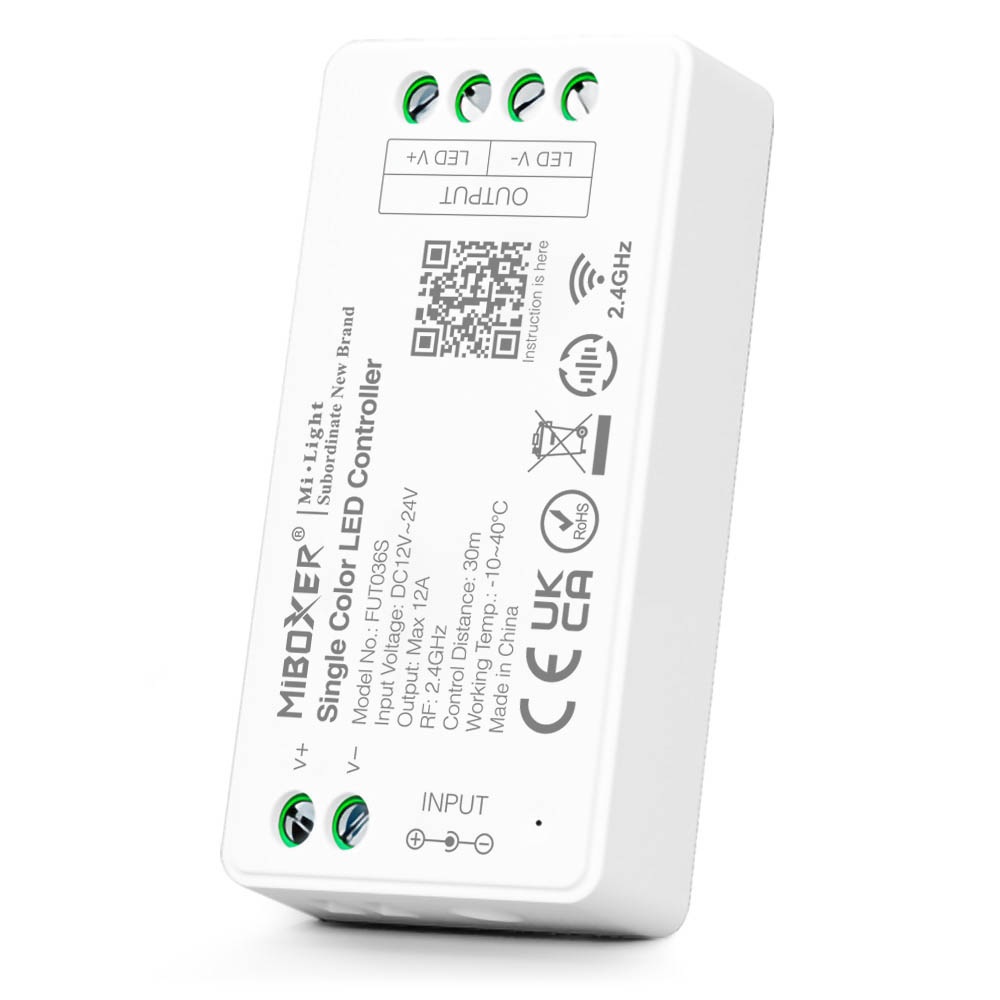

FUT036S – single colour LED controller with 2.4GHz radio technology The FUT036S is a compact and powerful LED controller for single-colour LED strips. With modern 2.4GHz RF radio transmission, it offers stable and wireless control with a range of up to 30 metres. The brightness can be infinitely adjusted - for a pleasant and flicker-free light. Thanks to the signal transmission function, a controller can forward the signal to other controllers within 30 metres. This creates an almost unlimited control range, ideal for larger installations. Features & advantages: Wireless control: 2.4GHz RF technology with a range of up to 30 metres Adjustable brightness: Smooth ¨ng without flickering Signal forwarding: Unlimited control distance thanks to signal repeater function Compatibility: Works with MiBoxer 2.4G remote controls Technical data: Model: FUT036S Input voltage: DC 12–24V Output: max. 12A Signal: 2.4GHz RF Range: up to 30?m Output connection: Common anode Working temperature: -10°C to +40°C Protection class: IP20 The FUT036S LED controller is the ideal solution for smart lighting control with single-colour LED strips - simple, reliable and flexible. Order now and control your lighting intelligently!

Discover the 3in1 LED Controller (Zigbee3.0/2.4GHz), a versatile and powerful LED Strip Controller for RGB/RGBW/RGB+CCT. This innovative device, model number E3-ZR, offers you maximum flexibility and control over your LED lighting. The controller works with an operating voltage of DC12V~24V, making it suitable for various LED strips. It is designed for use in a wide temperature range of -10~40°C, making it ideal for a wide variety of environments. With a maximum output power of 6A per channel and a total output power of 12A, the E3-ZR offers enough power to realise even the most demanding lighting projects. Thanks to the RF frequency of 2.4GHz and a transmission power of 6dBm, it guarantees stable and reliable control. The control distance of 30 metres allows you to position the controller flexibly and conveniently control your lighting from a distance. Benefit from easy integration into your Zigbee network and enjoy seamless control of your LED strips. Optimise your lighting with the 3in1 LED Controller (Zigbee3.0/2.4GHz) and experience the perfect combination of performance, versatility and ease of use.   Product Name: 3in1 LED Controller (Zigbee3.0/2.4GHz) LED Strip Controller for RGB/RGBW/RGB+CCT) Model No.: E3-ZR Working Voltage: DC12V~24V Working Temperature: -10~40°C Output Max: 6A/Channel Total Output Max:12A RF: 2.4GHz Transmitting power: 6dBm Control Distance: 30m

LED IP master-slave controller up to 3 zones with 5 control channels for RGB white or dual white or single colour 10A per zone/slave (120W at 12V and 240W at 24V)‚Common "+" (common plus pole) Up to 8 slaves per zone via 3655 hub Connections/functions -RJ-45 LAN connection -WLAN -1*USB connection -3*button input -3 zones controllable via slaves, PL3654 -Zones via hub, PL3655, expandable, 8gang -Web server (IP address), via which the connected RGB/RGB-W/Dual-white strips can be controlled -RGB random programmes -Create your own programmes/actions -Light - time - programme function -Temperature, brightness sensors can be connected -Dimming actuators (0-10V) control -Several controllers can be connected together to form a logical cluster Scope of delivery: 1* Master S21-3653 + power supply unit 12V/1A 2* Slave S21-3654 3* patch cable (connection master - slave and network) 1* Quick guide Master: Size: 145*80*28mm Weight: 150g Slave: Size: 110*50*28mm Weight: 80g Technical specifications subject to change without notice

The 3-in-1 LED Controller (Wi-Fi + 2.4G), model no. E3-WR, offers an innovative and versatile control solution for your RGB, RGBW and RGB+CCT LED strips. Thanks to the combination of Wi-Fi and 2.4GHz RF technology, you have full control over your lighting – whether via your home network or a remote control. With an operating voltage of DC 12V–24V and a maximum output current of 6A per channel (totalling 12A), this controller is ideal for a wide variety of lighting applications. The integrated IEEE 802.11b/g/n 2.4GHz Wi-Fi standard and the low-power Bluetooth 4.2 protocol ensure a stable and energy-efficient connection. The controller offers a control range of up to 30 metres, allowing for flexible placement and operation of your LED strips. Thanks to its robust design and suitability for a temperature range of -10 to 40°C, this controller is highly versatile and can be used both indoors and outdoors. With the 3-in-1 LED controller (Wi-Fi + 2.4G) you can tailor your lighting precisely to your needs, whether for atmospheric effects, functional lighting or creative lighting accents. Product Parameters Product Name 3-in-1 LED Strip Controller (WiFi+2.4G) Model No. E3-WR Input Voltage DC 12–24 V Output 6A/channel Total Output Max 12A Communication Protocol WiFi+2.4GHz 2.4 GHz RF Control Range 30m IP Rating – Operating Temperature -10–40°C WiFi Standard IEEE 802.11b/g/n 2.4GHz Bluetooth protocol Bluetooth 4.2 (low power consumption)

One channel radio controller receiver for the EOS 10 Zigbee series Compatible with: Echo Plus speaker, Echo Show, Philips Hue, IKEA TRÅDFR, Homey, OSRAM LIGHTIFY Gateway.....ect With status memory in the event of a power failure Reception up to 15 metres away Connected load: max. 1x8A Power supply: 12-36VDC Dimensions: 95*36*20mm Operating temperature: -10°C - +60°C Protection class: IP20 Zigebee slav /Zigebee mesh network

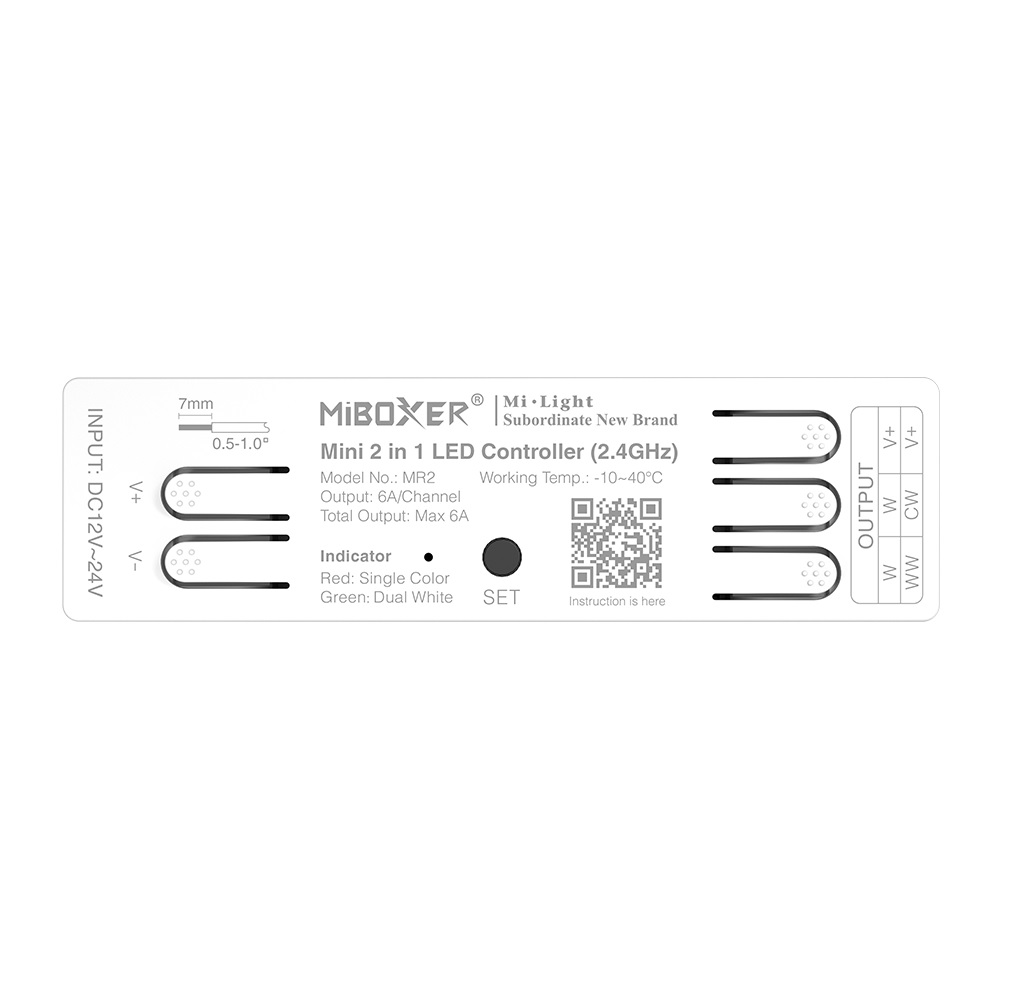

The 2in1 LED Controller (2.4GHz), model no. MR2, offers you a flexible and powerful solution for controlling your LED strips in the smallest of spaces. Whether you use single colour or dual white LED strips, this controller ensures precise and reliable control. With an operating voltage of DC12V~24V and a maximum output power of 6A per channel, this controller is ideal for a wide range of lighting projects. Thanks to 2.4GHz RF technology, you can conveniently control your lighting from a distance of up to 30 metres. The connection is made via Common Anode, which enables easy integration into your existing systems. The controller is designed for use in a temperature range of -10~40°C, making it versatile and reliable. With the 2in1 LED controller, you have control over the brightness and colour of your LED strips and can always create the perfect lighting mood. Whether for residential, outdoor or commercial applications, this controller offers the flexibility and performance you need. Mini 2 in 1 LED Controller (2.4GHz) Model No.:    MR2 Input Voltage:    DC12-24V Output Current:    Max 6A Output Power:    144W Output Type:    Constant Voltage Control Signal:    2.4GHz RF Control Distance:    30m IP Rate:    IP20 Working Temperature:    -10~40°C Dimming Grayscale:    4096 Levels Dimming Range:   0.1%-100%

4-channel radio controller constant current single colour, dual colour, RGB/RGB-W (Compatible with the switches and remote controls of the EOS 05 series) Intuitive RGB colour selection freely selectable via colour wheel. Individual colours dimmable (8 levels) 10 colour programmes (preset) 16 programme speeds selectable (4 sec. -256 sec.) With status memory in case of power failure Reception up to 15 metres away Input: 12-36 VDC Output: 4*500mA Max output: 4*(6-12W) Transmission power: >5dBm Radio frequency: 868.3 MHz (EU approval - licence-free) Operating temperature: -10°C - +60°C Protection class: IP20

Waterproof 5 in 1 LED Strip Controller (WiFi+2.4G) Model No.    WL5-WP Input Voltage    DC12~48V Output        10A/Channel Total Output     Max 20A RF    2.4GHz Control Distance    30m IP Rate    IP67 Working Temperature     -20~45°C

Waterproof Single Color LED Controller (2.4G) Model No.    FUT036S-P Input Voltage    DC12~24V Output    12A/Channel Total Output     Max 12A RF    2.4GHz Control Distance    30m IP Rate    IP66 Working Temperature     -20~45°C

Waterproof RGB LED Controller (2.4G) Model No.    FUT037S-P Input Voltage    DC12~24V Output    6A/Channel Total Output     Max 12A RF    2.4GHz Control Distance    30m IP Rate    IP66 Working Temperature     -20~45°C
