dual white (CCT) controller

MiBoxer PA5H 5-channel LED signal amplifier 30A The MiBoxer PA5H is a 5-channel signal amplifier for PWM-controlled LED installations. It fully amplifies and synchronises the control signal from a master controller to additional LED strings, for example in RGB+CCT applications with the channels red, green, blue, warm white and cool white. The PA5H is compatible with Mi-Light/MiBoxer controllers as well as all standard PWM LED controllers on the market. Thanks to its high-current MOSFET input and fast optocoupler with a 10 Mbit/s transmission rate, it is suitable for larger and high-power LED installations. Multiple amplifiers can be cascaded as required to further increase range and power. Features Fully synchronises the signal from the main controller Compatible with the Mi-Light/MiBoxer series and all PWM LED controllers High-current MOSFET input for high output power High-speed optocoupler, 10 Mbit/s transmission rate Can be cascaded for unlimited extension of the LED run Technical specifications Input voltage: DC 12–24 V Output current: 15 A per channel Total output: max. 30 A Switching rate: 10 Mbit/s Protection rating: IP20 Operating temperature: -10 to +40 °C Dimensions: 134 x 70 x 23.5 mm Certification: CE, EMC, LVD, RED Applications Amplification and synchronisation of RGB+CCT signals over long LED runs Commercial and domestic LED installations with high power requirements Expansion of existing PWM LED controller set-ups

EOS 05 controller AND power supply unit in one adjustable constant current dimming controller suitable for LED panels with constant current (Compatible with the switches and remote controls of the EOS 05 series) PRI: 200~240V, 50-60Hz SEC: 250~1500mA, 75W, Einstallbereich: 250/300/350/400/450/500/600/700/800/900/1000/1100/1200/1300/1400/1500mA, 8-48V Dim: 0-100% RF, Push LV, PWM Size: 210*50*32mm Operating temperature: -20°C - +50°C, Tc 75° Protection class: IP20

MiBoxer TR2 2in1 Track LED Controller (2,4 GHz) Der MiBoxer TR2 2in1 Track LED Controller ist ein kompakter LED-Controller für den Einsatz in Stromschienensystemen. Er ermöglicht die Steuerung von einfarbigen sowie Dual-White (CCT) LED-Anwendungen und lässt sich flexibel an unterschiedliche Beleuchtungskonzepte anpassen. Die Steuerung erfolgt über 2,4 GHz RF Fernbedienungen oder optional per App und Sprachsteuerung über ein kompatibles Gateway. Der Controller wird direkt auf einer 35 mm Standard-Stromschiene montiert und eignet sich für gewerbliche sowie private Beleuchtungsinstallationen. Funktionen 2in1 Controller für Single Color und Dual White (CCT) Einstellbare Helligkeit und Farbtemperatur 2,4 GHz RF Funktechnologie Steuerung per Fernbedienung App- und Sprachsteuerung über Gateway möglich Kompatibel mit Tuya Smart Auto-Weiterleitung des Signals zur Reichweitenverlängerung DND-Modus zur Energieeinsparung Montage auf 35 mm Standard-Stromschiene Technische Daten Modell: TR2 Eingangsspannung: DC 12–48 V Ausgangsstrom: 20 A pro Kanal Gesamtleistung: max. 20 A Funkprotokoll: 2,4 GHz RF Reichweite: bis zu 30 m Schutzart: IP20 Arbeitstemperatur: -10 °C bis +40 °C Einsatzbereiche Stromschienenbeleuchtung Gewerbliche Beleuchtung Hotel- und Gastronomiebeleuchtung Wohnraumbeleuchtung

Product Name: 2in1 LED controller (2.4GHz) LED strip controller for dual white and dim function Model No.: FUT035S+ Working Voltage: DC12V~24V Working Temperature: -10~40°C Output Max: 12A/Channel Total Output: Max12A RF: 2.4GHz Transmitting power: 6dBm Control Distance: 30m Output connection: Common anode/DC5.5*2.1

MiBoxer LC3-ZR CCT & Dimm LED Controller with Zigbee 3.0 + 2.4GHz The MiBoxer LC3-ZR is a 3-in-1 LED controller for 2-wire Dual-White, 3-wire Dual-White and Single-Colour LED applications. It is suitable for both domestic use and commercial lighting solutions such as hotels and shops. Control is via either a 2.4 GHz RF remote control or, when used with a Zigbee 3.0 gateway, via the Tuya Smart app and voice assistants such as Alexa, Google Assistant or Yandex Alice. The gateway also allows you to use timer functions, group control and music rhythm functions. Features Colour temperature and brightness continuously dimmable, 4096 dimming levels (0.1–100 per cent) Supports 2-wire Dual White, 3-wire Dual White and Single Colour Control via Zigbee 3.0 gateway or 2.4 GHz remote control Compatible with standard Zigbee 3.0 gateways such as Philips Hue and IKEA TRÅDFRI Up to 12 remote controls per controller (RF range 30 m) Auto-forwarding to extend the range DND mode for areas prone to power cuts Circadian rhythm and music rhythm in gateway mode Technical specifications Input voltage: DC 12–24 V Output current: Single-colour mode max. 10 A, CCT mode max. 6 A Protocol: Zigbee 3.0 + 2.4 GHz RF Range: Zigbee (open area) 100 m, RF 30 m Protection class: IP20 Operating temperature: -10 to +40 °C Certification: CE, EMC, RED Applications Dual-white/CCT LED lighting schemes in private homes Hotel and contract lighting with smart home integration Commercial lighting projects with centralised Zigbee control

LC2-WR 2 Wires 2 in 1 LED Controller(WiFi+2.4G) • Compatible with 2 wires CCT strip light • Compatible with Mi-Light / MiBoxer 2.4GHz series remote • 2.4G RF Remote Control Distance: 30m • Brightness and color temperature adjustable • Switching 2 output mode via one button (Single color / Dual white) Features WIFI+2.4Ghz wireless transmitting and remote control technology with fast transmission, stable signal and anti-interference Compatible with APP and remote control Dim brightness and cct, wide application for commercial lighting, hotel lighting and home lighting Parameters Color temperature, brightness dimmable Biological rhythm and music rhythm Push dimming 4096 level smooth dimming, mini brightness 0.1%, dimming range 0.1%-100% One controller support max 12pcs remote ( control distance 30m) Auto transmitting: transmit signal to another one automatically and expand unlimited  control distance Auto synchronization: dynamic mode can synchronize and keep same for all devices Support DND mode and usually used for power failure area to save power Support "TUYA SMART” APP control Support Alexa, Google Assistant, Yandex Alice roduct Name: 2 Wire 2 in 1 LED Controller Model No.: LC2-WR Input Voltage: DC12-24V Output Current: 12A/ Single channel Total Output: Max 10A Control Signal: 2.4GHz RF Control Distance: 30M IP Rate: IP20 Dimming Curve: Logarithmic EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) Safety Standard (LVD): EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 Radio Equipment (RED): ETSI EN 300 440 V2.2.1 Certification: CE, EMC, RED

MiBoxer DL-RF DALI signal converter: 2.4 GHz to DALI The MiBoxer DL-RF converts 2.4 GHz radio signals into DALI bus control signals, thereby enabling the wireless control of DALI luminaires using a MiBoxer remote control. Dimmable, single-colour, CCT, RGB, RGBW and RGB+CCT DALI luminaires are supported. When used in conjunction with a 2.4 GHz gateway, the DL-RF can also be controlled via the Tuya Smart app and through voice assistants such as Alexa, Google Assistant or Yandex Alice. The signal converter is suitable for industrial, commercial and residential lighting. Features DALI-compliant in accordance with IEC 62386-101, 102, 207, 208, 209 Supports DT6 dimming, DT8-TC, DT8-RGB and DT8-RGBW Control via 2.4 GHz RF remote control, RF range 30 m 18 dynamic modes with jump and fade effects (RF remote control) Auto-forwarding for unlimited remote control range Automatic synchronisation between multiple devices DND function for areas with power cuts App control via Tuya Smart and voice control via Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu and Xiaomi (2.4 GHz gateway required) Technical specifications Power supply: DALI bus / 24 V DC Standby current: 2 mA @ 24 V DC / 4 mA @ 16 V DC DALI bus standard: IEC 62386 Protocol: 2.4 GHz to DALI RF range: 30 m Operating temperature: -10 to +40 °C Areas of application Retrofitting existing DALI installations with wireless RF control Industrial and commercial lighting systems Residential lighting with DALI luminaires

Lichtleiste für Treppenkontroller 20 Stück pro Verpackungseinheit Stair Light Sub-device(Dual White LED Light) ·BS-L2 Must be used with "2 wire PLC stair light master” Products Name Stair Light Sub-device(Dual White LED Light) Model No. BS-L2 Input Voltage DC24V Power 7W Luminous Flux 350LM Color Temperature 2700K~6500K CRI >80 Board Material Copper Thickness 2.5 oz (Front 1 oz, Back 1.5 oz) LED Strip Width 8mm IP Rate IP20 Tailor Length / (kürzbar) Min 25mm Beam Angle 120° Product Size 10x10x1000mm Sie können die Lichtleiste alle 25mm kürzen. Mit dem Zubehör 235894 können die Abschnitte weiterverwendet werden. Einfach anlöten und sie können den Rest der Leiste weiterbetreiben.

The 2-in-1 LED Controller (Wi-Fi + 2.4G), model no. E2-WR, offers a versatile and powerful solution for controlling your single-colour and dual-white LED strips. With an operating voltage of DC 12V–24V and a maximum output current of 12A per channel (total 12A), this controller is ideal for a wide range of lighting applications. Thanks to the IEEE 802.11b/g/n 2.4GHz Wi-Fi standard and 2.4GHz RF technology, this controller enables simple and flexible control via your Wi-Fi network or by remote control. The control range is up to 30 metres, giving you maximum freedom in the placement and use of your LED strips. The controller is designed for use within a temperature range of -10 to 40°C, making it robust and reliable, even under changing conditions. With the 2-in-1 LED Controller (Wi-Fi + 2.4G), you can effortlessly adjust your lighting and create a personalised lighting ambience. Product Name: 2-in-1 LED Controller (Wi-Fi + 2.4G) LED strip controller for single colour/dual white Model No.: E2-WR Operating Voltage: DC 12V–24V Operating Temperature: –10–40°C Maximum Output: 12A per channel Maximum Total Output: 12A Communication Protocol: Wi-Fi + 2.4GHz Wi-Fi Standard: IEEE 802.11b/g/n 2.4GHz Control Distance: 30m

EOS 05 controller AND power supply unit in one Constant volt dimming controller (Compatible with EOS 05 series switches and remote controls) PRI: 200~240V, 50-60Hz SEC: 24V, 3.12A max/CH, 1CH+2CH+3CH+4CH=3.12A (75W) Dim: 0-100% RF, Push LV, PWM Operating temperature: -20°C - +50°C, Tc 75° Protection class: IP20

Model No.: FUT035S+ (16kHz version) Product Name: 2in1 LED controller (2.4GHz) LED strip controller for dual white and dim function Working Voltage: DC12V~24V Working Temperature: -10~40°C Output Max: 12A/Channel Total Output: Max12A RF: 2.4GHz Transmitting power: 6dBm Control Distance: 30m Output connection: Common anode/DC5.5*2.1

Miboxer Treppen Controller. Für Lauflicht bei Treppen. 24V bis zu 480W (20A) gesamt bis zu 64 Stufen single color oder dual color strip bis zu 1024 Pixel 2 Wire PLC Stair Light Master(BLE+2.4G) • Bluetooth control • Two-wire control • Supports up to 64 stairs • Support SPI strip parameter setting, color calibration, point setting, color and brightness setting • Support short circuit protection, anti-reverse polarity protection Features Bluetooth control Two-wire control Supports up to 64 stairs Support step time setting Support delay lights-off time setting Support night light brightness setting Support 0-24 hours working time setting, prevent false triggering 4 light sensing modes Support SPI strip parameter setting, color calibration, point setting, color and brightness setting Support setting the CCT and brightness of staircase lights Support short circuit protection, anti-reverse polarity protection Parameters Product Name: Stair Light Model No.: BS64 Input Voltage: DC24V Power: 480W 20A Communication Protocol: Bluetooth / 2.4GHz RF Control distance: Bluetooth: 30m  2.4G: 30m Pixels: 1024 PIR sensing distance: 3m Steps: 2-64 working temperature: -10~40°C Certification: CE, EMC, RED

MiBoxer TW2 2in1 Track LED Controller (WiFi + 2,4 GHz) Der MiBoxer TW2 2in1 Track LED Controller ist ein kompakter LED-Controller für Stromschienensysteme mit integrierter WiFi-Funktion. Er ermöglicht die Steuerung von einfarbigen sowie Dual-White (CCT) LED-Anwendungen und bietet eine direkte Anbindung an Smart-Home-Systeme ohne zusätzliches Gateway. Die Steuerung erfolgt komfortabel über die Tuya Smart App, per Sprachbefehl oder über 2,4 GHz RF Fernbedienungen. Der Controller wird direkt auf einer 35 mm Standard-Stromschiene montiert und eignet sich für gewerbliche sowie private Beleuchtungsinstallationen. Funktionen 2in1 Controller für Single Color und Dual White (CCT) Einstellbare Helligkeit und Farbtemperatur WiFi-Steuerung über Tuya Smart App (kein Gateway erforderlich) 2,4 GHz RF Funktechnologie Steuerung per Fernbedienung Sprachsteuerung kompatibel mit Alexa, Google Assistant u.a. Musikmodus für dynamische Lichtsteuerung Auto-Weiterleitung des Signals zur Reichweitenverlängerung DND-Modus zur Energieeinsparung Montage auf 35 mm Standard-Stromschiene Technische Daten Modell: TW2 Eingangsspannung: DC 12–48 V Ausgangsstrom: 20 A pro Kanal Gesamtleistung: max. 20 A Protokoll: WiFi + 2,4 GHz RF Reichweite: bis zu 30 m (RF) Schutzart: IP20 Arbeitstemperatur: -10 °C bis +40 °C Einsatzbereiche Stromschienenbeleuchtung Gewerbliche Beleuchtung Hotel- und Gastronomiebeleuchtung Wohnraumbeleuchtung

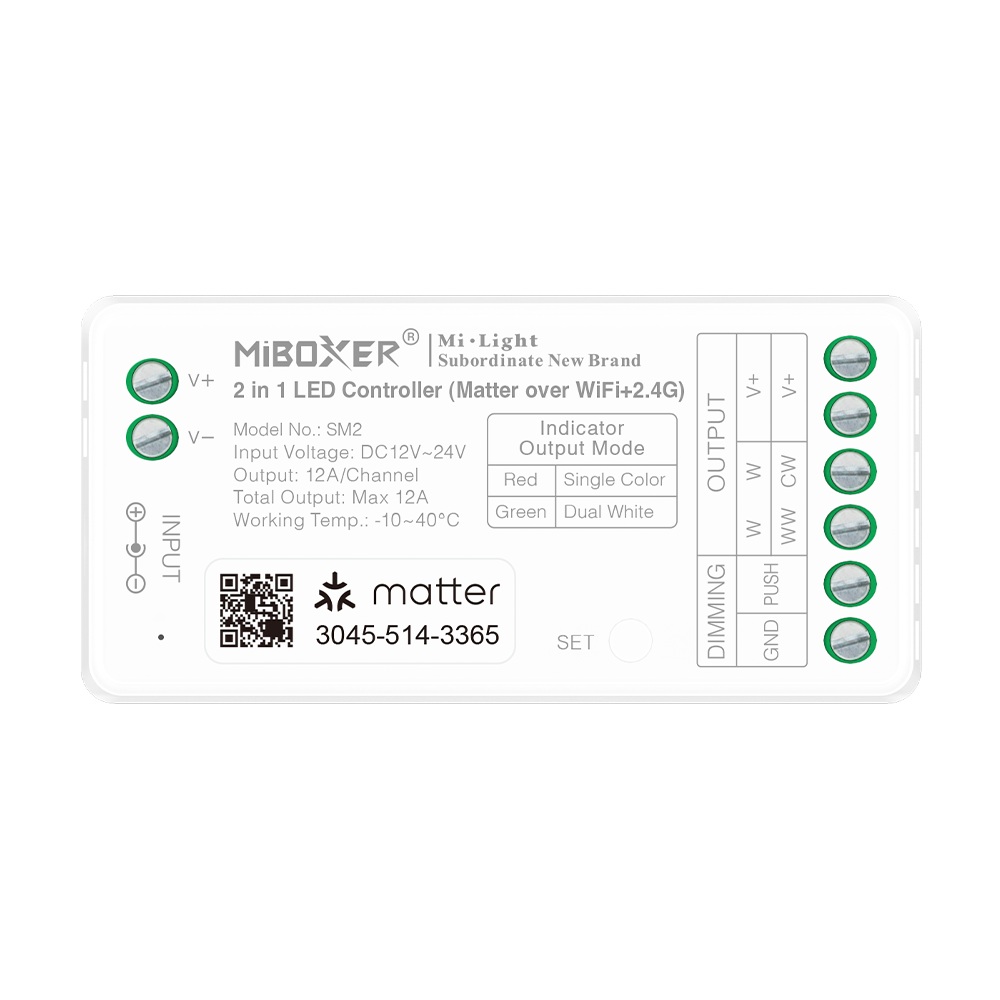

Synergy 21 SM2 – 2 in 1 LED Controller (Matter Over WiFi + 2.4GHz) The SM2 LED controller from Synergy 21 combines state-of-the-art control technology with maximum compatibility. Thanks to the Matter standard protocol and dual wireless technology (WiFi + 2.4GHz RF), the controller can be seamlessly integrated into a wide range of smart home systems for future-proof and flexible lighting control. Highlights: Certified Matter protocol: Supports the new Matter standard for cross-platform smart home compatibility. Broad compatibility: Works with products from a wide range of brands within the Matter ecosystem. Dual technology: Controlled via WiFi and 2.4GHz RF – ideal for local and cloud-based applications. Easy setup: Quick pairing via QR code – intuitive and user-friendly. Voice control: Compatible with Siri, Google Assistant and Amazon Alexa. Flexible lighting control: Supports single channel (single colour) and CCT (colour temperature) LEDs. Scene control: Presets for different lighting scenes can be saved and recalled. Multi-mode control: Control of up to 12 remote controls simultaneously (range: 30 metres). Auto-Transmitting: Automatic signal forwarding between controllers – for unlimited range. DND mode: Energy-saving function for areas at risk of power failure. Magnetic attachment: For easy and flexible installation. Technical data: Product name: 2 in 1 Controller (Matter Over WiFi + 2.4GHz) Model number: SM2 Input voltage: DC 12–24 V Output current: 12 A / single channel Total output: max. 12 A Protocol: WiFi + 2.4G RF WiFi standard: IEEE 802.11b/g/n (2.4 GHz) Control distance (RF): up to 30?m IP protection class: IP20 Operating temperature: -10°C to +40°C EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 (2019-11) ETSI EN 301 489-3 V2.3.2 (2023-01) Safety standard (LVD): EN 61347-1:2015 + A1:2021 EN 61347-2-11:2001 + A1:2019 Radio standard (RED): ETSI EN 300 440 V2.2.1 Certifications: CE, EMC, RED The SM2 controller is the perfect choice for anyone looking for a modern, flexible and future-proof LED control solution Compatible with the leading smart home platforms

Synergy 21 LED Controller EOS 10 Zigbee 2-channel controller CCT (2 wires) The Synergy 21 LED Controller EOS 10 is a powerful Zigbee controller for controlling 2-wire CCT LED strips. It is not suitable for 3-wire CCT LED strips. The controller enables flexible control of on/off switching, brightness and colour temperature (CCT) via a Zigbee network. Features: Zigbee 3.0 compatible – high interoperability with Zigbee systems and smart home platforms. 2-channel control – enables precise adjustment of the colour temperature (warm white/cold white). Wireless Zigbee network – control üvia Zigbee hubs, gateways and compatible remote controls. Direct pairing (Touchlink) – direct connection with Zigbee remote controls possible without gateway. Self-forming Zigbee network – possible without coordinator. Zigbee Green Power support – up to 20 Zigbee Green Power remote controls can be connected directly. Easy addressing – devices can be assigned via "Find & Bind"mode. OTA update capability – automatic firmware updates üover the Zigbee network. Built-in programming button – for easy pairing and resetting. Safety & protection – protection class IP20 (for indoor use). Technical data: Input voltage: 12-24V DC (constant voltage) Maximum output power: 60-120W (depending on the input voltage) Maximum output current: 5A Connectors: 2-wire terminals for CCT LED strips (not suitable for 3-wire CCT LED strips) Dimensions: 145 × 46.5 × 16 mm Protection class: IP20 (only suitable for indoor use) Application areas: Smart lighting control for residential and commercial premises Integration into smart home systems Light control via Zigbee remote controls or apps Note: The controller must not be powered while it is being installed or wired.

The 2-in-1 LED Controller (WiFi+2.4G), model no. HW2, offers an outstanding combination of WiFi and 2.4GHz RF technology for precise control of your LED lighting. With an input voltage of DC12~48V and an impressive output power of 30A per channel, this controller is designed for demanding lighting projects and supports a maximum total output of 30A. Thanks to the WiFi standard IEEE 802.11b/g/n 2.4 GHz and the integrated Bluetooth 4.2 protocol with low energy consumption, this controller offers a flexible and energy-efficient connection. The control range of 30 metres gives you convenient and reliable control over your lighting, whether via WiFi or 2.4 GHz RF technology. The 2-in-1 LED Controller combines modern communication technologies to provide you with a versatile and powerful solution for your LED systems. It is ideal for integration into smart lighting systems and offers stable and efficient control of your light sources. Experience the future of lighting control with the 2-in-1 LED Controller (WiFi+2.4G). Order now and enjoy the advanced technology that gives you full control and flexibility in customising your lighting.         Product name: 2-in-1 LED controller (WiFi+2.4G) Model No.: HW2 Input voltage DC12~48V Output: 30A/channel Total power: Maximum 30A Communication protocol    : WiFi+ 2.4 GHz Control range: 30m Operating temperature: -10 ~ +40°C WiFi standard: IEEE 802.11b/g/n 2.4 GHz Bluetooth protocol: Bluetooth 4.2 (low power consumption)

Waterproof 5 in 1 LED Strip Controller (WiFi+2.4G) Model No.    WL5-WP Input Voltage    DC12~48V Output        10A/Channel Total Output     Max 20A RF    2.4GHz Control Distance    30m IP Rate    IP67 Working Temperature     -20~45°C

MiBoxer SMZ2 2in1 LED controller (Matter over Thread + 2.4 GHz) The MiBoxer SMZ2 2in1 LED Controller is used to control LED lighting systems via Matter over Thread and 2.4 GHz RF. It enables integration into common smart home platforms and is suitable for various LED applications. Set-up is simple via QR code. The controller is compatible with Apple Home, Amazon Alexa, Google Home, SmartThings and Tuya. It can also be controlled via compatible 2.4 GHz remote controls. A stable wireless connection with a range of up to 30 metres is supported. Functions 2in1 controller for LED applications Supports Matter over Thread and 2.4 GHz RF Compatible with Apple Home, Alexa, Google Home, SmartThings, Tuya Setup via QR code Voice control possible Control via remote control (up to 12 devices can be paired) 18 dynamic light programmes (controllable via remote control) Auto forwarding of the signal (signal amplification) Synchronisation of lighting effects DND mode for the reduction of interference Technical data Model: SMZ2 Operating voltage: DC 12–24 V Output current: 12 A per channel Total power: max. 12 A Protocol: Matter over Thread + 2.4 GHz RF Range: up to 30 m (RF) Protection class: IP20 Working temperature: -10 °C to +40 °C Certification: CE, EMC, RED Application areas LED monochrome and CCT lighting Smart home applications Residential and commercial areas Integration into existing Matter systems

MiBoxer LC3-WR CCT & Dimm LED Controller with Wi-Fi + 2.4GHz The MiBoxer LC3-WR is a 3-in-1 LED controller for 2-wire Dual-White, 3-wire Dual-White and Single-Colour LED applications. It is suitable for both domestic use and commercial lighting solutions such as hotels and shops. Control is via Wi-Fi directly through the Tuya Smart app, with no additional gateway required. Alternatively, the controller can be operated using a 2.4 GHz RF remote control. Voice control is available via Alexa and Google Assistant. Features Colour temperature and brightness are continuously dimmable, with 4096 dimming levels (0.1–100 per cent) Supports 2-wire Dual White, 3-wire Dual White and Single Colour Direct Wi-Fi control via the Tuya Smart app; no gateway required Can also be controlled via a 2.4 GHz remote control (up to 12 remote controls, range 30 m) Voice control via Alexa and Google Assistant Auto-forwarding to extend range DND mode for areas prone to power cuts Circadian rhythm and musical rhythm Technical specifications Input voltage: DC 12–24 V Output current: Single-colour mode max. 10 A, CCT mode max. 6 A Protocol: Wi-Fi + 2.4 GHz RF Range: RF 30 m Protection class: IP20 Operating temperature: -10 to +40 °C Areas of application Dual-White/CCT LED lighting schemes in private homes Hotel and contract lighting with app control Commercial lighting projects without an additional gateway

EOS 05 controller AND power supply unit in one adjustable constant current dimming controller suitable for dual white LED panels with constant current (Compatible with the switches and remote controls of the EOS 05 series) PRI: 100~240V, 50-60Hz SEC: 250~1050mA, 75W, Power-on range: 1500mA/33V, 1400mA/34V, 1300mA/38V, 1200mA/41V, 1100mA/46V, 1000mA/48V, 900mA/48V, 800mA/48V, 700mA/48V, 600mA/48V, 500mA/48V, 450mA/48V, 400mA/48V, 350mA/48V, 300mA/48V 250mmA/48V Size: 210*50*32mm Operating temperature: -20°C - +50°C, Tc 75° Protection class: IP20

MiBoxer DL-WR DALI signal converter: WiFi + 2.4 GHz to DALI The MiBoxer DL-WR converts Wi-Fi and 2.4 GHz radio signals into DALI bus control signals, thereby enabling the wireless control of DALI luminaires. It supports dimmable, single-colour, CCT, RGB, RGBW and RGB+CCT DALI luminaires. The app is controlled directly via Wi-Fi using the Tuya Smart app – with no additional gateway required. Voice control via Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu or Xiaomi also works directly, without the need for additional hardware. Furthermore, the signal converter can be operated using a 2.4 GHz RF remote control. Features DALI-compliant according to IEC 62386-101, 102, 207, 208, 209 Supports DT6 dimming, DT8-TC, DT8-RGB and DT8-RGBW Direct Wi-Fi control via the Tuya Smart app; no gateway required Can also be controlled via a 2.4 GHz RF remote control (range 30 m) 18 dynamic modes with jump and fade effects via RF remote control Auto-forwarding for extended range Automatic synchronisation between multiple devices DND function for areas prone to power cuts Direct voice control via Alexa, Google Assistant and other voice assistants, without a gateway Technical specifications Power supply: DALI bus / DC 24 V Standby current: 10 mA @ DC 24 V / 15 mA @ DC 16 V DALI bus standard: IEC 62386 Wi-Fi standard: IEEE 802.11b/g/n 2.4 GHz RF range: 30 m Operating temperature: -10 to +40 °C Applications Retrofitting existing DALI installations with direct app control Industrial and commercial lighting systems without an additional gateway Residential lighting with DALI luminaires and smart home integration

Dual Weiß / Tuneable white LED Controller für 2-adrige (2 wire) LED CCT Strips 2 Wires 2 in 1 LED Controller (2.4GHz) • Compatible with 2 wires CCT strip light • Compatible with Mi-Light / MiBoxer 2.4GHz series remote • Control Distance: 30m • Brightness and color temperature adjustable • Switching 2 output mode via one button (Single color / Dual white) Product Name: 2 Wires 2 in 1 LED Controller (2.4GHz) Model No.: LC2-RF Input Voltage: DC12~48V Output: 10A/Channel Total Output: Max 10A RF: 2.4GHz Control Distance: 30m IP Rate: IP20 Working Temperature: -10~40°C

MiBoxer TZ5 5in1 Track LED Controller (Zigbee 3.0 + 2,4 GHz) Der MiBoxer TZ5 5in1 Track LED Controller ist ein vielseitiger LED-Controller für Stromschienensysteme mit Unterstützung für das Zigbee 3.0 Protokoll. Er eignet sich für verschiedene LED-Typen wie RGB, RGBW, RGB+CCT, Dual White (CCT) und einfarbige Anwendungen. Die Steuerung erfolgt über ein Zigbee Gateway, per App, Sprachsteuerung oder zusätzlich über 2,4 GHz RF Fernbedienungen. Durch das Zigbee Mesh-Netzwerk wird eine stabile und zuverlässige Verbindung gewährleistet. Der Controller wird auf einer 35 mm Standard-Stromschiene montiert und eignet sich für gewerbliche sowie private Anwendungen. Funktionen 5in1 Controller für verschiedene LED-Typen (Single Color, CCT, RGB, RGBW, RGB+CCT) 16 Millionen Farben einstellbar Einstellbare Helligkeit, Farbtemperatur und Sättigung Zigbee 3.0 Steuerung über Gateway 2,4 GHz RF Funktechnologie Steuerung per Fernbedienung App- und Sprachsteuerung (z. B. Alexa, Google Assistant) Zigbee Mesh-Netzwerk für stabile Verbindung Kompatibel mit gängigen Zigbee Systemen (z. B. Philips Hue, IKEA TRÅDFRI) 18 dynamische Lichtprogramme (per Fernbedienung) Auto-Weiterleitung des Signals zur Reichweitenverlängerung Automatische Synchronisation von Effekten DND-Modus zur Energieeinsparung Montage auf 35 mm Standard-Stromschiene Technische Daten Modell: TZ5 Eingangsspannung: DC 12–48 V Ausgangsstrom: 12 A pro Kanal Gesamtleistung: max. 20 A Protokoll: Zigbee 3.0 + 2,4 GHz RF Reichweite: Zigbee bis 50 m, RF bis 30 m Schutzart: IP20 Arbeitstemperatur: -10 °C bis +40 °C Einsatzbereiche Stromschienenbeleuchtung Gewerbliche Beleuchtung Hotel- und Gastronomiebeleuchtung Wohnraumbeleuchtung

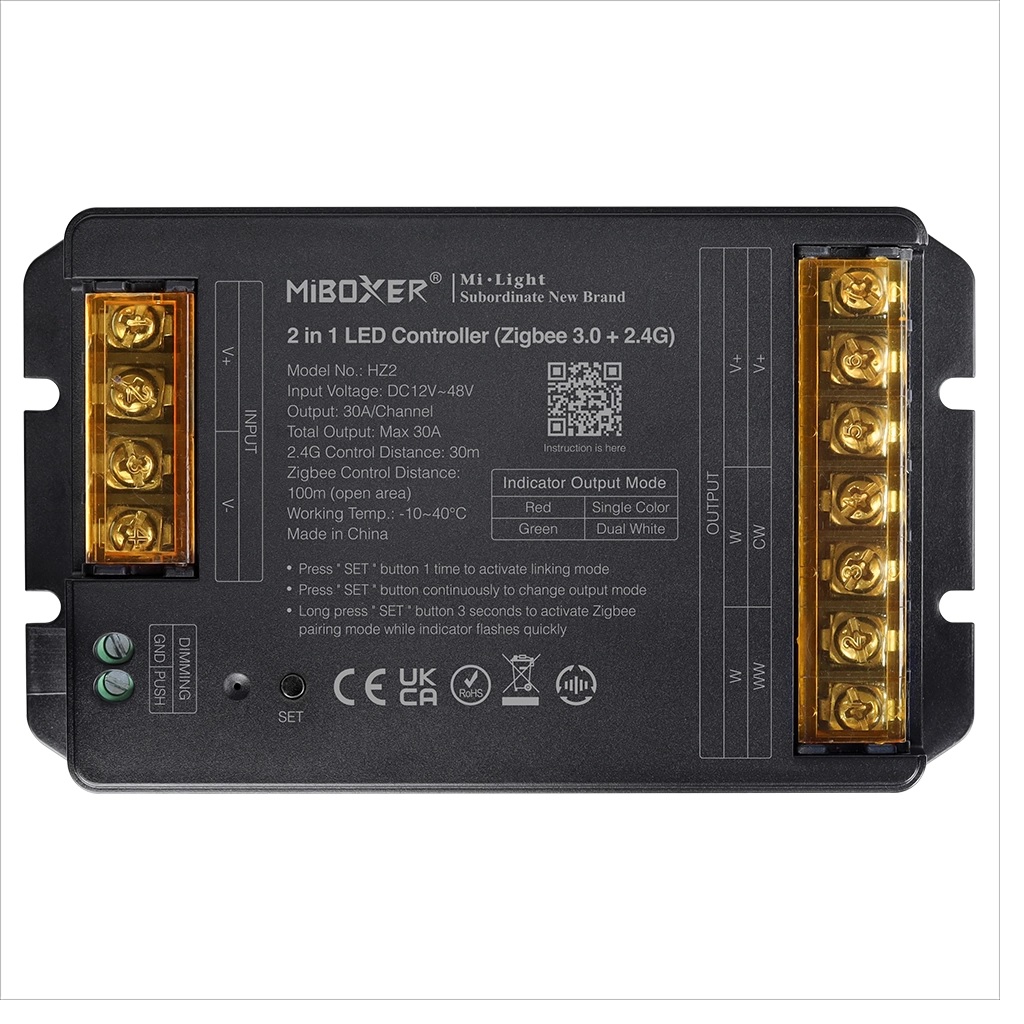

HZ2 2-in-1 high-current controller, wireless transmission technology according to Zigbee 3.0 standard with lower power consumption, mesh network with strong interference suppression capability . It supports single or multi-zone control and offers a wide application for residential or commercial lighting. Paired with the MiBoxer Zigbee 3.0 gateway for functions such as wireless dimming, remote control, timer, group control, music rhythm. It can work with the 2.4G RF remote control. Zigbee 3.0 standard protocol Brightness and colour temperature adjustable Supports PUSH dimming Integrated dynamic mode with jumping and step-by-step changes (only for the 2.4G remote control) Automatic forwarding: Automatically forwards the remote control signal to another controller, making the remote control range infinite Automatic synchronisation: The same dynamic mode is automatically synchronised so that the mode is always consistent Provides a DND function, which is normally used in power failures and saves power Supports TUYA SMART app control (Zigbee 3.0 gateway required) Supports third-party voice control such as Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu and Xiaomi (Zigbee 3.0 gateway required) Parameters Product name: 2 in 1 high current regulator Model no.: HZ2 Input voltage: Direct current 12-48 V Output current: 30A Control signal: Zigbee 3.0 + 2.4GHz HF Control distance: Zigbee: 100 M (open range)/ 2.4G RF: 30 M IP rate: IP20 Working temperature: -10~40? EMC standard (EMC): ETSI EN301 489-1 Version 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) Safety standard (LVD): EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 Radio equipment (RED): ETSI EN 300 440 V2.2.1 Certification: CE, EMC, RED
