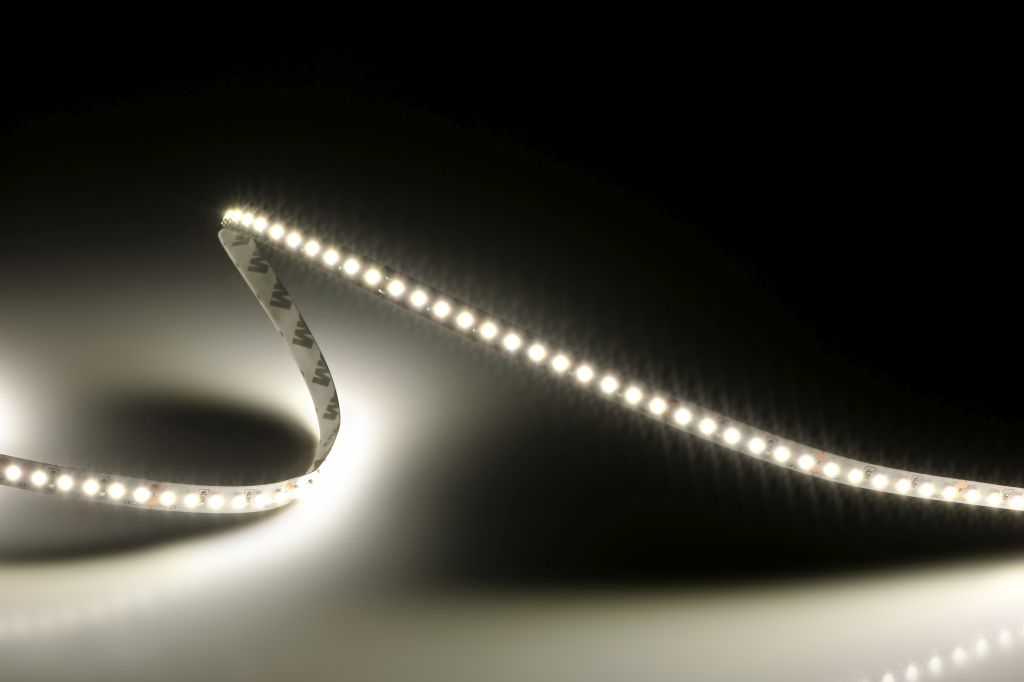

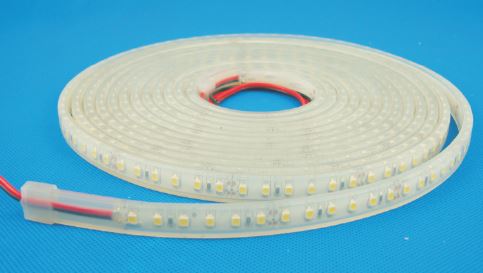

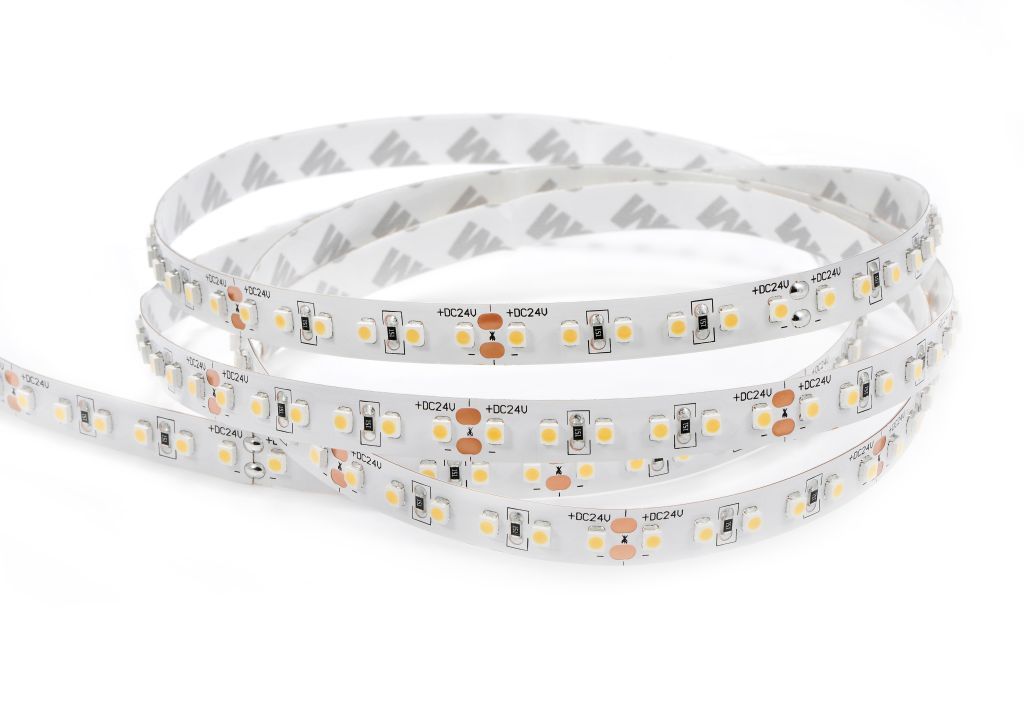

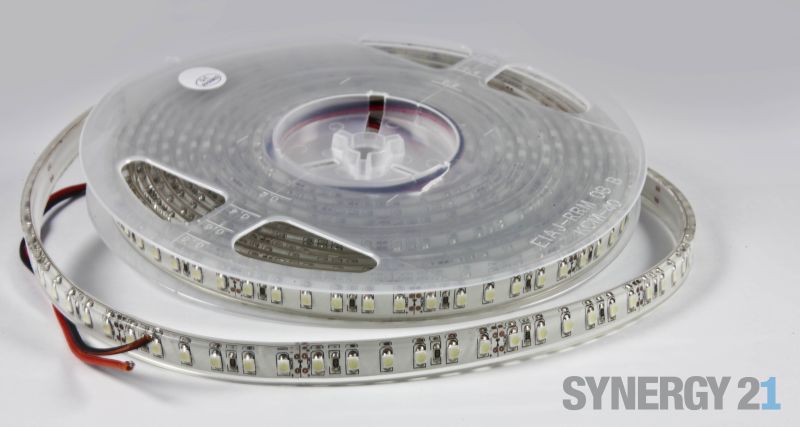

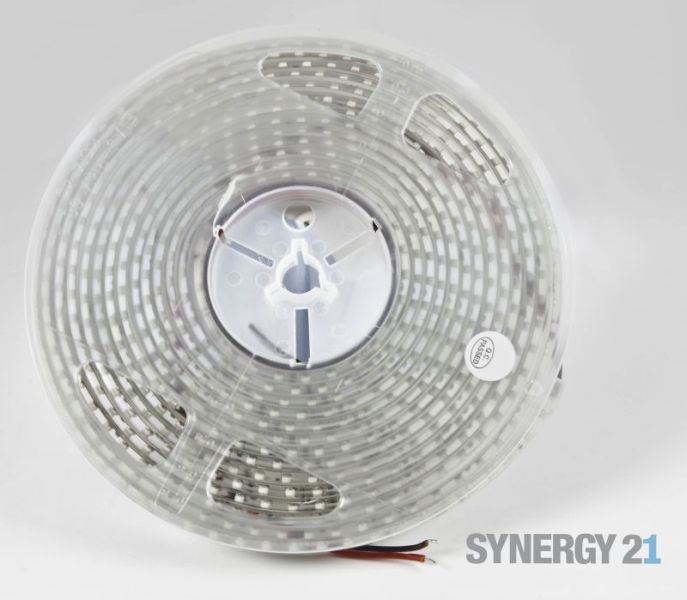

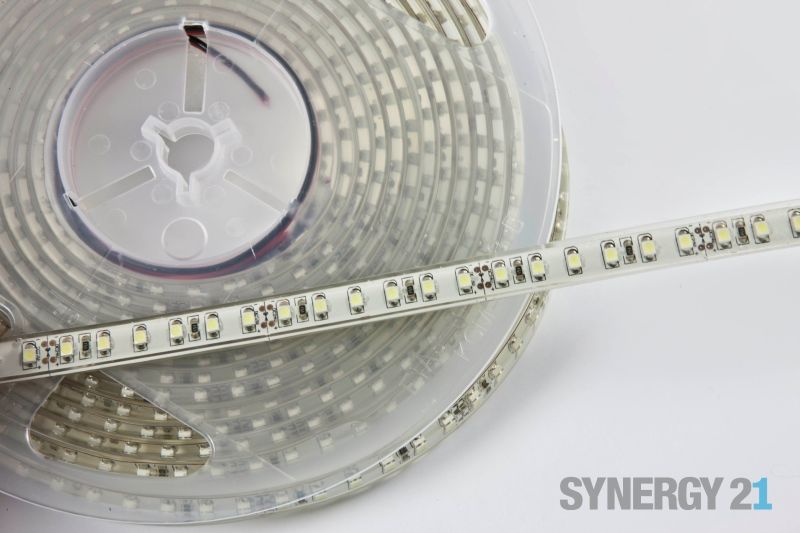

Synergy 21 LED Flex Strip cold white DC24V 48W IP68

Product number: 82048

EAN: 4038816995667

Manufacturer Number: S21-LED-F00008

Weight: 0,346 KG

Product information "Synergy 21 LED Flex Strip cold white DC24V 48W IP68"

LED Flex Strip cold white,
DC24V, max. 2A, 48W,
600Leds, 120°, 3528SMD

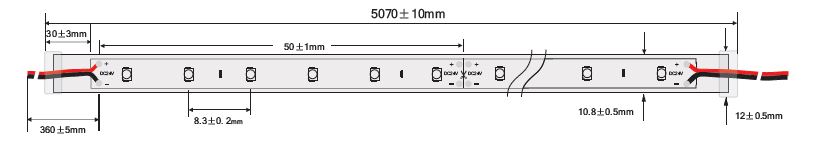

Length: 5000*10.8*4mm, (strip width 10.8mm, end cap width 12mm)
Lumen: 975Lm/M, total: 4875
Kelvin: 600K
CRI: >95
Protection class: IP68, outdoor incl 3M tape
Suitable down to -25°C!

Strip can be cut at marking marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split strip when no current is present.

Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed.

Article properties

Abstrahlwinkel:	120 Grad
Ampere (CC):	2 A
CRI:	>80 CRI
Dimmbar:	abhängig vom Netzteil
Konstantstrom oder Konstantvolt:	CV
LED Strip Breite:	10.80 mm
LED Strip Höhe:	4 mm
LED Strip Klebeband:	ja ja/nein
LED Strip Länge:	5000 mm
LED Strip kürzbar:	50 mm
Lichtfabe in Kelvin:	6500 K
Lichtfarbe Name:	kaltweiß
Lichtfarbe Name:	kaltweiß
Lichtfarbe in Kelvin:	6500 K
Lumen:	3900 LM
Schutzklasse:	IP68
Volt:	24 Volt
Watt:	48 W

Synergy 21 LED zub Hollow Socket with Screw Terminals

Hollow socket (DC socket) with screw terminals 2.1 x 5.5 mm. Suitable for Synergy21 LED Strips, etc. The connection of the plugs is not standardised. The outer conductor is often negative. Length/width/height in mm 39.5/14.6/13 Weight: 7 grammes

Product number: 81069

Manufacturer Number: S21-LED-000220

Synergy 21 LED zub wooden plug with screw terminals

Hollow plug (DC plug) 2.1 x 5.5 mm with screw terminals. Suitable for Synergy21 LED Strips, etc. Plug: 2.1 x 5.5 mm The connection of the plugs is not standardised. The outer conductor is often negative. Length/width/height in mm 38.5/13.9/12.8 Weight: 5.5 grammes

Product number: 81068

Manufacturer Number: S21-LED-000219

Synergy 21 LED Flex Strip add. Silicone mounting clip 10 pack

LED strip mounting clip made of silicone 10 pieces pack 10clamps

Product number: 81741

Manufacturer Number: S21-LED-000247

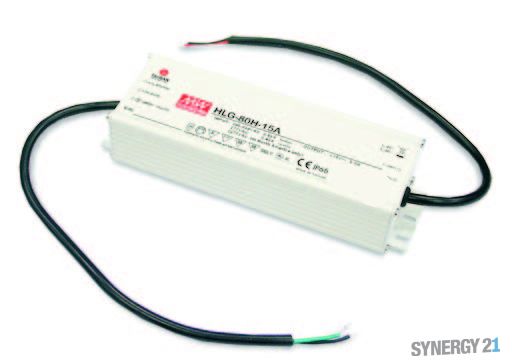

Mean Well power supply - 24V 80W dimmable IP65

HLG-80H-24 dimmable (1-10 Volt, PWM dimmer) , IP65 Input: 90-305VAC Output: 3.4A, 24V DC , 81.6 Watt Operating temperature: -40°C to +70°C LxWxH 195.6x61.5x38.8mm Protection markings: See meanwell.com Open cable ends

Product number: 93680

Manufacturer Number: HLG-80H-24B

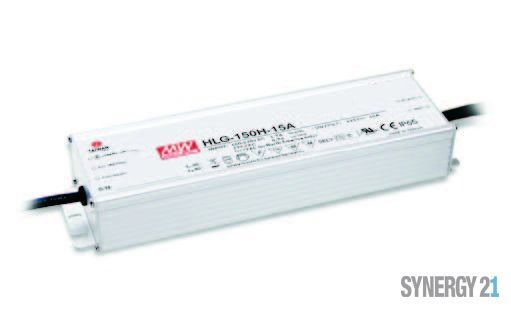

Mean Well Power Supply - 24V 150W Dimmable IP65

HLG-150H-24 dimmable (1-10 Volt, PWM dimmer) , IP65 Input: 90-305VAC Output: 6.3A, 24V DC , 151.2 Watt Operating temperature: -40°C to +70°C LxWxH 228x68x38.8mm Protection markings: See meanwell.com Open cable ends

Product number: 93682

Manufacturer Number: HLG-150H-24B

Synergy 21 LED FLEX Strip add. Easy Connect I Form for 1 line red

Synergy 21 LED FLEX Strip add. Easy Connect I shape for 1 line Rating Voltage:300V Rated Current of pin: 9A Working Temperature:40° ~ +85° Material: Polycarbonate (flame retardant) Ingress Protection: IP40 Cap Colour: Red Base Colour: Black 0.34~0.52 mm2 (22-20 AWG) 1.8mm 5pcs per paper box

Product number: 174653

Manufacturer Number: S21-LED-001237

Synergy 21 LED FLEX Strip zub. Easy Connect I Form für 2 Linie klar

Synergy 21 LED FLEX Strip add. Easy Connect I shape for 2 line Rating Voltage:300V Rated Current of pin: 9A Working Temperature:40° ~ +85° Material: Polycarbonate (flame retardant) Ingress Protection: IP40 Cap Colour: Clear Base Colour: Black 0.34~0.52 mm2 (22-20 AWG) 1.8mm 5pcs per paper box

Product number: 174656

Manufacturer Number: S21-LED-001240

Synergy 21 LED FLEX Strip zub. Easy Connect I shape for 2 line red

Synergy 21 LED FLEX Strip zub. Easy Connect I shape for 2 line Rating Voltage:300V Rated Current of pin: 9A Working Temperature:40° ~ +85° Material: Polycarbonate (flame retardant) Ingress Protection: IP40 Cap Color:Red Base Color: Black 0.34~0.52 mm2 (22-20 AWG) 1.8mm 5pcs per paper box

Product number: 174655

Manufacturer Number: S21-LED-001239

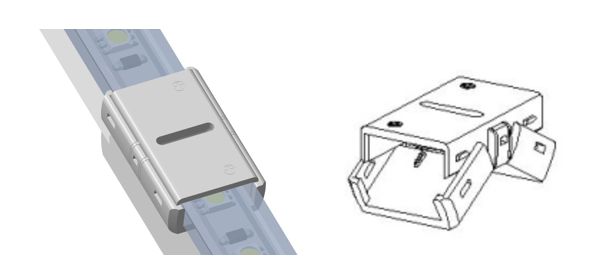

Synergy 21 LED FLEX-Strips add. Easy Connect strip to strip connection 10/12mm IP67

Synergy 21 LED FLEX Strip add. Easy Connect Strip to strip Joint no wire, 2 pin, DC3V-24V / 5A; for PCB width: 10mm/12mm single colour Solderpad: 2 For IP67 Hollow Tube Waterproof Strip Light---Strip to wire 5pcs per paper box

Product number: 174637

Manufacturer Number: S21-LED-001220

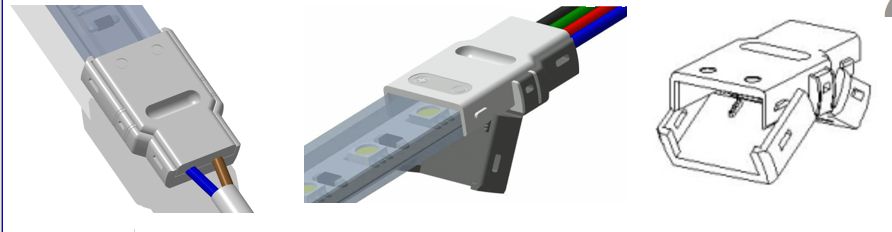

Synergy 21 LED FLEX strips add. Simple connection of strips to cable 10/12mm IP67
