Product information "Synergy 21 LED PLC Serie Underground Light 9W RGB+CCT *Milight/Miboxer*"
PLC-RD3
9W RGB+CCT LED Underground Light (PLC)
• 16 million colours for selection, dimmable for rgb& cct& brightness
• Brightness and colour temperature adjustable
• Working with master controller to adjust rgb& cct& brightness& saturation
• IP68 waterproof
Features
Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colours for selection, dimmable for rgb & cct & brightness
- Working with master controller to adjust rgb & cct & brightness & saturation
- 304 stainless steel
- IP68 waterproof
| Product Name: | RGB+CCT LED Underground Light |
|---|---|
| Model No.: | PLC-RD3 |
| Input Voltage: | DC24V |
| Power: | 9W(R, G, B: 3W, CW: 7W, WW: 7W) |
| CRI: | >80 |
| Colour temperature: | 2700K~6500K |
| Luminous Flux: | 610LM |
| Luminous efficiency: | 95LM/W |
| Beam Angle: |
| IP Rate: | IP68 |
|---|---|
| Working Temperature: | -10~40? |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Article properties
| Abstrahlwinkel: | 15 Grad |
|---|---|
| Ampere (CC): | 0.375000 A |
| Betriebstemperatur: | -10~+40°C Grad |
| CRI: | >80 CRI |
| Dimmbar: | ja, PLC |
| Gehäusefarbe: | silber |

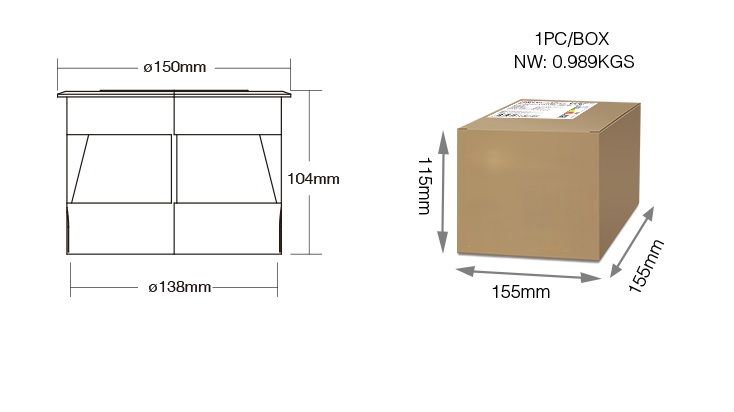

| Grösse: | 150*104 mm |
| Konstantstrom oder Konstantvolt: | CV |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe Name: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K K |
| Lumen: | 610 LM |
| Lumen-Effizienz: | 95 LM/W |
| Produktname: | PLC-Serie |
| Schutzklasse: | IP68 |
| Volt: | 24 Volt |
| Watt: | 9 W |
| schwenkbar: | nein |
