Synergy 21 LED PLC Serie Underwater Light 9W RGB+CCT *Milight/Miboxer*
Product number:
247905
Manufacturer Number:
PLC-UW1
Weight:
1,387 KG
Product information "Synergy 21 LED PLC Serie Underwater Light 9W RGB+CCT *Milight/Miboxer*"
PLC-UW1

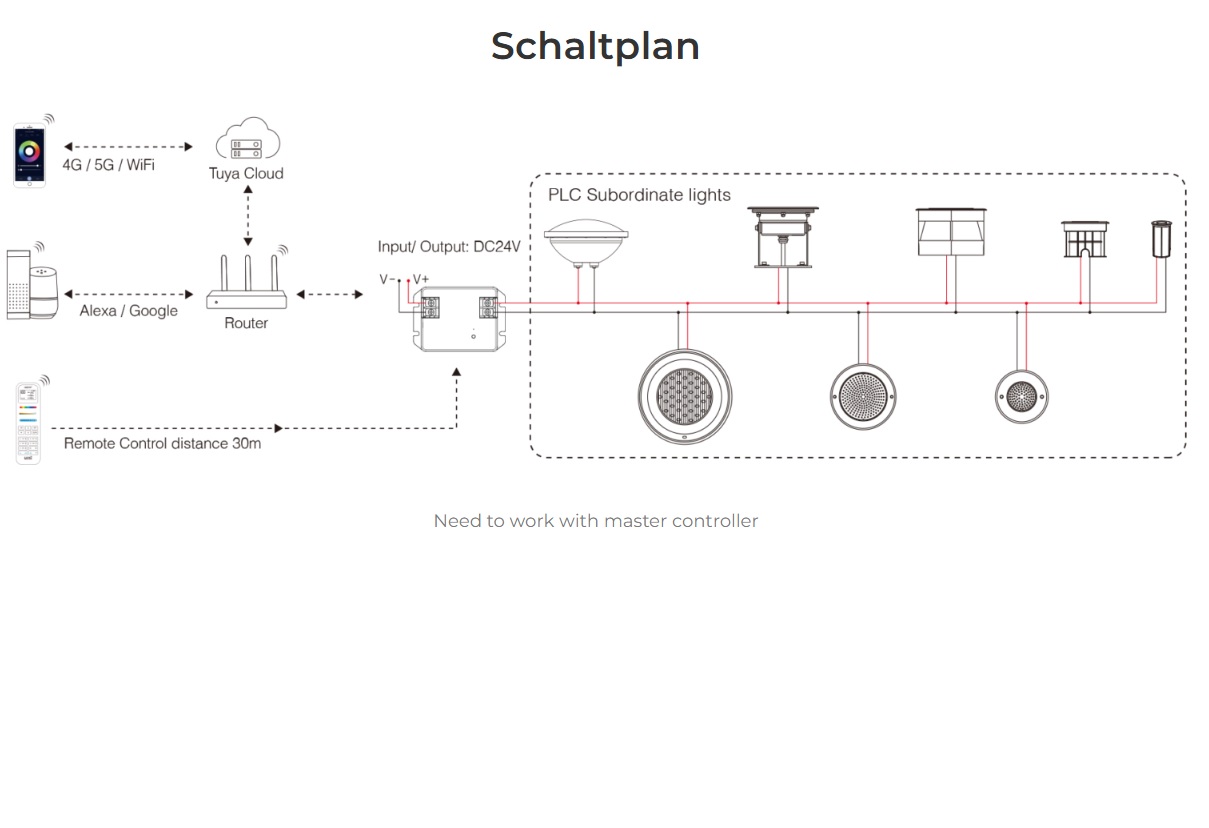

Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colours for selection, dimmable for rgb & cct & brightness
- Working with master controller to adjust rgb& cct & brightness & saturation
- Stainless steel 304
- IP68 waterproof
| Product name: | RGB+CCT LED Underwater Light |
|---|---|
| Model no.: | PLC-UW1 |
| Input voltage: | DC24V |
| Power: | 9W(R, G, B: 3W, CW: 7W, WW: 7W) |
| CRI: | >80 |
| Colour temperature: | 2700K ~ 6500K |
| Luminous flux: | 610LM |
| Light efficiency: | 95LM/W |
| Beam angle: | 15° |
| IP rate: | IP68 |
| Working temperature: | -10°~40° |
| WIFI standard: | IEEE 802.11b/g/n 2.4 GHz |
| EMC standard (EMC): | ETSI EN301 489-1 Version 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Article properties
| Abstrahlwinkel: | 15 Grad |
|---|---|
| Ampere (CC): | 0.375000 A |
| Betriebstemperatur: | -10~+40°C Grad |
| CRI: | >80 CRI |
| Dimmbar: | ja, PLC |
| Gehäusefarbe: | silber |

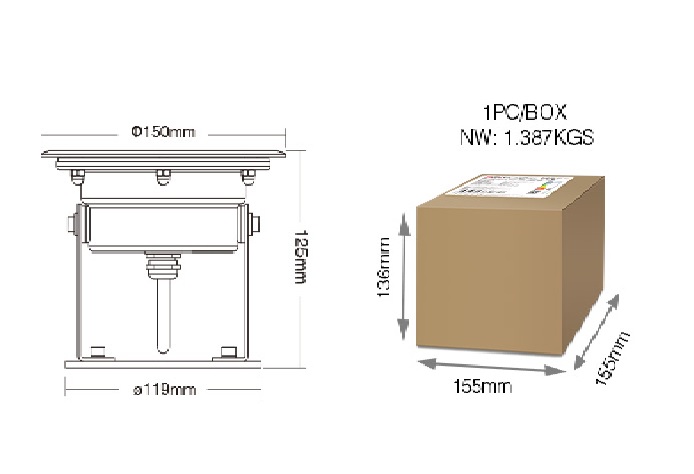

| Grösse: | 150*125 mm |
| Konstantstrom oder Konstantvolt: | CV |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe Name: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K K |
| Lumen: | 610 LM |
| Lumen-Effizienz: | 95 LM/W |
| Schutzklasse: | IP68 |
| Volt: | 24 Volt |
| Watt: | 9 W |
| schwenkbar: | ja |
