Synergy 21 LED PLC Serie Wall mounted Pool Light 30W RGB+CCT *Milight/Miboxer*
Product number:
247911
Manufacturer Number:
PLC-WP1

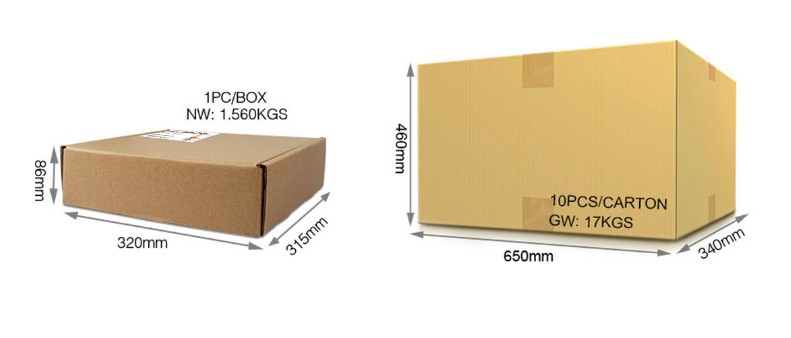

Weight:
1,560 KG
Product information "Synergy 21 LED PLC Serie Wall mounted Pool Light 30W RGB+CCT *Milight/Miboxer*"
PLC-WP1
30W RGB+CCT Wall-mounted LED Pool Light (PLC)
• 16 million colors for selection, dimmable for rgb& cct& brightness
• Brightness and color temperature adjustable
• Working with master controller to adjust rgb& cct& brightness& saturation
• IP68 waterproof(Need the cover)
Features

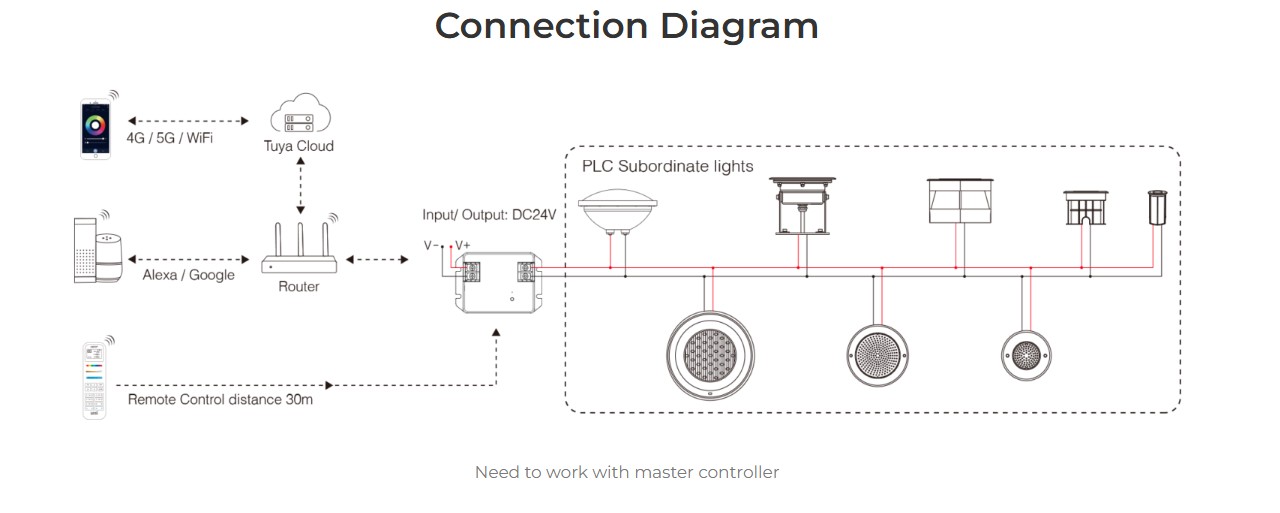

Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colors for selection, dimmable for rgb& cct& brightness
- Working with master controller to adjust rgb& cct& brightness& saturation
- 304 stainless steel
- IP68 waterproof
| Product Name: | RGB+CCT Wall-mounted LED Pool Light |
|---|---|
| Model No.: | PLC-WP1 |
| Input Voltage: | DC24V |
| Power: | 30W(R: 10W, G. B: 14W, C: 14W, W: 14W) |
| CRI: | >80 |
| Color temperature: | 2700K~6500K |
| Luminous Flux: | 1900LM |
| Luminous efficiency: | 140LM/W |
| Beam Angle: | 160° |
| IP Rate: | IP68 |
| Working Temperature: |
-10~40°C |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC Standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Article properties
| Abstrahlwinkel: | 160 Grad |
|---|---|
| Ampere (CC): | 1.25 A |
| Betriebstemperatur: | -10~+40°C Grad |
| CRI: | >80 CRI |
| Dimmbar: | ja, PLC |
| Gehäusefarbe: | silber |

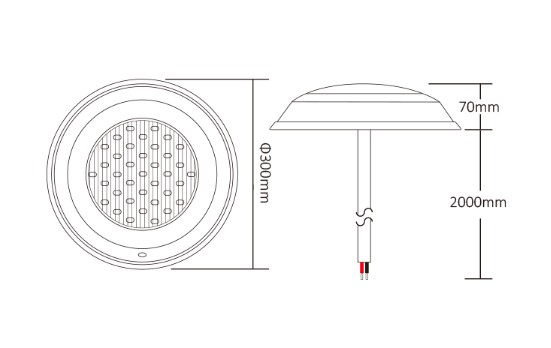

| Grösse: | 300*70 mm |
| Konstantstrom oder Konstantvolt: | CV |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe Name: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K K |
| Lumen: | 1900 LM |
| Lumen-Effizienz: | 140 LM/W |
| Schutzklasse: | IP68 |
| Volt: | 24 Volt |
| Watt: | 30 W |
| schwenkbar: | nein |
