Key features: Gigabit Ethernet (10/100/1000 Mbit/s) IEEE 802.3ab compliant 4 kVrms dielectric strength Electrical isolation: creepage distance: 12.8 mm, clear distance: 12.2 mm no restrictions on cable length ESD protection: Suppression of transient overvoltages on signal lines Suitable for devices with a supply voltage of up to 250 Vrms Not suitable for use with PoE devices Dimensions 80x58x24mm Plug & Play – no installation required Compact and universally applicable No permanently fitted cables Robust housing Suitable for all systems with a network connection Requires no power supply APPLICATIONS: EQUIPMENT PROTECTION Protection of particularly valuable equipment against hum and overvoltages from network peripherals. MEASUREMENT TECHNOLOGY Protection of electrical measurement and monitoring equipment against external and interference voltages from the Ethernet cabling. POTENTIAL DIFFERENTIALS (BUILDING SERVICES) Prevention of equipotential bonding currents in computer systems that are galvanically connected to one another over long distances via Ethernet cabling. AUDIO Reduction of low-frequency alternating voltages (mains hum) caused by the network connection to a level that is no longer perceptible. Robust housing suitable for all systems with a network connection requires no power supply Technical Details: Dielectric strength of signal and shielding 5,000 V 50/60 Hz for 1 min; 10,000 VDC for 10 s Data throughput 10/100/1000 Mbit/s Connections 2x RJ45 input/output Network specifications IEEE 803.2 from 10/100/1000-BaseT, twisted pair, auto-configuration (behaves completely transparently within the network) Material UL94V-0/RoHS-compliant/SvHC/REACH Product Rating (UL) Passive electronic components, insulation class DI (250 VAC/300 VDC) tested at 4 kVAC Operating mode Continuous operation Mean time between failures 0.21 × 108 (1 failure in 21,000,000 h) ESD 16 kV DC stress test (10 s) 10 kV Return loss min. 10 dB Insertion loss max. 1.3 dB Dimensions (mm, LxWxH) 80 x 58 x 24, approx. 39 g Standards IEC 60601-1 1x MOPP up to 250 Vrms (the built-in mains transformer) Environment Operating: -10°C ~ +75°C Storage: -20°C ~ +75°C 10% ~ 85% relative humidity (non-condensing)

USB 3.0 SuperSpeed isolator for galvanic isolation - ideal for measurement technology, industry, automotive and audio technology Variant of the ADQ-USB 3.0-ISO with wide-range input from 10 V to 36 V to supply the USB device. Ideal for mobile use in cars or lorries, in industrial control environments and wherever there is no 5 V supply available. Application examples Potential separation between measuring devices and PC Effective suppression of ground loops - ideal for music studios and event technology Protection against voltage peaks in the automotive sector, e.g. when testing control units Decoupling different earth potentials in industrial control technology Can also be used as a power injector for USB devices that are normally supplied via the USB port, but this does not provide sufficient power for reliable operation of the USB device** Features Latest isolator technology supports SuperSpeed USB 3.0 devices up to 5 Gbit/s Re-clocking technology for all speeds Backwards compatible with USB 2.0/1.1/1.0*** Isolation voltage*: 1.6 kVDC (60 s) Maximum current for USB 3.0 devices: max. 900 mA (with external supply) USB connection: Host: USB 3.0 type B socket Device: USB 3.0 type A socket Operating temperature: -20°C..+70°C Relative humidity: max. 95% Robust aluminium housing with rubber bumper Dimensions (L x W x H): 90 mm x 62 mm x 32 mm Operating system support: Windows, MAC OS and Linux Optional mounting kit for DIN rail Scope of delivery USB 3.0 SuperSpeed isolator 2-pin mating connector with locking mechanism USB 3.0 cable (USB 3.0-A plug to USB 3.0-B plug), length: 1.5 m Quick guide printed Safety note: This model is not approved for medical applications.     *ADQ-USB 3.0-ISO(-PS): 1 kVDC (continuous) / 1.5 kVAC <60 Hz (60s), ADQ-USB 3.0-ISO-W: 1.6 kVDC (60 s). Higher insulation voltage on request.  **ADQ-USB 3.0-ISO-PS: 5 V plug-in power supply included in the scope of delivery. ADQ-USB 3.0-ISO-W: External power supply must be provided.***When connected to a USB 2.0 host (upstream), no USB 3.0 devices are accepted on the device side (downstream). The cascading of multiple USB isolators is not supported.

USB 3.0 SuperSpeed isolator for galvanic isolation - ideal for measurement technology, industry, automotive and audio technology Application examples Potential separation between measuring instruments and PC Effective suppression of hum loops - ideal for music studios and event technology Protection against voltage peaks in the automotive sector, e.g. when testing control units Decoupling of different ground potentials in industrial control technology Also usable as "power injector" for USB devices which are normally powered via the USB port, but which does not provide sufficient power for reliable operation of the USB device ** Features Latest isolator technology supports SuperSpeed USB 3.0 devices up to 5?Gbit/s Re-Clocking technology for all speeds Download compatible with USB 2.0/1.1/1.0*** insulation voltage*: up to 1?kVDC permanent! Maximum power for USB 3.0 devices: Without external power supply: max. 200?mA With external power supply: max. 900?mA USB connection: Host: USB 3.0 Type B socket Device: USB 3.0 Type A socket Operating temperature: -20°C..+70°C Rel. air humidity: max. 95% Robust aluminium chassis with rubber buffer Dimensions (L x W x H): 90 mm x 62 mm x 32 mm Operating system support: Windows, MAC OS and Linux Safety instruction: This model is not approved for medical device applications.    *ADQ-USB 3.0-ISO(-PS): 1?kVDC (continuous) / 1.5 kVAC <60 Hz (60s), ADQ-USB 3.0-ISO-W: 1.6?kVDC (60?s). Higher insulation voltage on request.  **ADQ-USB 3.0-ISO-PS: 5?V plug-in power supply included in delivery. ADQ-USB 3.0-ISO-W: External supply must be provided.***When connected to a USB 2.0 host (upstream), no USB 3.0 devices are accepted on the downstream side. The cascading of multiple USB isolators is not supported. Scope of delivery: USB 3.0 SuperSpeed Isolator Matching plug-in power supply (5?VDC/1.4?A) with 5.5?mm low-voltage connector with bayonet connection USB 3.0 cable (USB 3.0-A plug to USB 3.0-B plug), length: 1.5 m Quick guide printed

78pol. Anschlussblock für Montage auf DIN-Hutschiene, 78pol. Sub-D-Stecker auf Phoenix-Klemmen

USB 3.0 SuperSpeed isolator for galvanic isolation - ideal for measurement technology, industry, automotive and audio technology Application examples Potential isolation between measuring devices and PC Effective suppression of ground loops - ideal for music studios and event technology Protection against voltage peaks in the automotive sector, e.g. when testing control units Decoupling different earth potentials in industrial control technology Can also be used as a power injector for USB devices that are normally supplied via the USB port, but this does not provide sufficient power for reliable operation of the USB device** Features Latest isolator technology supports SuperSpeed USB 3.0 devices up to 5 Gbps Re-clocking technology for all speeds Backward compatible with USB 2.0/1.1/1.0*** Isolation voltage (data and supply)*: up to 1?kV permanently! Maximum current for USB 3.0 devices: Without external power supply: max. 200?mA With external power supply: max. 900?mA USB connection: Host: USB 3.0 type B socket Device: USB 3.0 type A socket Operating temperature: -20°C..+70°C Relative humidity: max. 95% Robust aluminium housing with rubber bumper Dimensions (L x W x H): 90 mm x 62 mm x 32 mm Operating system support: Windows, MAC OS and Linux Optional mounting kit for DIN rail Scope of delivery USB 3.0 SuperSpeed isolator USB 3.0 cable (USB 3.0-A plug to USB 3.0-B plug), length: 1.5 m Quick guide printed Safety note: This model is not approved for medical applications.     *ADQ-USB 3.0-ISO(-PS): 1?kVDC (continuous) / 1.5 kVAC <60 Hz (60s), ADQ-USB 3.0-ISO-W: 1.6?kVDC (60?s). Higher insulation voltage on request.  **ADQ-USB 3.0-ISO-PS: 5?V plug-in power supply included. ADQ-USB 3.0-ISO-W: External power supply must be provided.***When connected to a USB 2.0 host (upstream), no USB 3.0 devices are accepted on the device side (downstream). The cascading of multiple USB isolators is not supported.

Montagekit für ADQ-USB-ISO-Serie auf DIN-Hutschiene Der Montagekit dient der schnellen und sicheren Befestigung der ALLDAQ USB-Isolatoren auf DIN-Hutschiene. Bei Bedarf können Sie die Halterung mit einer Edelstahlplatte montieren um mittels Kabelbinder die Kabel zu fixieren. Kit bestehend aus: Kunststoffwanne (blau) Hutschienenklammer / Tragschienenadapter (TS35), 45 mm breit Stabile Zugentlastung aus Edelstahl Geeignet für alle ALLDAQ USB-Isolatoren der ADQ-USB-ISO-Serie. Hutschiene nicht im Lieferumfang.

Isolated multifunctional data acquisition card for universal use in industry and laboratories The ALLDAQ ADQ-344 is the top model in the ADQ-300 series with an isolated A/D, D/A and digital I/O section. The ADQ-344 is equipped with 32 differential 18 bit analogue inputs, four 16 bit analogue outputs, 8 isolated digital inputs, 8 isolated digital outputs, 16 TTL digital I/Os and special functions such as 32 bit counter, I2C bus, incremental encoder, frequency meter and PWM output. Multifunction data acquisition card with CompactPCI interface 32 isolated, differential voltage inputs Isolation voltage A/D section: 1500 VDC (60 s) 18 bit A/D converter per channel group with sampling rates between 200 kS/s and 800 kS/s* Input ranges: ±10,24 V, ±5,12 V, 0-10,24 V, 0-5,12 V 4 isolated voltage outputs (±10,24 V) 16 bit D/A converter per channel for output rates up to 500 MHz synchronous Isolation voltage D/A section: 1500 VDC (60 s) 8 isolated digital inputs (High: 11..35 V) 8 isolated digital outputs with power driver up to 600 mA per output 16 TTL DIOs (3.3 V or 5 V switchable), max. 20 mA per output Isolation voltage DIO part: 500 VAC Digital trigger input isolated: One ext. trigger input for every 8 analogue inputs (AI module) one ext. trigger input per analogue output Monitoring of the digital inputs for bit & change with interrupt generation Streaming mode for continuous input/output via DIO ports up to 10 kHz** Special functions via HDMI connector (in preparation): 1 x 32 bit counter up to 66 MHz (inputs: enable, ext. trigger, ext. clock, output: strobe) 1 x I2C bus up to 400 kHz (clock: SCL, data: SDA) 1 x incremental encoder (A input, B input, ext. reset input) 1 x frequency measurement input up to 10 MHz (Zähl input) 1 x PWM output, adjustable duty cycle (enable input, PWM output) Optional suitable connection cable (68-pin VHDCI or HDMI cable) Optional special connection block for ADQ-300 series Software support Driver for Windows 10/8.1/8/7 (32/64 bit) Programming support (SDK) with examples for C++, C#, Visual Basic, Delphi/Pascal and Python included ALLDAQ Manager - utility software provides centralised access to ALLDAQ driver system parameters and help files Virtual Instruments (VIs) for LabVIEW™ MATLAB® interface with examples and help file Do you need a calibration certificate? We work together with independent DAkkS-accredited testing laboratories. Talk to us! *Sampling rate depends on the number of actively used channels per channel group (AI module), one channel group consists of 8 channels (1 channel: 800 kS/s, 2 channels: 550 kS/s, 8 channels: 200 kS/s) **Depends on operating system and computer configuration.

PC-basierter 16-Kanal-Logik-Analysator mit einer maximalen digitalen Abhilfe von 500 MSa/s und einer analogen Abhilfe von 50 MS/s (12 Bit, 5 MHz analoge Bandbreite). Unbegrenzte Speichertiefe durch den PC-Speicher. Das Logic Pro 16 ist ein professioneller Logikanalysator mit einer durchdacht und benutzerfreundlichen PC-Software, die digitale Messung sehr lustig macht. Einfach über USB einstecken und gehen. Die digitale Erfassungsrate beträgt 500 MSa/s auf jedem Kanal. Durch das Streaming und die USB 3-Schnittstelle zum PC ist die Speichertiefe unbegrenzt. Die Logiken zeigen auch analoge Signale, da alle digitalen Kanäle gleichzeitig mit dem A/D-Wandler erfasst werden. Die analoge Erfassung ist mit 50 MS/s langsamer als die digitale Aufnahme, aber sie bietet eine hohe Auflösung von 12 Bits einen Einblick in das analoge Signalverhalten. Die Bandbreite der analogen Erfassung ist 5 MHz (-3db). Aber das Signal ist an dieser Stelle bereits abgeschwächt. Der Salesae-Logik-Analysator ist wegen der Handtaschengröße perfekt für den mobilen Einsatz.     Logic 8 Logic Pro 8 Logic Pro16 Eingänge                   Analog und Digital     8 8 16         Digitale Erfassung               Maximale Abtastrate 100MS/s 500MS/s 500MS/s Maximale digitales Signal 25MHz 100MHz 100MHz Unterstützte Logik-Levels 1.8V - 5.5V 1.2V - 5.5V 1.2V - 5.5V High-Pegel 0,6V low / 1,2V high 0,6V / 0,9V / 1.,5V 0,6V / 0,9V / 1.,5V         Analoge Erfassung               Maximale Sample-Rate 10 MS/s 50 MS/s 50 MS/s Bandbreite 1 MHz 5 MHz 5 MHz Auflösung 10 Bits 12 Bits 12 Bits Eingangsspannung 0 V to 5 V -10 V to 10 V -10 V to 10 V USB - TYP  2.0 3.0 3.0   Lieferumfang: Logic Analysator 2x4 Prüfleitung pro Port 8x Test-Clip pro Port USB-Kabel Tragetasche

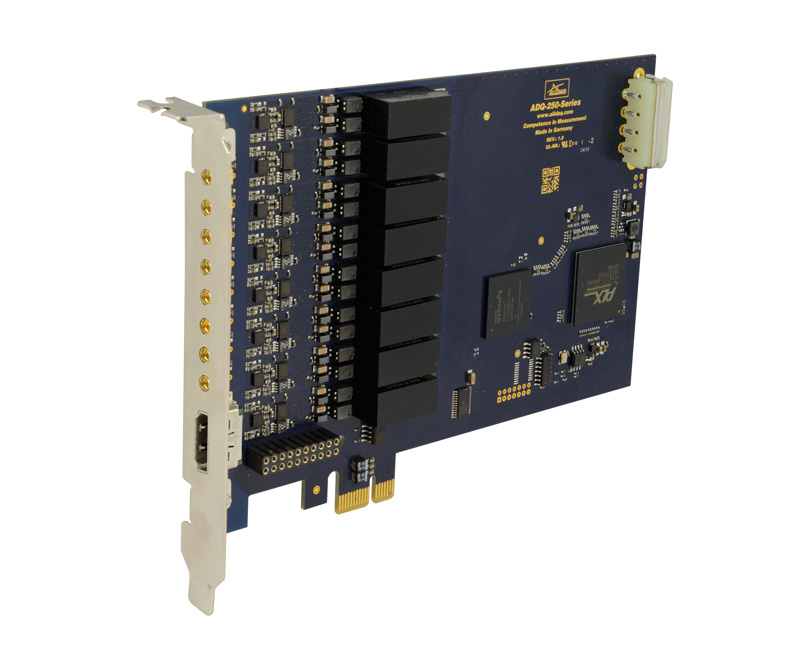

Ideal für Highspeed-Datenlogging und Audio-Analyse Die PC-Messkarten der ADQ-250-Serie verfügen über 8 potentialfreie Spannungseingänge mit einem erweiterten Eingangsspannungsbereich von ±10,24 V. Je nach Modell sind die Karten mit 16 oder 18 Bit A/D-Wandler je Kanal bestückt, die synchron mit bis zu 2 MS/s erfassen können. Zusätzlich stehen ein 8 bit Digital-I/O-Port und 2 isolierte Triggereingänge zur Verfügung. Typische Anwendungsbereiche sind Highspeed-Datenlogger und Audioanalyse. Analog-Datenerfassungskarte mit CompactPCI-PC-Interface 8 potentialfreie, volldifferentielle Spannungseingänge Isolationsspannung: 700 V (Kanal zu Kanal / Kanal zu PC) 18 bit A/D-Wandler je Kanal für synchrone Abtastung bis 1,6 MS/s Eingangsspannungsbereich: ±102,4 V Digital-I/O-Port (8 bit) via HDMI-Steckverbinder 2 isolierte Digital-Triggereingänge für A/D-Teil Überwachung der Digitaleingänge auf Bit-Änderung mit Interruptgenerierung Optional geeignete Anschlusskabel mit MMCX-Stecker auf BNC-Stecker oder MMCX-Stecker auf MMCX-Stecker Optional Spezial-Anschlussblock für ADQ-250-Serie Umfangreiche Software-Unterstützung inklusive (siehe "Software"-Tab) Benötigen Sie ein Kalibrierzertifikat? Wir arbeiten mit unabhängigen DAkkS-akkreditierten Prüflabors zusammen. Kontaktieren Sie unsere Experten!

Ideal for high-speed data logging and audio analysis The ADQ-258 DAQ board has 8 potential-free voltage inputs. It is equipped with individual 16bit A/D converters per channel, which can record synchronously with up to 2MS/s. In addition, an 8-bit digital I/O port and 2 isolated trigger inputs are available. Typical applications are high speed data logging and audio analysis. Analog data acquisition card with CompactPCI interface 8 potential-free, fully differential voltage inputs insulation voltage: 700 V (channel to channel / channel to PC) 18 bit A/D converter per channel for synchronous sampling up to 1.6 MS/s Input voltage range: ±10,24 V Digital I/O port (8 bit) via HDMI connector 2 isolated digital trigger input for A/D part &“monitoring of the digital inputs for bit &“change with interrupt generation Optionally suitable connection cable with MMCX plug to BNC plug or MMCX plug to MMCX plug Optional terminal block for ADQ-250 series Comprehensive software support included (see "Software"-Tab) The boards are available with a wide range of voltage inputs on demand. As with all our boards we can adjust them to your individual needs. Need an official calibration certificate? We cooperate with independent DAkkS-accredited testing laboratories. Contact our experts!

Relaisboard für die HUT-Schiene. Relais-Aufsteckboard (I2C-gesteuert) 16 Wechsler-Relais (SPDT, Typ C), max. 30VDC/5A 8 Wechsler-Relais (DPDT, Typ C), max. 30VDC/2A

Round cable double shielded from 68-pin VHDCI plug to 68-pin VHDCI plug, length: approx. 1.2m, colour: grey, cables twisted in pairs. 2 pieces of VHDCI cable are required per card.

ADQ-134 ADQ-S/P-DIF-Box HDMI-Kabel

Revision 1.0 - Unique SerialNumber - zum Anschließen an die ADQ-UCM-0/0A

Plug-on board for ADQ-CDI-TCU/1 V1.4 Additional Load and Audio Load

Base Board for Mounting EXT/x Boards In combination with ADQ-CDI-TCU/1-EXT/1 backward compatible to ADQ-CDI-TCU/1 V1.2 • 4 analogue single ended outputs 0.6VDC peak • 4 analogue single ended inputs 10VDC peak (on request) • AUDIO-CODEC with I2S interface • Pluggable on the ADQ-CDI-BB • Controllable via the ADQ-CDI-BB • 100% control only with SBC (I2C, I2S) • Power supply via ADQ-CDI-BB

Features: - I2C bus driver - Temperature sensor with programmable signal output - EEprom with 256kBit memory - Control via central I2C multiplexer - 3 externally routed I2C branches (without pull-up) - 40x relay output (low-side) - Connectors with 2.54mm pitch - Flexible address configuration via resistor blocks - Address configuration of the I2C multiplexer via rotary switch

Baseboard for Signal Condition Unit (SCU) for connection to ADQ-344. AI part 32 analogue inputs AC/DC coupling Digital filter stage Adjustable attenuation/amplification Monitoring output for headphone connection 4 digital trigger inputs AO part 4/8 analogue outputs Single-ended/differential switching Mute switching (mute) 4 digital triggering levels Other features Temperature monitoring of the baseboard with threshold value setting and opto-decoupled alarm output 3 slots for customised plug-in modules PWM output (opto-decoupled) Input for ignition signal "terminal 15" (opto-decoupled) 8 isolated digital inputs 8 isolated digital outputs Overall control via I2C bus Supplies can be switched via relay (4 x +5V/4A; 4 x +12V/4A) Supply via PC power supply unit (+5V, +12V)

8 x Koaxialkabel (RG-174) von MMCX-Stecker auf BNC-Stecker, Länge: 1 m

DIN EN ISO/IEC 17025 is the globally recognised standard for laboratory accreditation in the field of testing and calibration. Validity 24 months

Ideal für Highspeed-Datenlogging und Audio-Analyse Die PC-Messkarten der ADQ-250-Serie verfügen über 8 potentialfreie Spannungseingänge mit einem erweiterten Eingangsspannungsbereich von ±10,24 V. Je nach Modell sind die Karten mit 16 oder 18 Bit A/D-Wandler je Kanal bestückt, die synchron mit bis zu 2 MS/s erfassen können. Zusätzlich stehen ein 8 bit Digital-I/O-Port und 2 isolierte Triggereingänge zur Verfügung. Typische Anwendungsbereiche sind Highspeed-Datenlogger und Audioanalyse. Analog-Datenerfassungskarte mit PXI-PC-Interface 8 potentialfreie, volldifferentielle Spannungseingänge Isolationsspannung: 700 V (Kanal zu Kanal / Kanal zu PC) 16 bit A/D-Wandler je Kanal für synchrone Abtastung bis 2 MS/s Eingangsspannungsbereich: ±102,4 V Digital-I/O-Port (8 bit) via HDMI-Steckverbinder 2 isolierte Digital-Triggereingänge für A/D-Teil Überwachung der Digitaleingänge auf Bit-Änderung mit Interruptgenerierung Optional geeignete Anschlusskabel mit MMCX-Stecker auf BNC-Stecker oder MMCX-Stecker auf MMCX-Stecker Optional Spezial-Anschlussblock für ADQ-250-Serie Umfangreiche Software-Unterstützung inklusive (siehe "Software"-Tab) Benötigen Sie ein Kalibrierzertifikat? Wir arbeiten mit unabhängigen DAkkS-akkreditierten Prüflabors zusammen. Kontaktieren Sie unsere Experten!

Input filter for the ADQ-SCU-LC module. 8channels If all 32 channels on the ADQ-SCU-LC are used, 4 ADQ-SCU-LPF-1 filter boards are required.

CompactPCI Multi-I/O board, 16 bit A/D section up to 500 kHz with 16 differential analog inputs (±20V), 32 bidirectional TTL digital I/Os (level switchable: 3.3V/5V), 1 counter (type: 8254) with TTL I/O level The analog input channels of the ADQ-210 series are sampled sequentially at max. 500 kHz according to the channel list, i.e. when all channels are sampled, the maximum sampling rate per channel is: 500 kHz / 16 channels = 31.25 kHz. Bandwidth and input impedance vary depending on the model. With an input voltage range of ±50 V, the ADQ-215 model is ideal for automotive applications.     16 differential analog inputs     500 kHz 16 bit A/D converter     Input voltage ranges ±20V     Programmable channel list: 16 entries     A/D values-FIFO: 8192 values     Trigger: software, timer, ext. digital trigger (rising / falling edge)     Two bidirectional 8 bit digital I/O ports usable via adapter cable with additional slot bracket (included)     Voltage level of the digital I/Os switchable between 3.3 V and 5 V via software (TTL compatible)     3 x 16 bit counter (type: 8254), 6 modes programmable     External square wave signal for counter: max. 10 MHz Software support     Driver for Windows 10/8.1/8/7 (32/64 bit)     Programming support (SDK) with examples for C++, C#, Visual Basic, Delphi/Pascal and Python included     ALLDAQ Manager - utility software provides central access to ALLDAQ driver system parameters and help files     Virtual Instruments (VIs) for LabVIEW™     MATLAB® interface with examples and help file Do you need a calibration certificate? We work together with independent DAkkS-accredited test laboratories. Talk to us! Translated with www.DeepL.com/Translator (free version)

Simple Adapter between H-MTD and USB Connector
