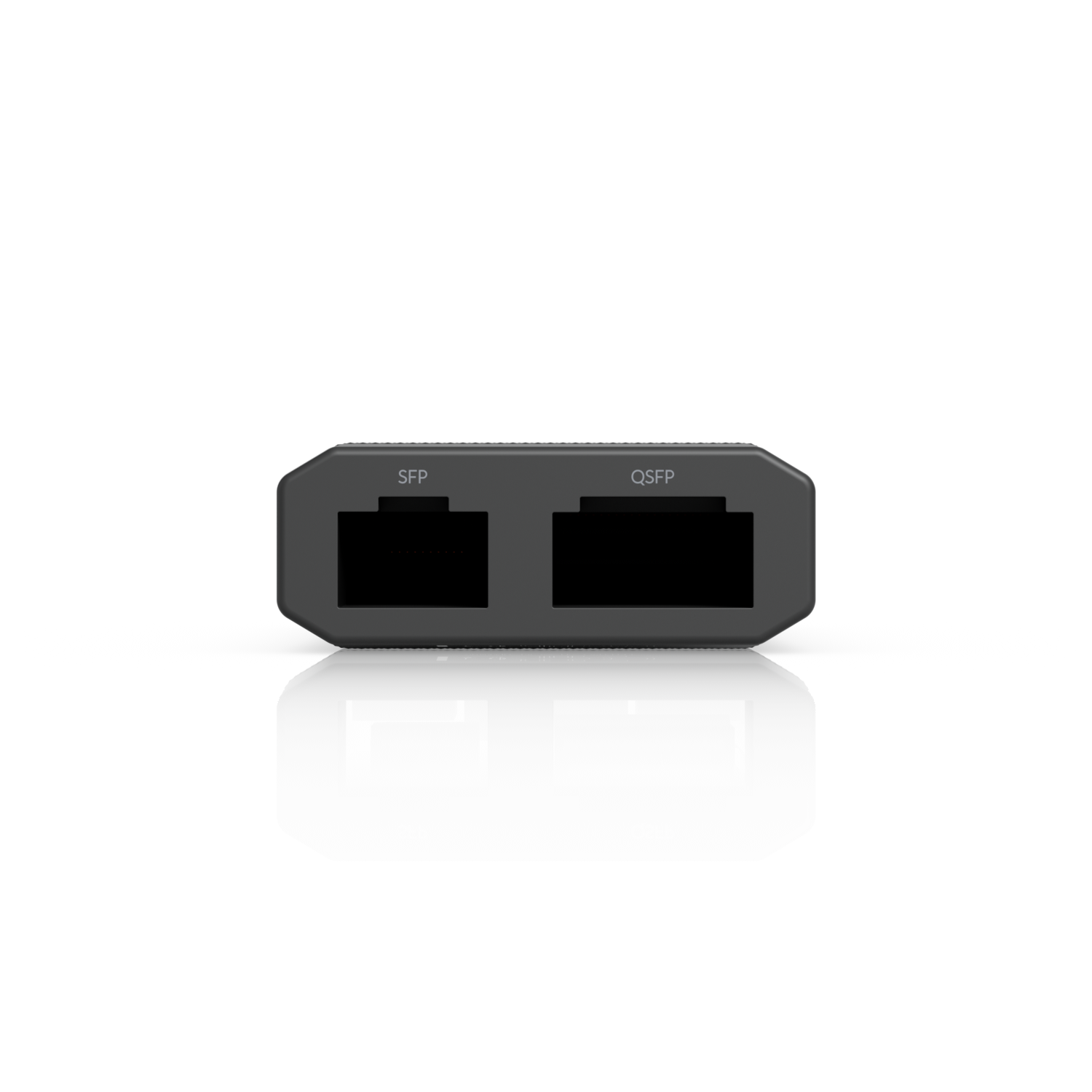

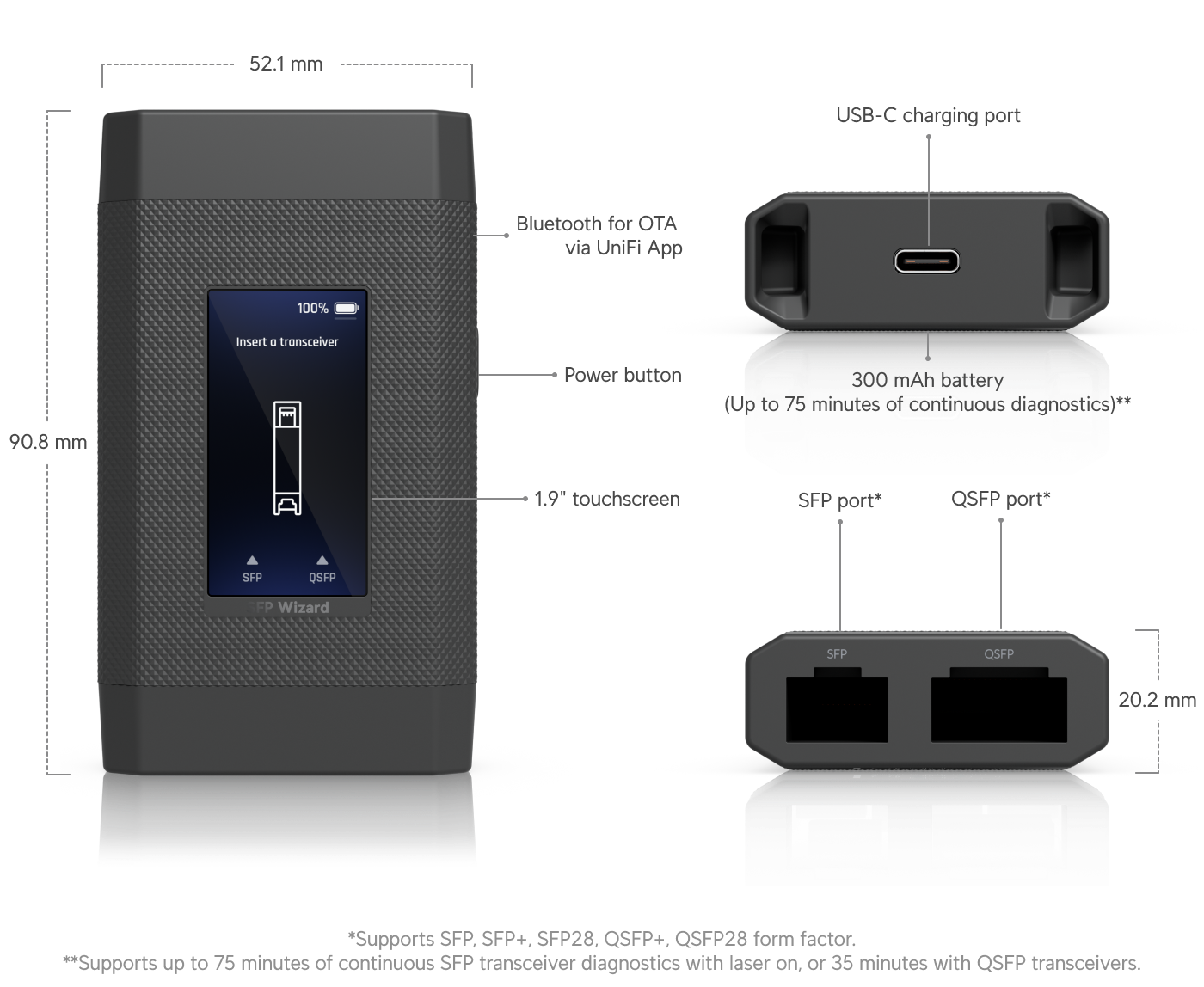

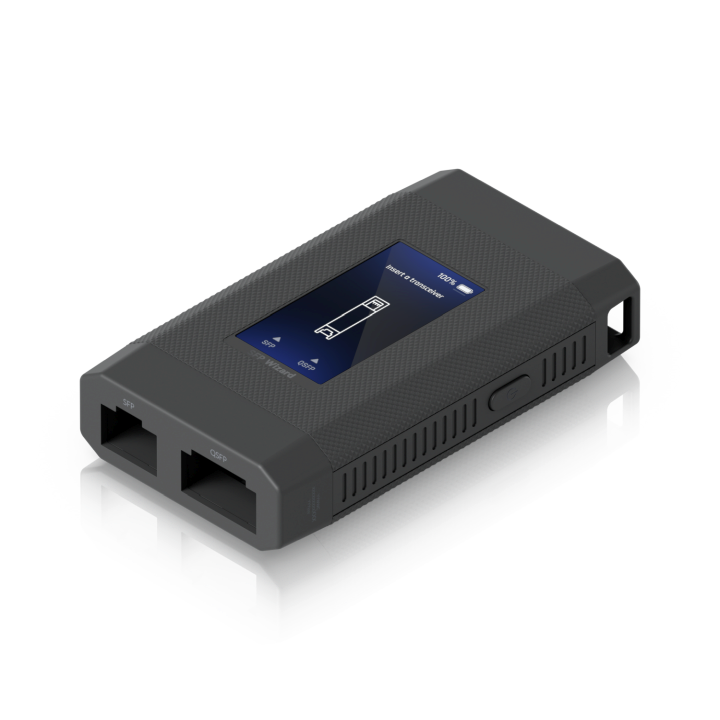

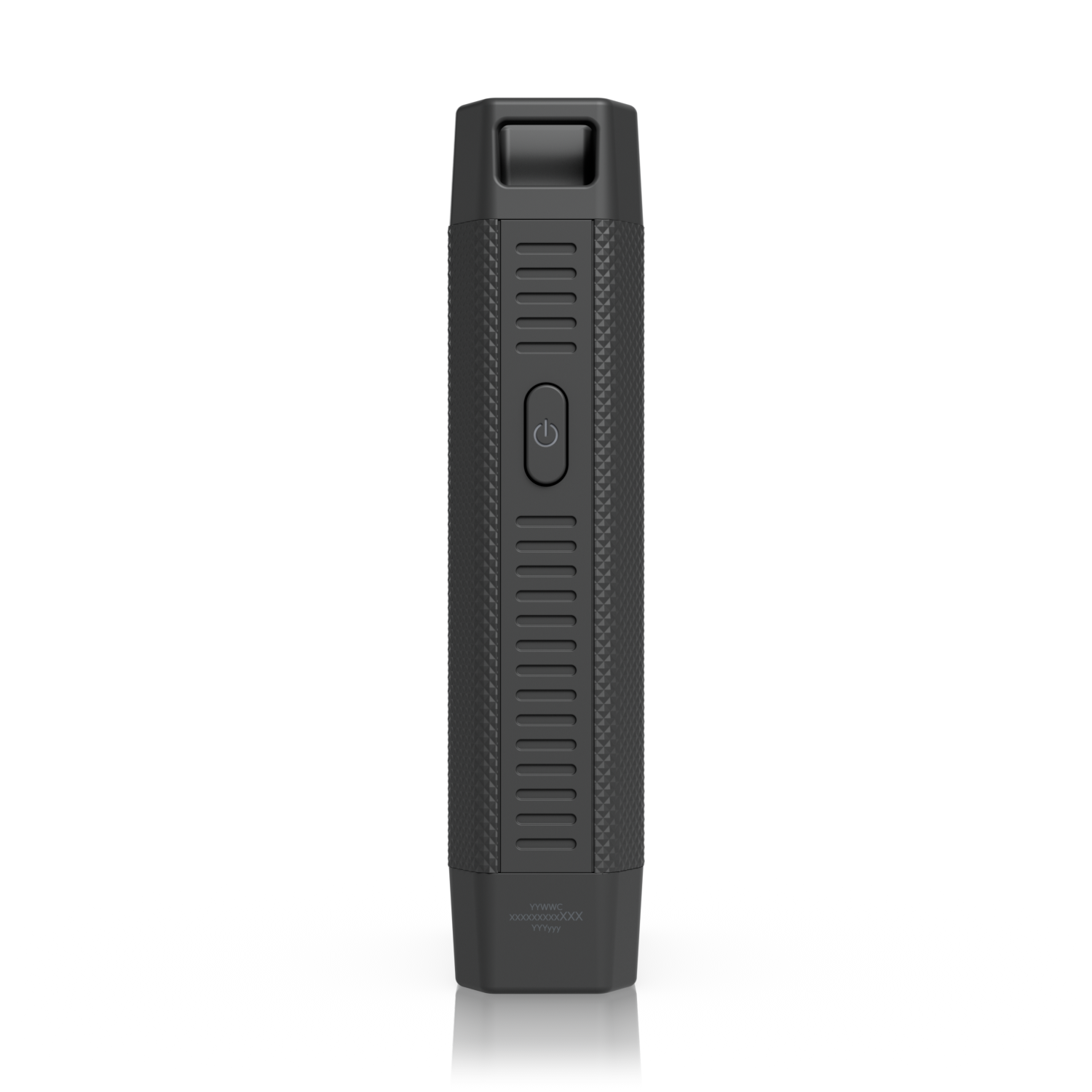

Ubiquiti UniFi SFP Wizard • SFP, SFP+, SFP28, QSFP+, QSFP28 • battery • USB-C • UACC-SFP-Wizard

Product information "Ubiquiti UniFi SFP Wizard • SFP, SFP+, SFP28, QSFP+, QSFP28 • battery • USB-C • UACC-SFP-Wizard"

Immediate reprogramming, testing and activation of universal compatibility for every optical module - with integrated full diagnostics and OTA updates.

-Copy optical module profiles
-Write or restore profile to Ubiquiti optical module instantly
-Monitor the status of the optical module in real time via DDM.

This content is provided by a third party (www.youtube.com). By viewing the external content, you accept the terms of use of www.youtube.com



* Your selection is saved in a cookie for shop.allnet.de
Ubiquiti U Fiber / Multi Mode Module / 10G / UACC-OM-MM-10G-D-2 / 2er Pack
Multi-mode, duplex, fiber transceiver module. 10 Gbps throughput Duplex LC connector Supports connections up to 300 m* *Fiber cable is not included.   Technical Specifications UACC-OM-MM-10G-D Supported Media Multi-Mode Fiber Connector Type (2) LC TX Wavelength Black Latch: 850 nm RX Wavelength Black Latch: 850 nm Data Rate 10 Gbps Max. Power Consumption 0.8W Cable Distance 300 m Operating Temperature 0 to 70° C (32 to 158° F) Pack Options 2-pack, 20-pack WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Product number: 211523
Manufacturer Number: UACC-OM-MM-10G-D-2
Stock: 0x

Not in stock

Ubiquiti U Fiber / SFP+ / Single Mode Module / 10G / UACC-OM-SM-10G-D-20 / 20er Pack
Single-mode, duplex, fiber transceiver module. 10 Gbps throughput Duplex LC connector Supports connections up to 10 km* *Fiber cable is not included.     Technical Specifications UACC-OM-SM-10G-D Supported Media Single-Mode Fiber Connector Type (2) LC BiDi No TX Wavelength Blue Latch: 1310 nm RX Wavelength Blue Latch: 1310 nm Data Rate 10 Gbps Max. Power Consumption 1W Cable Distance 10 km Operating Temperature 0 to 70° C (32 to 158° F) Pack Options 2-pack, 20-pack WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Product number: 212996
Manufacturer Number: UACC-OM-SM-10G-D-20
Stock: 0x

Not in stock

Ubiquiti U Fiber / SFP+ / Single Module / 10G / UACC-OM-SM-10G-D-2 / 2er Pack
 Single-mode, duplex, fiber transceiver module. 10 Gbps throughput Duplex LC connector Supports connections up to 10 km* *Fiber cable is not included.     Technical Specifications UACC-OM-SM-10G-D Supported Media Single-Mode Fiber Connector Type (2) LC BiDi No TX Wavelength Blue Latch: 1310 nm RX Wavelength Blue Latch: 1310 nm Data Rate 10 Gbps Max. Power Consumption 1W Cable Distance 10 km Operating Temperature 0 to 70° C (32 to 158° F) Pack Options 2-pack, 20-pack WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Product number: 212998
Manufacturer Number: UACC-OM-SM-10G-D-2
Stock: 0x

Not in stock

Ubiquiti U Fiber / SFP+ / Multi Mode Module / 10G / UACC-OM-MM-10G / 20er Pack
Ubiquiti U Fiber SFP+ Multi Mode Modul 10G 20er Pack Model: UACC-OM-MM-10G-D-20 Ubiquiti Networks bietet eine Vielzahl von U®-Glasfasermodulen für Ihre Glasfaserverbindungsanwendungen. Verwenden Sie für bequeme Multimode-Verbindungen, die über die 100-Meter-Beschränkung der Ethernet-Verkabelung hinausgehen, den UACC-OM-MM-10G-D-2 für Entfernungen von bis zu 300 m und Geschwindigkeiten von bis zu 10 Gbit / s oder den UF-MM-1G für Entfernungen von bis zu 550 m und Geschwindigkeiten von bis zu 1 Gbit / s. Anforderungen an den UniFi-Controller: 5.13.10 oder höher   Aufgezeigte Produkte sind jeweils separat unter angegebener Hersteller Nummer erhältlich.
Product number: 212999
Manufacturer Number: UACC-OM-MM-10G-D-20
Stock: 0x

Not in stock

Ubiquiti U Fiber / SFP / Multi Mode Module / 1G / UACC-OM-MM-1G / 2er Pack
Ubiquiti U Fiber SFP Multi Mode Modul 1G 2er Pack Model: UACC-OM-MM-1G-D-2 Ubiquiti Networks bietet eine Vielzahl von U®-Glasfasermodulen für Ihre Glasfaserkonnektivitätsanwendungen. Verwenden Sie für bequeme Multimode-Verbindungen, die über die 100-Meter-Beschränkung der Ethernet-Verkabelung hinausgehen, den UACC-OM-MM-10G für Entfernungen von bis zu 300 m und Geschwindigkeiten von bis zu 10 Gbit / s oder den UACC-OM-MM-1G für Entfernungen von bis zu 550 m und Geschwindigkeiten von bis zu 1 Gbit / s
Product number: 213000
Manufacturer Number: UACC-OM-MM-1G-D-2
Stock: 0x

Not in stock

Ubiquiti U Fiber / SFP / Multi Mode Module / 1G / UACC-OM-MM-1G / 20er Pack
Ubiquiti U Fiber SFP Multi Mode Modul 1G 20er Pack Model: UACC-OM-MM-1G-D-20 Ubiquiti Networks bietet eine Vielzahl von U®-Glasfasermodulen für Ihre Glasfaserkonnektivitätsanwendungen. Verwenden Sie für bequeme Multimode-Verbindungen, die über die 100-Meter-Beschränkung der Ethernet-Verkabelung hinausgehen, den UACC-OM-MM-10G für Entfernungen von bis zu 300 m und Geschwindigkeiten von bis zu 10 Gbit / s oder den UACC-OM-MM-1G für Entfernungen von bis zu 550 m und Geschwindigkeiten von bis zu 1 Gbit / s
Product number: 213001
Manufacturer Number: UACC-OM-MM-1G-D-20
Stock: 0x

Not in stock

Ubiquiti U Fiber, Single-Mode Module, 1G, BiDi, 2-Pack
Single-mode, simplex, fiber transceiver module. 1.25 Gbps throughput Simplex LC connector Supports connections up to 3 km* *Fiber cable is not included.     Technical Specifications UACC-OM-SM-1G-S Supported Media Single-Mode Fiber Connector Type (1) LC BiDi Yes TX Wavelength* Blue Latch: 1310 nm Yellow Latch: 1550 nm Must be used in pairs (blue latch and yellow latch). RX Wavelength* Blue Latch: 1550 nm Yellow Latch: 1310 nm Must be used in pairs (blue latch and yellow latch). Data Rate 1.25 Gbps Max. Power Consumption 0.66W Cable Distance 3 km Operating Temperature 0 to 70° C (32 to 158° F) Pack Options 2-pack, 20-pack WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Product number: 213003
Manufacturer Number: UACC-OM-SM-1G-S-2
Stock: 0x

Not in stock

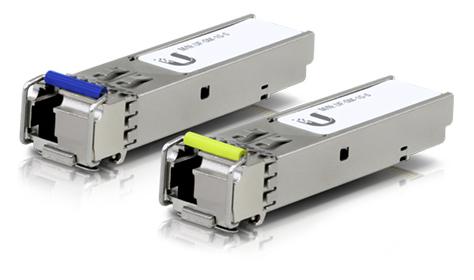

Ubiquiti U Fiber, Single-Mode Module, 1G, BiDi, 20-Pack
Single-mode, simplex, fiber transceiver module. 1.25 Gbps throughput Simplex LC connector Supports connections up to 3 km*     Technical Specifications UACC-OM-SM-1G-S Supported Media Single-Mode Fiber Connector Type (1) LC BiDi Yes TX Wavelength* Blue Latch: 1310 nm Yellow Latch: 1550 nm Must be used in pairs (blue latch and yellow latch). RX Wavelength* Blue Latch: 1550 nm Yellow Latch: 1310 nm Must be used in pairs (blue latch and yellow latch). Data Rate 1.25 Gbps Max. Power Consumption 0.66W Cable Distance 3 km Operating Temperature 0 to 70° C (32 to 158° F) Pack Options 2-pack, 20-pack WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Product number: 213004
Manufacturer Number: UACC-OM-SM-1G-S-20
Stock: 0x

Not in stock

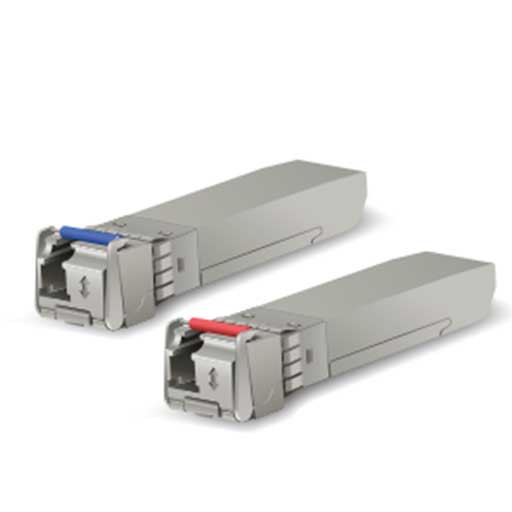

Ubiquiti U Fiber, Single-Mode Module, 10G, BiDi, 2-Pack
SFP+ transceiver that supports 10G links up to 10 km and uses single-mode fibre with a simplex LC UPC connector. Highlights: Maximum data rate: 10 Gbit/s Compatible with SFP+ and SFP interfaces Simplex LC UPC connection Supports single-mode fibre optic connections up to 10 km* *Fibre optic cable is not included in the scope of delivery Technical data: . Supported media Single mode fibre Plug type (1) AB BiDi Yes TX wave length* Blue bar: 1270 nm. Red bar: 1330 nm. *Must be used in pairs (blue bar and red bar). RX shaft length* Blue bar: 1330 nm Red bar: 1270 nm *Must be used in pairs (blue bar and red bar). Data rate 10 Gbit/s Max. Power consumption 1W Cable distance 10 km Operating ambient temperature 0 to 70 °C (32 to 158 °F) Pack options 2-pack, 20-pack WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fibre optic cable or SFP module while the converters are powered
Product number: 213005
Manufacturer Number: UACC-OM-SM-10G-S-2
Stock: 0x

Not in stock

Ubiquiti U Fiber, Single-Mode Module, 10G, BiDi, 20-Pack

Product number: 213006
Manufacturer Number: UACC-OM-SM-10G-S-20
Stock: 0x

Not in stock

Ubiquiti U Fiber / SFP28 / Single-Mode Module / 25G / UACC-OM-SFP28-LR
FP28-kompatibles optisches Transceivermodul für große Reichweiten. 25 Gbps Durchsatz SFP28-kompatibel Unterstützt Verbindungen bis zu 10 km*
Product number: 219099
Manufacturer Number: UACC-OM-SFP28-LR
Stock: 0x

Not in stock

Ubiquiti U Fiber / QSFP28 / Single-Mode Optical Module / 100 Gbps / UACC-OM-QSFP28-LR4
Highlights: Maximale Datenrate: 100 Gbit/s Kompatibel mit QSFP28- und QSFP+-Schnittstellen Duplex LC UPC-Anschluss Unterstützt Singlemode-Glasfaserverbindungen bis zu 10 km* *Glasfaserkabel ist nicht im Lieferumfang enthalten. QSFP28-Transceiver, der 100G-Verbindungen bis zu 10 km unterstützt und Singlemode-Glasfasern mit einem Duplex-LC-UPC-Anschluss verwendet. Technische Spezifikation Unterstützte Medien Singlemode-Faser Steckertyp (2) ÖG TX-Wellenlänge 1295 nm, 1300 nm, 1304 nm, 1309 nm RX-Wellenlänge 1295 nm, 1300 nm, 1304 nm, 1309 nm Datenrate 100 Gbit/s Max. Stromverbrauch 4W Kabelabstand 10 km Umgebungstemperatur im Betrieb 0 bis 70 °C (32 bis 158 °F)
Product number: 238116
Manufacturer Number: UACC-OM-QSFP28-LR4
Stock: 0x

Not in stock

Ubiquiti U Fiber / QSFP28 / Multi-Mode Optical Module / 100 Gbps / UACC-OM-QSFP28-SR4
Highlights: Maximale Datenrate: 100 Gbit/s Kompatibel mit QSFP28- und QSFP+-Schnittstellen Duplex LC UPC-Anschluss Unterstützt Singlemode-Glasfaserverbindungen bis zu 10 km* *Glasfaserkabel ist nicht im Lieferumfang enthalten. QSFP28-Transceiver, der 100G-Verbindungen bis zu 10 km unterstützt und Singlemode-Glasfasern mit einem Duplex-LC-UPC-Anschluss verwendet. Technische Spezifikation Unterstützte Medien Singlemode-Faser Steckertyp (2) ÖG TX-Wellenlänge 1295 nm, 1300 nm, 1304 nm, 1309 nm RX-Wellenlänge 1295 nm, 1300 nm, 1304 nm, 1309 nm Datenrate 100 Gbit/s Max. Stromverbrauch 4W Kabelabstand 10 km Umgebungstemperatur im Betrieb 0 bis 70 °C (32 bis 158 °F)
Product number: 238134
Manufacturer Number: UACC-OM-QSFP28-SR4
Stock: 0x

Not in stock

Ubiquiti U Fiber • SFP10 • Single-Mode Optical Module • 10 Gbps • UACC-OM-SFP10-1310
SFP+ transceiver for CWDM that supports 10G connections up to 20 km over single-mode fibre with a duplex LC UPC connection. Highlights: Maximum data rate: 10 Gbit/s Compatible with SFP+ and SFP interfaces Duplex LC UPC port Work in pairs with the same wavelength Supports single-mode fibre connections up to 20 km* *Fibre optic cable is not included in the scope of delivery Technical data: https://techspecs.ui.com/unifi/accessories/uacc-om-sfp10#datasheet
Product number: 244540
Manufacturer Number: UACC-OM-SFP10-1310
Stock: 0x

Not in stock
