PoE splitters

Gigabit non-isolated PD PoE splitter can support IEEE802.3af/at standard, compatible with 12/36 &45/78 dual mode power supply. input voltage: 44-57VDC, output voltage: 5V or 12VDC, and maximum full load power is 24W. Hightlights: Gigabit rate self-adaption, 8P copper cable RJ45 port. Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- ) Output voltage 5V/12VDC optional, suitable for various network terminals Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency Short circuit, over-current and over-temperature protection 2000V high voltage isolation (input stage to output stage), less than 200mV output ripple Incl. approx. 10cm long hollow plug cable on hollow plug outside= 5,5mm & inside 2,1mm for direct connection to terminals with hollow plug socket ALL-PS102G-AF-AT is a gigabit PD PoE splitter independently developed by ALLNET. It has a 1*RJ45 input port, 1*RJ45 output port, and 1*DC 5,5mm / 2,1mm socket. Its DC5V/12V output voltage selection switch is to meet the use of various non-PoE network terminals to connect to PoE switches. Effectively solving security monitoring, wireless networks, Limited by the power line layout, reduced system wiring, improved system stability and safety, and reduced maintenance costs. ALL-PS102G-AF-AT PoE splitter adopts ABS and PC flame-retardant plastic material. It complies with IEEE802.3 af/at PoE standard, end-span (1,2+, 3,6-), and mid-span (4,5+, 7,8-) two power supply modes. The output power is up to 24W. Low ripple, >82% efficiency, 2KV port protection isolation. It has short-circuit, over-current, over-temperature protection. Plug and play, no configuration, easy to use. Technical Details: Model ALL-PS102G-AF-AT Interface Characteristics Fixed Port 2*10/100/1000Base-T RJ45 ports (Data) 1*DC5521 power socket(Power) Ethernet Port Ethernet port can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption Network Characteristics Transmission Bandwidth (Rate) 10/100/1000Mbps Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) Output VoltageSwitch 12V: DC12Voutput voltage (default) 5V: DC5Voutput voltage Network Protocol and Indicator Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3x LED Indicator PoE indicator: POE (green), Power indicator: PWR (green) PoE & Power Supply PoE Port (PD) PD port IEEE802.3af/at @ POE   IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x Power Supply Pin 1/2 (+), 3/6 (-),& 4/5 (+), 7/8 (-) Input Voltage 44-57VDC Output Voltage Default 12VDC ±0.5V, optional 5VDC ±0.5V Power Consumption Standby<1W, Full Load<24W Conversion Efficiency (Output: Input) ≥82% Physical Parameter Operation TEMP / Humidity -20~+55°C, 5%~90% RH Non condensing Storage TEMP / Humidity -40~+85°C, 5%~95% RH Non condensing Dimension (L*W*H) 103*50*29mm Net /Gross Weight <0.08kg /<0.1kg Lightning protection / protection level Lightning protection: 4KV 8/20us; Protection level: IP30 Marks CE

Highlights:IEEE802.3af/at StandardLT PoE++ up to 90Wbis zu 90W power outputDC Output 10-25V2x USB ports 5V/2APower over Ethernet, even if it does not support your device.The Power Over Ethernet Splitter allows your network devices such as access points, wireless cameras or switches / hubs that are not PoE capable, to provide over the CAT6 cable as the power supply wherever you need your Network devices.The ALL048700 splits before the device from the network cable in electricity and the data back on to two lines. Here, a voltage of 10V-25V (in 1V steps) is output via a rotary switch back, so this splitter can be used universally. The splitter is compatible with IEEE802.3af/at / LT PoE++ and provides even, depending on the input power up to an output power of 90 watts. In addition, two USB ports can be loaded such as Smartphones and tablets. Technical Details:  ItemSpezifikation supported standards:LT PoE++IEEE802.3af Power over EthernetIEEE802.3at Power over Ethernet enhancementsIEEE802.3 10BaseTIEEE802.3u 100BaseTXIEEE 802.3ab 1000BaseTInterfaces:1x RJ45 Input (Data and Power)1x RJ45 Output (only Data) 1x Output (only Power) Phönix contacts2x USB 2.0 5V Outputs per max. 2ALED´s:Power / PoE Act/StatusVoltage Input PoE:44~57VVoltage Output:10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25VPower Consumption:System: 2,1A (Max.120W), StandBy: typ. 1,8WHousing:Metal caseDimension:Length/Width/Height: 200 x 80 x 36 mm Weight:440g (only device)Environtment: Temperature Operating: 0 ~ 50 °CHumidity: 10% ~ 90% (non condensing)Marks:CE

IEEE 802.3bt compliant (PoE++ / 4PPoE), RJ45 input and output ports, up to 45W USB-C output port, plastic housing Hightlights: Charges end devices with USB-C power input such as notebooks, Macbook Pro®, tablets, smartphones from an IEEE 802.3bt/at/af PoE connection Provides Gigabit Ethernet jack for an RJ45 network capable end device PoE power budget of 45W max. at 60W input current via IEEE 802.3bt connection from PoE BT switch or injector connected in front of it Output DC5V/4A,9VDC/3A, 12VDC/3A, 15V3A, 20V2.5A Thermal shutdown Over voltage protection (OVP) Over current protection (OCP) Short circuit protection (SCP) The ALL-PS103G-BT60-PD splits the data and power from PoE to Type-C devices. It supports PoE applications in Gigabit Ethernet environments. The ALL-PS103G-BT60-PD is compliant with IEEE802.3af/at/bt power classification. Wide input voltage range, 36Vdc to 57Vdc. The maximum output power can reach 50W, and the output voltage ranges from 5V to 20V, according to the requirements of your Type-C PD end devices, such as computer, IPad, Macbook, Google Wifi, etc. Technical Details: Item Description Ports   1x 10/100/1000M RJ45 PoE Port (DATA + POWER IN) 1x 10/100/1000M RJ45 LAN Port (Only DATA) 1x Type-C USB (DC OUT)   Network Media   10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5,5E Unshielded Cable 1000Mbps: Cat 5E, 6 Unshielded Cable   Pass Through Data Rates 10/100/1000 Mbps Power Output DC5V/3.4A, 9VDC/3A, 12VDC/3A, 15V3A, 20V2.5A Input Power Requirements IEEE802.3af 15W PoE Type 1 Class 3 IEEE802.3at 30W PoE Type 2 Class 4 IEEE802.3bt 60W PoE Type 3 Class 6 Indicators PoE ready / in-use Connectors Shielded RJ-45, EIA 568A and 568B Dimensions 80x54x24mm Environmental Conditions Operating Ambient Temperature:0 to 40? Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-20 to 70? Storage Humidity: Maximum 95%, Non-condensing Regulatory Compliance   IEEE 803.3bt (60W PoE) IEEE 802.3at (30W PoE) IEEE 802.3af (15W PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) RoHS Compliant, CE, FCC

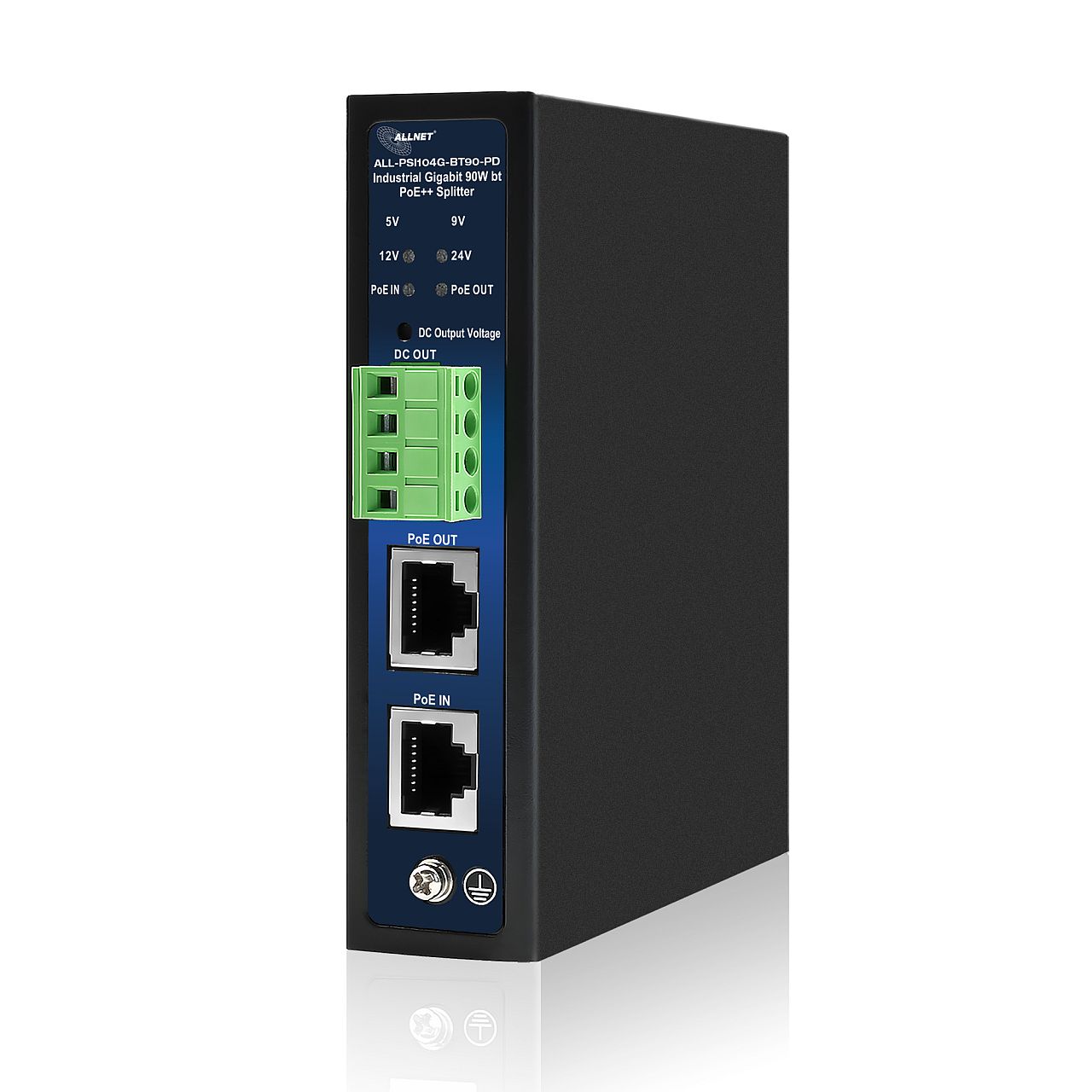

Highlight: Comply with IEEE 802.3i/u/ab 1 GbE RJ45 PoE Input 1 GbE RJ45 PoE Output 4 PIN phoenix terminal, splits PoE over into DC Output 5V/9V/12V/24VDC power output adjustable Support IEEE 802.3af/at/bt Output Total Power Max.72W Three rail-mounted designs Operating Ambient Temperature: -40 to 75°C Description: The ALL-PSI104G-BT90-PD is a powerful industrial PoE splitter for Gigabit Ethernet applications that reliably converts a 48 V PoE input voltage to 5 V, 9 V, 12 V or 24 V DC. Power is supplied via an RJ45 Ethernet cable, eliminating the need for additional power supplies or separate power lines. The device meets the performance requirements of the IEEE 802.3af, 802.3at and 802.3bt standards and supports both conversion to a DC power output via a 4-pin Phoenix terminal and a direct PoE pass-through output. With a maximum output power of up to 72 W (PoE++ / BT), the PoE splitter is ideal for power-intensive end devices such as industrial cameras, access points, displays, controllers or IoT applications. Thanks to its robust industrial design, rail mounting options and wide operating temperature range from –40 °C to +75 °C, the ALL-PSI104G-BT90-PD is ideal for use in harsh industrial environments, control cabinets, transport systems and automation applications. Features Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt. Support PoE applications in Gigabit Ethernet environments. Auto-Sensing Algorithm enables taking power from IEEE802.3af/at/bt PSE. Splits the 48VDC power over RJ45 Ethernet cable into different DC output. Support wide input voltage range 44Vdc to 57Vdc. Maximum power output up to 72W. Support for the POE output of IEEE 802.3af/at/bt. Adjustable output 5VDC/14A or 9VDC/7.8A or 12VDC/5.9A,24VDC/3A.? Thermal cut off. Short-circuit protection. High efficiency DC/DC converter. LED indicators for power input indication. Plug-and-Play. Frontpanel:  Technical Details: Item Description port 1 10/100/1000M RJ45 PoE Port (DATA + POWER IN) 1 10/100/1000M RJ45 PoE Port (DATA + POWER OUT) 1 DC interface (DC OUT) Network Media 10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5,5E Unshielded Cable 1000Mbps: Cat 5E, 6 Unshielded Cable Pass Through Data Rates 10/100/1000 Mbps Power Output Adjustable 5VDC/14A max, 9VDC/7.8A max, 12VDC/5.9A max, 24VDC/3A max PoE Output IEEE 802.3af/at/bt, Max.72W Input Power Requirements DC Input Voltage: 44 to 57 VDC Indicators PoE Indicators / DC out Voltage Indicators Connectors Shielded RJ-45, EIA 568A and 568B Dimensions 119x85.5x28mm Environmental Conditions Operating Ambient Temperature: -40 to +75°C Operating Humidity: Maximum 90%, non-condensing Storage Temperature: -40 to +75°C Storage Humidity: Maximum 95%, non-condensing Regulatory Compliance IEEE 802.3af (PoE) IEEE 802.3at (PoE) IEEE 802.3bt (PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) RoHS Compliant, CE, FCC
